S7-1200

SM 1231 Analog Input Module

S7-1200 DIGITAL OUTPUT 16DO RELAY 2A

Digital I/O Module

SIMATIC S7-1200
Digital I/O SM 1223
8 DI/8 DO, 8 DI 24 V DC
Sink/Source, 8DO
transistor 0.5 A

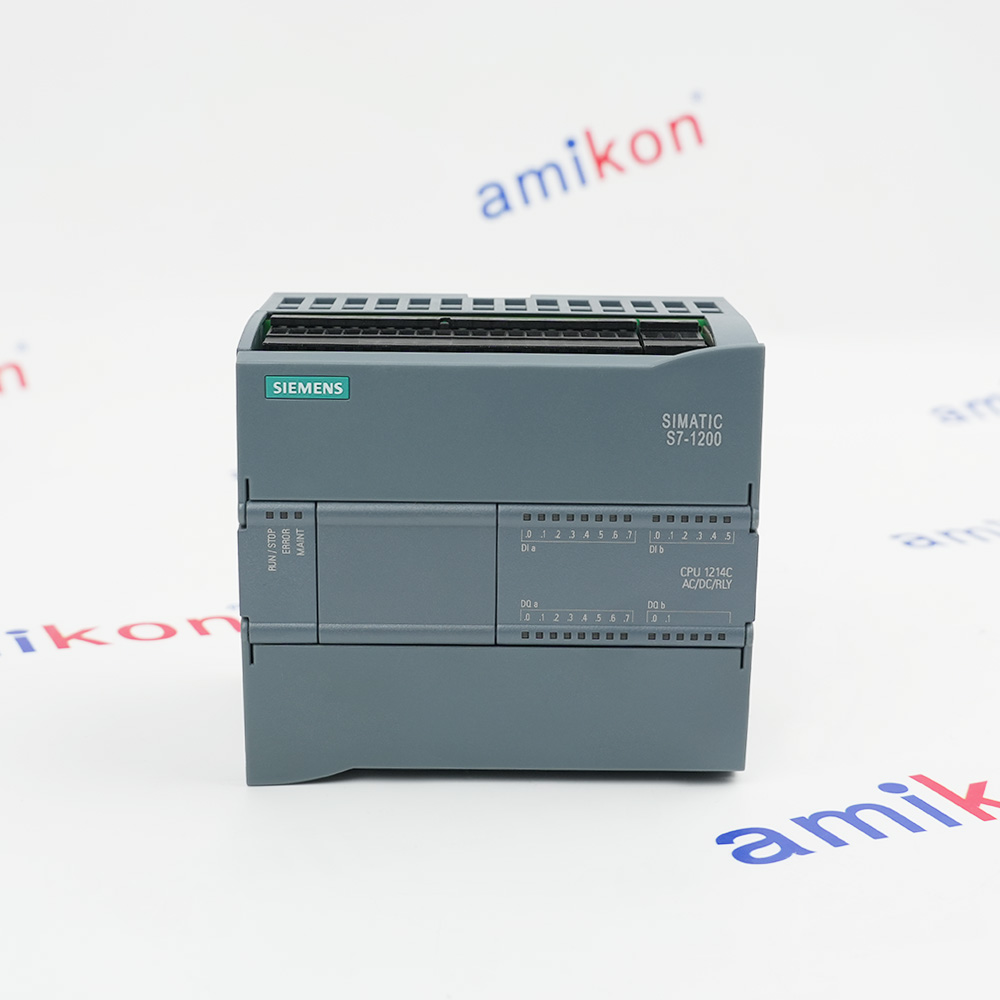

CPU 1214C DC/DC/RELAY 14DI/10DO/2AI

DIGITAL OUTPUT SM 1222 8 DO RELAY

SM 1232 Analog Output Module

AC/DC/RELAY 14DI/10DO/2AI

SIMATIC S7-1200
CPU 1214C
compact CPU
AC/DC/relay
onboard I/O: 14 DI24 V DC
10 DO relay 2 A; 2 AI 0-10 V DC
power supply: AC 85-264 V AC at 47-63 Hz
program/data memory 150 KB

SM 1221 Digital Input Module

SM 1231 Analog Input Module

SIMATIC S7-1200
Analog input, SM 1231
8 AI, +/-10 V, +/-5 V, +/-2.5 V
or 0-20mA/4-20 mA
12 bit+sign or (13 bit ADC)

SM 1232 Analog Output Module

SM1234 Analog I/O Module

SM 1231 Analog Input Module

S7-1200 DIGITAL OUTPUT 16 DO 24VDC 0.5A

SIMATIC S7-1200
Digital output SM 1222
16 DO, 24 V DC, transistor 0.5 A
Power loss, typ. 2.5 W
Rated value (DC) 24 V
for signal "0", max. 0.1 V; with 10 kOhm load
for signal "1", min. 20 V DC

SM 1221 Digital Input Module

SIMATIC S7-1200
Digital input SM 1221
16 DI, 24 V DC
Sink/Source
Rated value (DC) 24 V
permissible range, lower limit (DC) 20.4 V
permissible range, upper limit (DC) 28.8 V

Compact CPU 1214C

SIMATIC S7-1200
CPU 1214C, compact CPU
DC/DC/DC, onboard I/O: 14 DI 24V DC
10 DO 24 V DC; 2 AI 0-10 V DC
power supply: DC 20.4-28.8 V DC
program/data memory 150 KB

Memory Card - 24 MB
