PRODUCT DESCRIPTION

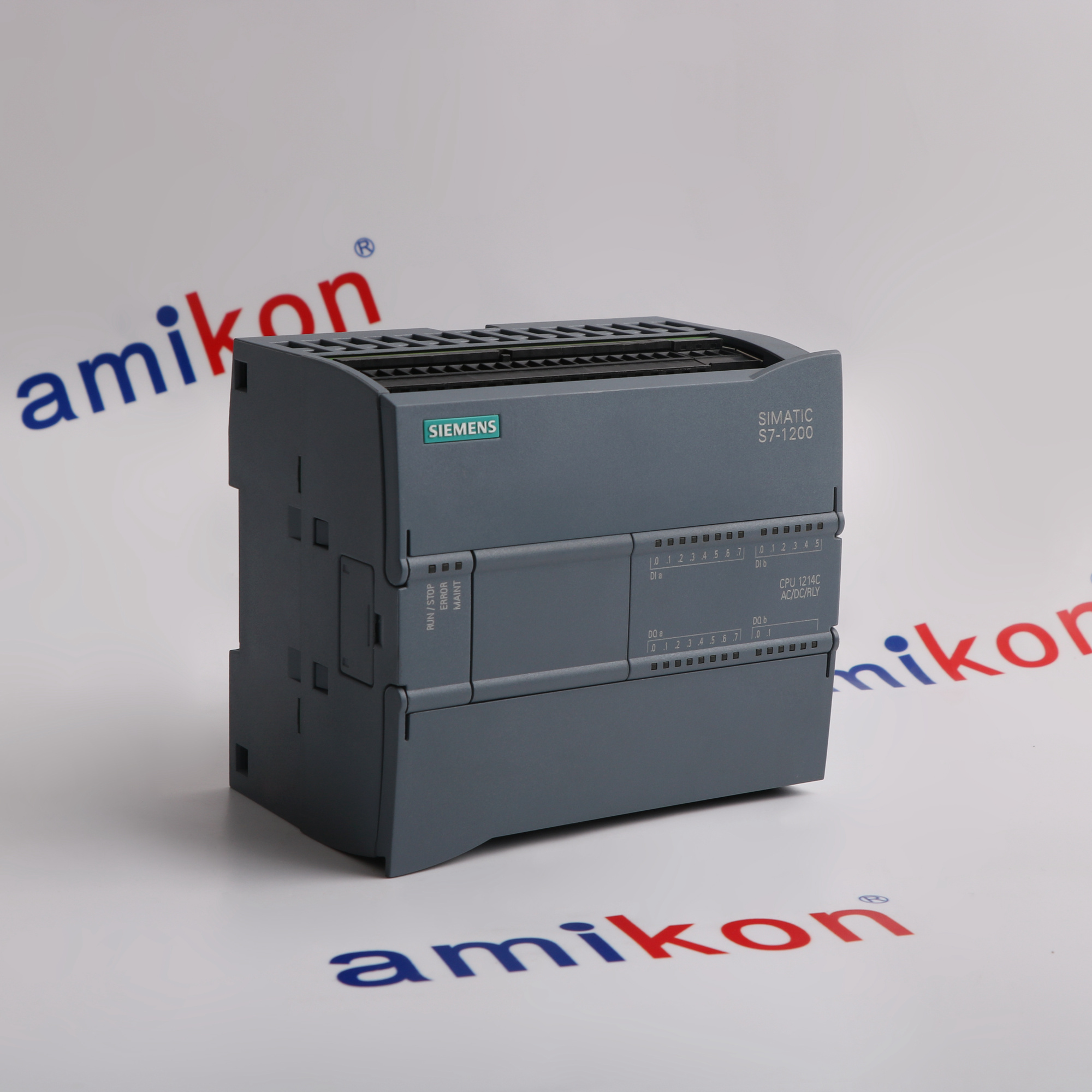

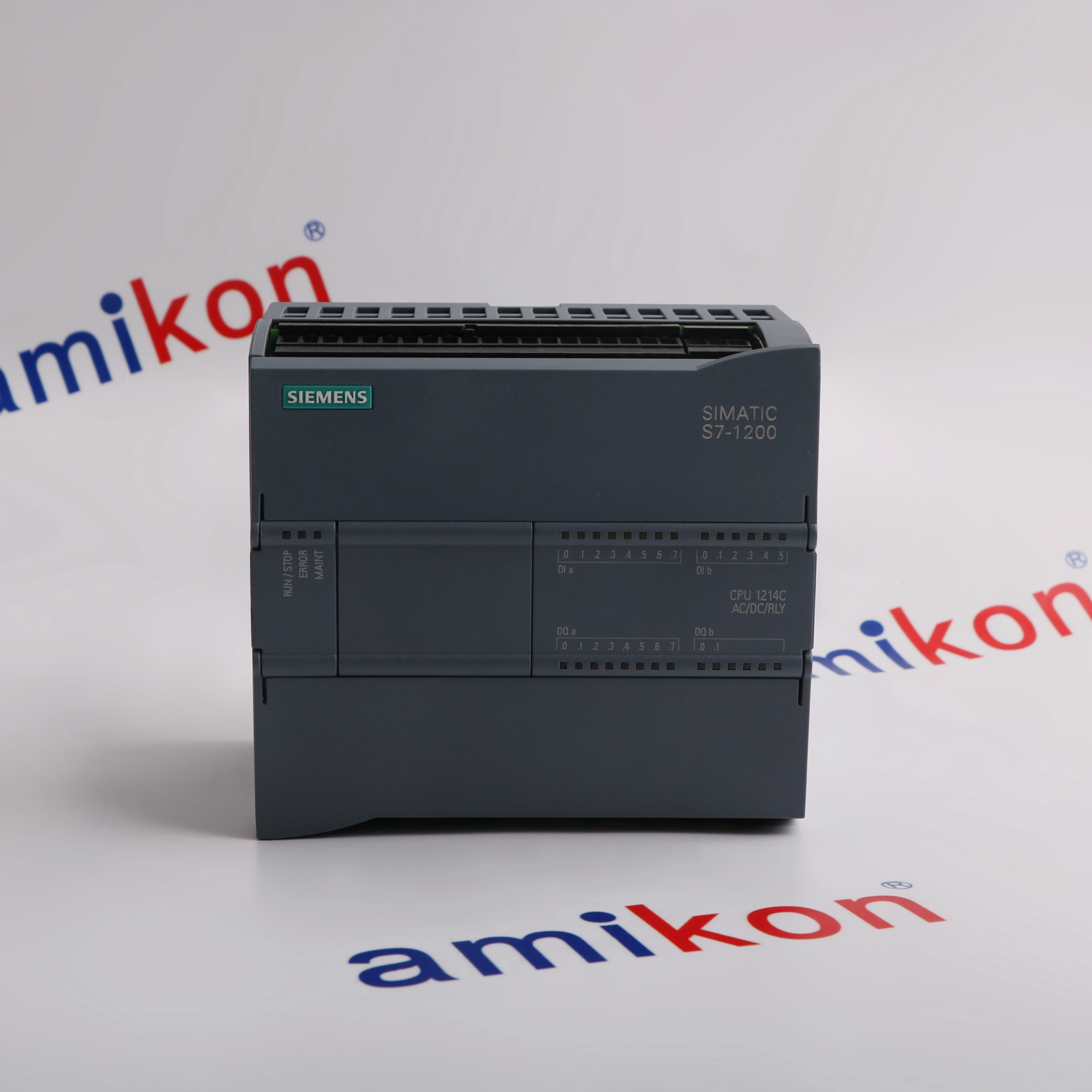

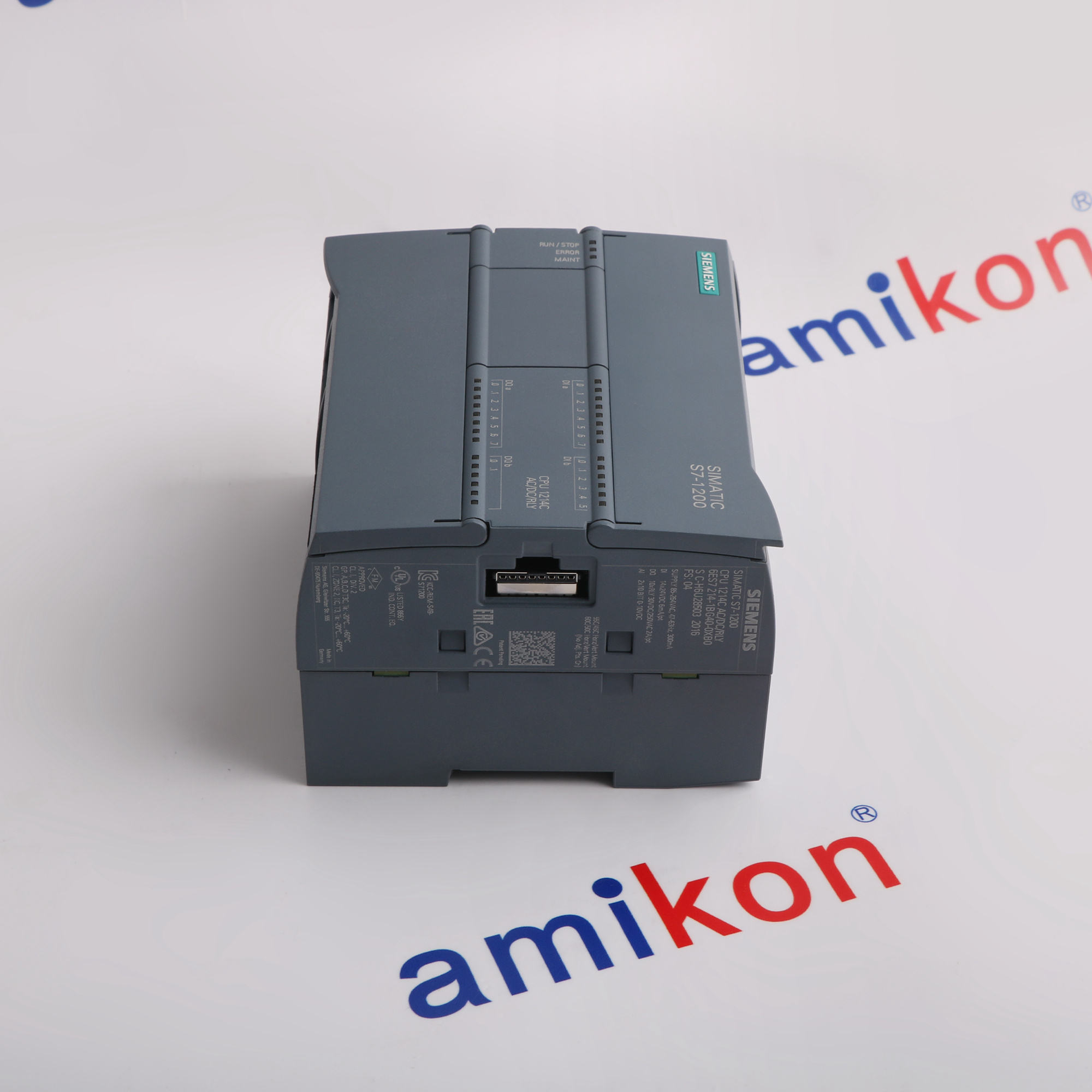

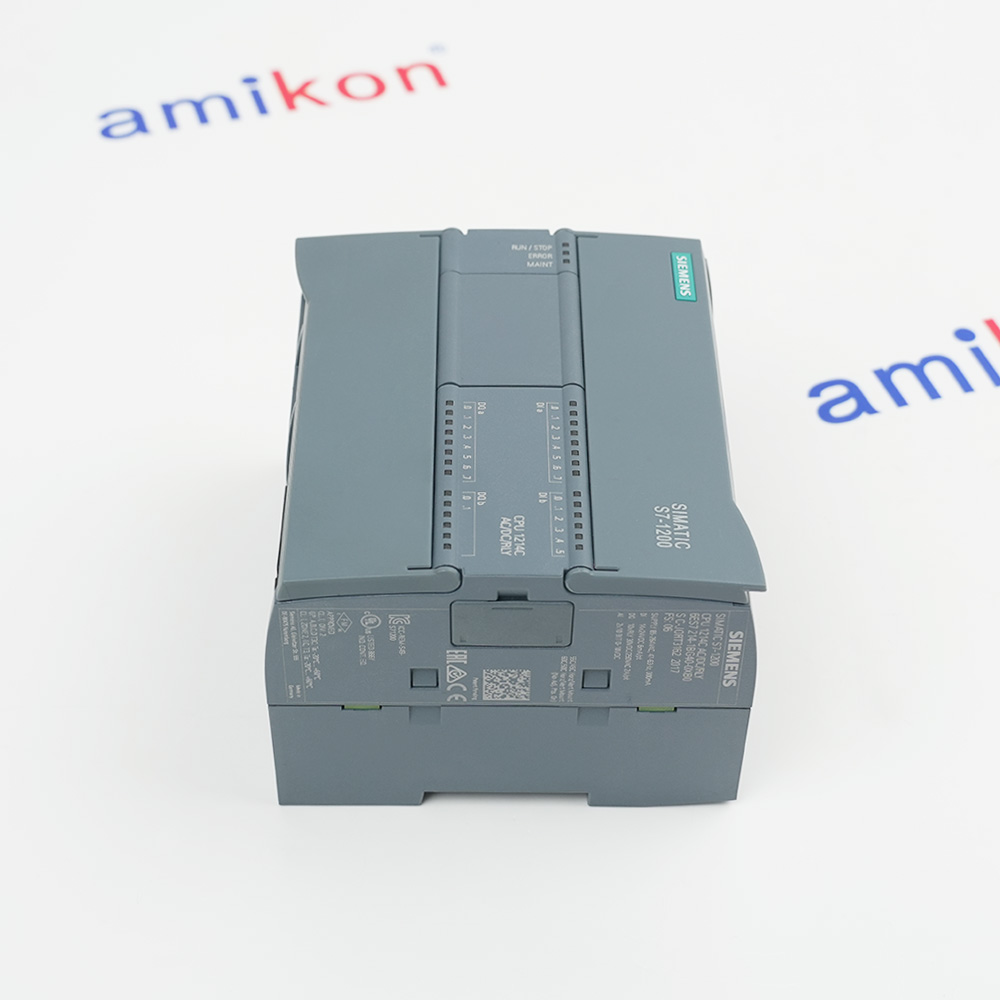

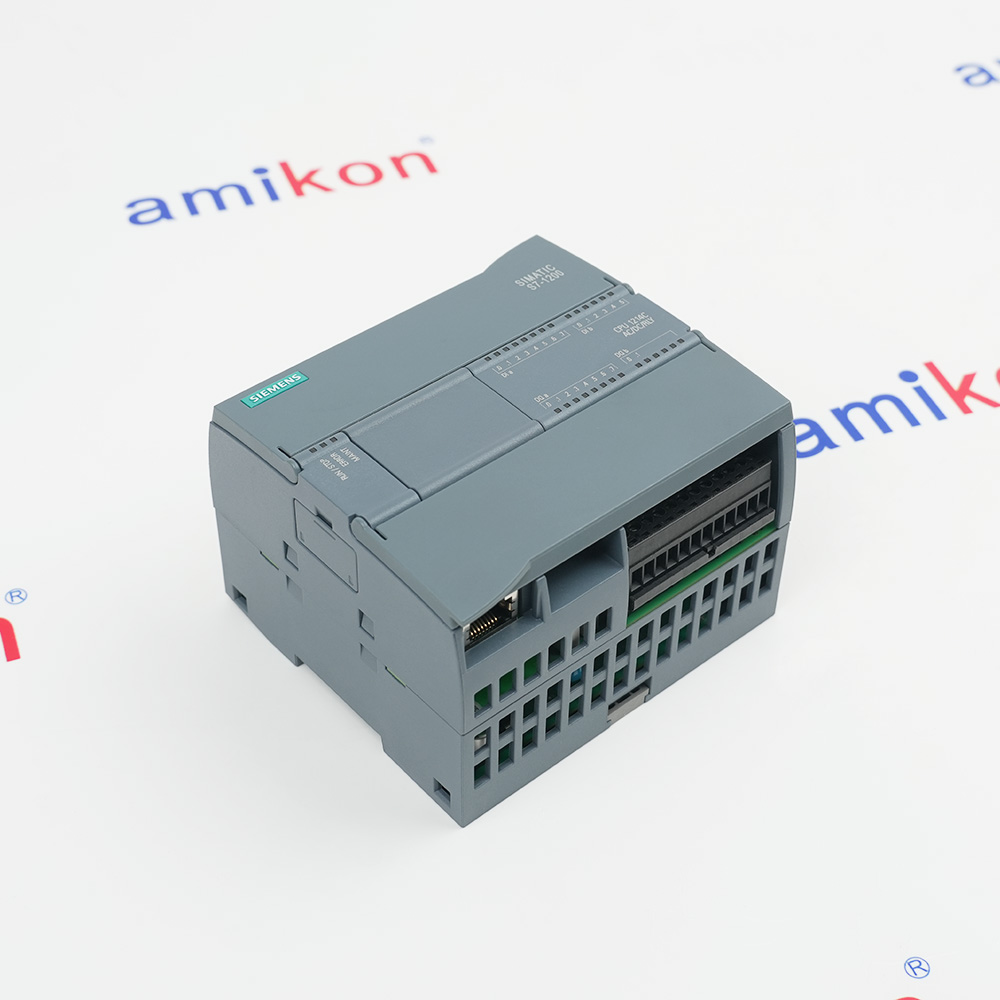

6ES7214-1BG40-0XB0 SIMATIC S7-1200 Compact CPU
Siemens 6ES7214-1BG40-0XB0 is a simatic s7-1200 compact cpu in the SIMATIC S7-1200 CPU1214C AC/DC/relay range. It is used for compact machine control with AC supply and relay outputs in compatible industrial automation projects.
The AC/DC/relay execution combines fourteen DC inputs, ten relay outputs and two 0–10 V analog inputs. The documented V4.6 firmware generation has 150 KB working memory and requires STEP 7 V18 or later. Relay loading, communication configuration and the installed firmware must match the accepted project; other firmware generations can have different memory and engineering requirements.
The AC/DC/relay execution combines fourteen DC inputs, ten relay outputs and two 0–10 V analog inputs. The documented V4.6 firmware generation has 150 KB working memory and requires STEP 7 V18 or later. Relay loading, communication configuration and the installed firmware must match the accepted project; other firmware generations can have different memory and engineering requirements.
BEFORE YOU BUY
Confirm the complete simatic s7-1200 compact cpu
ACTUAL APPLICATIONS
Application context for 6ES7214-1BG40-0XB0
6ES7214-1BG40-0XB0 is a simatic s7-1200 compact cpu for SIMATIC S7-1200 CPU1214C AC/DC/relay. Its industrial scope includes food and beverage, water and wastewater, packaging. Use depends on the compatible system, connected equipment and documented operating limits.
-
01 · FOOD & BEVERAGE
Food Processing and Beverage Production
Dairy Processing and ProductionFood Production and Packaging -
02 · WATER & WASTEWATER
Water Supply and Municipal Wastewater Treatment
Municipal Water Supply ControlIndustrial Wastewater Treatment Processes -
03 · PACKAGING
Packaging Production and Material Converting
Packaging Production Process ControlPaper Packaging Material Converting
Technical specifications for 6ES7214-1BG40-0XB0
-
Product Model6ES7214-1BG40-0XB0
-
Product ParametersSIMATIC S7-1200 Compact CPU
-
In stock7 units
-
ManufacturerSiemens
-
AC supply range85–264 V
-
Permitted line frequency47–63 Hz
-
Maximum AC input current300 mA at 120 V; 150 mA at 240 V
-
Maximum inrush current20 A at 264 V
-
Typical power dissipation14 W
-
Integrated work memory150 KB, documented firmwareV4.6
-
Integrated load memory4 MB
-
Onboard digital inputs14, 24 V DC
-
Onboard relay outputs10, 2 A
-
Integrated analog inputs2, 0–10 V
-
Backplane output-current budget1600 mA at 5 V DC
-
Retentive memory capacity14 KB maximum
-
Typical bit-operation time0.08 µs per instruction
-
Expansion module capacity3 communication modules, 1 signal board, 8 signal modules
-
Engineering versionSTEP 7 V18 or later for firmwareV4.6
View all additional
Alternative Names
6ES7214-1BG40-0XB0
SIMATIC S7-1200 CPU1214C AC/DC/relay SIMATIC S7-1200 Compact CPU
S7-1200 CPU1214C AC/DC/relay 85–264 V ac supply range
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Integrate 6ES7214-1BG40-0XB0 simatic s7-1200 compact cpu
Integrate 6ES7214-1BG40-0XB0 only in the documented SIMATIC S7-1200 CPU1214C AC/DC/relay configuration. Match the installed interfaces and the engineered application before selecting this simatic s7-1200 compact cpu.
The AC/DC/relay execution combines fourteen DC inputs, ten relay outputs and two 0–10 V analog inputs. The documented V4.6 firmware generation has 150 KB working memory and requires STEP 7 V18 or later. Relay loading, communication configuration and the installed firmware must match the accepted project; other firmware generations can have different memory and engineering requirements.
Use the applicable controlled instructions for SIMATIC S7-1200 CPU1214C AC/DC/relay. Validate the assigned signals, communication or output behaviour and retain the accepted configuration for 6ES7214-1BG40-0XB0.
Features:
- AC supply range: 85–264 V
- Permitted line frequency: 47–63 Hz
- Maximum AC input current: 300 mA at 120 V; 150 mA at 240 V
The 6ES7214-1BG40-0XB0 simatic s7-1200 compact cpu requires appropriate configuration before system integration and commissioning.
INTERCHANGEABILITY
Verify 6ES7214-1BG40-0XB0 simatic s7-1200 compact cpu
Confirm the complete 6ES7214-1BG40-0XB0 identity and installed SIMATIC S7-1200 CPU1214C AC/DC/relay execution before replacement. Compare the connector arrangement and the technical values required by the existing project.
Record the simatic s7-1200 compact cpu connections, project settings and associated accessories. Preserve the accepted configuration and isolate the affected circuits before exchange.
After fitting 6ES7214-1BG40-0XB0, restore the verified configuration and test every affected function. Retain the identification, diagnostic results and final acceptance record for the SIMATIC S7-1200 CPU1214C AC/DC/relay equipment.
Features:
- AC supply range: 85–264 V
- Permitted line frequency: 47–63 Hz
- Maximum AC input current: 300 mA at 120 V; 150 mA at 240 V
The 6ES7214-1BG40-0XB0 simatic s7-1200 compact cpu requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Verify document identity before procurement or installation
- Match the complete order to the manufacturer document scope
- Accessories are supplied only when listed in the quotation
Documentation for the 6ES7214-1BG40-0XB0 simatic s7-1200 compact cpu must be checked for document applicability before installation or commissioning.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size11 × 10 × 7.5cm
-
Shipping weight0.40kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8537101190
-
OriginGermany
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 6ES7214-1BG40-0XB0
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Which AC supply range is permitted for CPU1214C AC/DC/relay?
For 6ES7214-1BG40-0XB0, the documented ac supply range is 85–264 V. -
What mains-frequency range is allowed for the relay CPU1214C?
For 6ES7214-1BG40-0XB0, the documented permitted line frequency is 47–63 Hz. -
What maximum supply current applies at 120 and 240 V AC?
For 6ES7214-1BG40-0XB0, the documented maximum ac input current is 300 mA at 120 V; 150 mA at 240 V. -
What inrush current can the AC-powered CPU draw at 264 V?
For 6ES7214-1BG40-0XB0, the documented maximum inrush current is 20 A at 264 V. -
What heat loss is documented for the AC relay execution?
For 6ES7214-1BG40-0XB0, the documented typical power dissipation is 14 W. -
How much working memory is specified for its V4.6 generation?
For 6ES7214-1BG40-0XB0, the documented integrated work memory is 150 KB, documented firmwareV4.6. -
Which relay-load details help quote the AC CPU1214C?
Provide 6ES7214-1BG40-0XB0, quantity, AC supply, relay loads and installed firmware. Include the project version and label photographs so the offered AC/DC/relay execution matches the required configuration. -
What should be examined on an arriving AC relay controller?
Verify the 6ES7214-1BG40-0XB0 nameplate, AC input terminals, relay contacts and package condition. Compare the installed firmware and quotation accessories before transferring the accepted CPU1214C project.
