- 6ES7212-1AE40-0XB0
In Stock
Ships by Sunday, August 30
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 6ES7212-1AE40-0XB0
-
Product Model6ES7212-1AE40-0XB0
-
Spare ModelCPU1212C
-
Product ParametersCPU 1212C Compact CPU
-
Tariff Code8537101190
-
Country of originGERMANY
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size9x7.5x10cm
-
ManufacturerSiemens
-
Weight0.3 kg
-
Product type designationCPU 1212C DC/DC/DC
-
Firmware versionV4.7
-
Programming packageSTEP 7 V20 or higher
-
Rated value (DC)24 V DC
-
permissible range, lower limit (DC)20.4 V
-
permissible range, upper limit (DC)28.8 V
-
Current consumption (rated value)400 mA; CPU only
-
Current consumption, max.1 200 mA; CPU with all expansion modules
-
Inrush current, max12 A; at 28.8 V DC
-
for backplane bus (5 V DC), max1000 mA
-
Power loss, typ9 W
-
integrated100 kbyte
-
for signal \\5 V DC at 1 mA
-
for signal \\15 V DC at 2.5 mA
Description

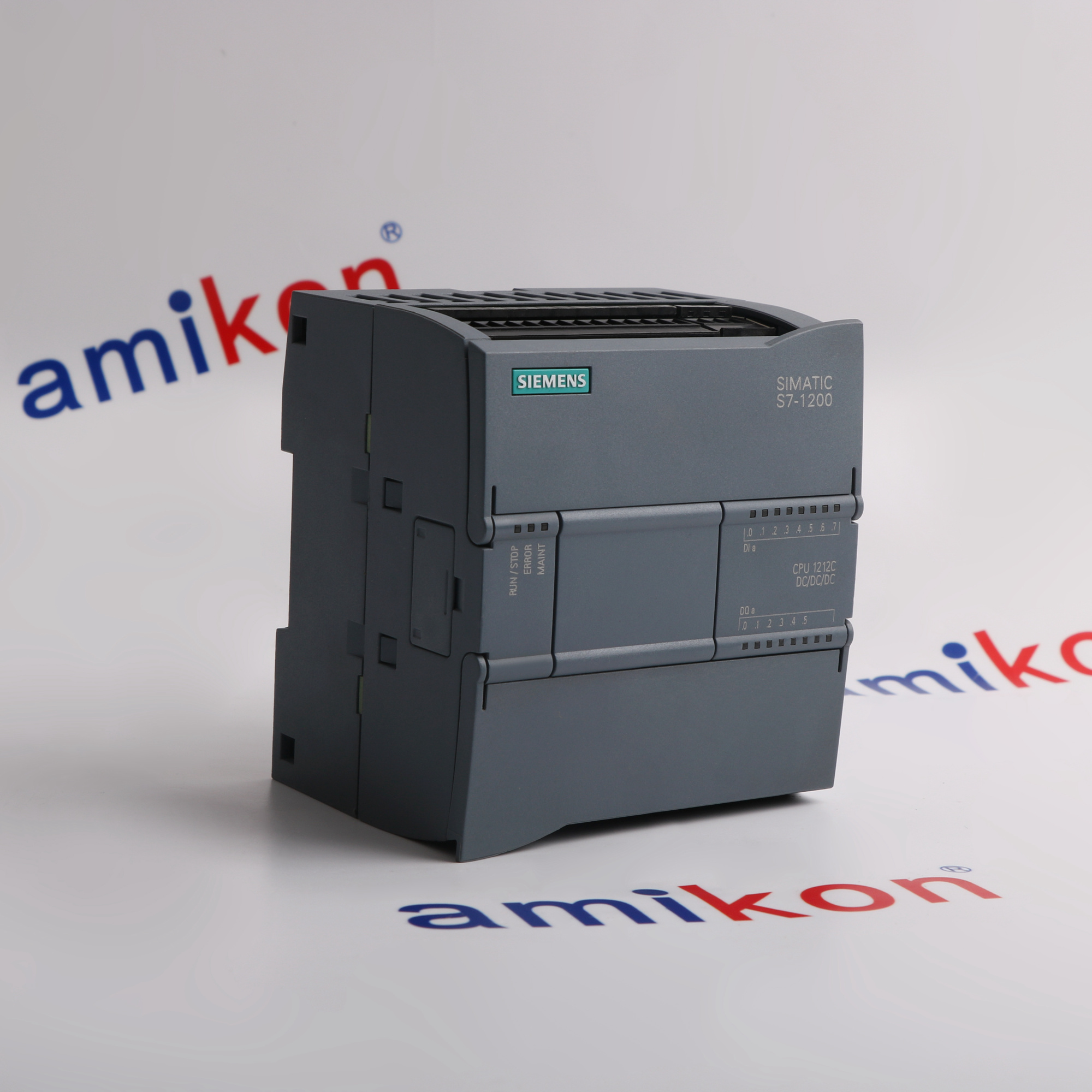

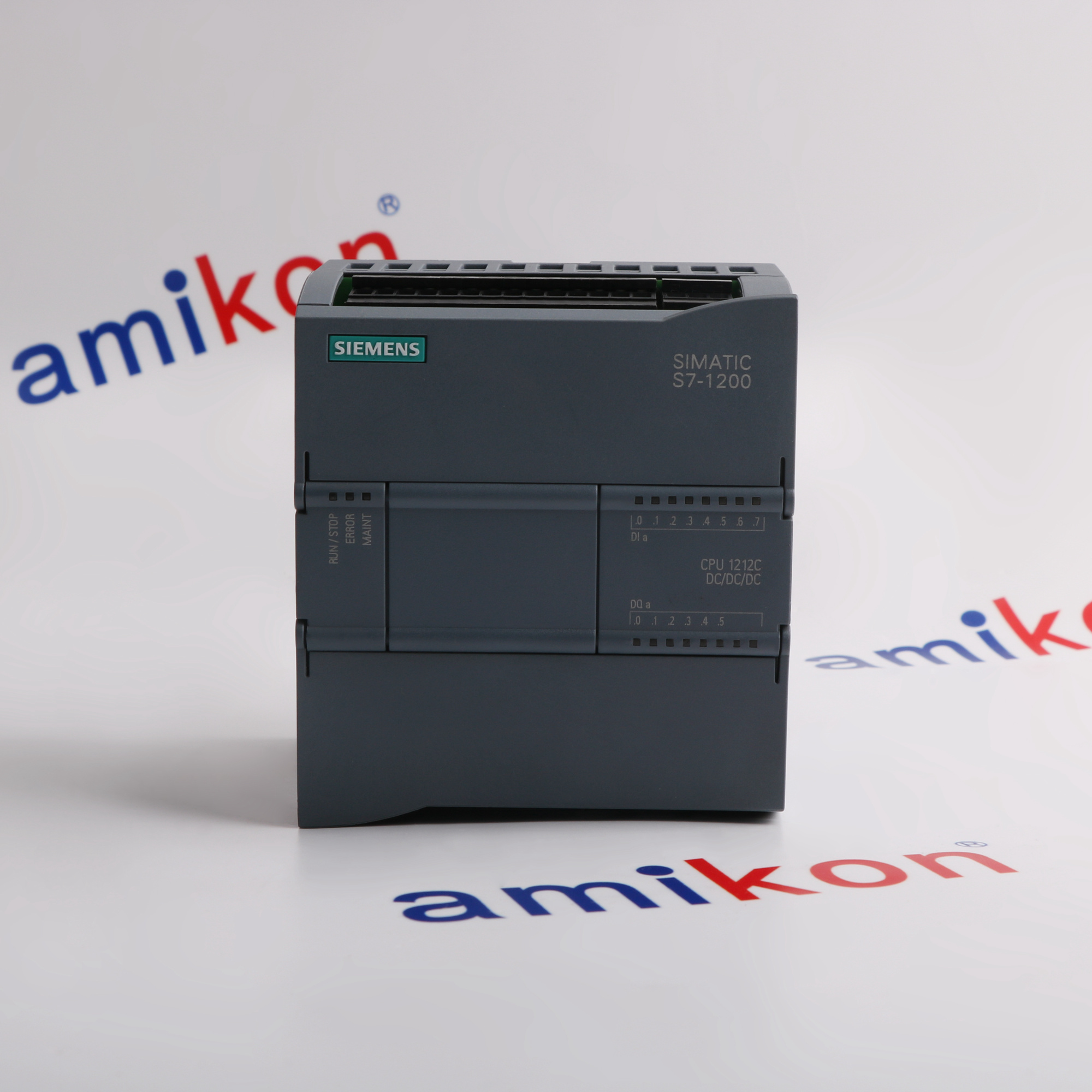

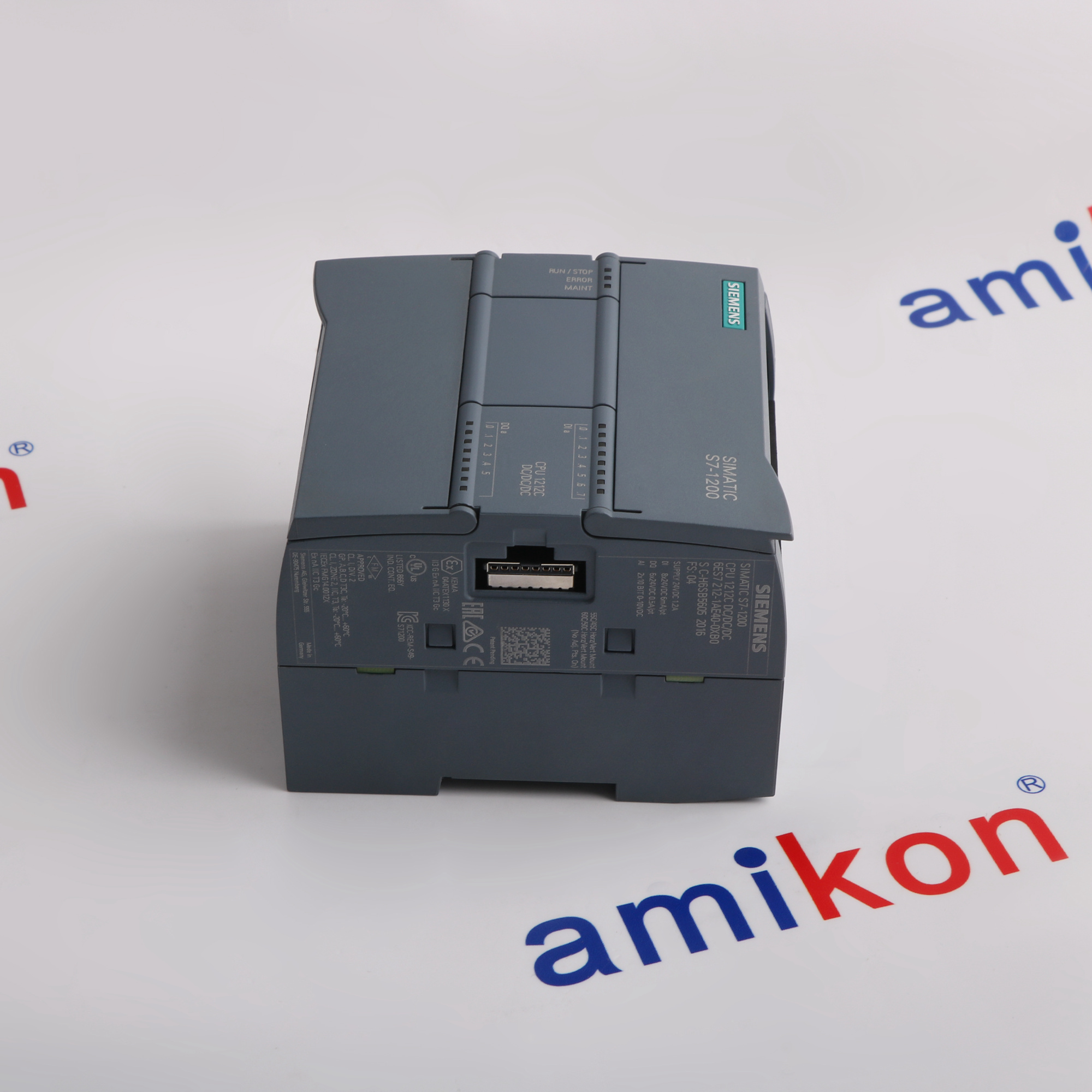

The 6ES7212-1AE40-0XB0 is a SIMATIC S7-1200 CPU 1212C compact CPU module for industrial automation applications. The 6ES7212-1AE40-0XB0 features a DC/DC/DC power supply configuration, ensuring stable and reliable operation across a wide voltage range.
With onboard I/O directly integrated into the 6ES7212-1AE40-0XB0, users benefit from 8 digital inputs (24 V DC), 6 digital outputs (24 V DC), and 2 analog inputs (0–10 V DC), eliminating the need for additional signal modules in many standard control tasks. The 6ES7212-1AE40-0XB0 also includes reverse polarity protection on its DC power supply input, enhancing system safety during installation and maintenance.
The 6ES7212-1AE40-0XB0 provides 75 KB of integrated program and data memory, enabling efficient execution of automation programs. For communication, the 6ES7212-1AE40-0XB0 is equipped with an integrated PROFINET / Ethernet interface, allowing seamless connection to HMIs, SCADA systems, and other networked devices within the SIMATIC ecosystem.
With onboard I/O directly integrated into the 6ES7212-1AE40-0XB0, users benefit from 8 digital inputs (24 V DC), 6 digital outputs (24 V DC), and 2 analog inputs (0–10 V DC), eliminating the need for additional signal modules in many standard control tasks. The 6ES7212-1AE40-0XB0 also includes reverse polarity protection on its DC power supply input, enhancing system safety during installation and maintenance.
The 6ES7212-1AE40-0XB0 provides 75 KB of integrated program and data memory, enabling efficient execution of automation programs. For communication, the 6ES7212-1AE40-0XB0 is equipped with an integrated PROFINET / Ethernet interface, allowing seamless connection to HMIs, SCADA systems, and other networked devices within the SIMATIC ecosystem.
Information
Overview
Manuals
Application Notes
Product Applications
I/O & Communication Wiring
Features:
- Compact CPU with Integrated Onboard I/O
- DC/DC/DC Power Supply with Reverse Polarity Protection
- 75 KB Integrated Program/Data Memory
- Integrated PROFINET Communication Interface
The 6ES7212-1AE40-0XB0 includes an integrated PROFINET Ethernet interface for engineering, PLC communication, HMI connectivity, diagnostics, and industrial networking. The controller supports expansion through SIMATIC S7-1200 signal modules (SM), signal boards (SB), and communication modules (CM), allowing additional digital I/O, analog I/O, and serial communication interfaces to be added as application requirements increase. Integrated diagnostic functions and a built-in web server simplify commissioning, monitoring, and maintenance.
The 6ES7212-1AE40-0XB0 Siemens SIMATIC S7-1200, CPU MODULE may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Siemens 6ES7212-1AE40-0XB0 SIMATIC S7-1200, CPU MODULE Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 6ES7212-1AE40-0XB0 is for DIN-rail installation inside industrial control cabinets and complies with the environmental and electrical requirements of the SIMATIC S7-1200 platform. Battery-free data retention, maintenance-free operation, and comprehensive diagnostic capabilities contribute to dependable long-term operation in industrial environments. The controller integrates seamlessly with other Siemens automation products, including SIMATIC HMI panels, SINAMICS drives, and distributed I/O systems.
The 6ES7212-1AE40-0XB0 is widely used in packaging machinery, conveyor systems, water and wastewater treatment, food and beverage production, building automation, material handling, machine tools, and general manufacturing. Its compact design, integrated I/O, PROFINET connectivity, and expandable architecture make it a versatile controller for industrial automation applications requiring reliable performance and flexible system expansion.
- Compact Machinery: Ideal for simple packaging machines, small conveyors, and localized pump controls
- Building Automation: Used for localized HVAC monitoring, environmental control, and basic lighting setups
- Process Manufacturing: Fits entry-level mixing, dosing, and filling systems requiring straightforward numerical input
- Controller Companion: Commonly paired as dedicated operator terminal for Siemens S7-1200 PLCs in distributed networks
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Digital Inputs (8 DI): Wire for sinking or sourcing logic by matching external device common lines to the internal input driver configuration; bridge terminal M to the power supply common for standard sinking operations.
Digital Outputs (6 DO): Connect your 24V DC load components to the transistor output terminals (1.0 through 1.5) alongside the respective load return paths.
Analog Inputs (2 AI): Wire 0-10V signals into the designated analog channels using twisted and shielded cables up to 100 meters long.
PROFINET / Ethernet: Plug a standard RJ45 industrial Ethernet cable into the bottom port for programming via STEP 7 / TIA Portal.
Alternative Names
6ES7212-1AE4O-OXBO
6ES72I2-IAE40-0XB0
6ES7 212-1AE40-0XB0
6ES7 212-1AE4O-OXBO
6ES7 2I2-IAE40-0XB0
Technical notes
Engineered for flexibility, the 6ES7212-1AE40-0XB0 supports modular expansion with up to 2 signal modules, 1 signal board, and 3 communication modules, enabling scalable system architectures. The 6ES7212-1AE40-0XB0 supports high-speed counter functions up to 100 kHz and pulse train outputs up to 100 kHz, making it well-suited for motion control and precise positioning applications.
FAQs
-
What does DC/DC/DC signify in the description?
+It defines the hardware configuration electrical specifications. The module requires a 24 V DC power supply, operates with 24 V DC digital inputs, and provides 24 V DC solid-state digital outputs -
How many built-in I/O channels are onboard?
+The unit features exactly 8 Digital Inputs (24 V DC), 6 Digital Outputs (24 V DC), and 2 Analog Inputs (0-10 V DC). -
Which communication networks are supported?
+The CPU features 1 PROFINET RJ45 port supporting IO Controller, IO Device, and open IE Ethernet communication protocols. -
What programming software is required?
+Configuration and programming must be managed using the Siemens TIA Portal development suite.
