- 6ES7215-1HG40-0XB0

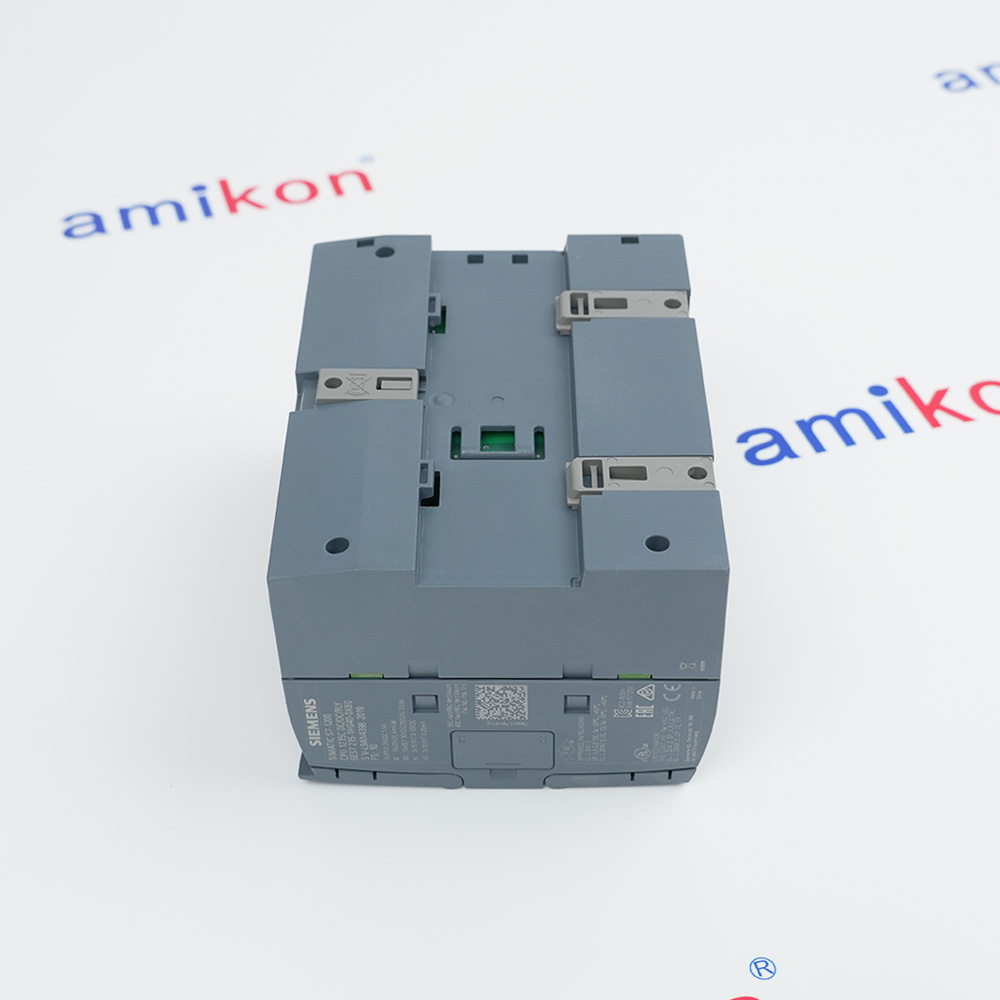

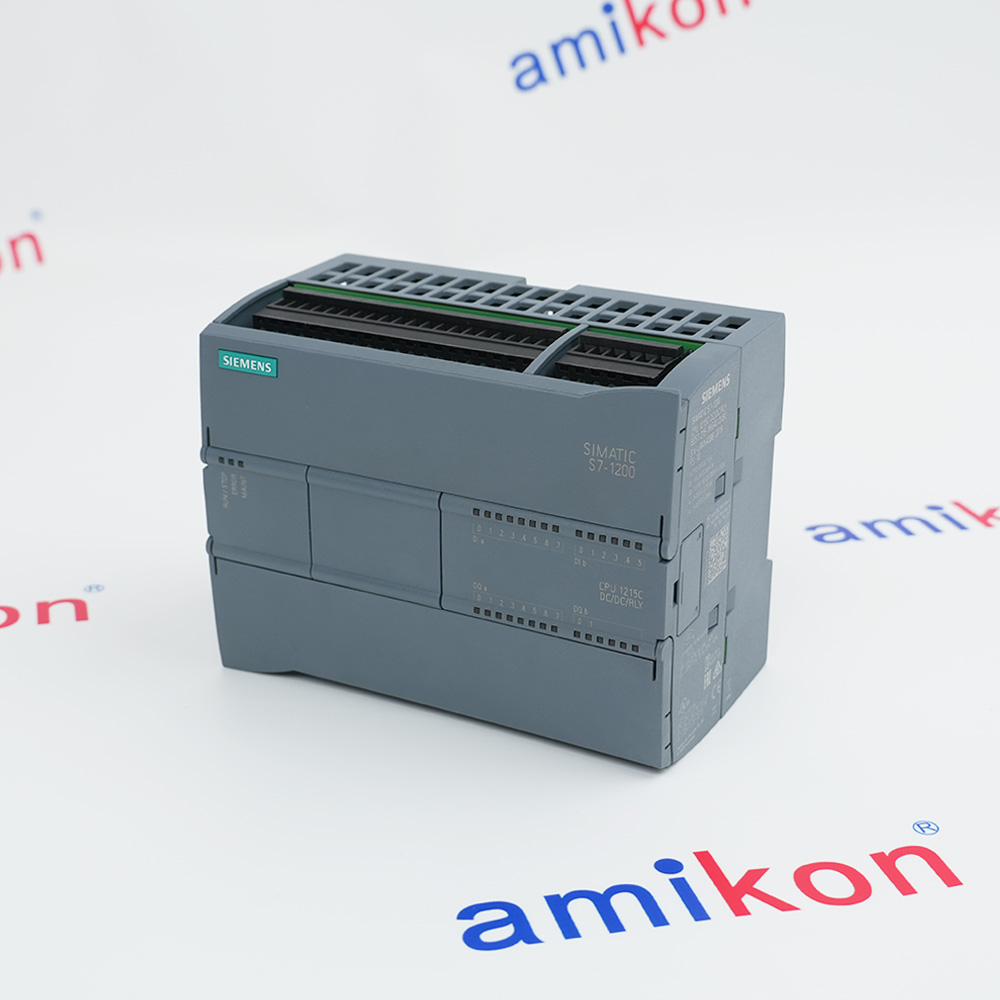

· Product image is representative; revision or series may vary. Contact us to request a specific version.
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 6ES7215-1HG40-0XB0
-
Product Model6ES7215-1HG40-0XB0
-
Product ParametersCPU1215C Compact Unit
-
Tariff Code8537101190
-
Country of originGermany
-
Place of shipmentXiamen, China
-
Estimated Shipping Size13x10x7.5cm
-
ManufacturerSiemens
-
Weight0.4 kg
-
Product type designationCPU 1215C DC/DC/relay
-
Firmware versionV4.6
-
Programming packageSTEP 7 V18 or higher
-
Rated value (DC)24 V DC
-
permissible range, lower limit (DC)20.4 V
-
permissible range, upper limit (DC)28.8 V
-
Reverse polarity protectionYes
-
Current consumption (rated value)500 mA; CPU only
-
Current consumption, max.1 500 mA; CPU with all expansion modules
-
Inrush current, max12 A; at 28.8 V DC
-
Power loss, typ12 W
-
Input resistance (0 to 10 V)≥100k ohms
Description
6ES72151HG400XB0
SIMATIC S7-1200
CPU 1215C
COMPACT CPU
DC/DC/RELAY
2 PROFINET PORTS
ONBOARD I/O: 14 DI 24 V DC
10 DO RELAY 2 A
2 AI 0-10 V DC
2 AO 0-20 MA DC
POWER SUPPLY: DC 20.4-28.8 V DC
PROGRAM/DATA MEMORY 200 KB
SIMATIC S7-1200
CPU 1215C
COMPACT CPU
DC/DC/RELAY
2 PROFINET PORTS
ONBOARD I/O: 14 DI 24 V DC
10 DO RELAY 2 A
2 AI 0-10 V DC
2 AO 0-20 MA DC
POWER SUPPLY: DC 20.4-28.8 V DC
PROGRAM/DATA MEMORY 200 KB
Information
Overview
Manuals
Technical notes
Product Applications
Wiring Instructions
Features:
- SIMATIC S7-1200
- CPU 1215C, compact CPU
- power supply: DC 20.4-28.8 V DC, program/data memory 200 KB
- onboard I/O: 14 DI 24 V DC; 10 DO relay 2 A, 2 AI 0-10 V DC, 2 AO 0-20 mA DC
The 6ES7215-1HG40-0XB0 Siemens CPU Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Siemens 6ES7215-1HG40-0XB0 CPU Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The Siemens 6ES7215-1HG40-0XB0 is a SIMATIC S7-1200 CPU 1215C compact controller (DC/DC/Relay) featuring 14 digital inputs (24V DC), 10 relay outputs (2A), 2 analog inputs (0-10V), and 2 analog outputs (0-20mA). It includes 2 PROFINET ports, 125KB–200KB work memory, and supports STEP 7 V18/V20 software. The CPU includes 125 KB of program and data memory.The 6ES7215-1HG40-0XB0 is the Firmware V4.0+ version. It replaces the older 6ES7215-1HG31-0XB0 (Firmware V3.0). Replacing a V3 with a V4 requires hardware replacement
- Manufacturing Machinery: Suitable for standalone machines needing relay contact switching for motors, valves, or lights
- Conveyors and Logistics: Ideal for material handling and simple linear position tracking
- Building Automation/HVAC: Used in temperature monitoring, lighting control, and building management systems.
- Packaging Systems: Suitable for handling I/O for labeling, packing, and sorting.
- Process Control: Suitable for small-scale batching systems utilizing integrated analog I/O
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Power (L+/M): Connect the 24V DC supply to the L+ and M terminals.
Digital Inputs: These are typically 24V DC sinking or sourcing. Connect the common terminal (1M) to the ground (M) of your supply for sourcing inputs.
Digital Outputs (Relay): These act as dry contacts. You must provide the load voltage (e.g., 24V DC or 120-230V AC) to the L terminals; the PLC will then switch this voltage to the output terminals.
FAQs
-
What is the 6ES7215-1HG40-0XB0？
+The Siemens 6ES7215-1HG40-0XB0 is a SIMATIC S7-1200 CPU 1215C compact controller (DC/DC/Relay) featuring 14 digital inputs, 10 relay outputs, 2 analog inputs/outputs, and 2 PROFINET ports. -
What software is required for programming?
+The PLC is configured using STEP 7 Basic software in the TIA Portal. -
What are the primary differences from other 1215C models?
+The 6ES7215-1H denotes the Relay output version, whereas 6ES7215-1A refers to the DC/DC/DC version with transistor outputs. -
What is the maximum number of expansion modules?
+The CPU 1215C can support up to 8 signal modules (SM) and 1 signal board (SB). -
What is the power supply requirement?
+It requires a DC supply between 20.4V and 28.8V DC.
