PRODUCT DESCRIPTION

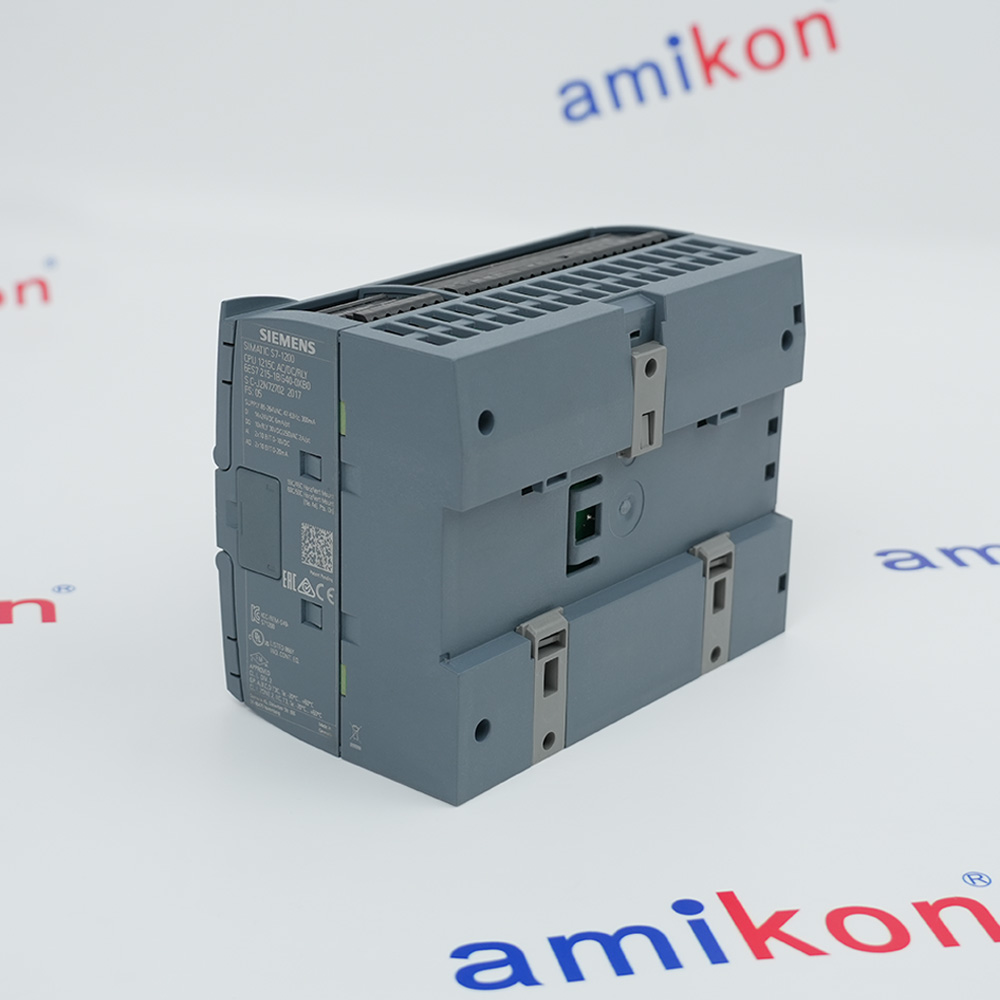

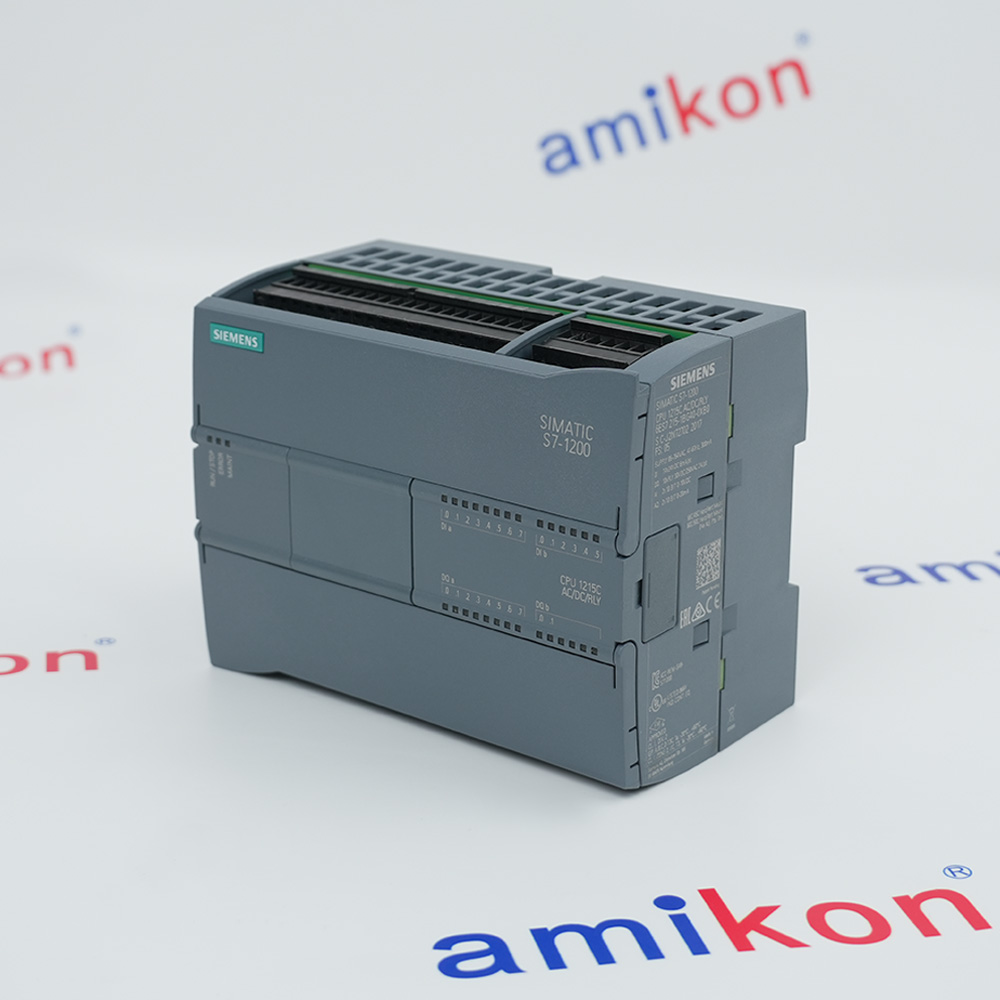

6ES7215-1BG40-0XB0 AC/DC/relay compact PLC controller
Siemens 6ES7215-1BG40-0XB0 is the AC/DC/relay CPU 1215C of the SIMATIC S7-1200 compact-controller family. It combines programmable control, local digital and analog I/O and dual-port PROFINET communication for machine and production automation.
This hardware generation provides 200 KB of work memory and 14 KB of retentive data. Its onboard I/O includes 14 digital inputs, ten relay outputs, two voltage inputs and two current outputs. Signal and communication modules extend the controller, while supported engineering-software versions and the existing project determine configuration compatibility.
This hardware generation provides 200 KB of work memory and 14 KB of retentive data. Its onboard I/O includes 14 digital inputs, ten relay outputs, two voltage inputs and two current outputs. Signal and communication modules extend the controller, while supported engineering-software versions and the existing project determine configuration compatibility.
BEFORE YOU BUY
Confirm the complete ac/dc/relay compact plc controller
ACTUAL APPLICATIONS
Application context for 6ES7215-1BG40-0XB0
Siemens 6ES7215-1BG40-0XB0 is the AC/DC/relay CPU 1215C of the SIMATIC S7-1200 compact-controller family. It supports compatible industrial automation in the industries shown below. Suitability depends on the connected field circuits, host equipment and approved configuration.
-
01 · INDUSTRIAL MANUFACTURING
Industrial Manufacturing and Process Automation
Automated Assembly Line ProductionDiscrete Parts Manufacturing -
02 · FOOD & BEVERAGE
Food and Beverage Manufacturing
Food Production and PackagingBeverage Processing and Bottling -
03 · WATER & WASTEWATER
Water Treatment and Distribution
Municipal Water TreatmentIndustrial Wastewater Treatment
Technical specifications for 6ES7215-1BG40-0XB0
-
Product Model6ES7215-1BG40-0XB0
-
Spare ModelNot available
-
Product ParametersAC/DC/relay compact PLC controller
-
In stock4 units
-
ManufacturerSiemens
-
Supply voltage range85 to 265 V AC
-
Supply frequency range47 to 63 Hz
-
Work memory capacity200 KB
-
Load memory capacity4 MB
-
Retentive data capacity14 KB
-
Integrated digital inputs14, 24 V DC
-
Integrated relay outputs10, 2 A per output
-
Integrated analog inputs2, 0 to 10 V
-
Integrated analog outputs2, 0 to 20 mA
-
PROFINET interface ports2
-
Expansion signal modules8 maximum
-
Expansion communication modules3 maximum
-
Bit processing time0.08 µs
-
Floating-point processing time2.3 µs
-
CPU power loss14 W
View all additional
Alternative Names
6ES7215-1BG40-0XB0
SIMATIC S7-1200 CPU 1215C AC/DC/relay compact PLC controller
S7-1200 CPU 1215C 85 to 265 V AC supply voltage range
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Integrate 6ES7215-1BG40-0XB0 ac/dc/relay compact plc controller
6ES7215-1BG40-0XB0 is the ac/dc/relay compact plc controller for SIMATIC S7-1200 CPU 1215C. Match the documented interface and installed companion equipment before configuring the assembly.
Engineering should compare supply voltage range (85 to 265 V AC), supply frequency range (47 to 63 Hz) and work memory capacity (200 KB) with the installation requirements. Follow the manufacturer connection allocation and supply limits.
Use the applicable manufacturer instructions for wiring and configuration. Validate affected signal or communication paths, then record the accepted settings and measured results with the equipment documentation.
Features:
- Supply voltage range: 85 to 265 V AC
- Supply frequency range: 47 to 63 Hz
- Work memory capacity: 200 KB
The 6ES7215-1BG40-0XB0 ac/dc/relay compact plc controller requires appropriate configuration before system integration and commissioning.
INTERCHANGEABILITY
Verify 6ES7215-1BG40-0XB0 ac/dc/relay compact plc controller
Replace 6ES7215-1BG40-0XB0 only after checking its complete article code, SIMATIC S7-1200 CPU 1215C role and documented hardware or software compatibility. Related family numbers and similar housings do not establish interchangeability.
Record the existing connector allocation, terminal numbering and configured addresses before removal. Preserve the applicable controller or network project and diagnostic information needed to restore this ac/dc/relay compact plc controller.
After fitting the verified article, restore its controlled configuration and test the affected functions at a safe operating point. Retain the supplied label and the final acceptance record with the asset documentation.
Features:
- Supply voltage range: 85 to 265 V AC
- Supply frequency range: 47 to 63 Hz
- Work memory capacity: 200 KB
The 6ES7215-1BG40-0XB0 ac/dc/relay compact plc controller requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Verify document identity before procurement or installation
- Match the complete order to the manufacturer document scope
- Accessories are supplied only when listed in the quotation
Documentation for the 6ES7215-1BG40-0XB0 ac/dc/relay compact plc controller must be checked for document applicability before installation or commissioning.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size13 × 10 × 7.5 cm
-
Shipping weight0.55kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference85371091
-
OriginGermany
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 6ES7215-1BG40-0XB0
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
What work-memory increase characterizes the BG40 CPU?
The specified work memory is 200 KB for this article. -
How much data may be retained by this CPU 1215C?
The listed retentive data capacity is 14 KB. -
What floating-point execution time is listed for BG40?
The documented processing time is 2.3 µs. -
How many PROFINET ports are integrated in BG40?
The CPU integrates two PROFINET ports. -
What local current outputs does BG40 contain?
It contains two analog outputs with a 0 to 20 mA range. -
What power-loss value belongs to BG40 rather than BG31?
The specified CPU power loss for BG40 is 14 W. -
What project checks are needed when buying a BG40 replacement?
Match the exact article and verify the installed TIA Portal project and hardware-version support. -
Which expansion details belong in a BG40 procurement request?
List the connected signal modules, communication modules and signal board so configuration compatibility can be reviewed.
