S7-200

SMART REGULATED POWER SUPPLY

SIMATIC PM207/1AC/24VDC/5A
SIMATIC S7-200 smart
Regulated power supply
input: 100-240 V AC
output: 24V/5 A DC

CPU module

SIMATIC S7-200 SMART
CPU SR20, CPU
AC/DC/relay
onboard I/O: 12DI 24 V DC; 8 DQ relay 2A
power supply: AC 85 - 264 V AC at 47-63 Hz
77 to 138 V DC
program/data memory 20 KB

SMART DIGITAL OUTPUT MODULE

SMART DIGITAL OUTPUT MODULE
SIMATIC S7-200
8 DIGITAL OUTPUTS
2 AMP RELAY

SIMATIC S7-200 SMART
CPU ST30, Standard CPU
DC/DC/DC,onboard
I/O: 18 DI 24 V DC; 12 DO 24 V DC
Power supply: DC20.4-28.8V DC
Program/data memory 30 KB

Analog I/O Module

SIMATIC S7-200 SMART
analog I/O SM AM06
4 AI/2 AO, 0..10 V,0..5 V
0/4..20mA, +/-5 V, +/-2.5 V
12 bit resolution or 4...20 mA
+/-10 V 11 bit resolution

6ES7405-0DA01-0AA0

SIMATIC S7-400
power supply PS 405
4 A, 24/48/60 V DC
5 V DC/4 A

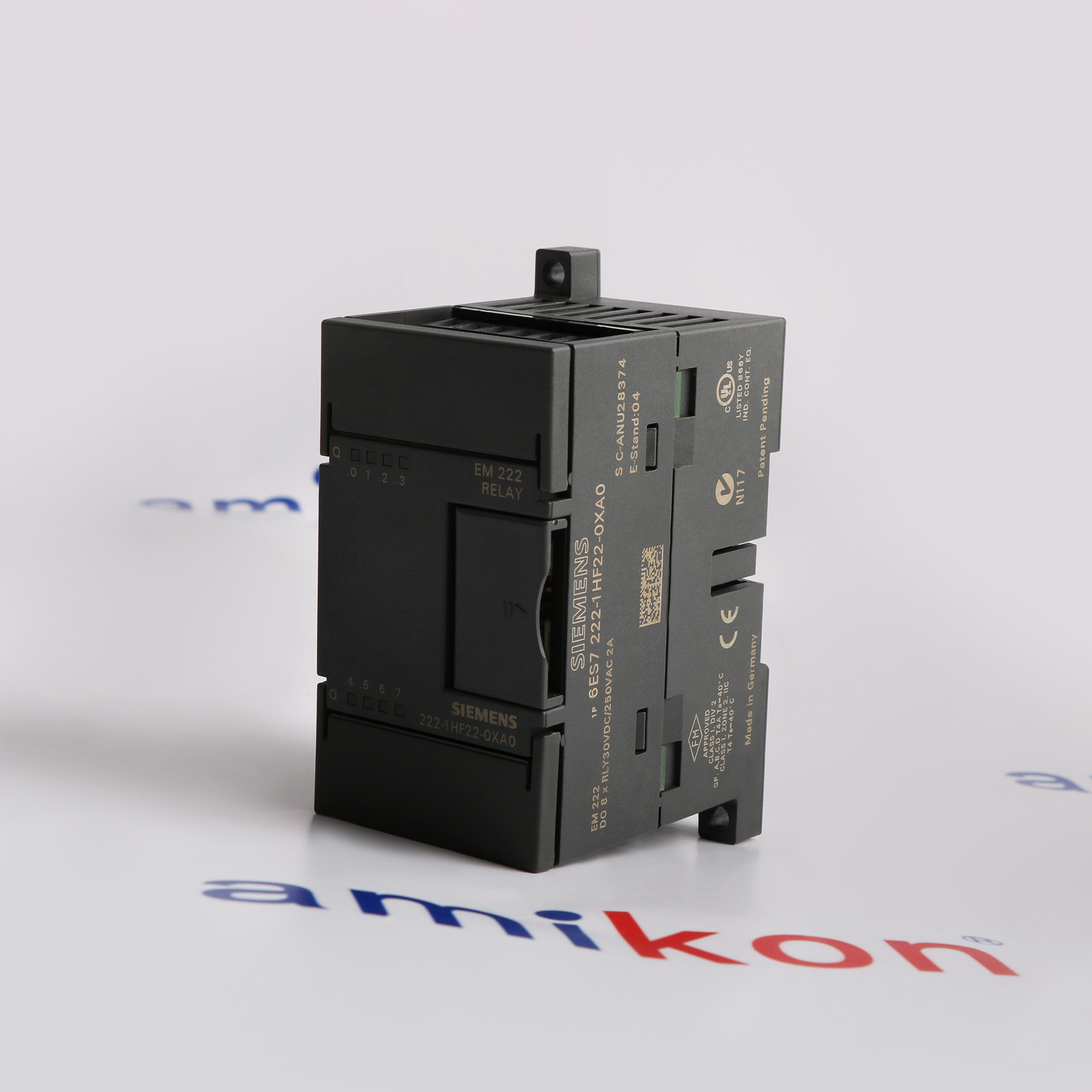

EM 222 Digital Output Module

CPU222 Compact Unit

CPU222 Compact Unit

CPU 224 Compact Unit

EM231 Analog Input Module - MV/Thermocouple

CPU 224XP Compact Unit

SIMATIC S7-200
CPU 224XP COMPACT UNIT
AC POWERSUPPLY 14DI DC/10DO RELAY
2AI, 1AO
12/16 KB CODE/10 KBDATA
2 PPI/FREEPORT PORTS

EM223 Digital I/O Module

Digital input Module

SIMATIC S7-200 CN
Digital input EM 221
only for S7-22X CPU, 16 DI, 24 V DC
sinking-sourcing this S7-200 CN
product onlyhas CE approval

EM 222 Digital Output Module -Relay

Digital output module

SIMATIC S7-200 CN
digital output EM 222
only for S7-22X CPU
8 DO (relay outputs)
2 A this S7-200 CN
product only has CE approval

Analog input module

SIMATIC S7-200
CN analog input EM 231
only for S7-22X CPU, 4 AI
0-10V DC, 12 bit converter
this S7-200 CN product only
has CE approval

Communications Cable

SIMATIC S7-200
USB/PPI cable MM MULTIMASTER
for connection of S7-200 to USB PC interface
no Freeport support
length: 5.6 m
scope of supply: 1 USB/PPI cable

CPU 224 Compact Unit

Analog Input Module

MODULE
SIMATIC S7-200 SMART
ANALOG INPUT AI04
SUPPLY 24VDC
AI 4X12
BIT +/-10VDC/0-20MA

EM232 Analog Output Module

EM 221 Digital Input Module

EM231 Analog Input Module - RTD

RTD INPUT
2 POINTS
ANALOGUE INPUT MODULE
SIMATIC S7 SERIES
60MA LOAD
87MA BACKPLANE BUS

EM231 Analog Input Module

SIMATIC S7-200
ANALOG INPUT EM 231
FOR S7-22X CPUONLY
4 AI, 0 - 10V DC
12 BIT CONVERTER

TD200 Text Display
