- 6ES7223-1PH22-0XA0
In Stock
Ships by Sunday, June 28
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 6ES7223-1PH22-0XA0
-
Product Model6ES7223-1PH22-0XA0
-
Product ParametersSIMATIC S7-200, DIGITAL I/O EM 223
-
Tariff Code8537101190
-
Country of originGERMANY
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size7.5x6.2x9.5cm
-
ManufacturerSiemens
-
Weight0.15 kg
-
Rated value (DC)24 V
-
permissible range, lower limit (DC)5 V
-
permissible range, upper limit (DC)30 V
-
permissible range, lower limit (AC)5 V
-
permissible range, upper limit (AC)250 V
-
from backplane bus 5 V DC, max.80 mA
-
from coil current, max9 mA
-
Power loss, typ3 W
-
Number of digital inputs8
-
Type of input voltageAC/DC
-
for signal 00 to 5 V
-
for signal 115V DC to 30V DC
-
Isolation checked with500 V AC
Description

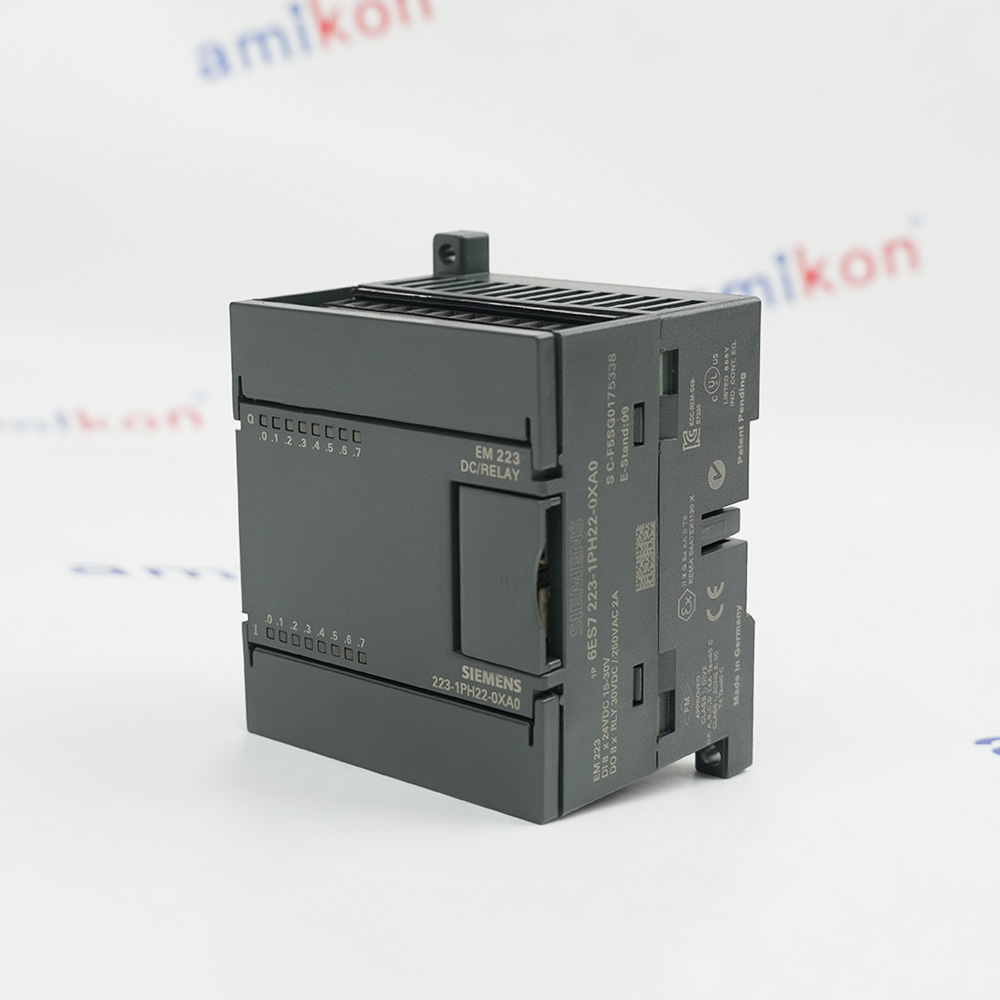

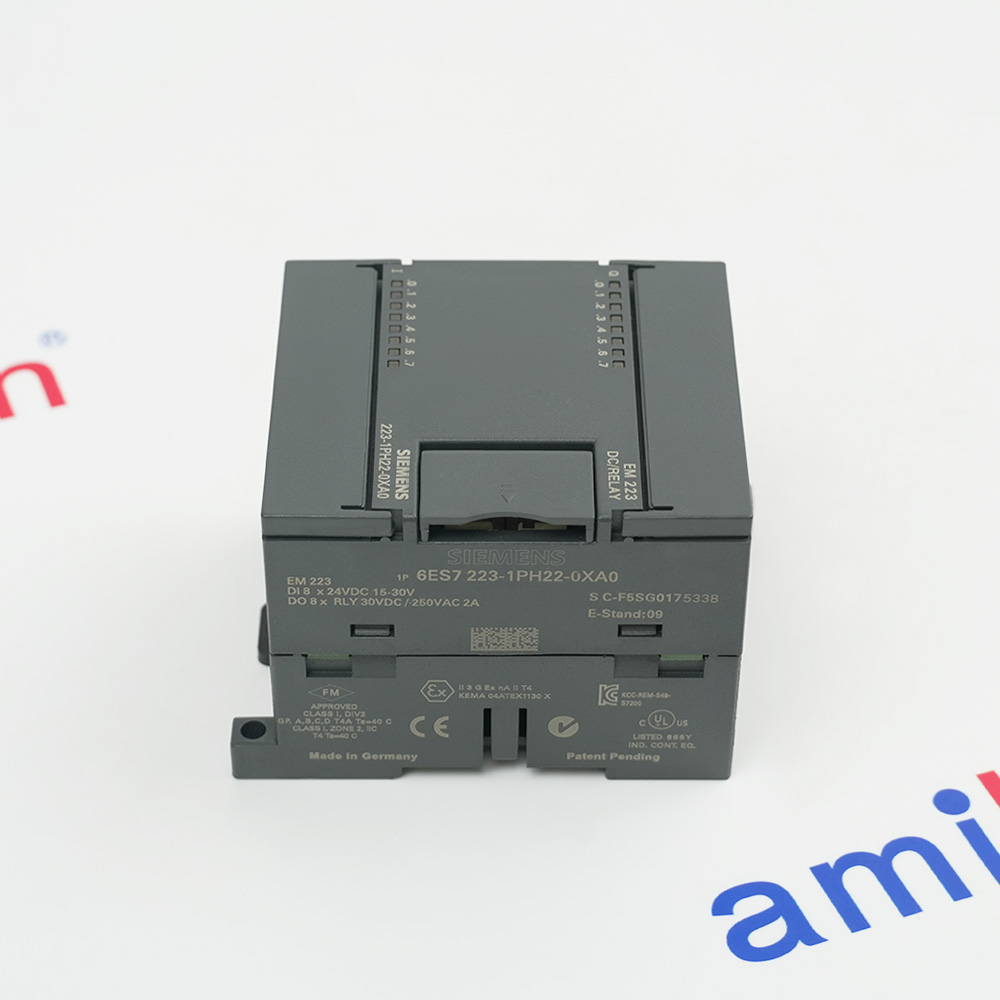

The SIEMENS 6ES7223-1PH22-0XA0 is a SIMATIC S7-200 Digital I/O EM 223 expansion module. The SIEMENS 6ES7223-1PH22-0XA0 is for S7-22X CPU only. The SIEMENS 6ES7223-1PH22-0XA0 has 8 digital inputs and 8 digital outputs.
The SIEMENS 6ES7223-1PH22-0XA0 has 8 digital inputs at 24V DC. The digital inputs on the SIEMENS 6ES7223-1PH22-0XA0 support sink and source wiring configurations. The SIEMENS 6ES7223-1PH22-0XA0 has 8 digital outputs with relay contacts. The relay outputs on the SIEMENS 6ES7223-1PH22-0XA0 are rated at 2A per point.
The SIEMENS 6ES7223-1PH22-0XA0 has 8 digital inputs at 24V DC. The digital inputs on the SIEMENS 6ES7223-1PH22-0XA0 support sink and source wiring configurations. The SIEMENS 6ES7223-1PH22-0XA0 has 8 digital outputs with relay contacts. The relay outputs on the SIEMENS 6ES7223-1PH22-0XA0 are rated at 2A per point.
Alternative Names
6ES7223 1PH22 0XA0
6ES7 223-1PH22-0XA0
6ES7223-IPH22-0XA0
6ES7223-1PH22-OXAO
6ES7 223-1PH22-OXAO
Information
Overview
Manuals
Engineering Considerations
Product Applications
Hardware Installation
Features:
- SIMATIC S7-200
- DIGITAL I/O EM 223
- FOR S7-22X CPU ONLY, 8DI 24 V DC
- SINK/SOURCE, 8 DO RELAY, 2A/POINT
The 6ES7221-1BF22-0XA0 Siemens Digital Input Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Siemens 6ES7221-1BF22-0XA0 Digital Input Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The Siemens SIMATIC S7-200 6ES7223-1PH22-0XA0 is a versatile digital combination expansion module (EM 223) used to bridge the gap between a central PLC and field-level equipment. Because it features relay outputs, it is particularly valued for its ability to switch both AC and DC loads up to 2A without needing additional external interposing relays for many standard tasks,It provides 8 digital inputs and 8 relay outputs, designed specifically for use with S7-22X CPUs.8 Digital Inputs, 24V DC, with Sink/Source capability,80 mA from the backplane bus (5V DC).
- Conveyor & Material Handling:Controls conveyors, sorters, directions
- Packaging Machinery:Automates sealing, labeling, filling
- Building Technologies:Controls lights, HVAC, doors, elevators
- Water & Wastewater Management:Monitors pumps, tanks, valves remotely
- Machine Tool Control:Controls presses, woodworking, assembly
- Service & Infrastructure:Automates car washes, tests, kitchens
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Power Off: Always turn off the power to the CPU and any existing expansion modules before connecting.
Bus Connection: Use the built-in ribbon cable on the left side of the EM 223 to connect it to the expansion port on the right side of the CPU or the previous module in the chain.
Mounting: Snap the module onto a standard 35mm DIN rail or use the integral screw-mounting holes for a backpanel.
Technical notes
SIMATIC S7-200, DIGITAL I/O EM 223, FOR S7-22X CPU ONLY, 8DI 24 V DC, SINK/SOURCE, 8 DO RELAY, 2A/POINT
FAQs
-
What is the 6ES7223-1PH22-0XA0?
+It is a Digital Input/Output (DI/DO) expansion module (EM 223) for the Siemens SIMATIC S7-200 PLC series, specifically for S7-22X CPUs. -
How many inputs and outputs does it have?
+It features 8 digital inputs (24V DC, sink/source) and 8 relay digital outputs. -
Does it support hot-swapping?
+No, the S7-200 modules generally do not support hot-swapping; the power should be off during installation. -
Do you offer global delivery?
+Yes. We delivery the 6ES7223-1PH22-0XA0 to the worldwide. and we are able to quickly deliver parts globally to any corner of the world. Unless otherwise specified, we will ship your order via (Fedex). We can also ship through FedEx, UPS, and TNT, etc. We can also use your account.
