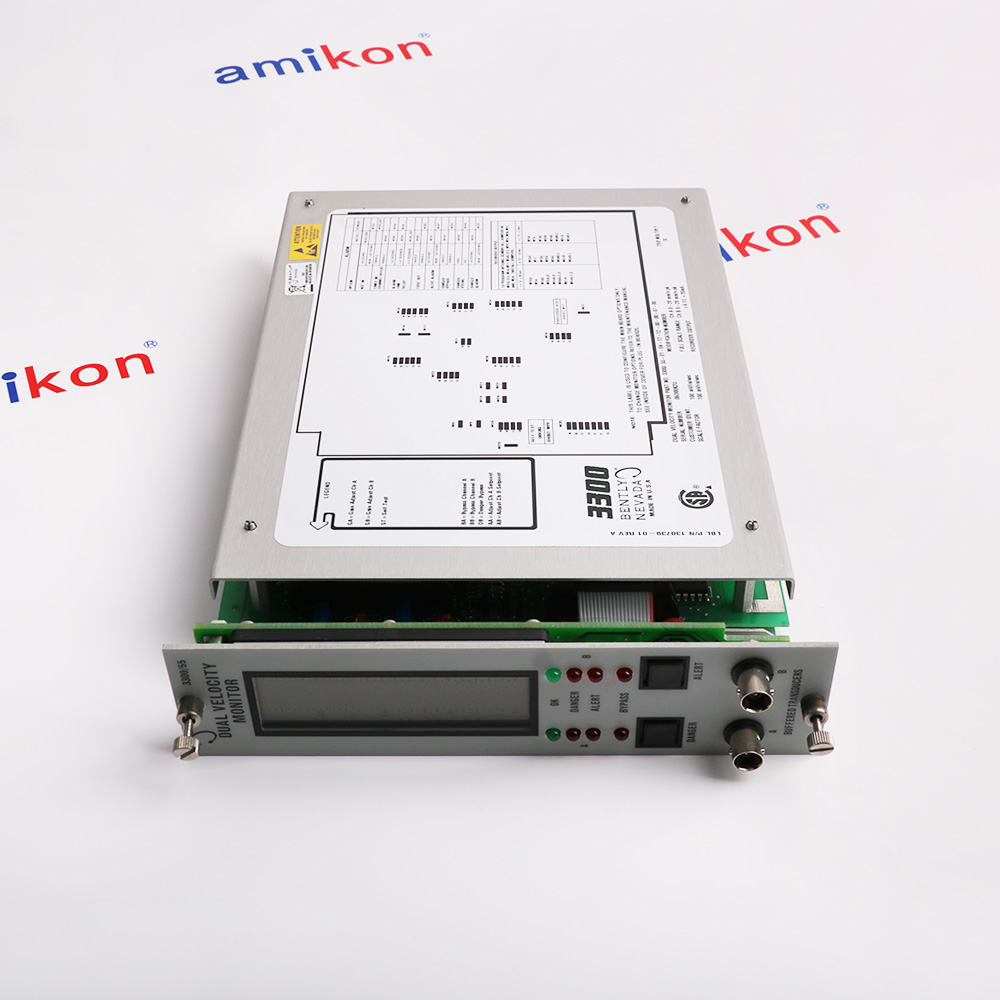

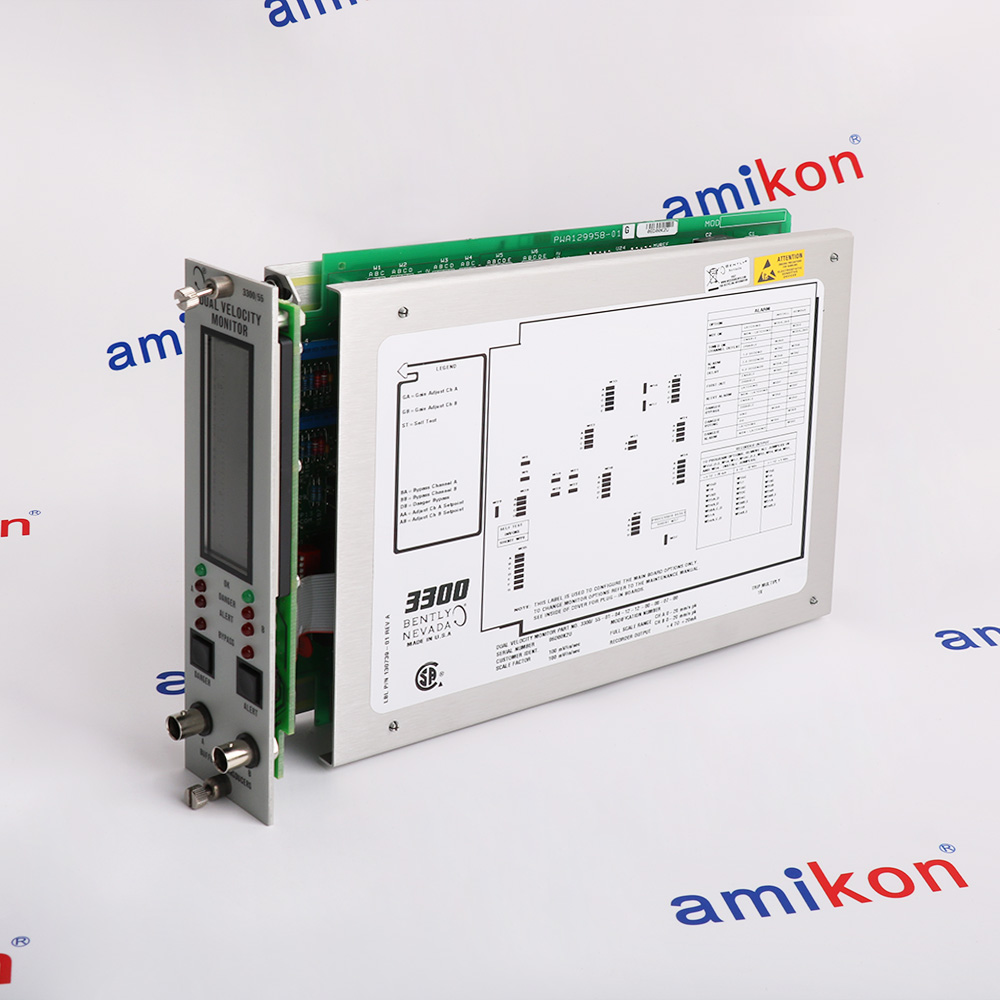

- 3300/55-01-04-12-12-00-00-07-00
In Stock
Ships by Wednesday, September 2
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 3300/55-01-04-12-12-00-00-07-00
-
Product Model3300/55-01-04-12-12-00-00-07-00
-
Spare Model3300/55
-
Product ParametersDual Velocity Monitor
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size5x32x20.5cm
-
ManufacturerBently Nevada
-
Weight1.15 kg
-
PowerNominal consumption of 1.5Watts
-
Frequency Response(Without Filters)
-
Velocity Seismoprobe3 - 10,000 Hz (180-600,000 cpm);-3dB nominal.
-
HTVS andVelomitor3 - 3,000 Hz (180-180,000 cpm);-3dB nominal
-
+4 to +20 mA±0.7% of signal,±0.09 mA offset
-
+1 to +5 Vdc±1.1% of signal, ±10mV offset
-
0 to -10 Vdc±1.1% of signal, ±15mV offset
-
Output ImpedanceOutput Impedance 100 Ω. Minimum load resistanceis 10 k Ω.
-
Voltage Compliance0 to +12 Vdc range across load.Load resistance is 0 to 600 Ωwhen using +4 to +20 mA option.
-
ResolutionWithin ±1.6% of monitor fullscale
-
Operating Temperature0°C to +65°C (+32°F to +150°F)
-
Storage Temperature-40°C to +85°C (-40°F to +185°F)
-
Relative HumidityTo 95%, noncondensing
Description
The 3300/55 Dual Velocity Monitor provides two channels of continuous on-line machinery vibration monitoring. The monitor accepts inputs from one or two Velomitor@ transducers, High Temperature Velomitor Systems (HTVS), or Velocity Seismoprobe@ transducers without the need for interface modules.
Flexibility is designed into the Dual Velocity Monitor. Many user selectable options, such as high- and low-pass filter corner frequency options, can be easily (re)programmed in the field with plug-in jumpers.
Flexibility is designed into the Dual Velocity Monitor. Many user selectable options, such as high- and low-pass filter corner frequency options, can be easily (re)programmed in the field with plug-in jumpers.
Information
Overview
Manuals
Application Notes
Product Applications
Electrical Connections
Features:
- Machinery Vibration Monitoring
- Provides Two Channels
- User-Selectable Options
Flexibility is designed into the 3300/55. Many user-selectable options, such as high- and low-pass filter corner frequency options, can be easily reprogrammed in the field with plug-in jumpers. The 3300/55 features signal conditioning with a high-pass 2-pole filter (40 dB per decade, 12 dB per octave) and a low-pass 2-pole filter (40 dB per decade, 12 dB per octave), providing effective frequency domain filtering for accurate vibration measurement across a wide range of machinery operating conditions.
The 3300/55-01-04-12-12-00-00-07-00 Bently Nevada Dual Velocity Monitor may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 3300/55-01-04-12-12-00-00-07-00 Dual Velocity Monitor Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 3300/55 provides user-programmable recorder outputs for each channel, configurable for +4 mA to +20 mA, 0 Vdc to -10 Vdc, or +1 Vdc to +5 Vdc. Voltage or current outputs from the 3300/55 are proportional to the programmed monitor full-scale, and individual recorder outputs are provided for each channel. Monitor operation of the 3300/55 is unaffected by short circuits on recorder outputs, ensuring reliable data acquisition and continuous monitoring even under fault conditions.
The 3300/55 features buffered transducer outputs with one coaxial connector per channel on the front panel and one terminal connection per channel on the rear panel. All buffered outputs of the 3300/55 are short-circuit protected and are jumper-programmable for filtered or unfiltered, velocity or displacement with peak-to-peak measurement capability, allowing the 3300/55 to be configured to match specific application measurement requirements.
Both Alert and Danger alarms in the 3300/55 are digitally adjustable from 0 to 100% of full-scale and can be set within LCD resolution (±1.6%) to the desired level. Once set, alarms in the 3300/55 are repeatable within ±0.39% of full-scale, providing consistent and reliable alarm triggering for machinery protection applications. The 3300/55 includes field-programmable options for alarm time delays, first-out logic, and Timed OK/Channel Defeat functions via plug-in jumpers.
- Turbines: Monitors steam/gas turbines in power generation plants
- Compressors: Safeguards centrifugal, axial, and reciprocating compressors in oil/gas processing
- Pumps & Fans: Tracks large fluid-handling pumps and ventilation systems
- Generators & Motors: Detects shaft imbalances or bearing defects in heavy electric drives
- Keyphasor Distribution: Buffers and distributes phase reference and speed tracking data
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Front panel: Use the single coaxial connector on the front panel for temporary testing, signals, or quick data checks per channel.
Rear panel: Make permanent field wiring choices on the rear terminal block using the "A" and "B" signal leads from the interconnect cable.
Channel mapping: Connect lead "A" to the corresponding "A" terminal and lead "B" to the "B" terminal on the monitor's rear input.
Protection: Verify that all connected lines are short-circuit protected and check jumper settings for correct output scaling (such as mV/in/s or integrated displacement mV/mil) before powering the rack.
Alternative Names
3300/55-01-04-12-12-00-00-07-OO
3300/55-01-04-12-12-00-00-O7-00
3300/55-01-04-12-12-00-OO-07-00
3300/55-01-04-12-12-OO-00-07-00
3300/55-01-04-12-I2-00-00-07-00
3300/55-01-04-12-1Z-00-00-07-00
3300/55-01-04-IZ-12-00-00-07-00
3300/55-01-O4-12-12-00-00-07-00
3300/55-0I-04-12-12-00-00-07-00
3300/55-O1-04-12-12-00-00-07-00
33OO/55-01-04-12-12-00-00-07-00
3300-55-01-04-12-12-00-00-07-00
Technical notes
The 3300/55 occupies two rack positions in the 3300 system rack (any positions except 1 and 2, which are reserved for the Power Supply and System Monitor) and weighs 2.8 kg. The 3300/55 carries CSA/NRTL/C certification for Class I, Div 2, Groups A, B, C, D T4 at +65°C and ATEX certification II 3G EEx nC [L] IIC T4 for ambient temperatures from -20°C to +60°C, making the 3300/55 suitable for installation in demanding industrial and hazardous area environments.
FAQs
-
What sensors are compatible with the 3300/55?
+Accepts one or two Velomitor® transducers, HTVS systems, or 2-wire Velocity Seismoprobe® transducers directly without extra interface modules. -
How do I change filter corner frequencies?
+High- and low-pass filter corner frequencies are re-programmed in the field using internal plug-in jumpers on the circuit board. -
What are the standard output options?
+Provides recorder outputs user-programmable for +4 to +20 mA, 0 to -10 Vdc, or +1 to +5 Vdc. -
What is the purpose of the 2 mA recorder clamp option?
+When leveraging the +4 to +20 mA recorder output configuration, you can jumper-program the monitor to clamp its output to 2 mA during a NOT OK fault condition. This configuration allows an external control room DCS to accurately differentiate between a true sensor/wiring fault (2 mA) and a simple bottom-of-scale zero vibration measurement (4 mA).
