PRODUCT DESCRIPTION

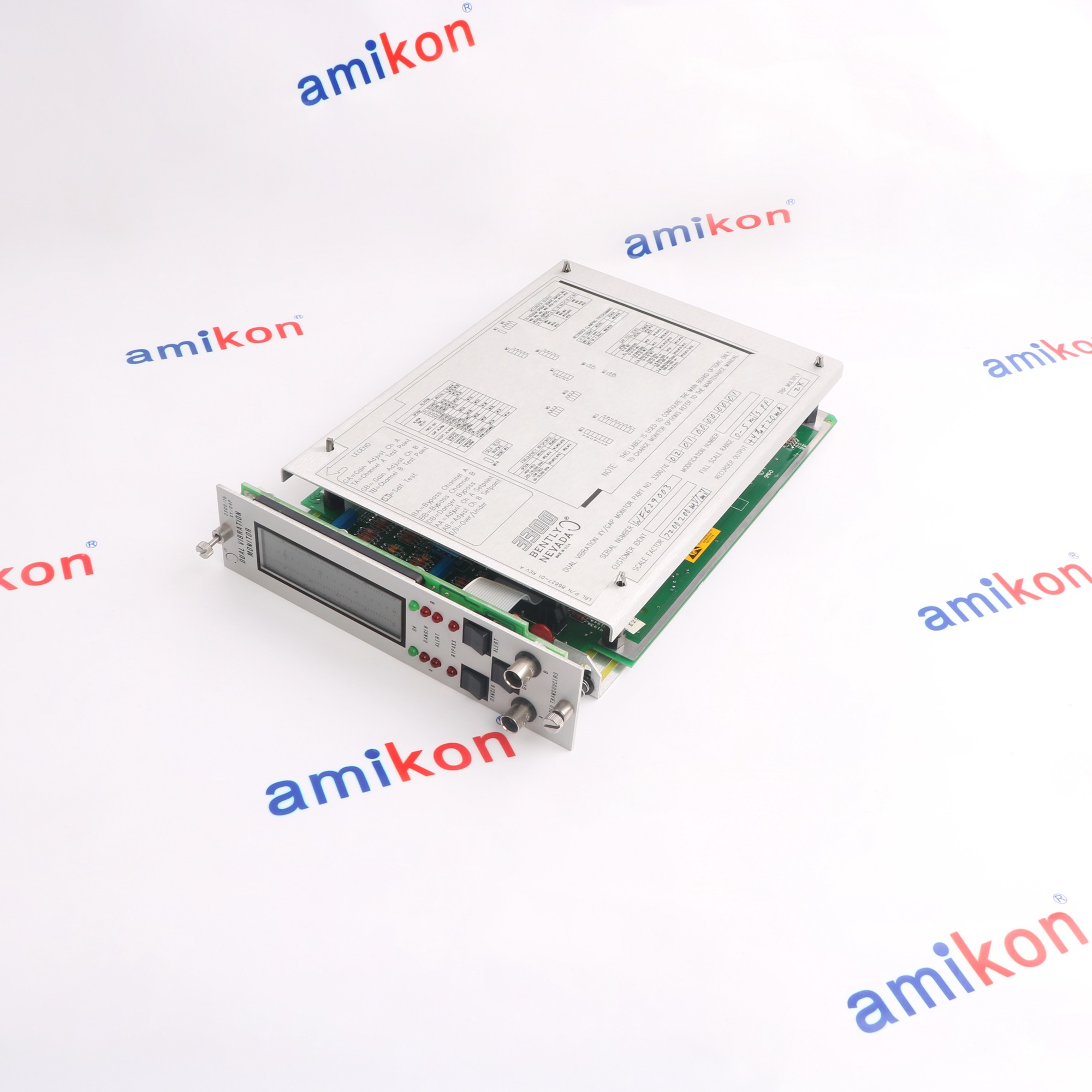

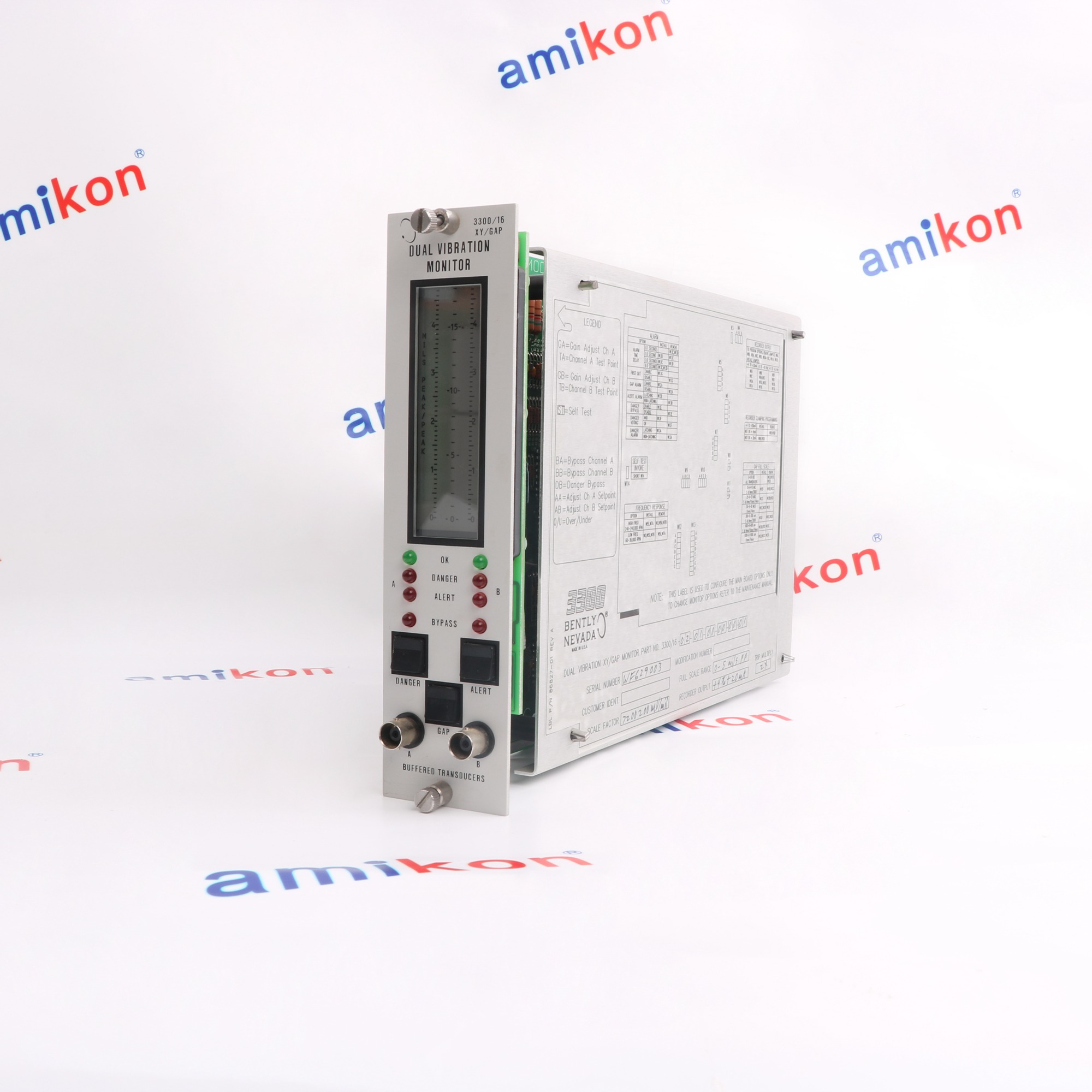

Dual shaft vibration monitor
Bently Nevada 3300/16-02-01-00-00-00-01 is a dual vibration monitor. The monitor evaluates radial shaft vibration from two compatible proximity channels. It also displays probe gap and compares measured vibration with configured Alert and Danger limits. Correct input scaling, relay construction and the installed circuit-board generation remain essential to replacement selection.
The 3300/16-02-01-00-00-00-01 order selects 0-5 mil peak-to-peak. Compare its transducer, relay, barrier and Trip Multiply options with the installed system. The circuit-board part number determines the correct programming appendix, not the document revision.
The 3300/16-02-01-00-00-00-01 order selects 0-5 mil peak-to-peak. Compare its transducer, relay, barrier and Trip Multiply options with the installed system. The circuit-board part number determines the correct programming appendix, not the document revision.
BEFORE YOU BUY
Confirm the complete installed configuration
ACTUAL APPLICATIONS
Where 3300/16-02-01-00-00-00-01 Fits Across Industrial Application Areas
Industrial uses span production and utility equipment, subject to verified product compatibility, installation requirements and operating conditions.
-
01 · OIL & GAS
Oil Production, Gas Processing and Petroleum Refining
Turbines and compressors serving liquefied natural gas production facilities.Refinery compressors and process pumps serving downstream petroleum production. -
02 · MINING & MINERALS
Mining Operations and Mineral Processing
Ore crushers and grinding mills at mineral processing plants.Process pumps and conveyors serving mineral processing plant operations. -
03 · METALS & MINING
Steel Production and Metallurgical Plant Utility Equipment
Rolling mills and extraction fans in steel production plants.Coke oven compressors and combustion blowers serving steel plants.
Technical specifications for 3300/16-02-01-00-00-00-01
-
Product Model3300/16-02-01-00-00-00-01
-
Spare Model3300/16
-
Product ParametersDual shaft vibration monitor
-
In stock6 units
-
ManufacturerBently Nevada
-
Selected full-scale range0-5 mil peak-to-peak
-
Selected transducer input3300 8 mm, 7200 5/8 mm or 3300 XL 8 mm; 200 mV/mil
-
Selected relay arrangementNo relay
-
Selected barriersNo barriers
-
Trip Multiply selection2X
-
Measurement channelsTwo: A and B
-
Measured quantityRadial shaft vibration
-
Gap displayNegative DC proximity-gap voltage
-
Alarm functionsAlert and Danger, with configurable latching
-
Gap-alarm delay6 seconds outside the selected window
-
Timed OK restoration30 seconds within input OK limits
-
Buffered signal accessFront coaxial connectors and rear module terminals
-
Recorder output selection0 to -10 Vdc, +1 to +5 Vdc, or +4 to +20 mA
-
Self-test modesPower-up, cyclic and user-invoked
-
OK relay locationPower Input Module
View all additional
Alternative Names
3300/16 02 01 00 00 00 01
3300/16-02-01-00-00-00-01 dual vibration monitor
Bently Nevada 3300/16-02-01-00-00-00-01
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
DUAL SHAFT VIBRATION MONITOR
Integrating 3300/16-02-01-00-00-00-01
The monitor evaluates radial shaft vibration from two compatible proximity channels. It also displays probe gap and compares measured vibration with configured Alert and Danger limits. Correct input scaling, relay construction and the installed circuit-board generation remain essential to replacement selection.
Select the transducer type and sensitivity specified by the complete monitor order. The documented 3000 Proximitor uses -18 Vdc, whereas 3300 and 7200 transducers require -24 Vdc. Both the power supply and system monitor must provide the correct configured transducer voltage.
Match the complete monitor order, Signal Input Relay Module and installed circuit-board number. Use the corresponding appendix of manual 86830-01 and field-wiring packet 100311-01. Follow isolation and site protection procedures; channel bypass removes the affected monitoring function.
Features:
- Match full ordering options, transducer type, installed circuit assembly and matching relay module
- Follow the applicable installation instructions
- Confirm unverified configuration details
The 3300/16-02-01-00-00-00-01 dual vibration monitor requires appropriate configuration before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
Replacement of 3300/16-02-01-00-00-00-01 requires comparing full ordering options, transducer type, installed circuit assembly and matching relay module. A shared base family or similar appearance does not establish a drop-in replacement for the complete ordered assembly.
Select the transducer type and sensitivity specified by the complete monitor order. The documented 3000 Proximitor uses -18 Vdc, whereas 3300 and 7200 transducers require -24 Vdc. Both the power supply and system monitor must provide the correct configured transducer voltage.
No verified exact-order discontinuation date, product revision or designated successor is asserted. Document revisions identify the reference literature, not hardware changes to the supplied product. Unconfirmed replacement options must be resolved before substitution.
Features:
- Preserve the complete ordering identity
- Compare the installed electrical and mechanical interfaces
- Do not infer hardware revisions or successor models
The 3300/16-02-01-00-00-00-01 dual vibration monitor requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: No verified product PDF is currently available on this page. Amikong-hosted reference documents will be listed only after their product identity and scope have been checked. Consult the applicable manufacturer instructions before use; additional documents are included only when expressly listed in the quotation.Features:
- Verify document identity before procurement or installation
- Match the complete order to the manufacturer document scope
- Accessories are supplied only when listed in the quotation
Documentation for the 3300/16-02-01-00-00-00-01 dual vibration monitor must be checked for document applicability before installation or commissioning.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size5x32x20.3cm
-
Shipping weight1 kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference9031809090
-
OriginUSA
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 3300/16-02-01-00-00-00-01
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
How is 3300/16-02-01-00-00-00-01 identified?
The 3300/16-02-01-00-00-00-01 order selects 0-5 mil peak-to-peak. Compare its transducer, relay, barrier and Trip Multiply options with the installed system. The circuit-board part number determines the correct programming appendix, not the document revision. -
What is the function of this component?
The monitor evaluates radial shaft vibration from two compatible proximity channels. It also displays probe gap and compares measured vibration with configured Alert and Danger limits. Correct input scaling, relay construction and the installed circuit-board generation remain essential to replacement selection. -
Which transducers or modules are compatible?
Select the transducer type and sensitivity specified by the complete monitor order. The documented 3000 Proximitor uses -18 Vdc, whereas 3300 and 7200 transducers require -24 Vdc. Both the power supply and system monitor must provide the correct configured transducer voltage. -
Where is this component used?
Front coaxial connectors and rear module terminals expose the channel transducer signals for external equipment. This diagnostic access does not replace the configured monitoring and alarm functions. -
What must be checked during installation?
Match the complete monitor order, Signal Input Relay Module and installed circuit-board number. Use the corresponding appendix of manual 86830-01 and field-wiring packet 100311-01. Follow isolation and site protection procedures; channel bypass removes the affected monitoring function. -
Why does an OK LED flash at 1 Hz or 5 Hz?
With Timed OK enabled, 1 Hz indicates recovery after the input has remained valid for 30 seconds. A 5 Hz indication identifies stored cyclic self-test errors. Diagnose the recorded condition using the correct manual and circuit-board appendix. -
Can Reset clear an alarm while its cause is still present?
No. The manual states that an alarm cannot be reset while its alarm condition still exists. Latching and nonlatching selections change acknowledgement behaviour, not the need to resolve the underlying condition.
