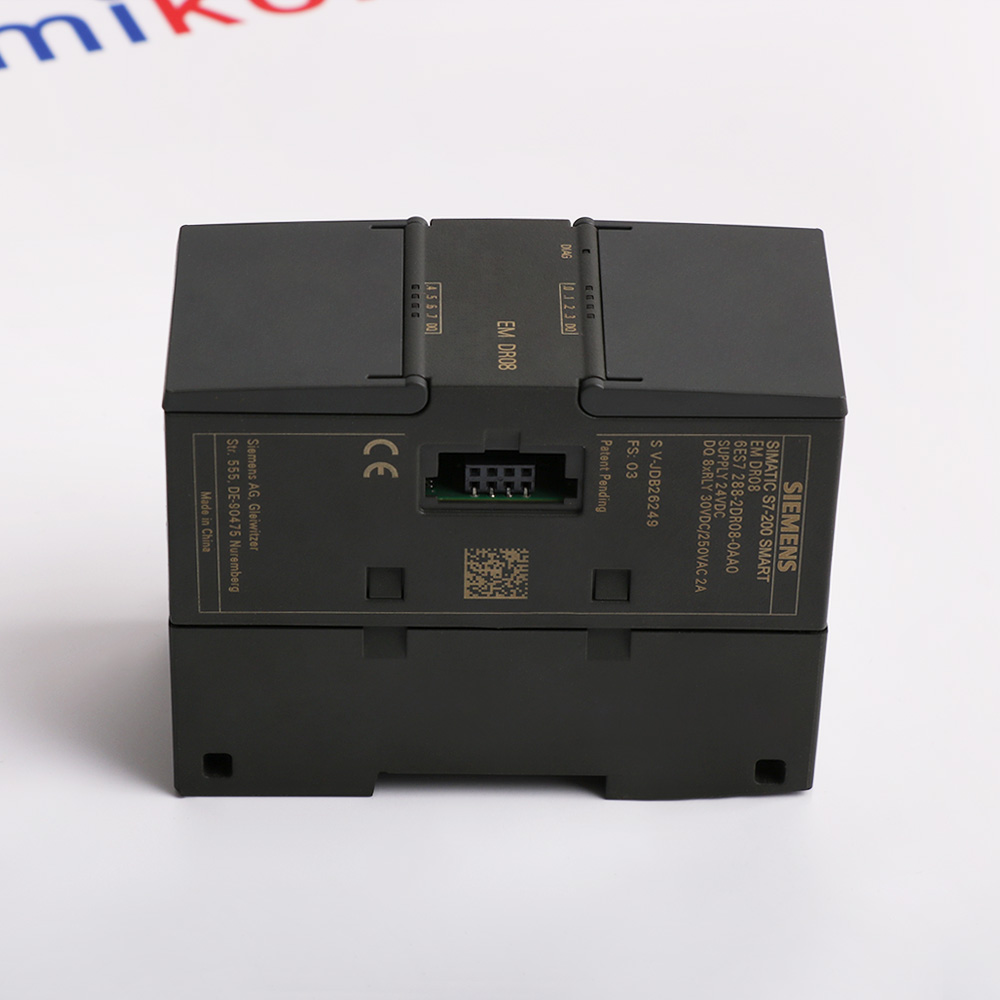

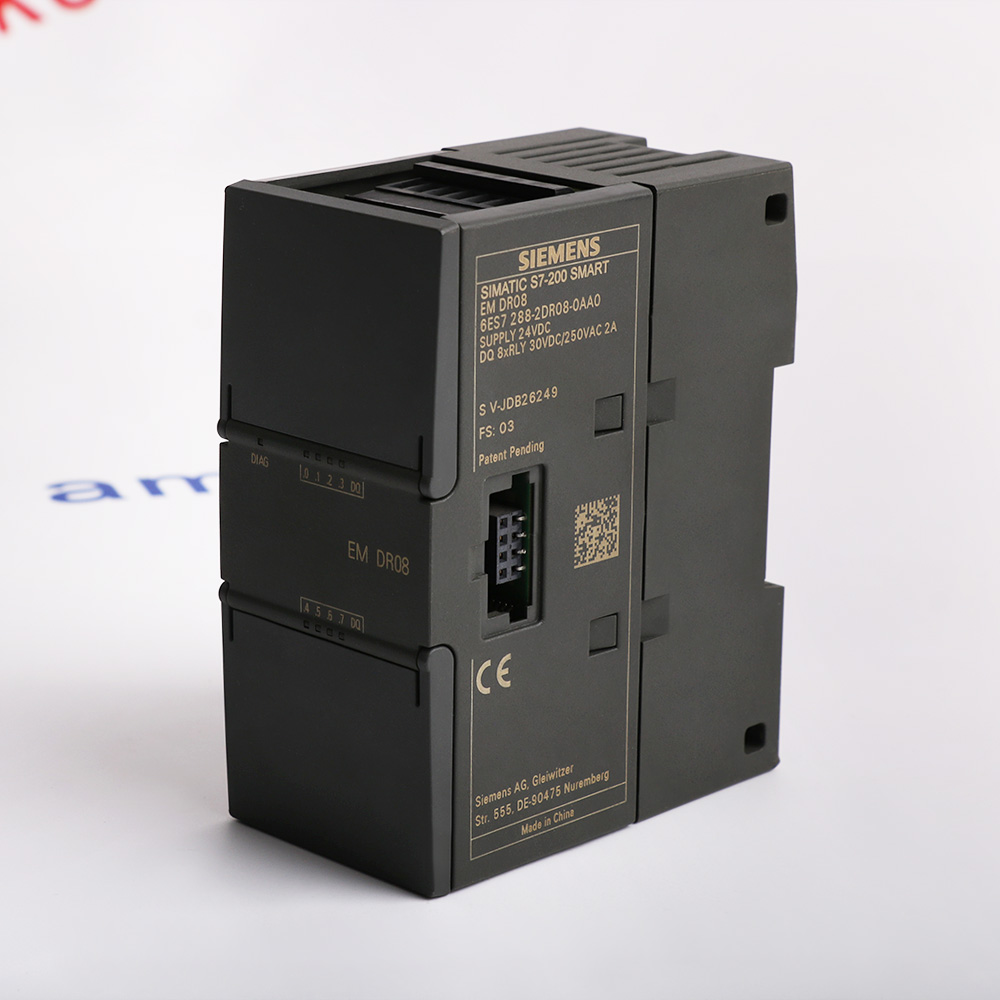

      Siemens 6ES7288-2DR08-0AA0
      Siemens 6ES7288-2DR08-0AA0
      Siemens 6ES7288-2DR08-0AA0
      Siemens 6ES7288-2DR08-0AA0
      Siemens 6ES7288-2DR08-0AA0
      Siemens 6ES7288-2DR08-0AA0
      · Product image is representative; revision or series may vary. Contact us to request a specific version.
      Ships by Saturday, November 14

      6ES7288-2DR08-0AA0

      SIMATIC S7-200 SMART SM DR08 relay output module

      Require for Quote:

      Shipping Information

      • For inventory products, we support same day shipping upon payment.
      • For urgent needs, we offer same-day shipping on most items for orders placed before 2:00 PM UTC+8 Simply mention your preferred next-day shipping when place the order, and your order will be prioritized to minimize downtime.
      • For indent items, typical turnaround is 1-3 weeks, depending on parts availability and scarcity.
      Customs & Documentation
      We prepare clear, order-specific documentation for every international shipment, including the commercial invoice, packing list and available product or compliance documents. Before dispatch, our logistics team confirms the consignee details, declared value, shipping terms and destination requirements with you. Tracking information is provided after shipment, helping your team prepare for import clearance with confidence.
      Documents checked before dispatch · Shipment details confirmed · Global tracking provided
      Payment
      Payment is by bank wire only in RMB/CNY, GBP, EUR or USD. Amikon does not accept credit cards or provide credit terms. Cleared payment is required before shipment unless the written quotation expressly states otherwise.
      Product Condition
      Factory New These are new and current items that are procured directly from the manufacturer.
      New In Sealed Package Parts are new. They have not been used and still have their original package seal intact.
      New in Original Package These parts are new. The packages were not originally sealed by their original manufacturer.
      Quantity
      Mobile *
      Country/Region *
      E-mail *
      Company
      Content *
      Upload
      (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Amikong please read our privacy policy.

      • 20+

        years in automation

      • ISO 9001

        certified quality system

      • 12 months

        amikon warranty

      • 2-hour reply

        from your account manager

      • Success Story

        solutions in action
      PART NUMBER SEARCH

      Find another automation part

      • Please try to be as accurate as possible with your search.
      • We can quote you on 1000s of specialist parts, even if they are not listed on our website.
      • We can't find any results for “”.
        SEE MORE
          SEE PRODUCTS IN SEARCH PAGE ()
          PRODUCT DESCRIPTION

          6ES7288-2DR08-0AA0 SIMATIC S7-200 SMART SM DR08 relay output module

          Siemens 6ES7288-2DR08-0AA0 is a SIMATIC S7-200 SMART SM DR08 relay output module designed for SIMATIC S7-200 SMART automation equipment. It provides the documented interfaces, electrical characteristics and installation format associated with this exact order number.

          Use the applicable Siemens data for wiring, configuration and replacement. Match the complete suffix, terminal arrangement and operating limits, then perform controlled functional checks before returning the connected process or machine to service.
          BEFORE YOU BUY

          Confirm the complete simatic s7-200 smart sm dr08 relay output module

          Send a label photo for review >>
          ACTUAL APPLICATIONS

          Application context for 6ES7288-2DR08-0AA0

          6ES7288-2DR08-0AA0 supports industry applications that use the documented simatic s7-200 smart sm dr08 relay output module within SIMATIC S7-200 SMART. Its output channels is 8 relay outputs, and its coil supply is 24 V DC. These characteristics are used in industrial automation, utility process control and facility automation where the installed system and complete order code have been confirmed.
          • 01 · INDUSTRIAL MACHINERY

            Industrial Machinery and Specialized Manufacturing Industries

            Industrial machinery manufacturing and engineering sector facility infrastructurePackaging, textile and general machinery manufacturing industry facilities
          • 02 · AGRICULTURE

            Agriculture, Irrigation and Food Supply Infrastructure

            Agricultural irrigation and rural water supply sector infrastructureGreenhouse, livestock and crop management industry facility infrastructure
          • 03 · WATER & WASTEWATER

            Municipal Water Supply and Wastewater Treatment

            Municipal drinking water supply and treatment sector facilitiesIndustrial wastewater collection, treatment and regulated discharge facilities

          Technical specifications for 6ES7288-2DR08-0AA0

          • Product Model
            6ES7288-2DR08-0AA0
          • Spare Model
            6ES7288-2DR08-0AA0
          • Product Parameters
            SIMATIC S7-200 SMART SM DR08 relay output module
          • In stock
            9 units
          • Manufacturer
            Siemens
          • Module Type
            SIMATIC S7-200 SMART SM DR08
          • Output Type
            Relay outputs
          • Relay Output Channels
            8
          • Rated Supply Voltage
            24 V DC
          • Permissible Voltage Range
            20.4–28.8 V DC
          • 24 V Input Current
            80 mA typical
          • 5 V Backplane Current
            90 mA typical
          • Relay Coil Voltage
            24 V DC
          • Reverse Polarity Protection
            Yes
          • Maximum Relay Supply Current
            80 mA for all relays
          • Maximum Inductive Load
            2 A
          • Maximum Lamp Load
            30 W DC / 200 W AC
          • Maximum Resistive Load
            2 A per output up to 50 °C
          • Digital Input Channels
            0
          • Contact Technology
            Electromechanical relay contacts
          View all additional
          Ask for Quote

          Alternative Names

          6ES7288-2DR08-0AA0 SIMATIC S7-200 SMART SIMATIC S7-200 SMART SM DR08 relay output module S7-200 SMART 8 relay outputs output channels
          SYSTEM & REPLACEMENT CHECK

          Information needed before ordering

          Three direct checks to secure your system integration and minimize ordering risks.

          Information

          System integration Replacement check Manuals & support
          SYSTEM INTEGRATION

          Integrate 6ES7288-2DR08-0AA0 simatic s7-200 smart sm dr08 relay output module

          6ES7288-2DR08-0AA0 is a SIMATIC S7-200 SMART SM DR08 relay output module in the SIMATIC S7-200 SMART family. Confirm the complete order code, installed position and documented output channels of 8 relay outputs before wiring or mechanical installation.
          Integrate the unit according to its documented coil supply of 24 V DC. Match terminal allocation, supply, addressing and adjacent hardware to the accepted system drawing, and preserve the configured signal or drive relationships.
          Commission 6ES7288-2DR08-0AA0 by checking the specified dc switching range of 5 to 30 V DC, status indications and diagnostics. Test every affected channel, communication path or controlled load, then record the final configuration and results.

          Features:

          • Output channels: 8 relay outputs
          • Coil supply: 24 V DC
          • DC switching range: 5 to 30 V DC
          The 6ES7288-2DR08-0AA0 simatic s7-200 smart sm dr08 relay output module requires appropriate configuration before system integration and commissioning.
          INTERCHANGEABILITY

          Verify 6ES7288-2DR08-0AA0 simatic s7-200 smart sm dr08 relay output module

          Select a replacement using the full 6ES7288-2DR08-0AA0 order code and the SIMATIC S7-200 SMART equipment definition. Verify the documented output channels of 8 relay outputs; a related family number does not establish interchangeability.
          Before removal, photograph the label, terminals, connector orientation and adjacent module arrangement. Compare the coil supply of 24 V DC, retain the installed project settings and identify any separately ordered terminal or mounting accessories.
          After fitting the verified replacement, restore the approved configuration and validate the dc switching range of 5 to 30 V DC. Check power-up diagnostics and all affected functions before returning the equipment to service.

          Features:

          • AC switching range: 5 to 250 V AC
          • Maximum output current: 2 A per output
          • Common current limit: 8 A
          The 6ES7288-2DR08-0AA0 simatic s7-200 smart sm dr08 relay output module requires replacement verification against the complete installed configuration and current manufacturer documentation.
          DOCUMENTATION STATUS

          Browse the Manuals, Datasheets, Official Documents, Links

          Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.

          Features:

          • Verify document identity before procurement or installation
          • Match the complete order to the manufacturer document scope
          • Accessories are supplied only when listed in the quotation
          Documentation for the 6ES7288-2DR08-0AA0 simatic s7-200 smart sm dr08 relay output module must be checked for document applicability before installation or commissioning.

          Also searched as

          6ES7214-1BD23-0XB8 6ES7272-0AA20-0YA0 6ES7272-0AA00-0YA0 6ES7216-2BD23-0XB8 6ES7235-0KD22-0XA0

          Important notice

          Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
          This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
          BUYER INFORMATION

          Commercial terms without hidden steps

          Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
          • 01

            Shipping & delivery

            Dispatch
            Eligible stock: same / next day
            Carriers
            DHL, FedEx or UPS
            Ship from
            Xiamen, China
            Packed size
            4.5 × 10 × 8.1 cm
            Shipping weight
            0.17 kg
          • 02

            Payment & customs

            Payment
            Bank transfer (T/T)
            Currencies
            USD · EUR · GBP · RMB
            Credit cards
            Not accepted
            HS reference
            8538900000
            Origin
            Germany
          • 03

            Warranty & returns

            Warranty
            12 months from AMIKON
            Inspection
            Label, condition and packing checks
            Returns
            Prior RMA authorisation required
            Compatibility
            Confirm before order
            OEM warranty
            Does not apply
          Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.

          • Part checked

            Full suffix recorded

          • Condition checked

            Label and appearance

          • Packing checked

            Antistatic protection

          • Tracking supplied

            Established couriers

          • Sandy Lin

            Dedicated account manager · 15+ years
          FREQUENTLY ASKED QUESTIONS

          Questions buyers ask about 6ES7288-2DR08-0AA0

          Direct answers about identity, compatibility, stock, warranty, payment and shipping.

          • Can 6ES7288-2DR08-0AA0 switch the existing AC and DC field loads?

            The 6ES7288-2DR08-0AA0 provides eight relay outputs. Check each load's voltage, current and duty against the Siemens switching ratings, especially inductive and lamp loads, before connecting it.

          • What should be captured before exchanging the 6ES7288-2DR08-0AA0 SM DR08?

            Record the 6ES7288-2DR08-0AA0 relay common wiring, output-to-load map, supply and the S7-200 SMART project assignment. This prevents a replacement relay from energizing the wrong device.

          • Why might a relay output on 6ES7288-2DR08-0AA0 fail to actuate?

            Check the CPU command, relay supply and field circuit for the affected 6ES7288-2DR08-0AA0 point. Inspect the load and contact condition after isolating power; a failed field device can mimic a module fault.

          • How should 6ES7288-2DR08-0AA0 relay channels be tested after replacement?

            Operate the 6ES7288-2DR08-0AA0 outputs one at a time with a controlled test plan. Confirm both on and off states at the load and verify that total relay current remains within the specified limit.

          • Can 6ES7288-2DR08-0AA0 replace a transistor-output SMART module?

            Do not substitute 6ES7288-2DR08-0AA0 on the basis of eight outputs. Its electromechanical relay behavior and load wiring differ from transistor outputs; verify the exact SMART module and application requirements.

          • What supply issue should be ruled out on 6ES7288-2DR08-0AA0?

            The relay coils on 6ES7288-2DR08-0AA0 use 24 V DC. Check the permissible supply range and polarity before interpreting silent relays as an output-channel fault.

          • What details make a 6ES7288-2DR08-0AA0 quote unambiguous?

            Provide the full 6ES7288-2DR08-0AA0 suffix, SMART CPU model, quantity and a photo of the original relay terminal arrangement. State whether mating connectors or other accessories are required.

          • How is a delivered SM DR08 verified against 6ES7288-2DR08-0AA0?

            Confirm the 6ES7288-2DR08-0AA0 nameplate, relay-output type and physical terminal condition. Compare supplied parts with the quotation and retain the label photo for replacement records.
