- 6ES7235-0KD22-0XA0

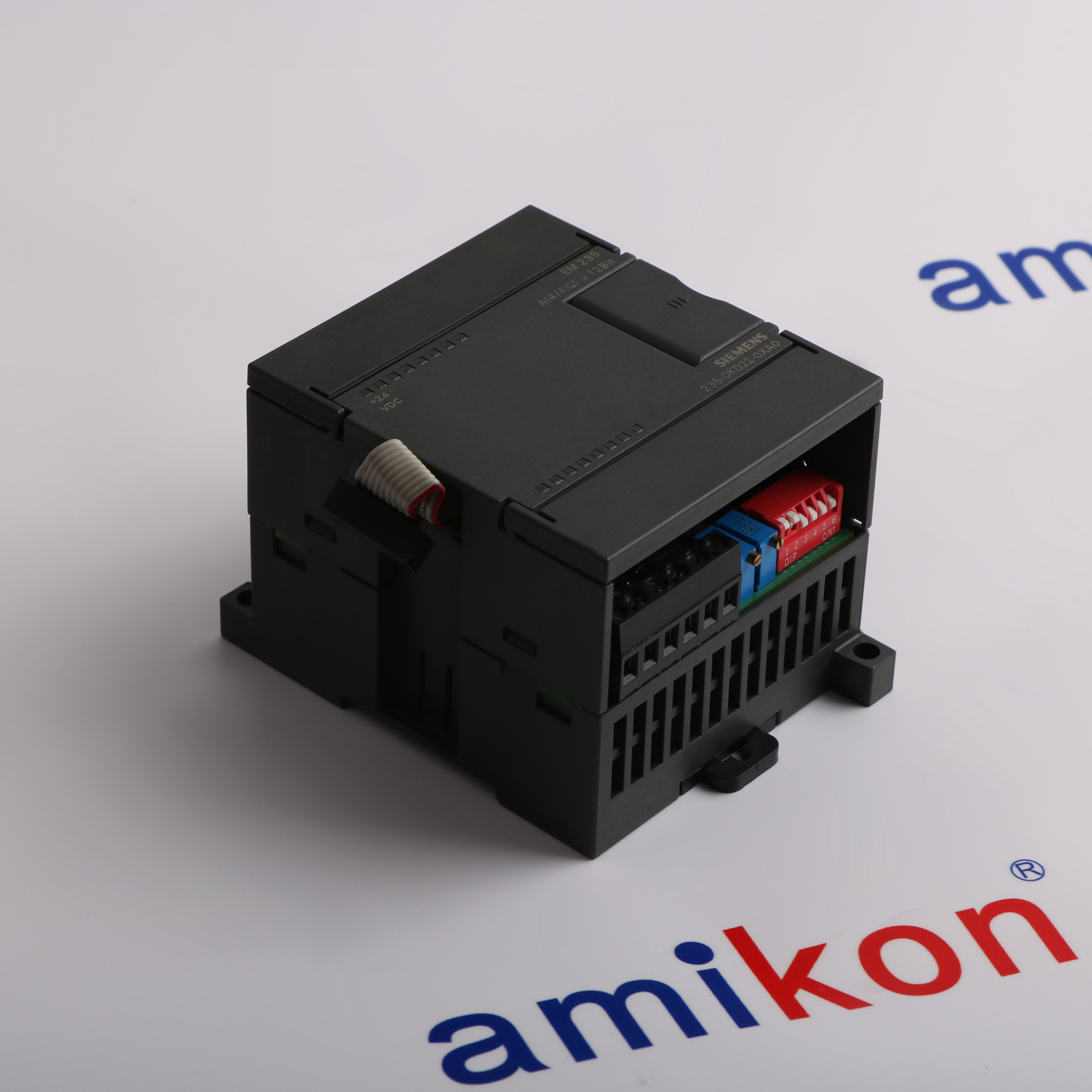

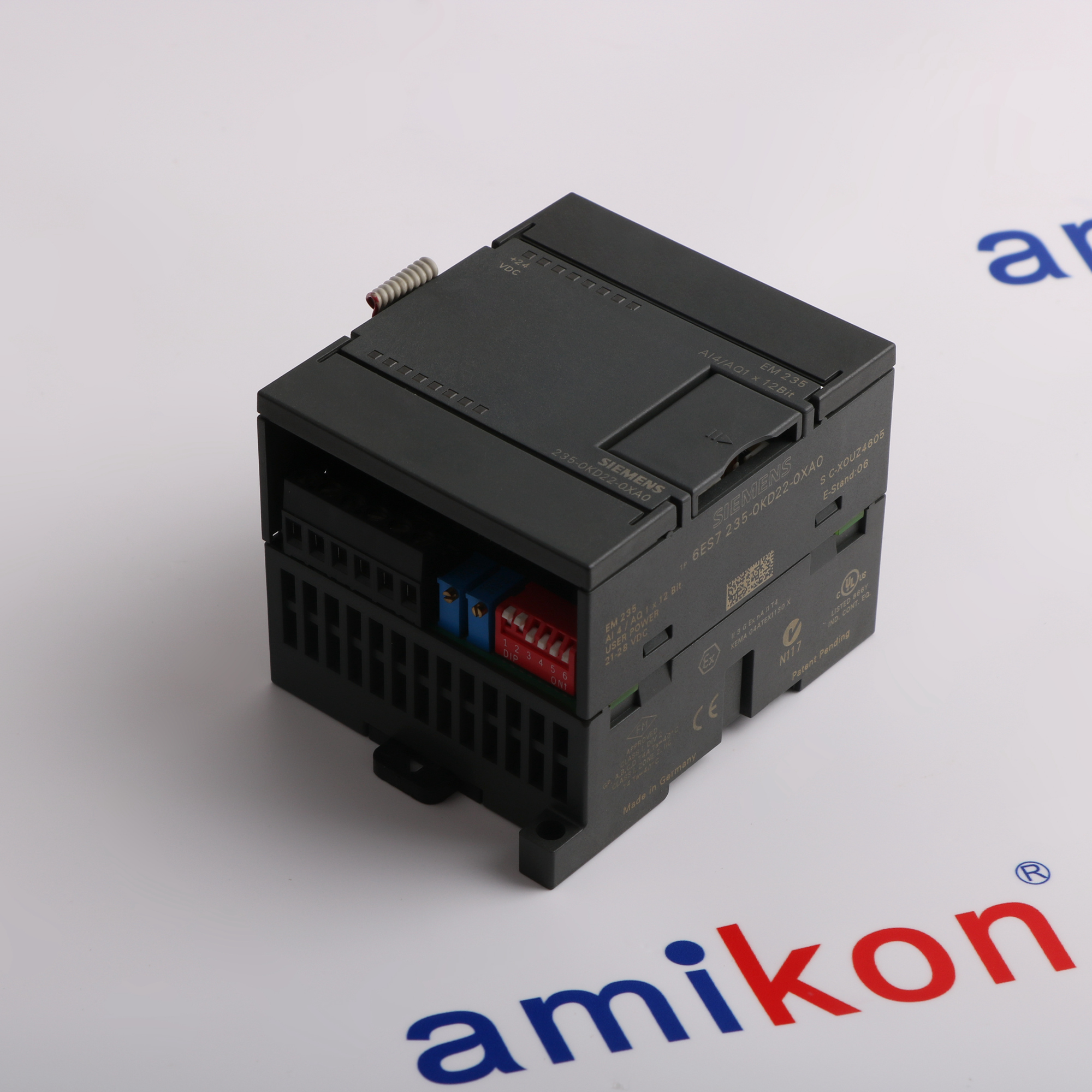

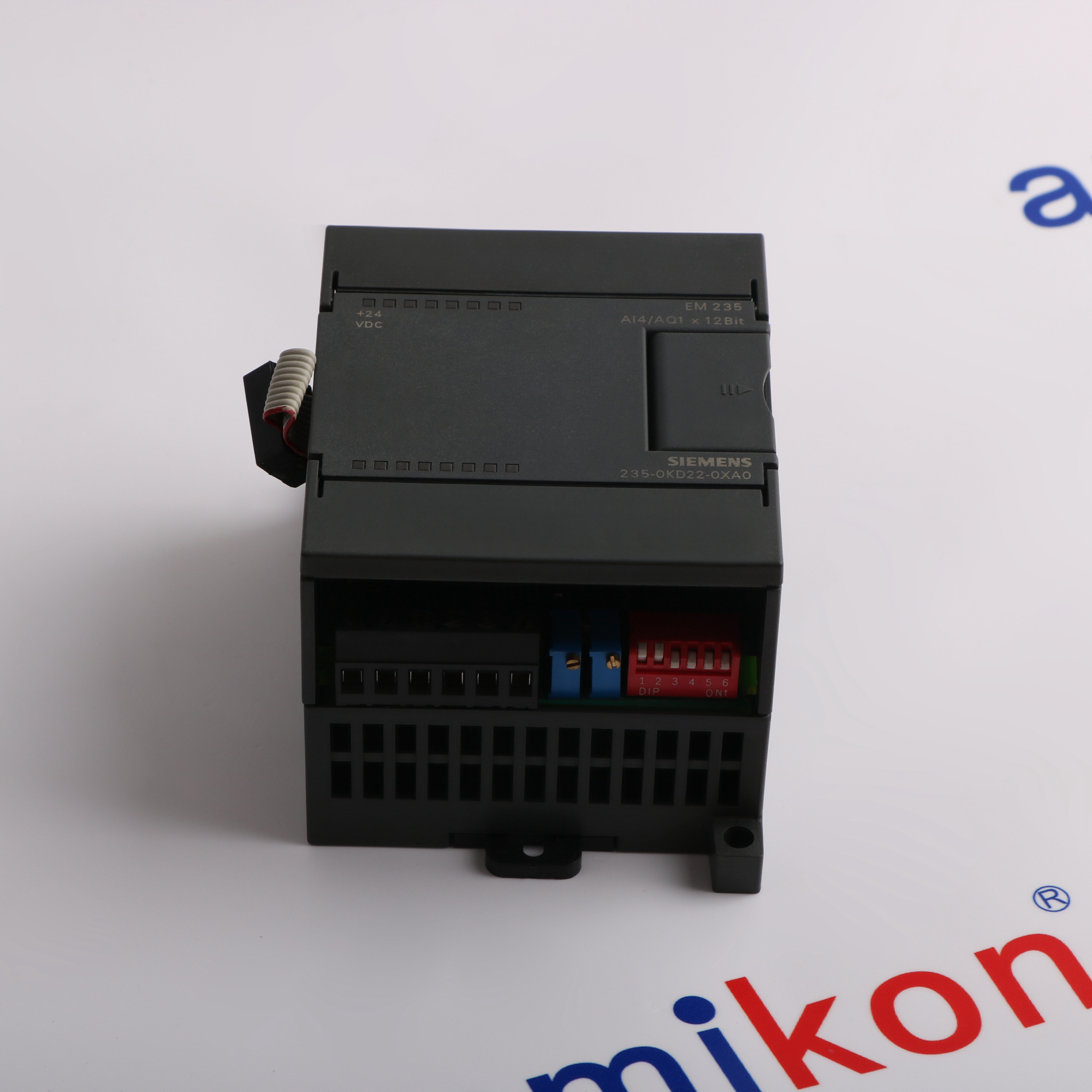

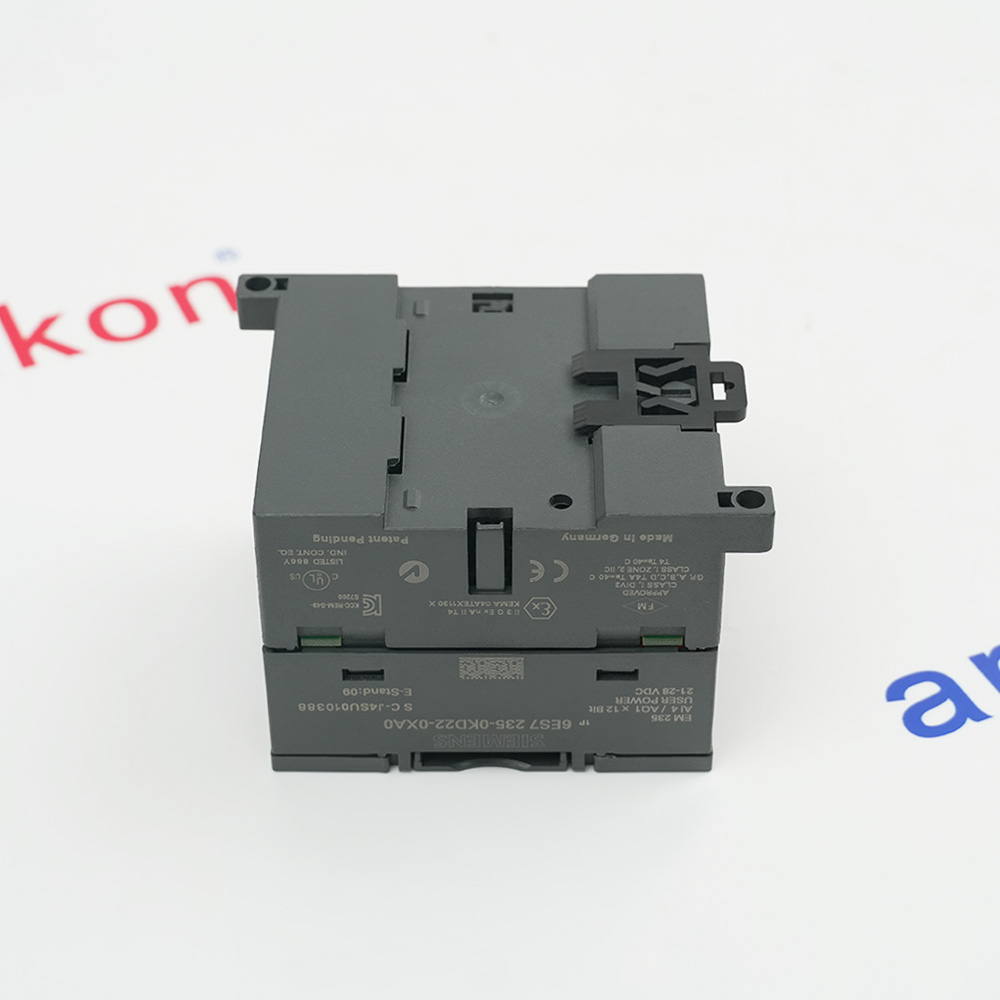

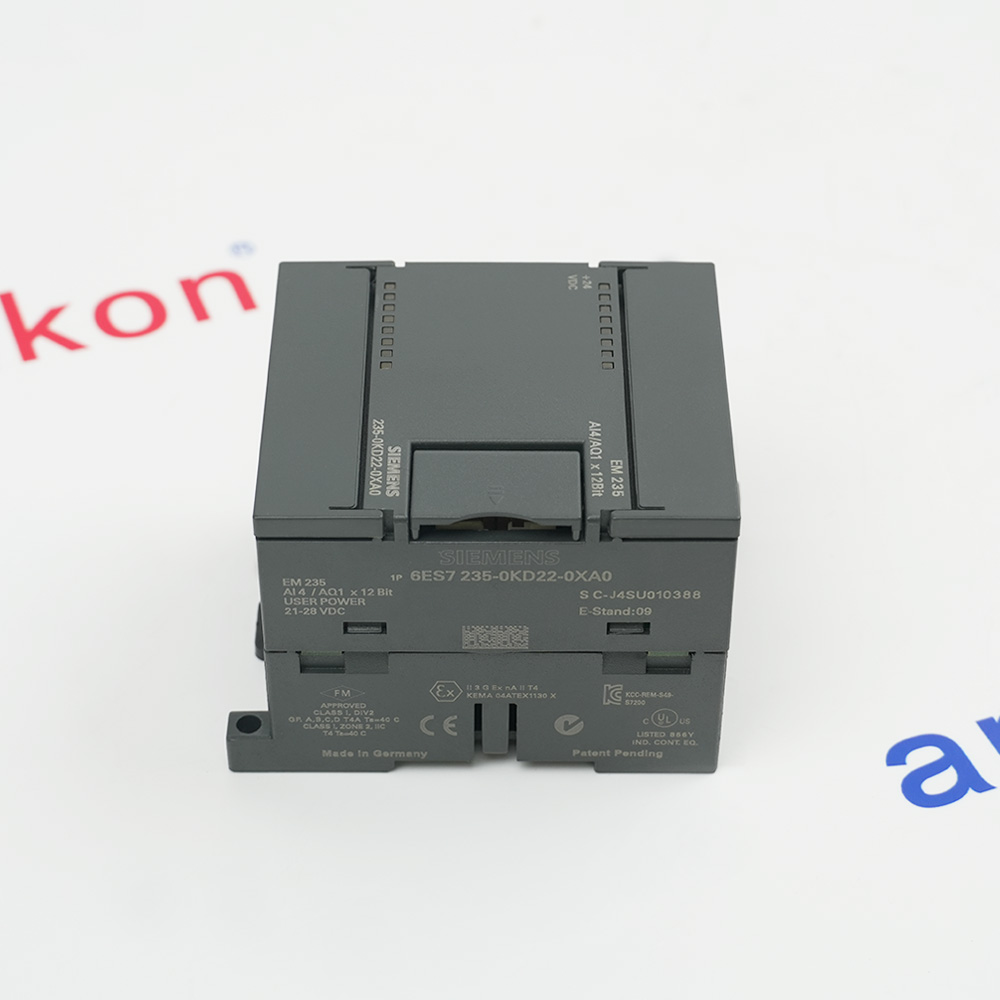

· Product image is representative; revision or series may vary. Contact us to request a specific version.
Warranty Policy
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
Return Notice
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
How to order?
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Parts Availability
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 6ES7235-0KD22-0XA0
-
Product Model6ES7235-0KD22-0XA0
-
Spare ModelEM 235
-
Product ParametersANALOG I/O MODULE
-
Tariff Code8537101190
-
Country of originGERMANY
-
Place of shipmentXiamen, China
-
Estimated Shipping Size7.5x6.2x9.5cm
-
ManufacturerSiemens
-
Weight0.15 kg
-
from backplane bus 5 V DC, max30 mA
-
from sensor current supply or external current supply(24 V DC), max.60 mA
-
Power loss, typ.2 W
-
Number of analog inputs4; Difference
-
permissible input voltage for voltage input30 V
-
permissible input current for current input32 mA
-
Resolution with overrange12 bit
-
Basic conversion time (ms)< 0.25 ms
-
Interference voltage suppression forinterference frequency f1 in Hz40 dB, DC to 60 Hz
-
Common mode voltage, max.12 V
Description
6ES72350KD220XA0
ANALOG I/O MODULE
SIMATIC S7-200
ANALOG CURRENT/VOLTAGE INPUTS
EM 235
ONLY FOR S7-22X CPU
21/28 VDC
12 BIT CONVERTER
ANALOG I/O MODULE
SIMATIC S7-200
ANALOG CURRENT/VOLTAGE INPUTS
EM 235
ONLY FOR S7-22X CPU
21/28 VDC
12 BIT CONVERTER
Information
Overview
Manuals
Technical notes
Product Applications
Comparison with Related Models
Features:
- SIMATIC S7-200
- ANALOG I/O EM 235,
- FOR S7-22X CPU ONLY, 4AI
- DC +/-10V; 1AQ, DC +/-10V 12 BIT CONVERTER
The 6ES7235-0KD22-0XA0 Siemens ANALOG I/O MODULE may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Siemens 6ES7235-0KD22-0XA0 ANALOG I/O MODULE Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 6ES7235-0KD22-0XA0 (EM 235) is an analog expansion module for the Siemens SIMATIC S7-200 series. To ensure proper operation, it requires specific physical configuration and software scaling,To measure 0-20mA, you must short terminals Rx and x (e.g., bridge RA and A) to engage the internal 250Ω resistor.
- Manufacturing:Controls robots & press hydraulic
- Energy Management:Monitors power & controls distribution
- Water Treatment:Regulates pumps via VFDs
- Chemical Processing:Manages reactor temp cycles
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
EM 235 vs. EM 231/232: The EM 235 is the only legacy module that combines input and output, making it more cost-effective for single-loop control but less efficient if you only need one type of signal.
EM 235 vs. SMART AM06: The SMART version provides an extra output channel and eliminates the need for manual calibration via potentiometers, which is a major reliability improvement.
FAQs
-
What is the 6ES7235-0KD22-0XA0?+It is an Analog Input/Output Module (EM 235) for the S7-200 PLC, featuring 4 analog inputs and 1 analog output.
-
What is 6ES7235-0KD22-0XA0 the voltage supply for the module?+The module requires a 24 VDC supply for operation.
-
Is this product brand new?+Yes, SIEMENS 6ES7235-0KD22-0XA0 is brand new, original, unused, and factory sealed
-
Is this compatible with S7-1200 or S7-300?+No, this module is specifically designed for the S7-200 (S7-22X) PLC series.
-
What is the resolution of the module?+The module uses a 12-bit converter for high-precision signal processing.
