      In Stock
      Fast Shipping Available
      Siemens 6ES7901-3DB30-0XA0
      Siemens 6ES7901-3DB30-0XA0
      Siemens 6ES7901-3DB30-0XA0
      Siemens 6ES7901-3DB30-0XA0
      Siemens 6ES7901-3DB30-0XA0
      Siemens 6ES7901-3DB30-0XA0
      · Product image is representative; revision or series may vary. Contact us to request a specific version.
      Ships by Saturday, November 14

      6ES7901-3DB30-0XA0

      USB/PPI Multi-Master Cable

      Require for Quote:

      Shipping Information

      • For inventory products, we support same day shipping upon payment.
      • For urgent needs, we offer same-day shipping on most items for orders placed before 2:00 PM UTC+8 Simply mention your preferred next-day shipping when place the order, and your order will be prioritized to minimize downtime.
      • For indent items, typical turnaround is 1-3 weeks, depending on parts availability and scarcity.
      Customs & Documentation
      We prepare clear, order-specific documentation for every international shipment, including the commercial invoice, packing list and available product or compliance documents. Before dispatch, our logistics team confirms the consignee details, declared value, shipping terms and destination requirements with you. Tracking information is provided after shipment, helping your team prepare for import clearance with confidence.
      Documents checked before dispatch · Shipment details confirmed · Global tracking provided
      Payment
      Payment is by bank wire only in RMB/CNY, GBP, EUR or USD. Amikon does not accept credit cards or provide credit terms. Cleared payment is required before shipment unless the written quotation expressly states otherwise.
      Product Condition
      Factory New These are new and current items that are procured directly from the manufacturer.
      New In Sealed Package Parts are new. They have not been used and still have their original package seal intact.
      New in Original Package These parts are new. The packages were not originally sealed by their original manufacturer.
      Quantity
      Mobile *
      Country/Region *
      E-mail *
      Company
      Content *
      Upload
      (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Amikong please read our privacy policy.

      • 20+

        years in automation

      • ISO 9001

        certified quality system

      • 12 months

        amikon warranty

      • 2-hour reply

        from your account manager

      • Success Story

        solutions in action
      PART NUMBER SEARCH

      Find another automation part

      • Please try to be as accurate as possible with your search.
      • We can quote you on 1000s of specialist parts, even if they are not listed on our website.
      • We can't find any results for “”.
        SEE MORE
          SEE PRODUCTS IN SEARCH PAGE ()
          PRODUCT DESCRIPTION

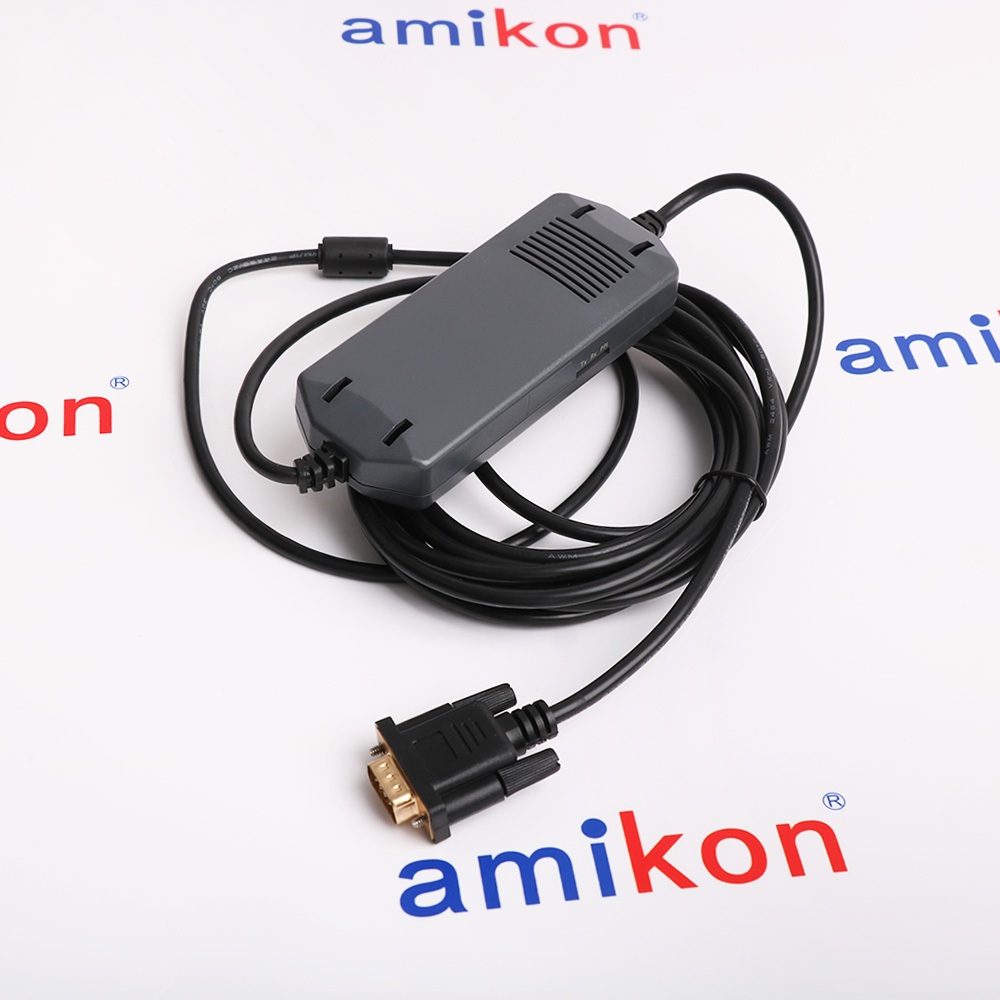

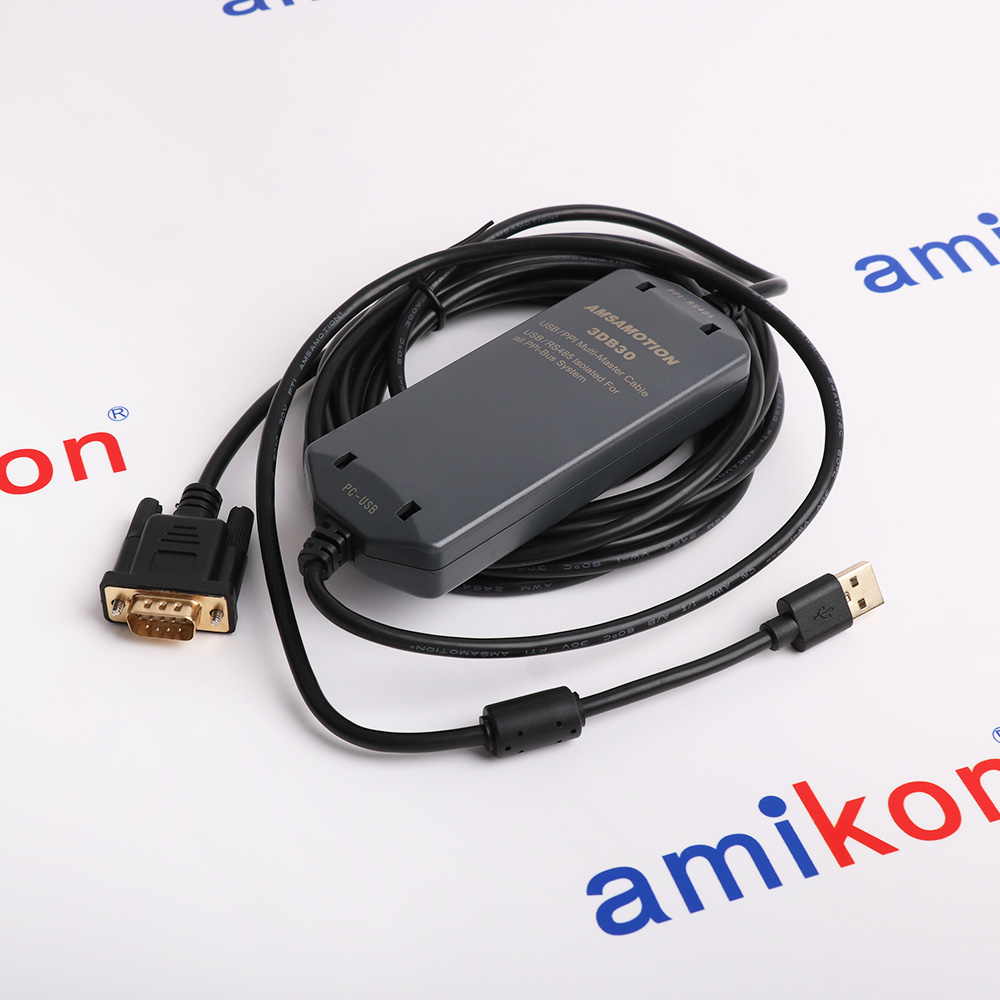

          6ES7901-3DB30-0XA0 USB/PPI Multi-Master Cable

          Siemens 6ES7901-3DB30-0XA0 is the USB/PPI Multi-Master Cable for SIMATIC S7-200. The USB/PPI cable links a USB-equipped PC to a SIMATIC S7-200 controller for PPI access.

          PC interface is specified as USB. The published data also lists PPI, 10/11-bit for plc protocol and 9.6, 19.2 or 187.5 kbit/s for transfer rates.
          BEFORE YOU BUY

          Confirm the complete 6ES7901-3DB30-0XA0 identity

          Send a label photo for review >>
          ACTUAL APPLICATIONS

          Application fields for 6ES7901-3DB30-0XA0

          These broad application fields reflect the documented function and technical characteristics of 6ES7901-3DB30-0XA0.
          • 01 · INDUSTRIAL MANUFACTURING

            Discrete Manufacturing and Industrial Assembly

            General manufacturing and industrial fabricationTextile and apparel manufacturing industries
          • 02 · FOOD & BEVERAGE

            Food Processing and Beverage Packaging

            Food ingredients and packaged food industriesSoft drinks and bottled water industries
          • 03 · AUTOMOTIVE MANUFACTURING

            Vehicle Assembly and Automotive Components

            Commercial vehicle and trailer manufacturingPassenger vehicle and automotive supply industries

          Technical specifications for 6ES7901-3DB30-0XA0

          • Product Model
            6ES7901-3DB30-0XA0
          • Product Parameters
            USB/PPI Multi-Master Cable
          • In stock
            5 units
          • Manufacturer
            Siemens
          • PC interface
            USB
          • PLC protocol
            PPI, 10/11-bit
          • Transfer rates
            9.6, 19.2 or 187.5 kbit/s
          • Power source
            USB interface
          • Freeport support
            No
          • Galvanic isolation
            Provided
          • Activity indicators
            USB Tx, USB Rx and RS-485 PPI
          View all additional
          Ask for Quote

          Alternative Names

          6ES79013DB300XA0 6ES7901-3DB30-0XA0 USB/PPI Multi-Master Cable SIMATIC S7-200 6ES7901-3DB30-0XA0
          SYSTEM & REPLACEMENT CHECK

          Information needed before ordering

          Three direct checks to secure your system integration and minimize ordering risks.

          Information

          System integration Replacement check Manuals & support
          SYSTEM INTEGRATION

          Integrate 6ES7901-3DB30-0XA0 within SIMATIC S7-200

          The USB/PPI cable links a USB-equipped PC to a SIMATIC S7-200 controller for PPI access. Review the host documentation for the installed SIMATIC S7-200 configuration.
          Confirm the programming software uses PPI and that the intended link does not require Freeport. Compare the project settings with the corresponding product ratings.
          Use USB and PPI, 10/11-bit as documented reference values when reviewing the project. Verify the configured function under the site acceptance procedure.

          Features:

          • PC interface · USB
          • PLC protocol · PPI, 10/11-bit
          • SIMATIC S7-200 configuration
          Use 6ES7901-3DB30-0XA0 only within the documented SIMATIC S7-200 arrangement and applicable installation instructions.
          INTERCHANGEABILITY

          Replace 6ES7901-3DB30-0XA0 within SIMATIC S7-200

          Record the complete 6ES7901-3DB30-0XA0 order code and photograph the fitted unit. Identify the connected equipment and any separately fitted accessories.
          Record the target PLC and verify the USB and PPI activity LEDs while testing access after connection.
          Record the final configuration and test the affected functions against the pre-change baseline. Resolve any unexpected indications before returning the assembly to operation.

          Features:

          • Complete 6ES7901-3DB30-0XA0 order code
          • Installed wiring and supplied scope
          • Functional verification after exchange
          Use 6ES7901-3DB30-0XA0 only within the documented SIMATIC S7-200 arrangement and applicable installation instructions.
          DOCUMENTATION STATUS

          Browse the Manuals, Datasheets, Official Documents, Links

          Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.

          Features:

          • Exact-model technical data for 6ES7901-3DB30-0XA0
          • Document applicability checked against the complete identity
          • Directory links by subcategory and brand
          Documentation for 6ES7901-3DB30-0XA0 must match the installed product identity and supplied configuration.

          Also searched as

          6ES7214-1BD23-0XB0 6ES7272-0AA00-0YA0 6ES7223-1BH22-0XA0 6ES7214-1AD21-0XB0 6ES7214-1AD23-0XB8

          Important notice

          Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
          This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
          BUYER INFORMATION

          Commercial terms without hidden steps

          Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
          • 01

            Shipping & delivery

            Dispatch
            Eligible stock: same / next day
            Carriers
            DHL, FedEx or UPS
            Ship from
            Xiamen, China
            Product size
            19.00 x 14.00 x 3.00 cm
            Net weight
            0.22 kg
          • 02

            Payment & customs

            Payment
            Bank transfer (T/T)
            Currencies
            USD · EUR · GBP · RMB
            Credit cards
            Not accepted
            HS reference
            8544421900
            Origin
            Germany
          • 03

            Warranty & returns

            Warranty
            12 months from AMIKON
            Inspection
            Label, condition and packing checks
            Returns
            Prior RMA authorisation required
            Compatibility
            Confirm before order
            OEM warranty
            Does not apply
          Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.

          • Part checked

            Full suffix recorded

          • Condition checked

            Label and appearance

          • Packing checked

            Antistatic protection

          • Tracking supplied

            Established couriers

          • Sandy Lin

            Dedicated account manager · 15+ years
          FREQUENTLY ASKED QUESTIONS

          Questions buyers ask about 6ES7901-3DB30-0XA0

          Direct answers about identity, compatibility, stock, warranty, payment and shipping.

          • Can the USB/PPI cable access an S7-200 in Freeport mode?

            Freeport is unsupported. Use a PPI connection for supported programming access.

          • What PPI speeds can this cable use?

            Select 9.6, 19.2 or 187.5 kbit/s to match the PLC connection.

          • Does the USB/PPI adapter need a separate power supply?

            It draws power from the PC USB port.

          • How can I tell whether PPI traffic reaches the adapter?

            Observe USB Tx, USB Rx and the RS-485 PPI activity indicator while attempting a connection.

          • Is the PC side galvanically isolated from PPI?

            The cable provides galvanic isolation between the connected sides.

          • Why might USB detection succeed while PLC access fails?

            Confirm the target is using PPI and that the configured transfer rate and 10- or 11-bit format match.

          • What should a buyer specify for an S7-200 programming lead?

            Request the USB/PPI version and identify the target CPU. A generic RS-485 lead is a different item.

          • What should receiving check on the USB/PPI cable assembly?

            Inspect the USB plug, PLC-side connector and cable strain relief together.
