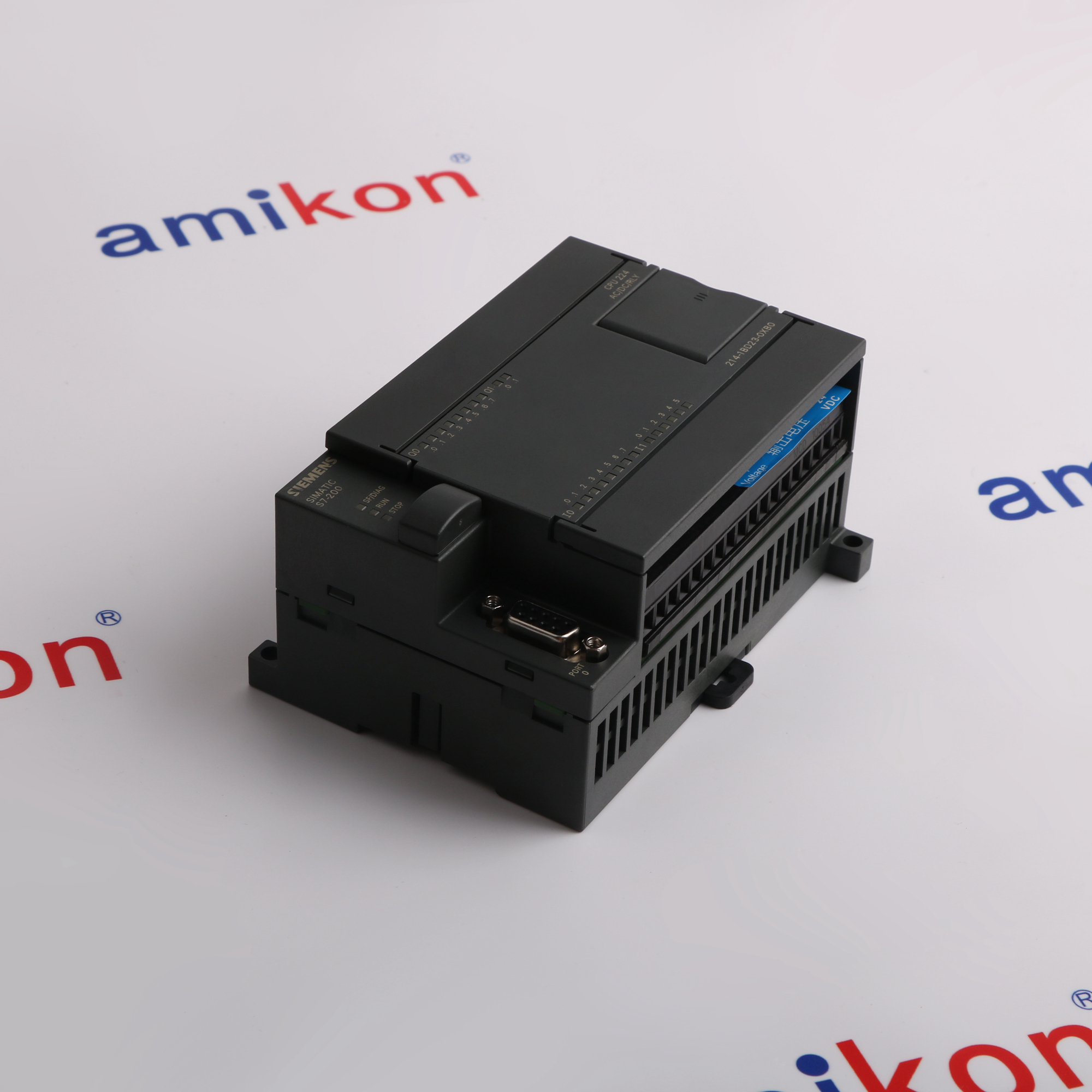

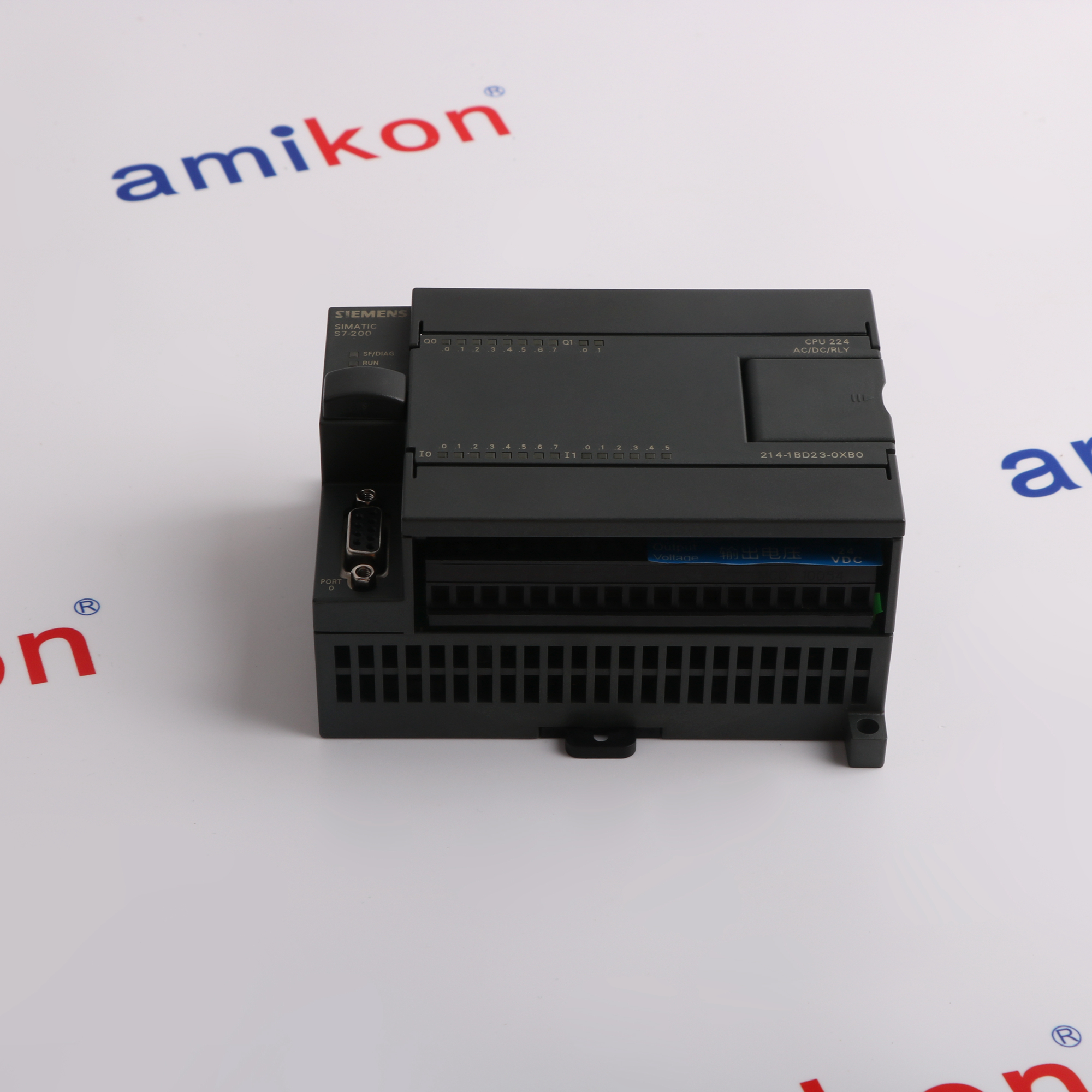

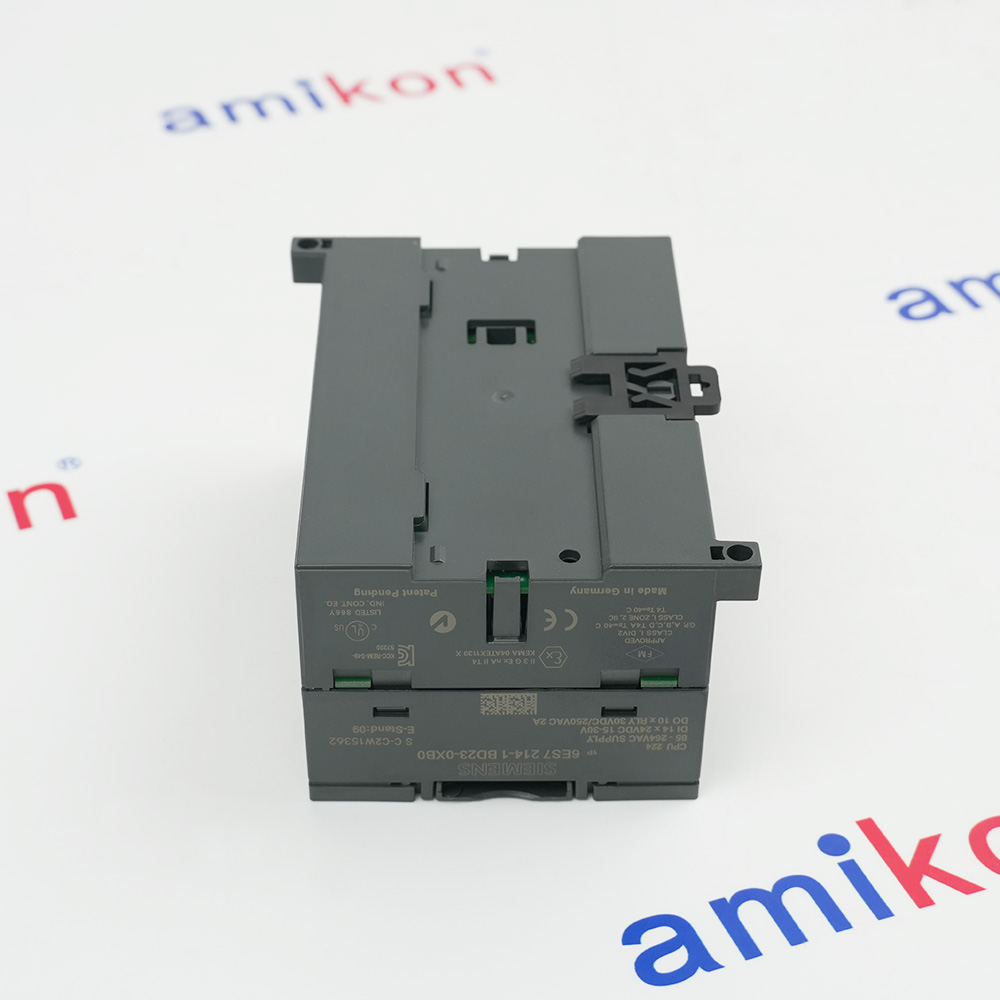

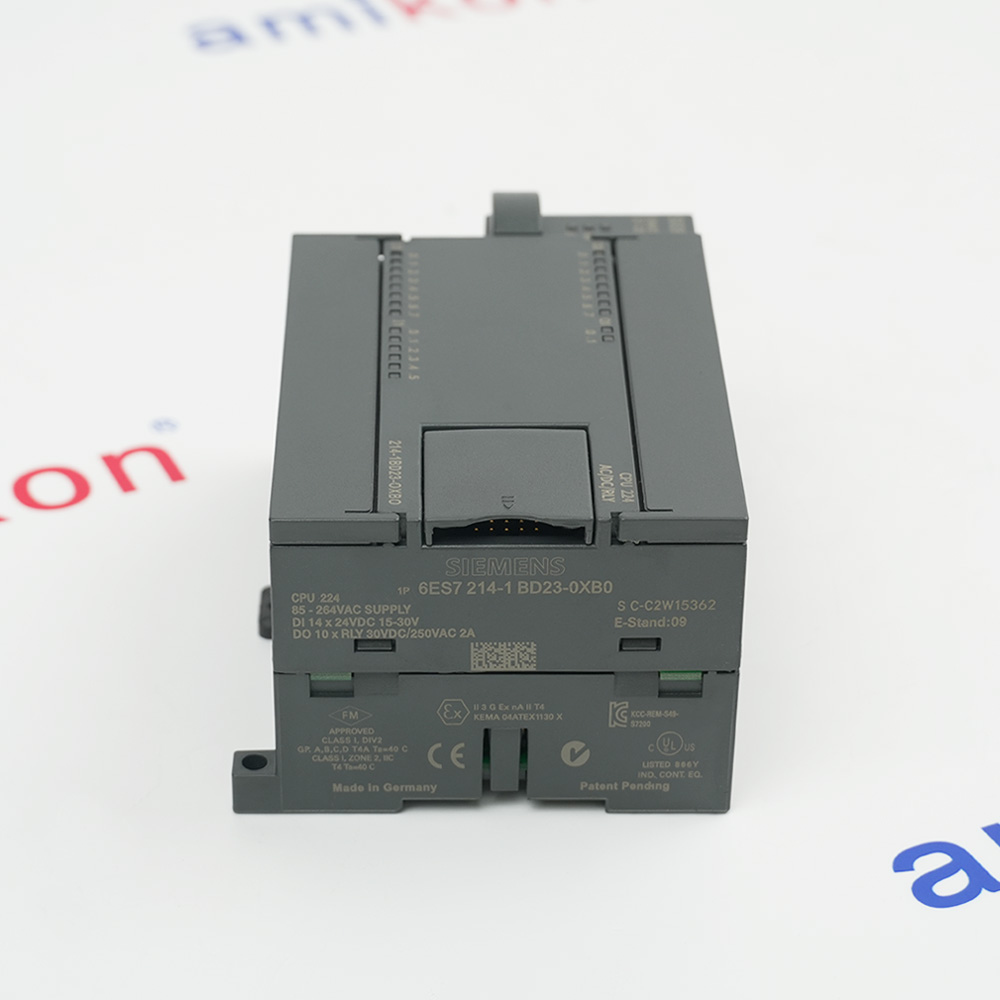

6ES7214-1BD23-0XB0
Need Help? Contact US!
Call us: +86-18020776786
Proper, Ready.
Delivery time
Please indicate your delivery time
Product image is representative; revision or series may vary. Contact us to request a specific version.
Product Information
Product Describe
SIMATIC S7-200
CPU 224
COMPACT UNIT
AC POWER SUPPLY14 DI DC/10 DO
RELAY
8/12 KB CODE/8 KB DATA
PROFIBUSDP EXTENDABLE
CPU 224
COMPACT UNIT
AC POWER SUPPLY14 DI DC/10 DO
RELAY
8/12 KB CODE/8 KB DATA
PROFIBUSDP EXTENDABLE
Technical specifications for 6ES7214-1BD23-0XB0
-
Product Model6ES7214-1BD23-0XB0
-
Product ParametersSimatic S7-200 CPU 224
-
Tariff Code8537101190
-
Country of originGermany
-
Place of shipmentXiamen, China
-
Estimated Shipping Size12x9.5x6.2cm
-
ManufacturerSiemens
-
Weight0.35 kg
-
Rated value (DC)24 V
-
permissible range, lower limit (DC)5 V
-
Output current, max280 mA
-
Rated value (DC)24 V
-
Rated value (AC)100 V
-
permissible range, upper limit (AC)250 V
-
permissible frequency range, lower limit47 Hz
-
permissible frequency range, upper limit63 Hz
-
Inrush current, max20 A
-
from supply voltage L1, max.200 mA
-
Factory New
These are new and current items that are procured from the manufacturer. -
New No Package
These parts are new. They have not been used, but their original packaging is no longer available. -
New In Opened Package
These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged. -
New In Sealed Package
Parts are new. They have not been used and still have their original package seal intact. -
New in Original Package
These parts are new. The packages were not originally sealed by their original manufacturer.
Warranty Period & Disclaimer
Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.
FAQs
-
What Is 6ES7214-1BD23-0XB0 ?+The Siemens 6ES7214-1BD23-0XB0 is a compact CPU 224 module from the SIMATIC S7-200 series of Programmable Logic Controllers (PLCs).
-
What 6ES7214-1BD23-0XB0 this CPU used for?+The Siemens 6ES7214-1BD23-0XB0 is a compact and reliable PLC from the SIMATIC S7-200 series, designed for small to medium automation tasks in industrial environments.
-
What are 6ES7214-1BD23-0XB0 main specifications?+It features an AC power supply, 14 digital inputs (DC), and 10 digital outputs (relay type). It has 8 to 12 KB of program memory and 8 KB of data memory.
-
What software is used to program this PLC?+The S7-200 series is programmed using STEP 7-Micro/WIN. Note that modern TIA Portal software does not support this legacy hardware directly
-
What is the difference between this and the -0XB8 version?+The -0XB8 suffix typically denotes a version manufactured for the Chinese market (-CN). These are functionally similar but require the programming software language to be set to Chinese for uploads/downloads and may lack certain international certifications like UL.
Get a quick price fo 6ES7214-1BD23-0XB0
whatsapp
Inquiry
Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions
Product
MORE INFORMATION
Overview
Manuals
Technical notes
Product Applications
Programming and Operation
Features:
- SIMATIC S7-200
- CPU 224, COMPACT UNIT
- AC POWER SUPPLY 14 DI DC/10 DO, RELAY
- 8/12 KB CODE/8 KB DATA
- PROFIBUS DP EXTENDABLE
The 6ES7214-1BD23-0XB0 Siemens CPU unit may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Siemens 6ES7214-1BD23-0XB0 CPU unit Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The unit integrates six high-speed counters (maximum counting frequency 30 kHz) and four alarm inputs, as well as two analog potentiometers for process setting. For communication, the CPU supports MPI, PPI, and serial data exchange, with a maximum communication rate of 187.5 kbit/s. Regarding hardware expansion capabilities, the CPU can connect to up to seven expansion modules, expanding digital I/O to up to 168 points and analog I/O channels to up to 35. The power supply section supports 120V AC or 230V AC input and can provide 24V DC (maximum 280mA) encoder power to external sensors, but this output has short-circuit protection.
The digital input is 24V DC with an adjustable input delay (0.2ms to 12.8ms). The digital output is relay-type, with a maximum switching current of 2A per point (resistive load) and a maximum total current of 10A per group, but the output points themselves do not have short-circuit protection. This device can operate in ambient temperatures from 0°C to 55°C when horizontally installed and from 0°C to 45°C when vertically installed. The product has an IP20 protection rating, dimensions of 120.5 mm wide, 80 mm high, and 62 mm deep, and weighs approximately 410 grams. It should be noted that Siemens is phasing out the S7-200 series; this model is the predecessor to the subsequent S7-200 SMART or S7-1200 series. When selecting new products for new projects, it is recommended to refer to current mainstream product series.
- Manufacturing & Production:Controls assembly lines in food, automotive & electronics
- Material Handling:Common in conveyor systems and sorting machinery
- Packaging Machines:8 KB program & 12 KB data memory for efficient packaging control
- Building Automation:HVAC control, lighting, and management systems
- Industrial Machine Control:Ideal for pumps, solenoids, and motor control applications
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
As a member of the legacy S7-200 family, this CPU is typically programmed using STEP 7-Micro/WIN software.
Instruction Set: Supports bit logic, comparison, timer, and counter instructions.
Internal Clock: While some S7-200 models require an optional module, the CPU 224 generally has a built-in real-time clock, though a battery module may be needed for long-term power-off retention.
Expansion: It can support up to 7 expansion modules from the S7-22x series.
