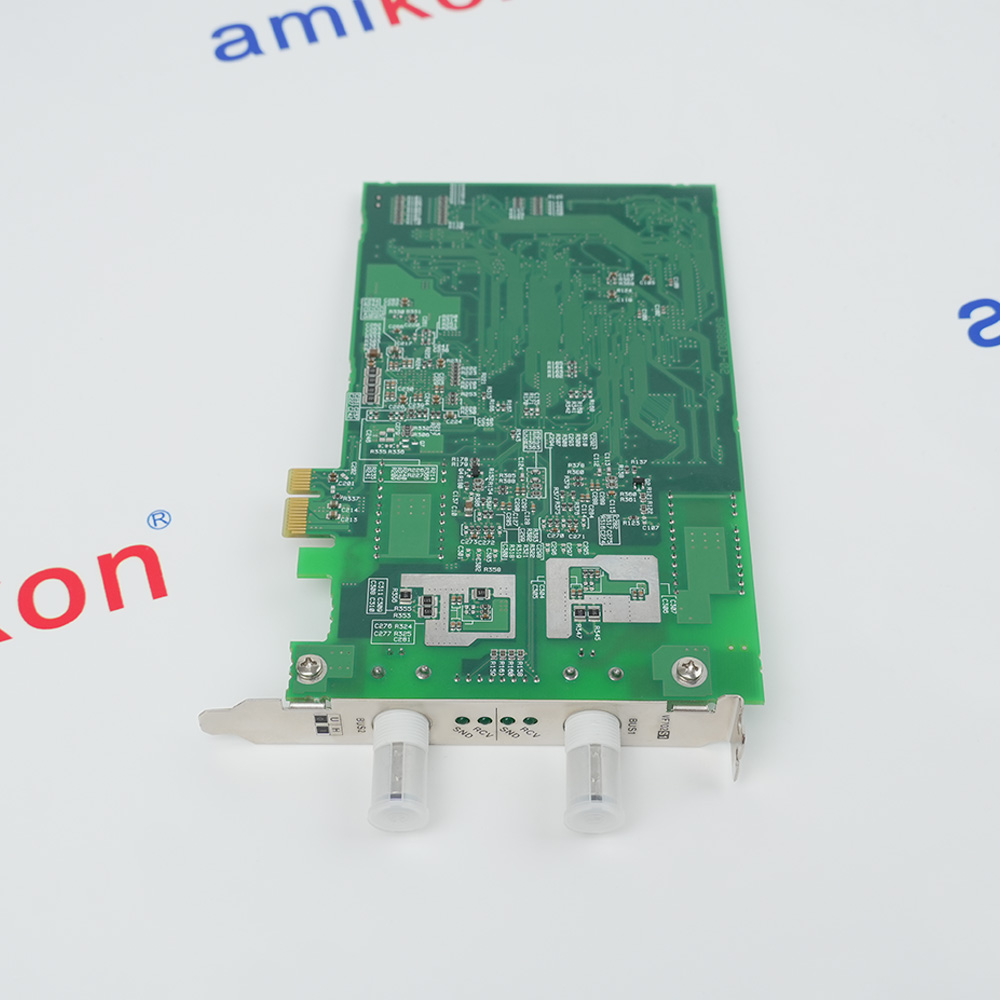

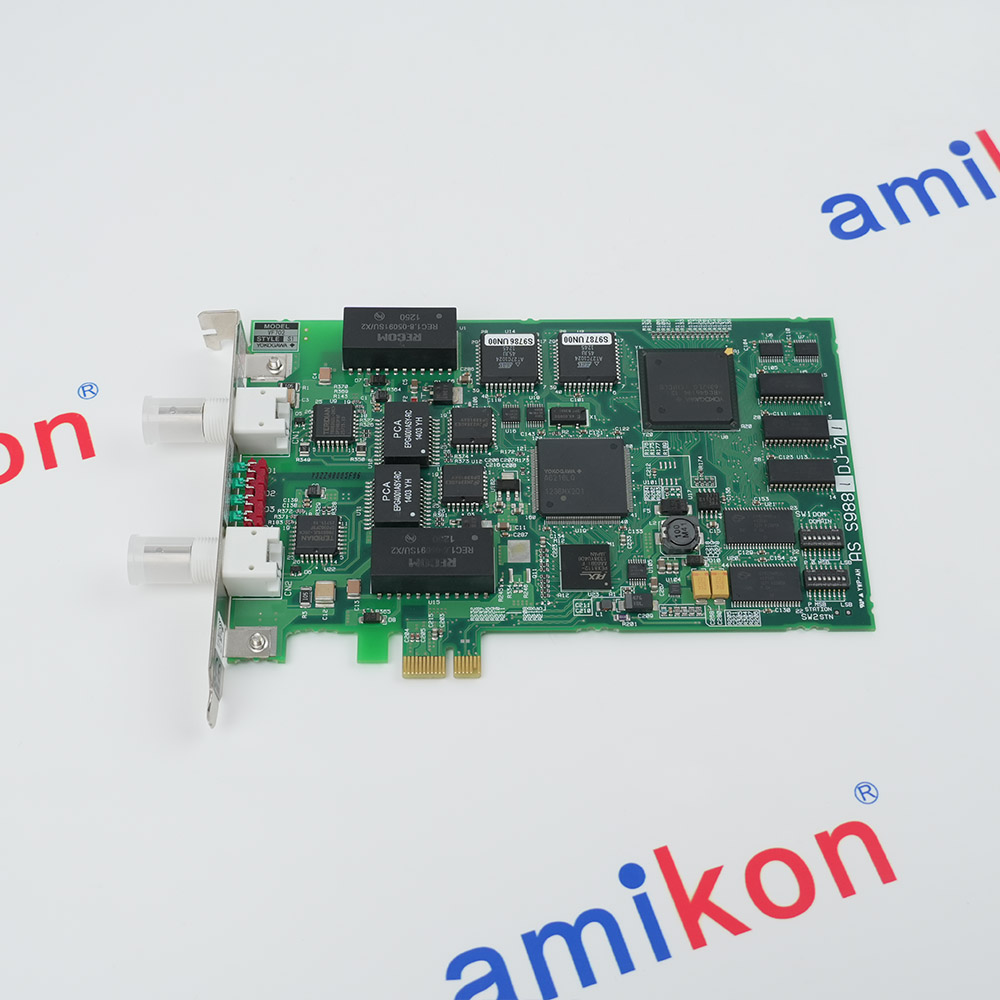

Technical specifications for VF702 S1
-
Product ModelVF702 S1
-
Product ParametersControl Bus Interface Card
-
Tariff Code8537101190
-
Country of originJAPAN
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size2.5x12.7x19.7cm
-
ManufacturerYokogawa
-
Weight0.1 kg
-
Communication Speed1 Gbps Full Duplex
-
Transmission1000BASE-T compliance
-
ConnectorRJ45 connector
-
Max. distance100 m
-
Power supply voltage3.3 V ± 9 %
-
Current ConsumptionMax.2.5 A
Description
The Yokogawa VF702 is a control bus interface card designed for the CENTUM VP distributed control system. It installs into a PCI-Express slot (x1 to x16) of a PC/AT compatible computer, providing a 1 Gbps full-duplex Ethernet connection to the Vnet/IP control bus. The card communicates via CAT5e UTP cable with an RJ45 connector, supporting a maximum distance of 100 meters to a Layer 2 switch.
The VF702 replaces the legacy VF701 control bus interface card, which used a PCI interface. The VF702 and VI702 share the same PCI-Express form factor and driver architecture, allowing coexistence with VI701 cards on the same bus. The card features three status indicators: RDY (ready), RCV (receive), and SND (send).
The VF702 replaces the legacy VF701 control bus interface card, which used a PCI interface. The VF702 and VI702 share the same PCI-Express form factor and driver architecture, allowing coexistence with VI701 cards on the same bus. The card features three status indicators: RDY (ready), RCV (receive), and SND (send).
Alternative Names
VF702-S1
VF702S1
VF702 SI
VF7O2 S1
VF702-SI
VF7O2-S1
Information
Overview
Manuals
Application Notes
Product Applications
Cabling and Network Connection
Features:
- PCI Express control bus interface card
- 10BASE-2 communication standard
- RCV and SND communication status indicators
- Maximum current consumption of 2.4 A
The VF702 supports communication over a 10BASE-2 coaxial network using a BNC connection and YCB146 control bus cable. Network connections are established through T-type connectors, allowing integration into existing control bus segments with transmission distances of up to 185 meters. This configuration provides reliable communication for engineering, maintenance, monitoring, and system management functions.
The VF702 Yokogawa Control Bus Interface Card may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Yokogawa VF702 Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The module complies with PCI Express CEM Specification 1.0a and can be installed in PCIe x1 through x16 slots. Operating from a 3.3 VDC supply, the card consumes a maximum of 2.4 A and includes dedicated transmit and receive indicators for communication diagnostics. The compact design allows installation within industrial workstations without requiring additional external communication hardware.
- Petrochemical/Refining: Orchestrates catalytic cracking and refining by relaying data between workstations and field control units
- Oil & Gas: Manages upstream extraction and downstream distribution with fast, deterministic control of process variables
- Power Generation: Monitors turbines, manages boiler controls, and ensures stable grid load balancing in power plants
- Water/Wastewater: Integrates with HMIs to monitor water quality and regulate flow rates across municipal plants
- Chemical/Pharmaceutical: Provides high-speed communication for recipe management, batch processing, and safety shutdowns
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Connection Method: Coaxial cable using Yokogawa Model YCB146 and a T-type connector.
Transmission Standard: 10BASE-2 compliance.
Connectors: BNC connector.
Maximum Distance: 185 m (when using 10BASE-2 cable only).
Termination: If the T-type connector is not connected to the next station, ensure a terminator is installed at the end of the line. Dust caps should cover unused ports.
Technical notes
The module complies with PCI Express CEM Specification 1.0a and can be installed in PCIe x1 through x16 slots. Operating from a 3.3 VDC supply, the card consumes a maximum of 2.4 A and includes dedicated transmit and receive indicators for communication diagnostics. The compact design allows installation within industrial workstations without requiring additional external communication hardware.
FAQs
-
What is the VF702?
+The Yokogawa VF702 is a Control Bus Interface Card designed to connect PCs to the V net control system via a PCI Express slot -
What Yokogawa software is required?
+It requires the Exaopc OPC interface package (NTPF100) and CENTUM VP/CS 3000 V net software -
What OS versions are supported?
+It is typically utilized in legacy embedded systems, such as Windows 7 Professional Embedded 64-bit, and system versions like R3.05 or later. -
What type of ports and connectors are built onto the card?
+The card features two BNC connectors
