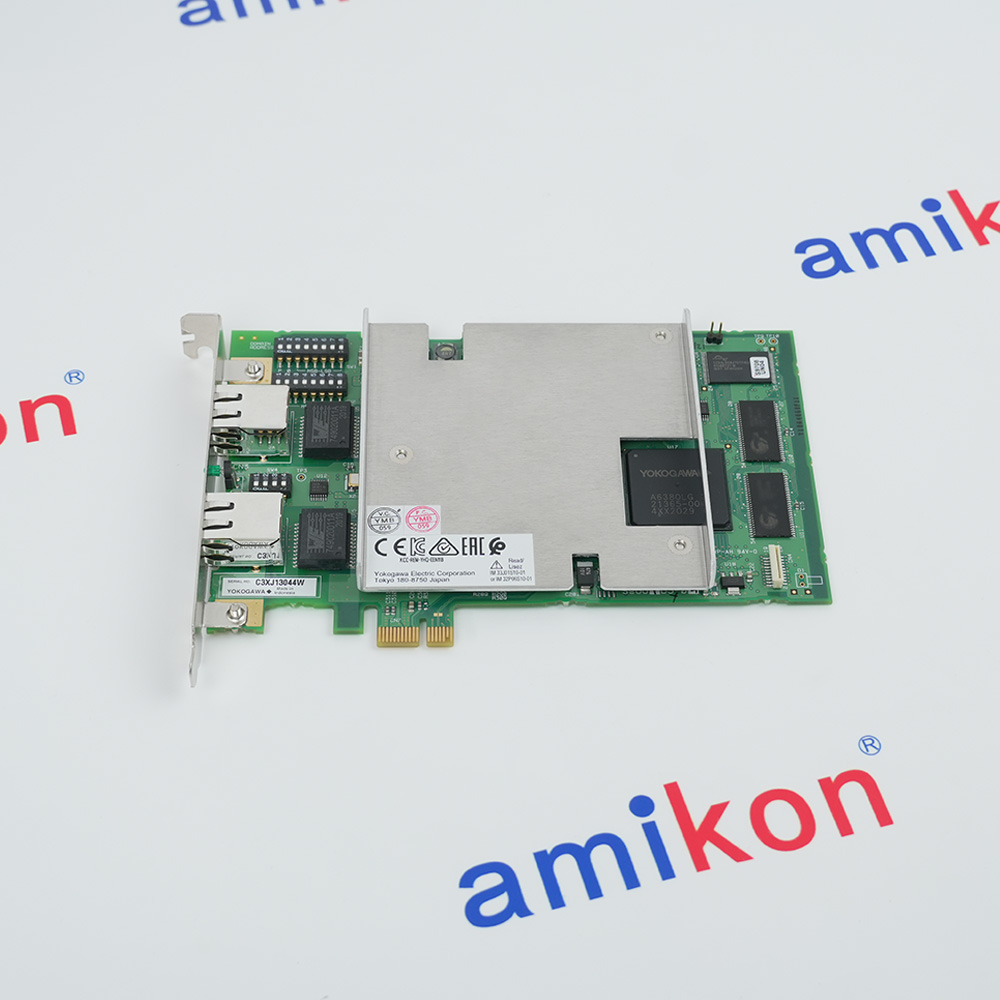

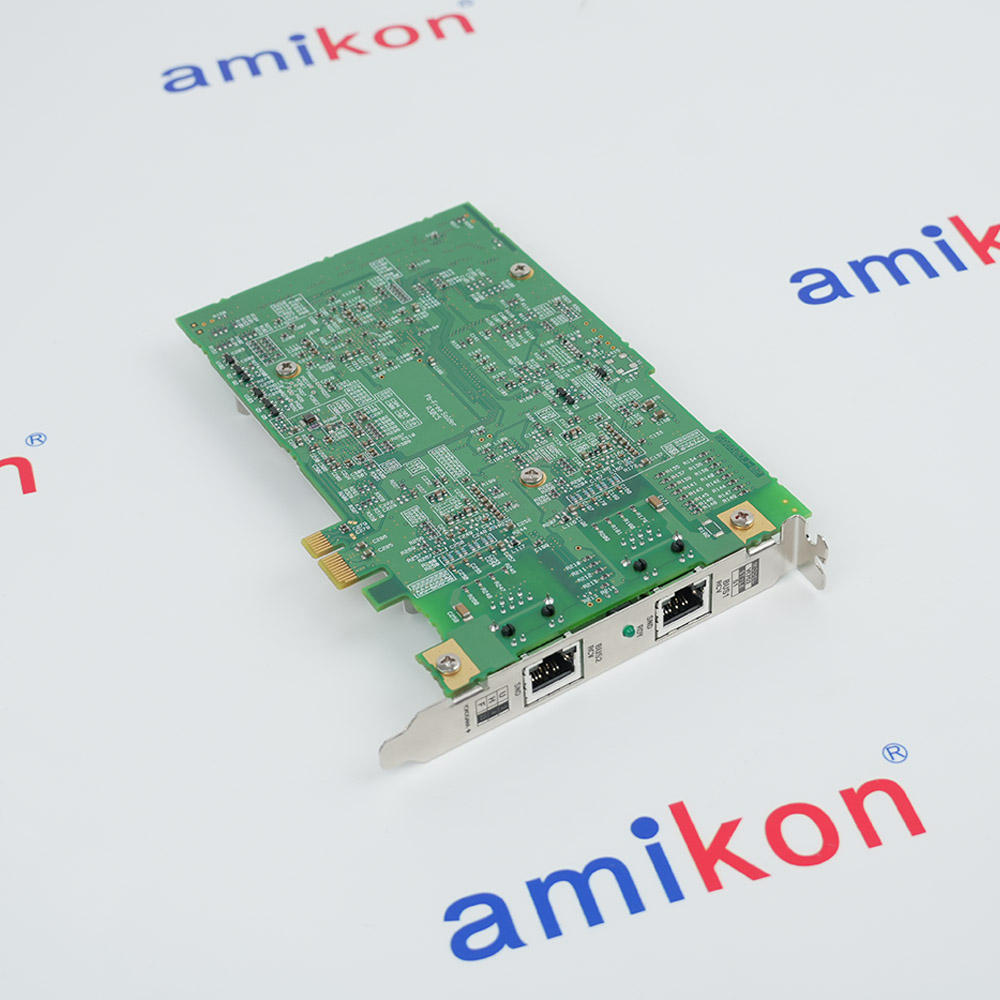

Technical specifications for VI702 S1
-
Product ModelVI702 S1
-
Spare ModelVI702
-
Product ParametersVnet/IP Interface Card
-
Tariff Code8537101190
-
Country of originJapan
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size2.1x18.1x12.6cm
-
ManufacturerYokogawa
-
Weight0.15 kg
-
Communication Speed1 Gbps Full Duplex
-
CableCAT5e (Enhanced Category 5 cable), UTP
-
Transmission1000BASE-T compliance
-
ConnectorRJ45 connector
-
Max. distance100 m (Distance between VI702 andLayer 2 switch)
-
Power supply voltage3.3 V ± 9 %
-
Current ConsumptionMax. 2.5 A
Description
The VI702 is a Yokogawa Vnet/IP Interface Card designed for the CENTUM VP integrated production control system. The VI702 is installed into the PCI Express slot of a PC/AT compatible computer to connect the computer to the Vnet/IP control bus network.
The VI702 delivers high-speed communication at 1 Gbps full duplex, enabling rapid data exchange between the host computer and the control network. The VI702 is designed for installation in PCI Express slots (x1 to x16) according to PCI Express CEM Specification 1.0a at 2.5 GT/s signaling; it cannot be installed in PCI slots.
The VI702 supports 1000BASE-T transmission using standard RJ45 connectors with CAT5e (Enhanced Category 5) UTP cables, ensuring reliable Ethernet connectivity. The VI702 supports a maximum distance of 100m between the VI702 card and the Layer 2 switch, providing flexibility for network topology design.
The VI702 delivers high-speed communication at 1 Gbps full duplex, enabling rapid data exchange between the host computer and the control network. The VI702 is designed for installation in PCI Express slots (x1 to x16) according to PCI Express CEM Specification 1.0a at 2.5 GT/s signaling; it cannot be installed in PCI slots.
The VI702 supports 1000BASE-T transmission using standard RJ45 connectors with CAT5e (Enhanced Category 5) UTP cables, ensuring reliable Ethernet connectivity. The VI702 supports a maximum distance of 100m between the VI702 card and the Layer 2 switch, providing flexibility for network topology design.
Alternative Names
VI702-S1
VI702 Si
VI7O2 S1
V1702 S1
VI7O2 S1
V17O2 SI
VI7O2-SI
VI702
Information
Overview
Manuals
Application Notes
Product Applications
Physical Installation
Features:
- High-Speed Gigabit Transmission
- Standard PCI Express Interface
- Cost-Effective Copper Connectivity
- Dual-Redundant Network Pathing
- Long-Distance Link Capability
- Intuitive Front-Panel LED Diagnostics
- Robust Dual-Redundancy Integration
The VI702 S1 Yokogawa Vnet/IP Interface Card may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Yokogawa VI702 S1 Vnet/IP Interface Card Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The card features three status indicators: RDY (ready), RCV (receive), and SND (send). It operates from 5 V supplied by the PCI bus with a maximum current consumption of 1.5 A. The VI702 S1 shares the same driver architecture as VF701, VI701, and VF702 cards, with drivers located in the COMDRV folder of the CS3000 installation media.
The module is compliant with CE, C-Tick, and KC EMC standards. It is used to connect operator stations and engineering stations to the Vnet/IP control network in Yokogawa DCS installations where PCI bus expansion slots are available.
- Energy & Power: Managing turbine control systems, boiler automation, and substation equipment
- Oil & Gas: Controlling extraction pumps, refining compressors, and safety instrumented systems
- Chemical & Petrochemical: Managing complex reactor sequences and distillation columns
- Water & Wastewater: Controlling large-scale pumping stations and treatment machinery
- Marine: Used in shipboard control systems
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Power Off: Shut down the computer and disconnect the power cord.Open the Chassis: Open the PC case and locate an available PCIe slot.Insert the Card: Remove the slot cover from the back of the PC. Gently but firmly insert the VI702 S1 card into the PCIe slot until it is fully seated.Secure: Fasten the metal bracket to the PC chassis using a screw.Connect Network Cables: Connect your CAT5e (or better) UTP Ethernet cables from the VI702 RJ45 ports to your Vnet/IP Layer 2 switch.
Technical notes
The VI702 features status LED indicators including the RDY lamp which lights when the card diagnoses itself as normal, the RCV lamp which lights when signals are detected on the control bus, and the SND lamp which lights when signals are sent to the control bus.
FAQs
-
What is the VI702 S1?
+The Yokogawa VI702 S1 is a Vnet/IP interface card designed for CENTUM VP and ProSafe-RS systems, enabling 1 Gbps full-duplex communication over industrial Ethernet via PCI Express. -
What is the function of the VI702 S1?
+It serves as a communication card connecting PC/AT compatible computers (such as HIS, FCS, or SENG) to the Vnet/IP control network, facilitating real-time data transfer and system integration. -
What type of slot does it require?
+The card is designed for a PCIe slot (x1 to x16) and is compatible with PCIe CEM Specification 1.0a -
What is the communication speed and cabling?
+It supports 1 Gbps full-duplex communication using CAT5e UTP cabling.
