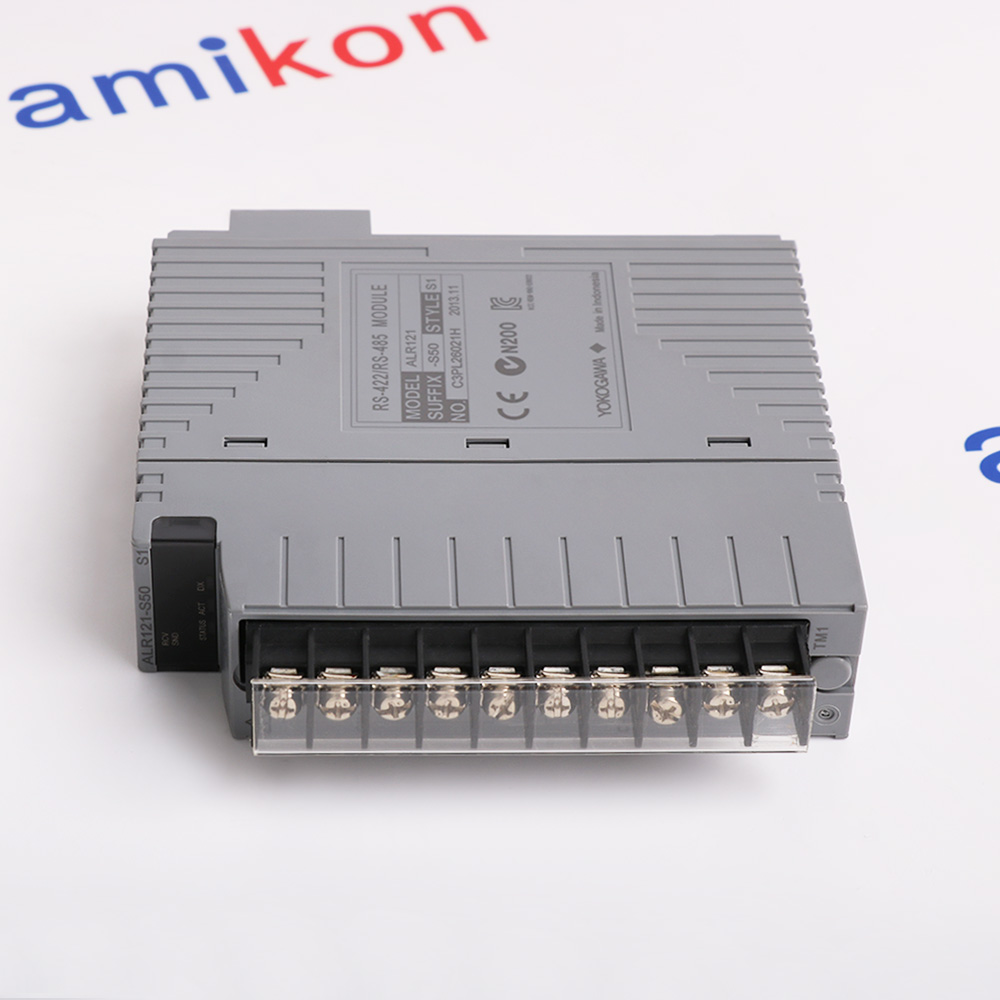

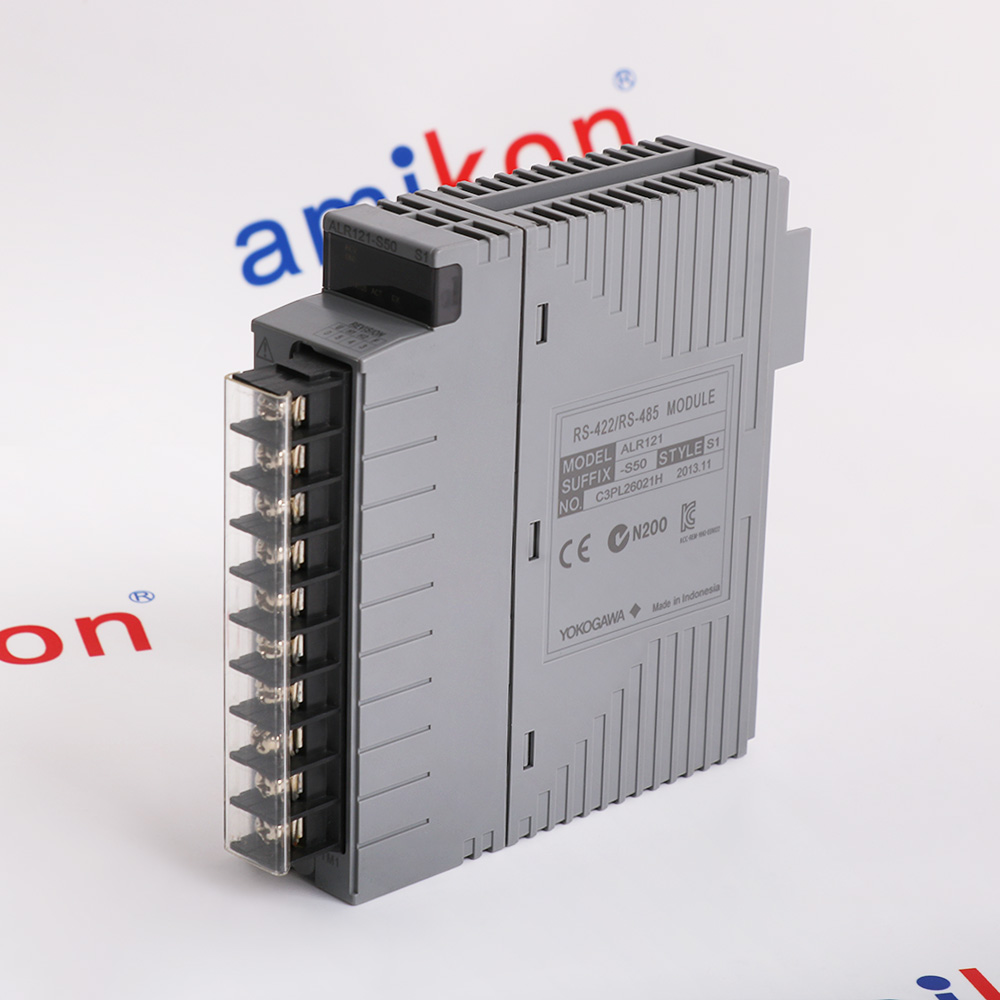

- ALR121-S50 S1
In Stock
Ships by Saturday, July 18
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for ALR121-S50 S1
-
Product ModelALR121-S50 S1
-
Spare ModelALR121-S50
-
Product ParametersSERIAL COMMUNICATION MODULE
-
Tariff Code8537101190
-
Country of originJAPAN
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size3.2x14.2x13cm
-
ManufacturerYokogawa
-
Weight0.3 kg
-
InterfaceRS-422/RS-485
-
Communication functionHalf-duplex
-
Synchronization methodStart-stop synchronization
-
Character length8 bits
-
Stop bit length1/2 bits
-
Transmission distanceMaximum 15 m
-
Current consumption0.5 A
Description
The Yokogawa ALR121-S50 S1 Serial Communication Module is a serial communication module for FIO (Field Input/Output) that a field control station (FCS) uses to perform serial communication with subsystems such as FA-M3, Modbus devices, MELSEC-A PLCs, SLC 500, PLC-5, and YS instruments. ALR121 is equipped with two RS-422/RS-485 communication ports that transmit and receive serial data between the FCS and connected subsystems.
ALR121 supports multiple communication protocols including FA-M3 dedicated control protocol, Modbus protocol (RTU mode), MELSEC-A dedicated control protocol format 4, DF1 protocol for SLC communication, and PLC-5 family dedicated half-duplex protocol. ALR121 enables an FCS to collect data from subsystems or set data to subsystems using builder functions, with each communication port supporting a maximum of 30 subsystem stations for FA-M3, Modbus, MELSEC-A, SLC, and PLC-5 communications.
ALR121 supports multiple communication protocols including FA-M3 dedicated control protocol, Modbus protocol (RTU mode), MELSEC-A dedicated control protocol format 4, DF1 protocol for SLC communication, and PLC-5 family dedicated half-duplex protocol. ALR121 enables an FCS to collect data from subsystems or set data to subsystems using builder functions, with each communication port supporting a maximum of 30 subsystem stations for FA-M3, Modbus, MELSEC-A, SLC, and PLC-5 communications.
Alternative Names
ALR121-S50 SI
ALR121-S5O S1
ALR12I-S50 S1
ALRI21-S50 S1
ALR1Z1-S50 S1
ALR121 S50 S1
ALR121 S50 SI
ALR121 S5O S1
ALR12I S50 S1
ALR1Z1 S50 S1
ALRI21 S50 S1
Information
Overview
Manuals
Application Notes
Product Applications
Hardware Insertion Procedure
Features:
- RS-422/RS-485 Serial Interface with Two Ports
- Multi-Protocol Subsystem Communication
- Dual-Redundant Communication Architecture
- Subsystem I/O Image Data Integration
ALR121 supports multiple communication protocols including FA-M3 dedicated control protocol, Modbus protocol (RTU mode), MELSEC-A dedicated control protocol format 4, DF1 protocol for SLC communication, and PLC-5 family dedicated half-duplex protocol. ALR121 enables an FCS to collect data from subsystems or set data to subsystems using builder functions, with each communication port supporting a maximum of 30 subsystem stations for FA-M3, Modbus, MELSEC-A, SLC, and PLC-5 communications.
The ALR121-S50 S1 Yokogawa Serial Communication Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Yokogawa ALR121-S50 S1 Serial Communication Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
ALR121 uniquely features YS Communication with Direct Connection, allowing ALR121 communication ports to connect directly with YS1000 SERIES and YS100 SERIES instruments via RS-485 cable without requiring an SCIU Communication Interface Unit. ALR121 can connect up to 20 YS instruments (10 units per port) in direct connection mode, with configurable scan speed parameters for fast-scan and slow-scan data specified through builder functions.
For expanded YS instrument networks, ALR121 also supports YS Communication via SCIU Communication Interface Units. ALR121 can connect up to 20 SCIU units (10 units per port), with each SCIU supporting up to 4 YS instruments through DCS-LCS connections, allowing ALR121 to integrate larger YS instrument networks in distributed control applications.
- Power Generation: Boiler controls, turbine tracking, and grid synchronization
- Chemical/Petrochemical: Manages distillation columns, mixing loops, and temperature regulation
- Oil/Gas Infrastructure: Regulates pipeline pressures, tank farms, and flow controls in non-hazardous areas
- Water/Wastewater: Manages pumping stations, filtration, and chemical dosing systems
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Check Redundancy Slots: If configuring a dual-redundant pair, ensure you insert identical ALR121 modules into adjacent designated slots.
Align the Module: Hold the module by its plastic edges and line it up vertically with the guide rails of the chosen base node unit slot.
Slide and Press: Slide the module completely back into the slot until the rear connector seats firmly into the backplane.
Secure the Screws: Tighten the front panel integration screws to secure the module to the rack frame and prevent communication failure due to loose contacts.
Technical notes
The ALR121-S50 S1 supports communication speeds from 1200 bps to 38400 bps, configurable communication parameters, Modbus RTU functionality, and long-distance RS-485 transmission. The S1 version includes ISA Standard G3 conformal coating, making it suitable for installation in harsh industrial environments. The module is widely applied in oil and gas, petrochemical, power generation, chemical processing, and other continuous process automation systems requiring reliable serial communication between Yokogawa DCS platforms and external field equipment.
FAQs
-
What is the ALR121-S50 S1 ？
+The Yokogawa ALR121-S50 S1 is a dual-port serial communication module used in industrial automation for the ProSafe-RS and CENTUM VP distributed control systems. -
What is the transmission speed and distance?
+It supports transmission speeds up to 1.2 Mbps. The maximum cable length is 15 m for individual connections, with a total extended reach of up to 1200 m. -
What protocol does it use?
+It adopts Modbus communication (acting as a master or slave) and supports the ProSafe-SLS communication function for extending Modbus capabilities. -
What power does it require?
+It operates on a DC 24 V power supply and consumes approximately 2 W of power.
