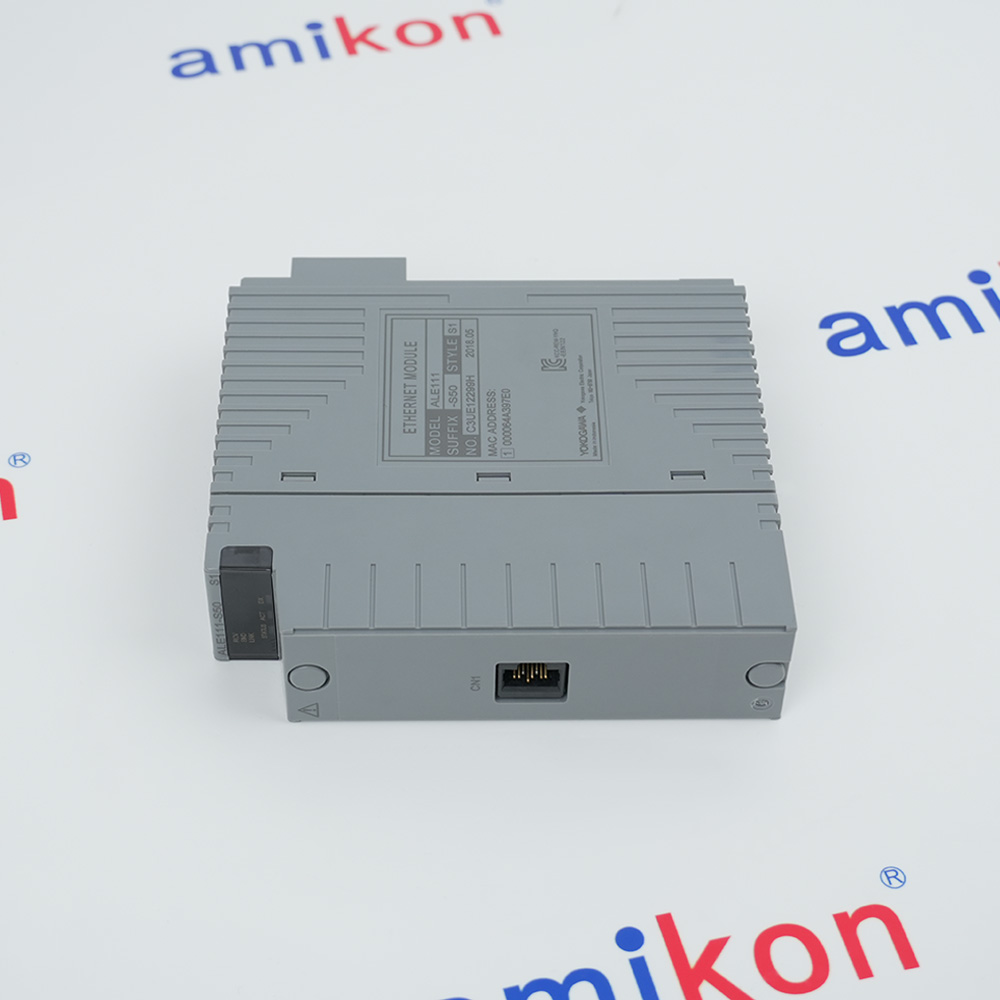

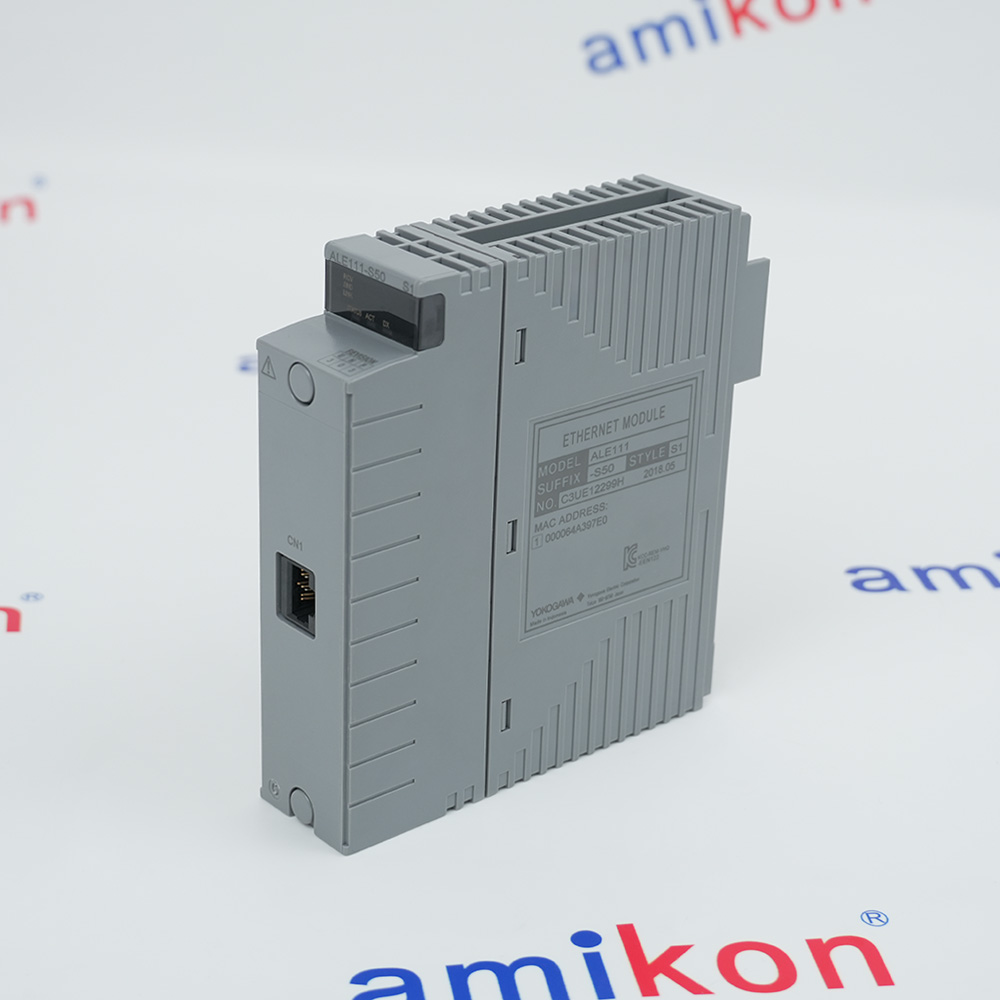

- ALE111-S50 S1
In Stock
Ships by Thursday, July 2
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for ALE111-S50 S1
-
Product ModelALE111-S50 S1
-
Spare ModelALE111-S50
-
Product ParametersEthernet Communication Module
-
Tariff Code8537101190
-
Country of originJapan
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size3.2x12.5x13cm
-
ManufacturerYokogawa
-
Weight0.25 kg
-
Physical layer interfaceIEEE802.3 10BASE-T
-
Connection methodPoint-to-point
-
Transmission speed10 Mbps
-
Transmission route100 ohm twisted-pair cable
-
Transmission distance1 segment, 100 m
-
Media access controlCSMA/CD
-
Current consumption0.5 A
Description
The ALE111-S50 S1 is a Yokogawa Ethernet Communication Module designed for the CENTUM VP integrated production control system. The ALE111-S50 S1 provides Ethernet-based communication capabilities that enable a field control station (FCS) to perform high-speed data exchange with subsystems and intelligent devices. The ALE111-S50 S1 can be mounted on various field control units including AFV30S, AFV30D, AFV40S, AFV40D, AFV10S, AFV10D, and AFF50 series controllers.
The ALE111-S50 S1 can also be mounted on ESB bus node units (ANB10), optical ESB bus node units (ANB11), and ER bus node units, providing flexible installation options. The ALE111-S50 S1 supports multiple Ethernet communication protocols for integration with diverse subsystems, PLCs, and other intelligent devices across the control network. The ALE111 features dual Ethernet ports that can be configured for redundant communication paths, ensuring high availability for critical control applications.
The ALE111-S50 S1 can also be mounted on ESB bus node units (ANB10), optical ESB bus node units (ANB11), and ER bus node units, providing flexible installation options. The ALE111-S50 S1 supports multiple Ethernet communication protocols for integration with diverse subsystems, PLCs, and other intelligent devices across the control network. The ALE111 features dual Ethernet ports that can be configured for redundant communication paths, ensuring high availability for critical control applications.
Alternative Names
ALE111-S50-S1
ALE111-S50-SI
ALE111-S5O-S1
ALE11I-S50-S1
ALE1I1-S50-S1
ALEI11-S50-S1
ALE111 S50 SI
ALE111 S5O SI
ALE11I S50 SI
ALE1I1 S50 SI
ALEI11 S50 SI
ALE111S50 SI
Information
Overview
Manuals
Application Notes
Product Applications
Physical Installation Steps
Features:
- Dedicated Subsystem Interface
- Modbus TCP Slave & DNP3 Support
- Interference-Free Safety Loop Isolation
- Dual-Redundant Network Pathing
- Asynchronous I/O Image Mapping
- ISA Standard G3 Environmental Coating
The ALE111-S50 S1 Yokogawa Ethernet Communication Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Yokogawa ALE111-S50 S1 Ethernet Communication Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The module supports communication with a wide range of industrial devices including PLCs, intelligent electronic devices, gas chromatographs, analyzers, electrical systems, and package units. Through Modbus/TCP and other TCP/IP-based protocols, process data can be exchanged between field equipment and Yokogawa DCS or SIS platforms.
The ALE111-S50 S1 can be installed in Yokogawa Field Control Units, Safety Control Stations, ESB Bus Node Units, and ER Bus Node Units. It supports both standard and redundant communication architectures, making it suitable for applications requiring high system availability and uninterrupted plant operation.
- Energy & Power: Managing turbine control systems, boiler automation, and substation equipment
- Oil & Gas: Controlling extraction pumps, refining compressors, and safety instrumented systems
- Chemical & Petrochemical: Managing complex reactor sequences and distillation columns
- Water & Wastewater: Controlling large-scale pumping stations and treatment machinery
- Marine: Used in shipboard control systems
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Power Off: Ensure the power to the target node or control unit is switched off before handling the module to prevent electrical shorts or damage.Align & Insert: Align the module with the guide rails of the empty slot on your chosen mounting base. Slide the module gently into the slot until the rear connector seats firmly into the backplane.Secure: Fasten the mounting screws on the top and bottom of the module to lock it securely in place.
Technical notes
The ALE111-S50 S1 communicates with subsystems at specified intervals and stores subsystem data in the module's I/O image area, enabling the FCS to access subsystem data through function block I/O terminals. The ALE111-S50 S1 works with CENTUM VP builder functions to collect data from subsystems or set data with control calculations, enabling seamless integration into the overall control strategy.
FAQs
-
What is the ALE111-S50 S1?
+The Yokogawa ALE111-S50 S1 is an Ethernet communication module (one port, RJ-45) designed for CENTUM VP/CS 3000 systems, enabling Modbus slave and DNP3 slave communication to connect subsystems with Field Control Units (FCS). -
What is the function of the ALE111-S50?
+It serves as an interface module that allows a Yokogawa Safety Control Station (SCS) or FCS to act as a Modbus slave/DNP3 slave, facilitating data communication with external Modbus master devices. -
What is the connection method and speed?
+It supports IEEE 802.3 10BASE-T (10 Mbps) using RJ-45 connectors via a point-to-point connection. -
Where can the module be mounted?
+It can be mounted on FCS nodes such as AFV30, AFV40, AFV10, AFF50, ANB10, ANB11, and ANR10, as well as SCS nodes.
