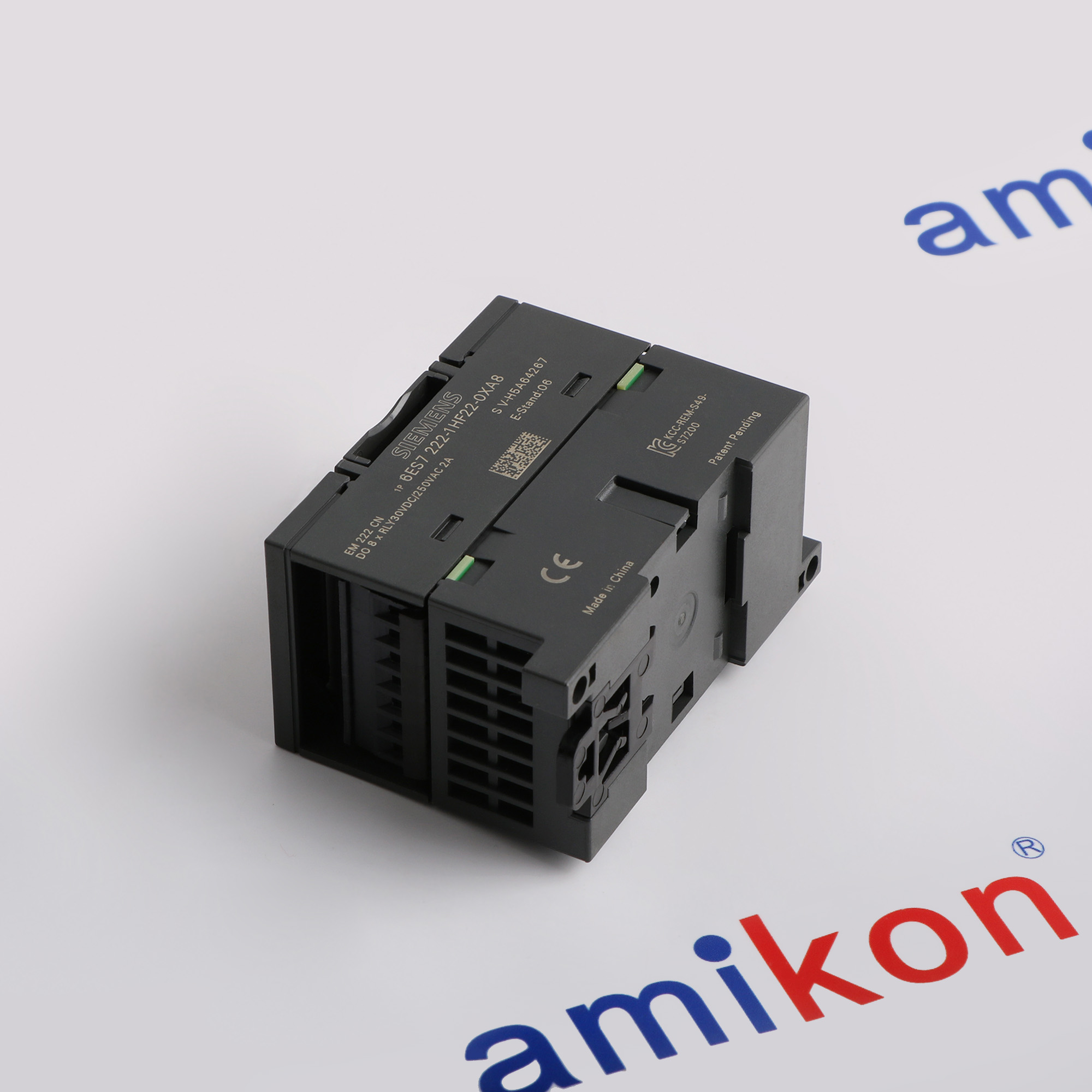

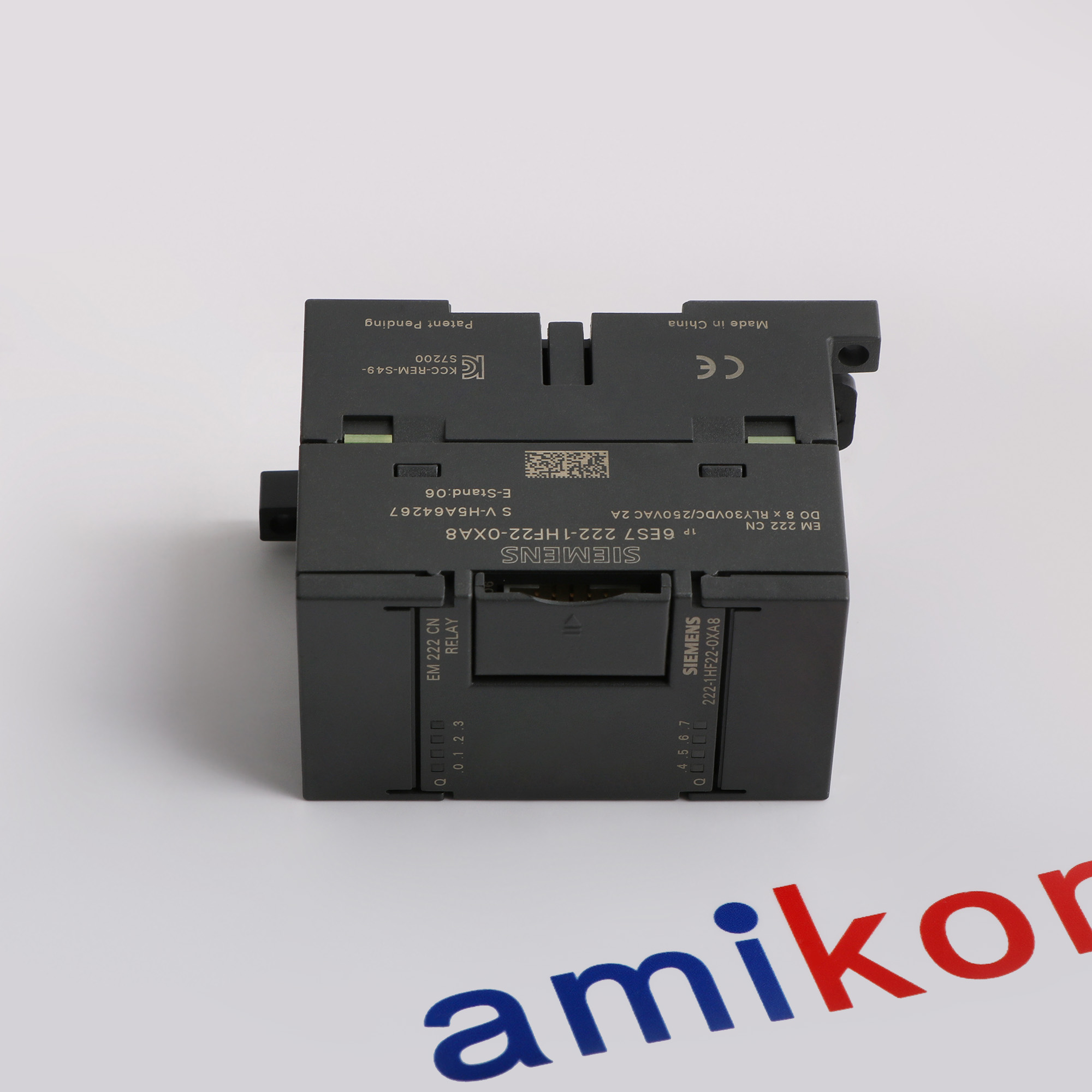

      Siemens 6ES7222-1HF22-0XA8
      Siemens 6ES7222-1HF22-0XA8
      Siemens 6ES7222-1HF22-0XA8
      Siemens 6ES7222-1HF22-0XA8
      Siemens 6ES7222-1HF22-0XA8
      Siemens 6ES7222-1HF22-0XA8
      · Product image is representative; revision or series may vary. Contact us to request a specific version.
      Ships by Saturday, November 14

      6ES7222-1HF22-0XA8

      EM 222 CN relay output

      Require for Quote:

      Shipping Information

      • For inventory products, we support same day shipping upon payment.
      • For urgent needs, we offer same-day shipping on most items for orders placed before 2:00 PM UTC+8 Simply mention your preferred next-day shipping when place the order, and your order will be prioritized to minimize downtime.
      • For indent items, typical turnaround is 1-3 weeks, depending on parts availability and scarcity.
      Customs & Documentation
      We prepare clear, order-specific documentation for every international shipment, including the commercial invoice, packing list and available product or compliance documents. Before dispatch, our logistics team confirms the consignee details, declared value, shipping terms and destination requirements with you. Tracking information is provided after shipment, helping your team prepare for import clearance with confidence.
      Documents checked before dispatch · Shipment details confirmed · Global tracking provided
      Payment
      Payment is by bank wire only in RMB/CNY, GBP, EUR or USD. Amikon does not accept credit cards or provide credit terms. Cleared payment is required before shipment unless the written quotation expressly states otherwise.
      Product Condition
      Factory New These are new and current items that are procured directly from the manufacturer.
      New In Sealed Package Parts are new. They have not been used and still have their original package seal intact.
      New in Original Package These parts are new. The packages were not originally sealed by their original manufacturer.
      Quantity
      Mobile *
      Country/Region *
      E-mail *
      Company
      Content *
      Upload
      (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Amikong please read our privacy policy.

      • 20+

        years in automation

      • ISO 9001

        certified quality system

      • 12 months

        amikon warranty

      • 2-hour reply

        from your account manager

      • Success Story

        solutions in action
      PART NUMBER SEARCH

      Find another automation part

      • Please try to be as accurate as possible with your search.
      • We can quote you on 1000s of specialist parts, even if they are not listed on our website.
      • We can't find any results for “”.
        SEE MORE
          SEE PRODUCTS IN SEARCH PAGE ()
          PRODUCT DESCRIPTION

          Eight relay outputs for a CN S7-200 expansion station

          The Siemens 6ES7222-1HF22-0XA8 is the S7-200 CN version of the EM 222 eight-point relay-output expansion module. Siemens identifies its corresponding standard module in the CN cross-reference and directs users to that module for wiring and performance specifications.

          The module adds dry-contact outputs rather than inputs or analog channels. Relay coil power, contact loading and protective suppression form separate integration checks. The CN identity must remain explicit, because the standard module performance reference does not transfer its agency approvals to a CN-labelled unit.
          BEFORE YOU BUY

          Confirm the complete installed configuration

          Send a label photo for review >>
          ACTUAL APPLICATIONS

          Industrial Production and Service Sectors

          These industry examples describe Siemens' broader market coverage, not verified installations of this exact product. Product suitability depends on the documented configuration and engineering requirements.
          • 01 · PACKAGING

            Pharmaceutical and Non-food Packaging

            Pharmaceutical product packaging within the medicines and healthcare sector.Non-food product packaging across consumer goods and industrial markets.
          • 02 · WATER & WASTEWATER

            Drinking Water and Wastewater Services

            Drinking water production for public and community supply services.Wastewater treatment serving households, communities and industrial water users.
          • 03 · FOOD & BEVERAGE

            Beer and Soft Drink Production

            Beer production within the brewing sector of beverage manufacturing.Soft drink manufacturing for the wider commercial beverage industry.

          Technical specifications for 6ES7222-1HF22-0XA8

          • Product Model
            6ES7222-1HF22-0XA8
          • Product Parameters
            EM 222 CN relay output
          • Manufacturer
            Siemens
          • Digital outputs
            8 relay contacts
          • Output current per point
            2 A maximum
          • Output voltage range
            5-30 V DC or 5-250 V AC
          • 5 V logic requirement
            40 mA
          • Power dissipation
            2 W
          • Removable connector
            Yes
          • Output switching delay
            10 ms maximum
          • Shielded output cable
            500 m maximum
          • Unshielded output cable
            150 m maximum
          • Relay coil voltage
            20.4-28.8 V DC
          • Coil consumption
            9 mA per energized output
          • Switching frequency
            1 Hz maximum
          View all additional
          View as PDF Ask for Quote
          SYSTEM & REPLACEMENT CHECK

          Information needed before ordering

          Three direct checks to secure your system integration and minimize ordering risks.

          Information

          System integration Replacement check Manuals & support
          S7-200 CN INTEGRATION

          Eight relay outputs for a CN S7-200 expansion station

          An EM 222 CN station obtains eight additional relay contacts from this module. Each contact serves a field switching circuit, while the module also needs the correct logic and relay-coil supplies. The distinction prevents field-load voltage from being confused with the supply needed to operate the relays.
          Siemens lists forty milliamps of five-volt logic demand and relay-coil consumption per energized output. Include those demands in the CPU power calculation alongside other expansion modules. The contact rating is a per-point limit; it does not waive the common-terminal, load-type or switching-duty restrictions.
          Appendix H expressly maps this CN order number to the standard EM 222 relay-output model for performance and wiring. Preserve that scope when documenting the station. Determine certifications from the actual CN markings, and provide the specified suppression when the relays switch inductive loads.

          Features:

          • Separate contact and coil-supply circuits
          • Calculated expansion power
          • Protected field switching
          The Siemens 6ES7222-1HF22-0XA8 requires the documented hardware configuration, installation conditions and interface arrangement to be verified before system integration and commissioning.
          INTERCHANGEABILITY

          Verify the complete replacement identity before commissioning

          Identify the full HF22-0XA8 suffix before replacement and distinguish it from transistor-output EM 222 modules. Check how the eight relay channels and common terminals are wired, including the separate coil supply. A shared EM 222 name is not sufficient to establish an electrical replacement.
          Compare existing contact loads with the original relay ratings and inspect any suppression already fitted across inductive loads. An output used for a lamp, inductive device or frequent switching may require additional protection even when its steady current is below the maximum contact rating.
          Retain the CN designation in the maintenance record and verify actual unit markings independently. After isolating all related power, fit the correct module in the original position and check the CPU power budget and startup sequence. Do not transfer international-version approvals solely from the cross-reference table.

          Features:

          • Exact module technology
          • Terminal and address continuity
          • CN markings retained
          The Siemens 6ES7222-1HF22-0XA8 requires replacement verification based on its complete order number, installed hardware, signal configuration and project documentation.
          DOCUMENTATION STATUS

          Browse the Manuals, Datasheets, Official Documents, Links

          Important Notice: Official documents are provided through manufacturer links. Accessories, manuals, cables, calibration data, software, certificates, and other items are not included with this equipment unless listed in the stock item description.

          Features:

          • Exact-model manufacturer data and relevant original manual pages
          • Original terminal diagrams, configuration details and manufacturer safety context
          • Accessories and supplied documentation follow the written quotation
          Documentation for the Siemens 6ES7222-1HF22-0XA8 includes an independent technical summary and selected original manufacturer pages; check the applicable document edition against the delivered product and approved installation documentation.

          Also searched as

          6ES7216-2BD23-0XB0 6GK7243-1EX00-0XE0 6ES7221-1BF22-0XA0 6ES7232-0HB22-0XA0 6ES7288-3AQ02-0AA0

          Important notice

          Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
          This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
          BUYER INFORMATION

          Commercial terms without hidden steps

          Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
          • 01

            Shipping & delivery

            Dispatch
            Eligible stock: same / next day
            Carriers
            DHL, FedEx or UPS
            Ship from
            Xiamen, China
            Packed size
            Confirm final packed dimensions
            Shipping weight
            Confirm final packed weight
          • 02

            Payment & customs

            Payment
            Bank transfer (T/T)
            Currencies
            USD · EUR · GBP · RMB
            Credit cards
            Not accepted
            HS reference
            8538900000
            Origin
            Confirm supplied-unit origin
          • 03

            Warranty & returns

            Warranty
            12 months from AMIKON
            Inspection
            Label, condition and packing checks
            Returns
            Prior RMA authorisation required
            Compatibility
            Confirm before order
            OEM warranty
            Does not apply
          Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.

          • Part checked

            Full suffix recorded

          • Condition checked

            Label and appearance

          • Packing checked

            Antistatic protection

          • Tracking supplied

            Established couriers

          • Sandy Lin

            Dedicated account manager · 15+ years
          FREQUENTLY ASKED QUESTIONS

          Questions buyers ask about 6ES7222-1HF22-0XA8

          Direct answers about identity, compatibility, stock, warranty, payment and shipping.

          • Is this a relay or transistor output module?

            It has dry relay contacts, not transistor outputs. Match the field circuit, coil supply and contact duty to the exact module.

          • How many input channels are added?

            None. This EM 222 adds eight relay outputs; it is not a digital-input or mixed-I/O module.

          • What determines the CPU power allowance?

            The module requires 40 mA from the five-volt logic supply. Include relevant input and relay-coil requirements in the complete station budget; the permitted module count alone is not sufficient.

          • Are removable field connectors provided?

            The order-number table identifies removable connectors for this module. Ensure correct seating and preserve the original terminal-group arrangement during replacement.

          • What must be checked for inductive loads?

            The system manual describes appropriate suppression and warns about unexpected output behavior when power is switched. Relay AC inductive loads require an external suppression circuit across the load.

          • Does the CN cross-reference establish all approvals?

            No. Appendix H maps wiring and performance but requires actual CN product markings to determine agency approvals and certifications.
