- 6ES7221-1BF22-0XA0

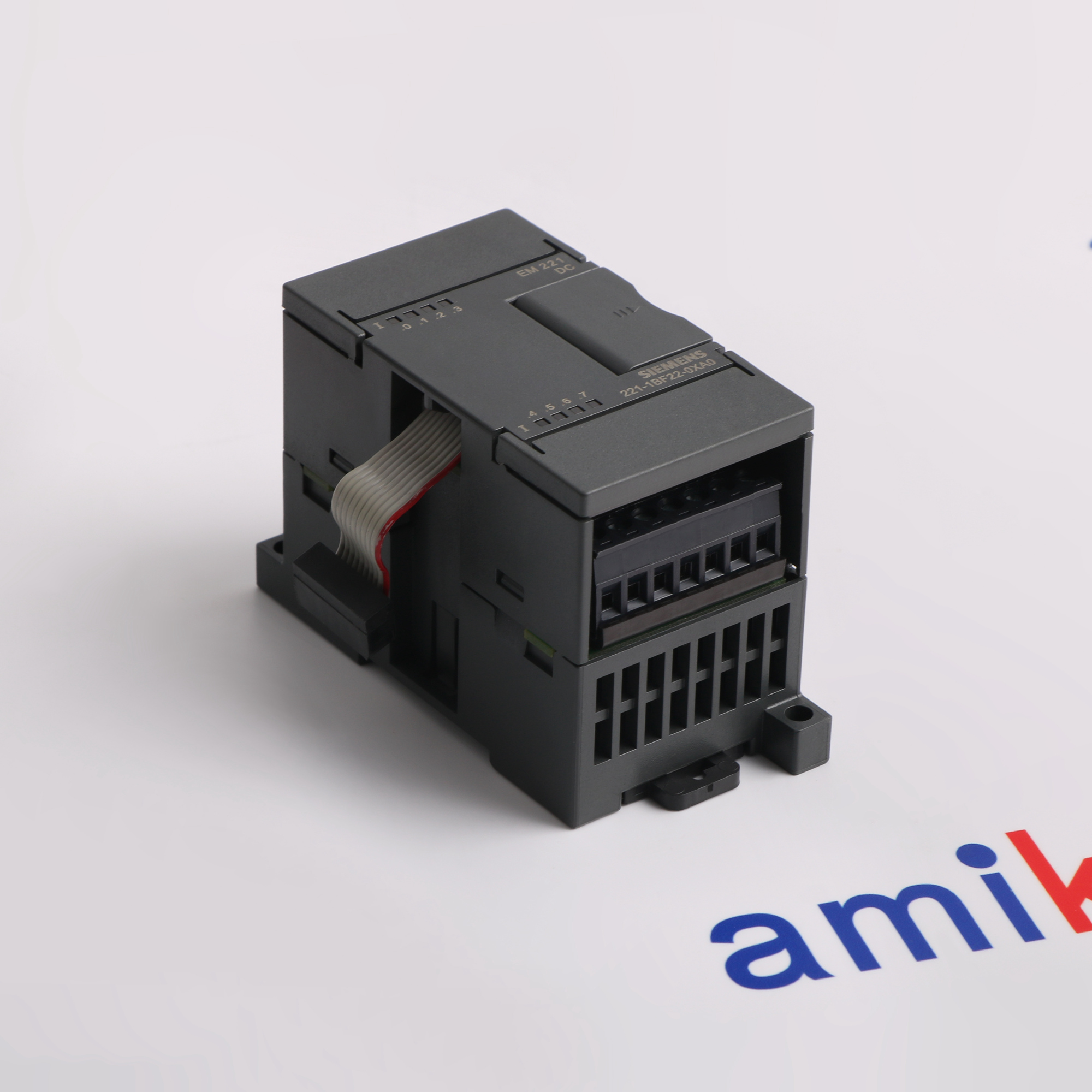

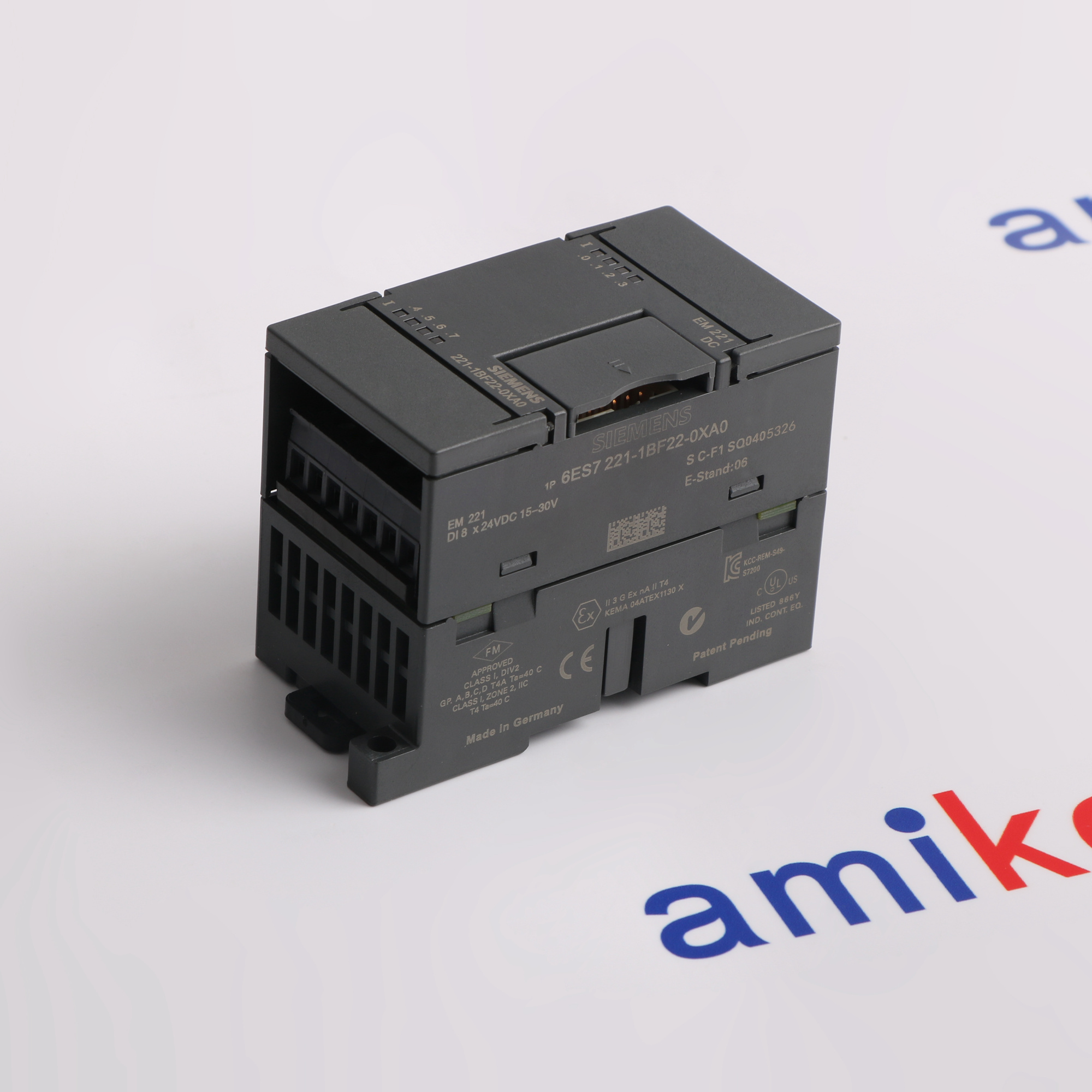

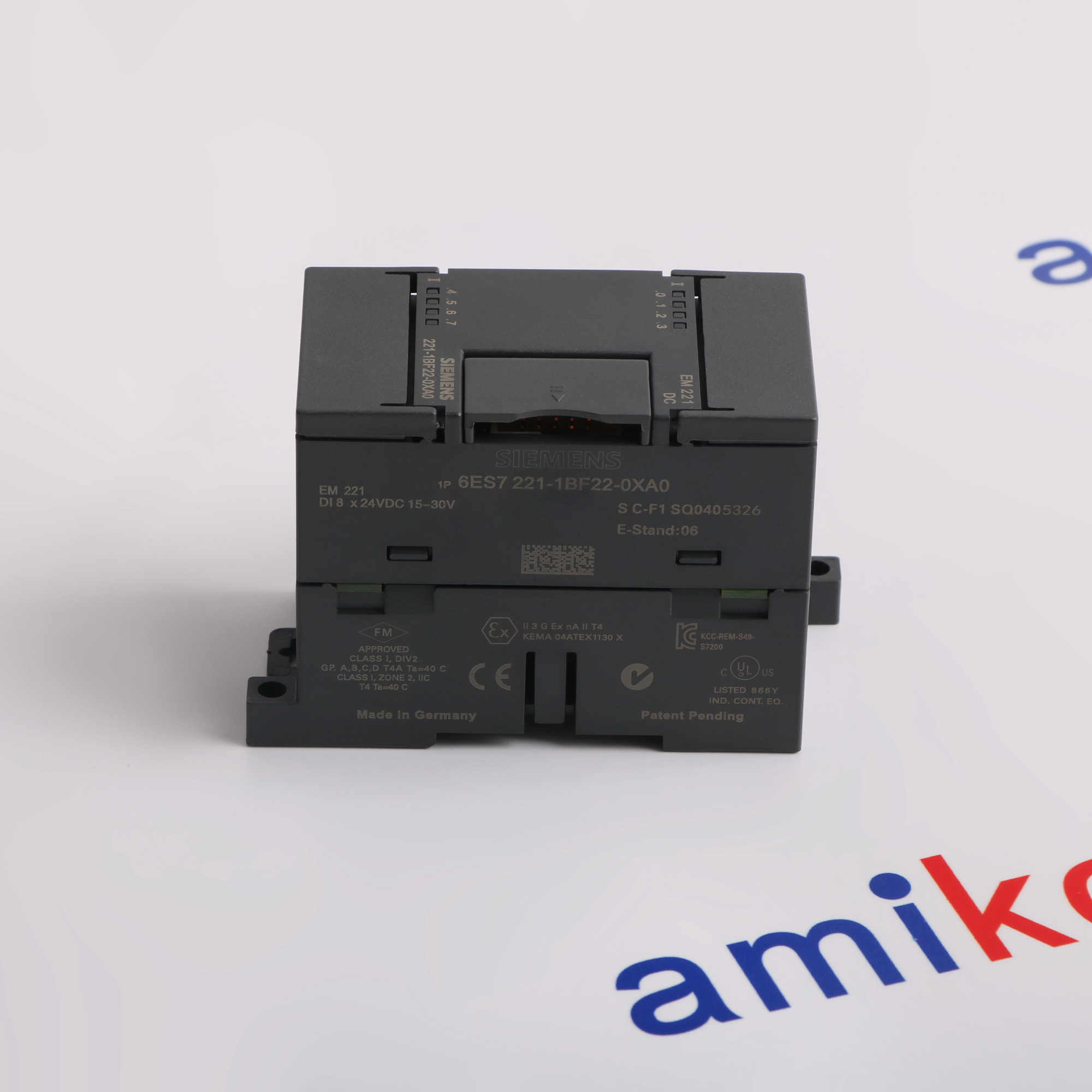

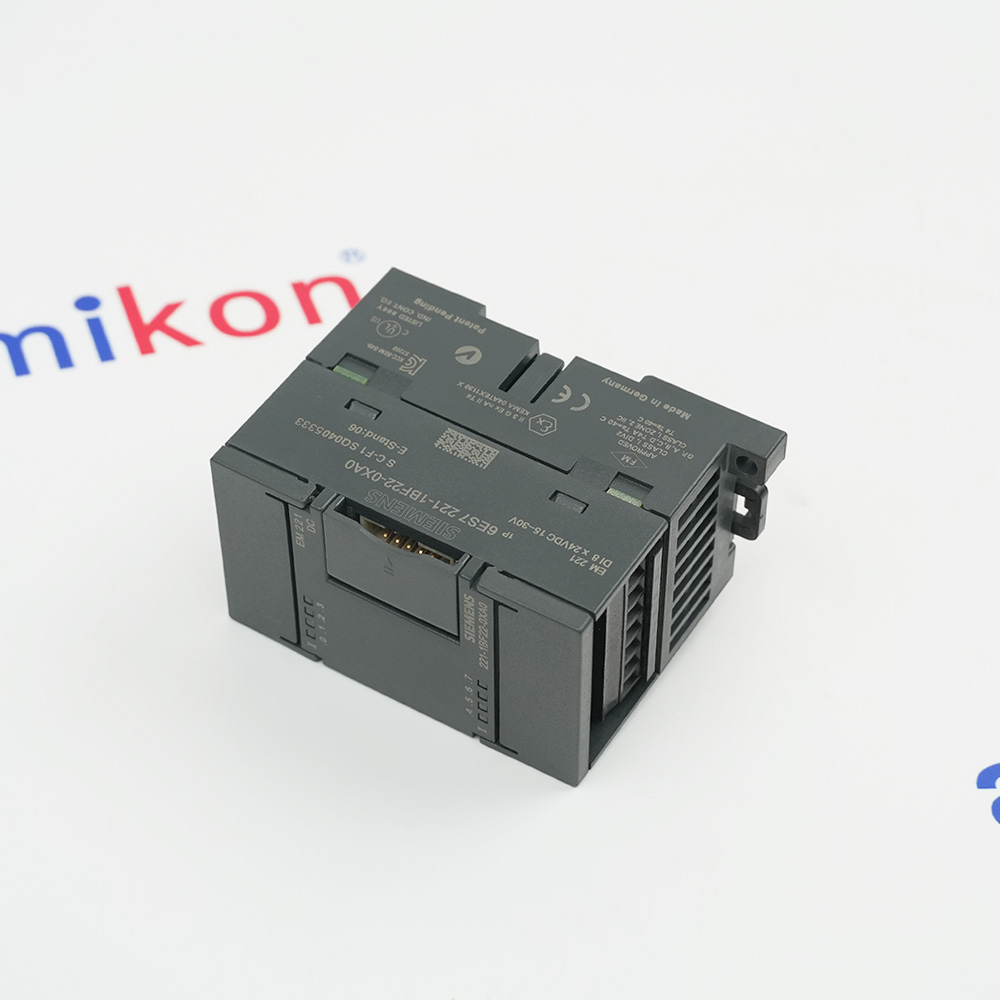

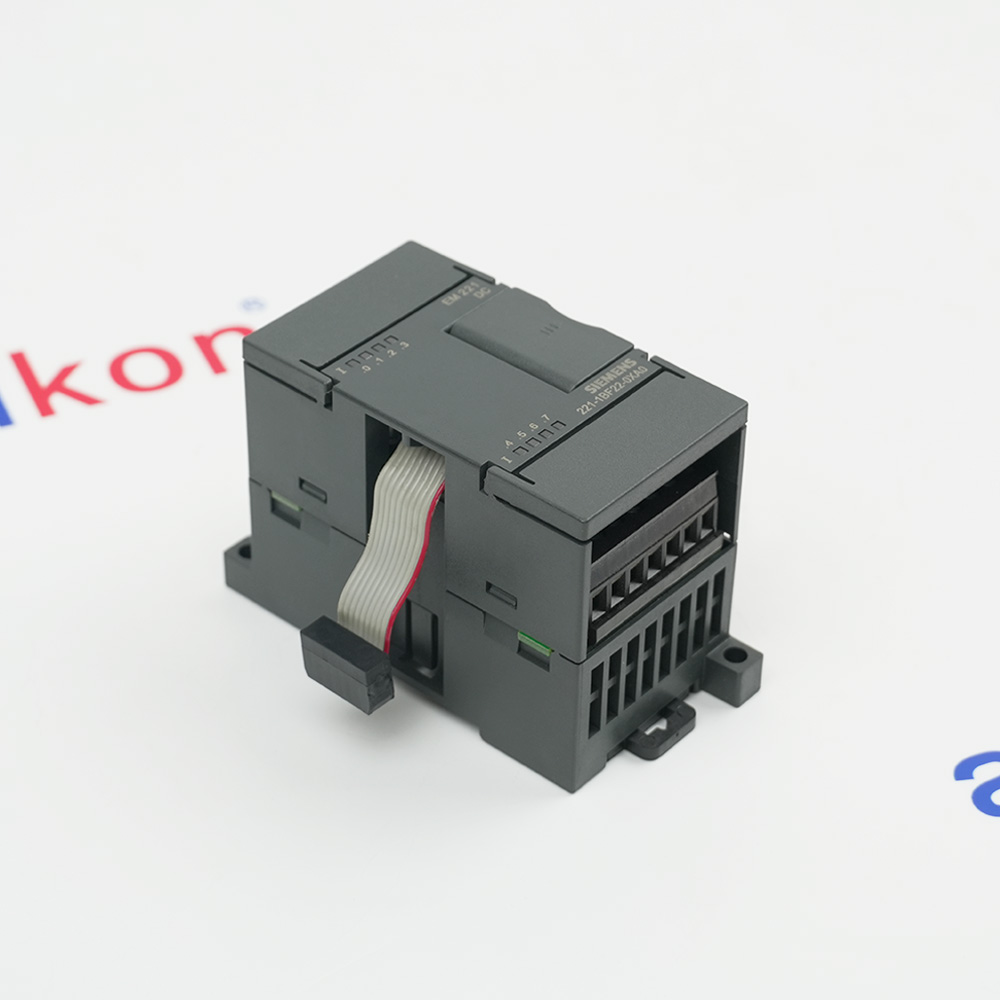

· Product image is representative; revision or series may vary. Contact us to request a specific version.
Warranty Policy
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
Return Notice
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
How to order?
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Parts Availability
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 6ES7221-1BF22-0XA0
-
Product Model6ES7221-1BF22-0XA0
-
Spare ModelEM221
-
Product ParametersDIGITAL INPUT MODULE
-
Tariff Code8537101190
-
Country of originGERMANY
-
Place of shipmentXiamen, China
-
Estimated Shipping Size4.8x6.2x9.5cm
-
ManufacturerSiemens
-
Weight0.1 kg
-
from backplane bus 5 V DC, max.30 mA
-
Power loss, typ.2 W
-
Digital inputsNumber of digital inputs8
-
Type of input voltageDC
-
for signal 00 to 5 V
-
for signal 1+15 to +30V
-
shielded, max.500 m
-
2-wire sensorYes
-
Plug-in I/O terminalsYes
Description
6ES72211BF220XA0
DIGITAL INPUT MODULE
SIMATIC S7-200
8 DIGITAL INPUT
24 VDC
OPTICALLY ISOLATED
ONLY FOR S7-22X CPU
SINKING-SOURCING
DIGITAL INPUT MODULE
SIMATIC S7-200
8 DIGITAL INPUT
24 VDC
OPTICALLY ISOLATED
ONLY FOR S7-22X CPU
SINKING-SOURCING
Information
Overview
Manuals
Technical notes
Product Applications
Wiring Guidelines
Features:
- SIMATIC S7-200
- DIGITAL INPUT EM 221
- FOR S7-22X CPUONLY
- 8 DI, 24V DC, SINK/SOURCE INPUT
This module, model 6ES7221-1BF22-0XA0, is a digital input expansion module for the Siemens SIMATIC S7-200 series, specifically designed for S7-22X series CPUs. It provides eight 24V DC digital input channels, supporting both sink and source current wiring methods, enhancing field wiring flexibility. Each input channel has a signal "1" voltage range of +15V to +30V DC and a "0" voltage range of 0 to 5V DC, with a typical input current of 4 mA.
The 6ES7221-1BF22-0XA0 Siemens Digital Input Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Siemens 6ES7221-1BF22-0XA0 Digital Input Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The input delay is fixed, with a maximum response time of 4.5 ms from "0" to "1", suitable for acquiring conventional switching signals. For sensor connectivity, the module supports two-wire sensors with a maximum quiescent current of 1 mA. To achieve electrical isolation, the module uses optocouplers to isolate the channels from the backplane bus and provides inter-group isolation in groups of four, thereby improving the system's anti-interference capability.
This module draws 5V DC power from the S7-200 system backplane bus, with a maximum input current of 30 mA and a typical power consumption of 2 W. The maximum permissible wiring distance is 500 meters when using shielded cable and 300 meters when using unshielded cable. The module uses pluggable I/O terminals for connection and measures 46 mm (W) x 80 mm (H) x 62 mm (D), weighing approximately 150 grams. This module is a standard component for expanding the digital input functionality of S7-200 series PLC systems and is suitable for automation applications requiring the addition of local or remote digital signal acquisition points.
- Manufacturing & Assembly Lines:Enhances automation to increase throughput & reduce downtime
- Process Control Equipment:Precise monitoring of variables in chemical, food & petroleum industries.
- Building Automation:Integrated into HVAC, lighting, and security management systems
- Utility Infrastructure:Water & energy distribution networks with constant monitoring
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Voltage Requirement: Use a 24V DC power source.
Sinking: Connect the common terminal (M) to the negative side of the power supply.
Sourcing: Connect the common terminal (M) to the positive side of the power supply.
Terminal Type: The module uses plug-in I/O terminals, which can be removed for easier wiring
FAQs
-
What is the 6ES7221-1BF22-0XA0 ?+It is a digital input module for the SIMATIC S7-200 series, specifically designed for use with S7-22X CPUs. It provides 8 digital inputs, operating at 24V DC.
-
Which CPUs is this module compatible with?+It is designed for use only with S7-22X CPU models.
-
Is this product brand new?+Yes, SIEMENS 6ES7221-1BF22-0XA0 is brand new, original, unused, and factory sealed
-
Do you offer global delivery?+Yes. We delivery the 6ES7221-1BF22-0XA0 to the worldwide. and we are able to quickly deliver parts globally to any corner of the world. Unless otherwise specified, we will ship your order via (Fedex). We can also ship through FedEx, UPS, and TNT, etc. We can also use your account.
-
Is it compatible with all S7-200?+It is designed specifically for S7-22X CPU models.
