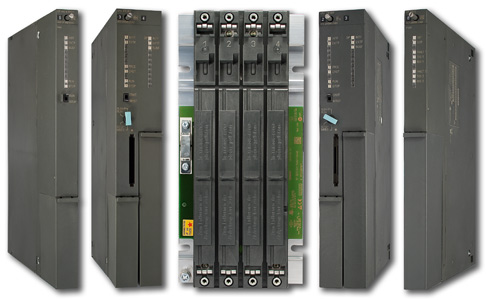

S7-400

CPU CONTROLER

CPU CONTROLER
SIMATIC S7-400
CPU 416-3
WORK MEMORY 3.2 MB
(1.6 MB CODE1.6 MB DATA)
1ST INTERFACE MPI/DP 12 MBIT/S
2ND INTERFACE PROFIBUS DP
3RD INTERFACE FOR IFM

CENTRAL PROCESSING UNIT

CPU
SIMATIC S7-400
417-4 CENTRAL PROCESSING UNIT
WORK MEMORY 30 MB / 15 MB CODE-15 MB DATA
1ST INTERFACE MPI 12 MBIT/S
2ND INTERFACE PROFIBUS DP
3RD/4TH INTERFACE PLUG-IN IFM MODULE

CPU 414-3 Centralprocessing unit

SIMATIC S7-400
CPU 414-3 Centralprocessing unit
with: work memory 2.8 MB, (1.4 MB code, 1.4 MB data)
1stinterface MPI/DP 12 Mbit/s
2nd interface PROFIBUS DP
3rd interfaceplug-in IFM module

S7-400 rack

SIMATIC PCS 7-400
UR2-H XTR S7-400 rack
central and distributed with 2 x 9 slots,
2 x 2 redundant PS can be plugged in
for extended temperature range
and with conformal coating

SINAMICS Control unit

The Power Module:DC 24 V
External power supply:DC 20 ... 29 V
Max. power consumption:2.00 A
Power loss 12.00 W
Number:2
Output (resistive load):DC 30 V, 0.5 A
Number 15
Switching level: 0→1 11 V
Switching level: 1→0 5 V

System bundle

SIMATIC S7-400H
412-5H system bundle H-system
with 1 x UR2-H, withoutmemory card
2 x PS407 UC120/230V
10 A, 4 x sync modules up to 10 m
2 xsync cables 1 m
2 x CPU 412-5H
in addition 2 memory cards and
4 backupbatteries required

CPU 414-3 Processor Module

UR2 Central Rack

ER1 Expansion Rack - 18 Slots

SM421 Digital Input Module

Y-LINK F. CONNECT. OF 1CHANNEL DP-SLAVES

CPU416F-3 PN/DP Central Processor

CP 443-1 Advanced Communications Processor

CPU416-3 PN/DP Central Processor Module

UR2-H Rack

SIMATIC S7-400
rack aluminum UR2-H
central and distributed with 2 x 9 slots

CPU 414-3 Central Processing Unit

IM 467 Profibus DP Master

Communication Module CP 443-5 Extended

CPU 414H Processor Module

CENTRAL PROCESSING UNIT
CPU 414H
FOR S7-400H AND S7-400F/FH
4 INTERFACES: 1 MPI/DP / 1 DP / 2 FOR SYNC MODULES
2.8 MB MEMORY (1.4 MB DATA/1.4 MB PROGRAM)

CPU 414-3 Central Processing Unit

CPU 414-3 Central Processing Unit

CPU412-2 Central Processor Module

SM422 Digital Output Module

CPU 416-2. MPI. PROFIBUS. 8 MB

CP441-1 Communication Module
