S7-400

CPU414-2. MPI/DP. 2 MB

6ES74142XL070AB0
CENTRAL PROCESSING UNIT
CPU 414-2
WORK MEMORY 2 MB
1ST INTERFACE MPI/DP 12 MBIT/S
2ND INTERFACE PROFIBUS DP
REPLACES 6ES7414-2XK05-0AB0
Tariff Code: 8537109160

CPU 416-3 Central Processing Unit

CPU 416-2 DP Processor Module

SIMATIC S7-400
CPU 416-2 1.6 MB
WORKING MEMORY (0.8 MB CODE, 0.8 MB DATA)
1. INTERFACE MPI/DP 12 MBIT/S 2
INTERFACE DP

Front Connector for S7-400

6ES74921AL000AA0
CONNECTOR FRONT
S7400 SCREW
48 POLE
Tariff Code: 8536698000

Analog Input Module

Analog Input Module

6ES74311KF200AB0
INPUT MODULE
ANALOG
8POINT
14BIT
10US
Tariff Code: 8538908180

CPU 416-2 DP Processor Module

6ES74162XK040AB0
DISCONTINUED BY MNAUFACTURER
PLC CONTROLLER
CPU 416-2
2.8 MB DP MPI
Tariff Code: 8537109060
Country of Origin: Germany

Communication Module CP 443-5 Extended

CENTRAL PROCESSING UNIT

CENTRAL PROCESSING UNIT
SIMATIC S7-400
CPU416F-3 PN/DP
16MB MEMORY
2ND INTERFACE ETHERNET/PROFINET (X5)
3RD INTERFACE PLUG-IN IFM MODULE (IF1)
SUCCESSOR: 6ES7416-3FS07-0AB0

CP443-1 Communications Processor

Communications processor
CP 443-1
2x 10/100 Mbit/s (IE switch)
RJ45 ports; ISO
TCP; UDP
PROFINET IO controller;
S7communication
Open communication (SEND/ RECEIVE)
S7routing; IP configuration via DHCP/ Block
IP Access Control List;Time synchronization
extended web diagnostics
Fast Startup
Support for PROFIenergy

Communication Module CP 443-5 Extended

COMMUNICATION PROCESSOR
CP443-5
EXTENDED FORCONNECT.
OF SIMATIC S7-400 TO PROFIBUS DP
S5-COMPATIBLE PG/OP- AND
S7-COMMUNICATION

PS407 Power Supply

CPU417H Central Processor for S7-400H

CPU MODULE
SIMATIC S7-400H
417H CENTRAL UNIT FOR S7-400H
4 INTERFACES: 1 MPI/DP
1 DP A. 2 FOR SYNC MODULES
4MB MEMORY (2MB CODE/2MB DATA)

ANALOG INPUT MODULE

ANALOG INPUT MODULE
SIMATIC S7-400
24 VDC
200-600 MA
8 ISOLATED INPUT
14 BIT RESOLUTION

SM 421 Digital Input Module

PCS 7 CPU410-5H F-S7-400/S7-400H/F/FH

SIMATIC CPU 410-5H
Process Automation
central unit for S7-400 and S7-400H/F/FH
5 interfaces: 2x PN, 1x DP
2x for sync modules
for use as spare part
without System Expansion Card

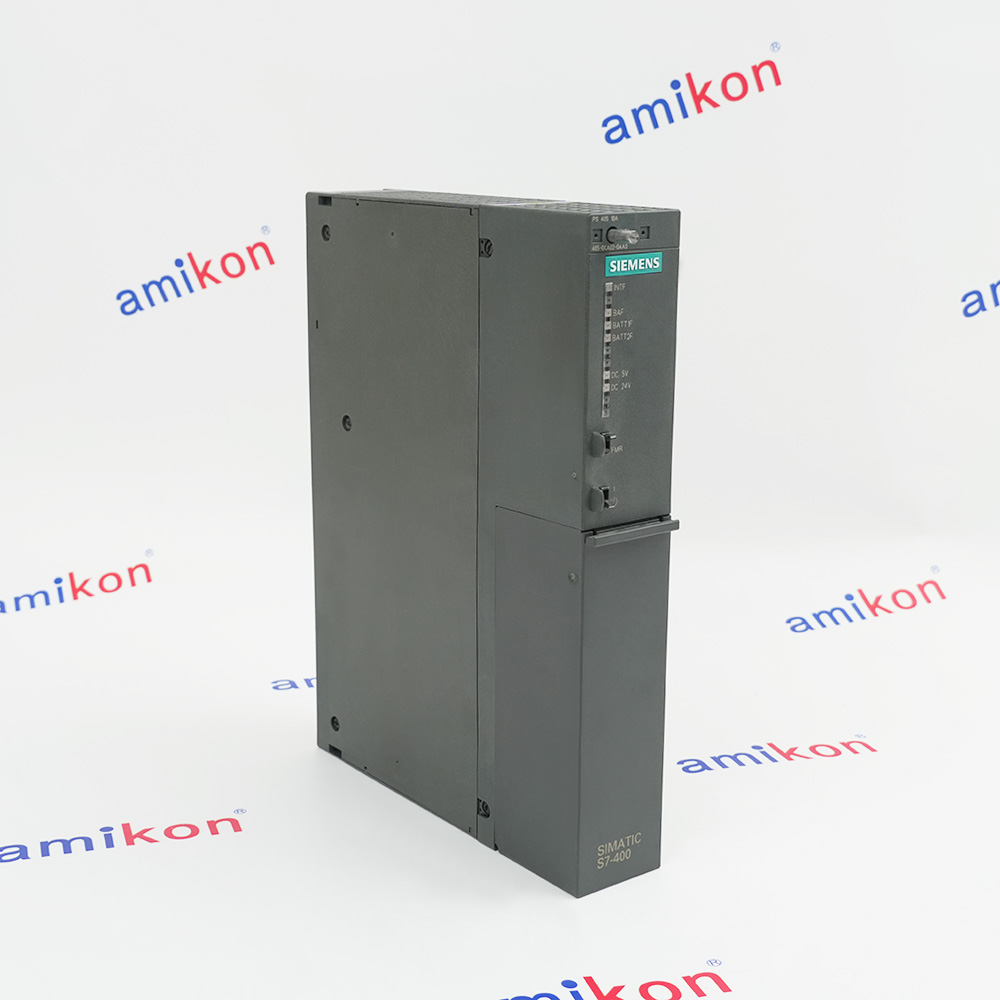

PS405 Power Supply - 10 A

SIMATIC S7-400
power supply PS405
wide range 10 A
24/48/60 V DC
5 VDC/10 A

Back Up Battery

CPU 416-3 PN/DP Central Processing Unit

S7-400 Rack UR1

SIMATIC S7-400
rack UR1, central and
distributed with 18 slots
2 redundant PScan be plugged in

RAM Memory Card - 1 MB

6ES79521AK000AA0
MEMORY CARD
SIMATIC S7
LONG VERSION
1MB RAM
FOR S7-400
Tariff Code: 8542320041

SM431 Analog Input Module

6ES74310HH000AB0
SIMATIC S7-400
ANALOG INPUT SM 431
NON-ISOLATED 16 ANALOG INPUT
RESOLUTION 13 BIT
+/-10 V
+/-20 MA
4-20MA
20MS CONVERSION TIME
Tariff Code: 8538903000

SM431 Analog Input Module

6ES74311KF000AB0
ANALOG INPUT MODULE
SM 431
SIMATIC S7-400
ISOLATED 8 ANALOG INPUT
RESOLUTION 13 BIT
U/IRESISTOR
Tariff Code: 8538908180
Country of Origin: Germany

CENTRAL PROCESSING UNIT

CENTRAL PROCESSING UNIT
SIMATIC S7-400H
FOR S7-400H/ S7-400F/FH
3 INTERFACES
1 MPI/DP
768 KB
(256 KB DATA/512 KB PROGRAM)

FM458-1 DP Application Module

SIMATIC S7-400
FM458-1 DP APPLICATION MODULE
FORSIMATIC S7-400
Number of digital inputs 8; Connector X2
Rated value (DC) 24 V
for signal "0" -1 to +6V
for signal "1" 13.5 to 33V
Resolution 500 ms
