PRODUCT DESCRIPTION

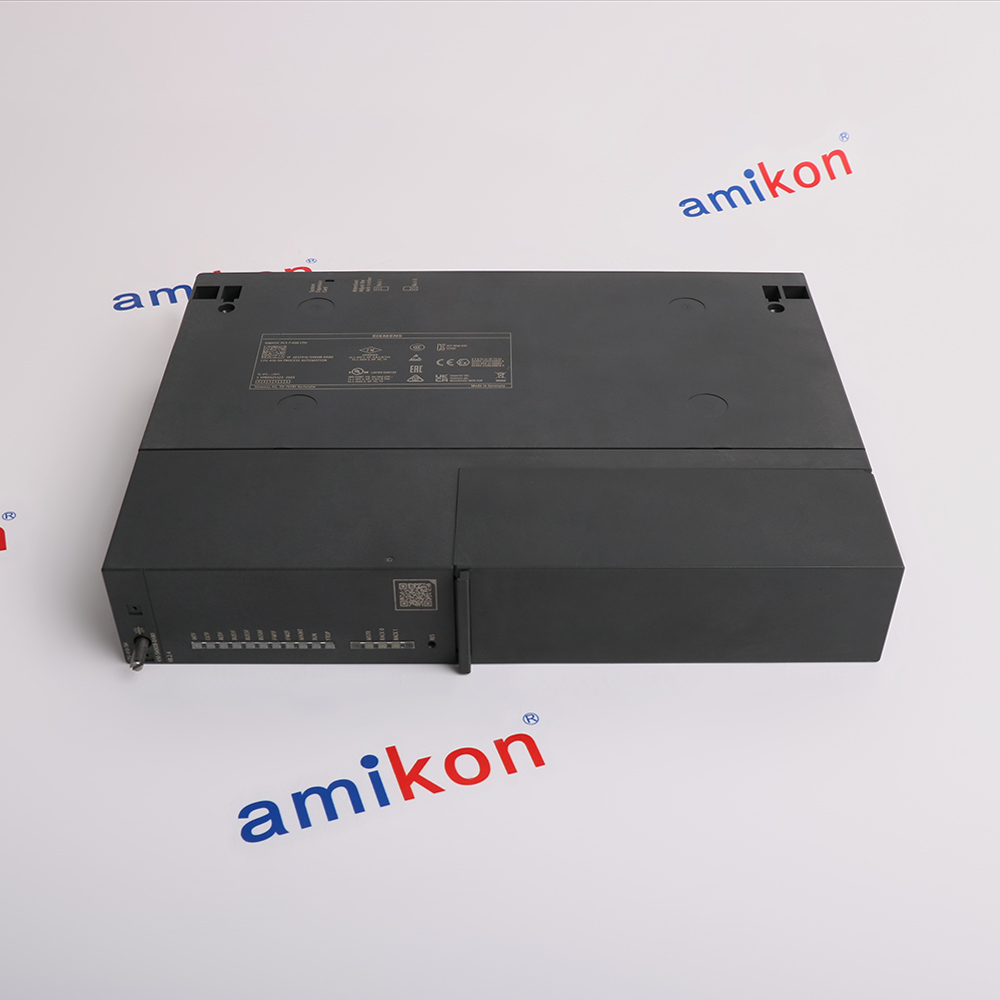

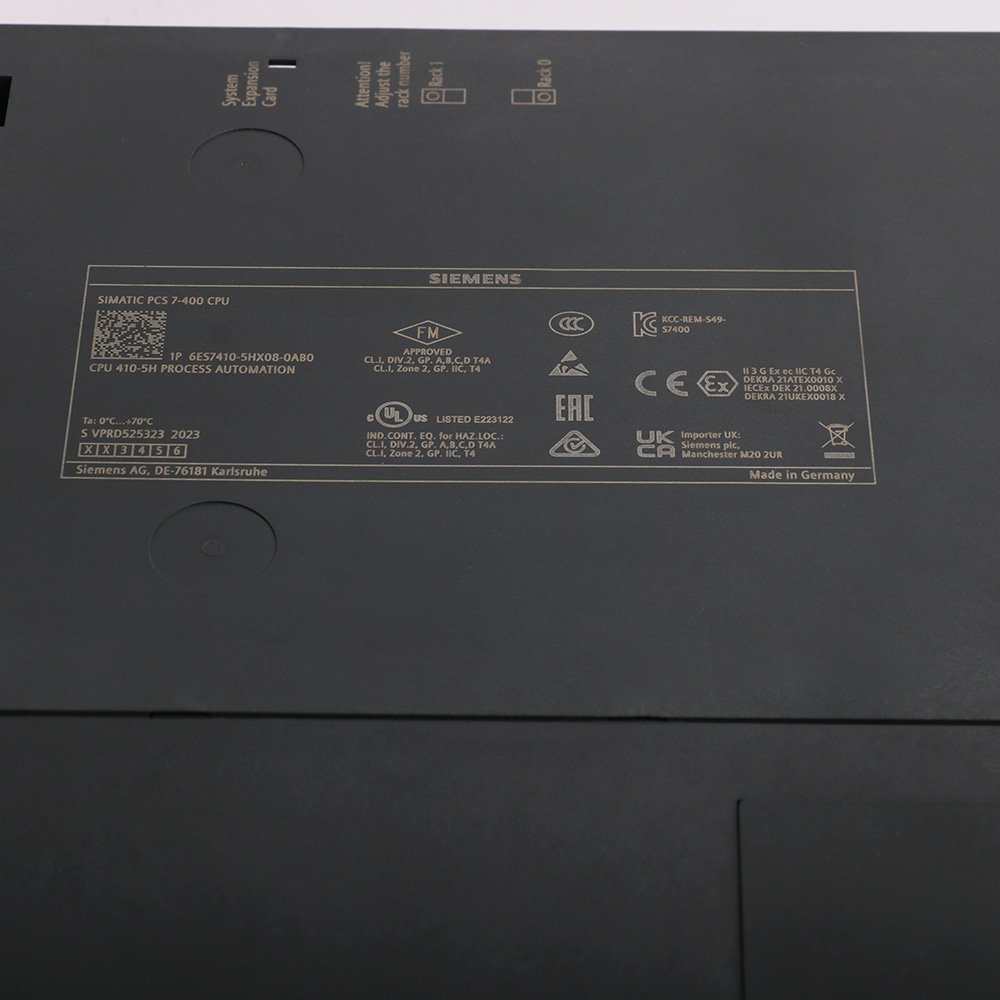

6ES7410-5HX08-0AB0 Process Automation Central Processing Unit
Siemens 6ES7410-5HX08-0AB0 is a CPU 410-5H central processing unit for SIMATIC S7-400 process automation. It is supplied as a replacement CPU without a System Expansion Card for compatible PCS 7 configurations.
The multiprocessor module combines two PROFINET interfaces, one PROFIBUS DP interface and two synchronization interfaces. Available work memory depends on the selected System Expansion Card, while the integrated load RAM is 48 MB; its coated electronics support documented industrial environments.
The multiprocessor module combines two PROFINET interfaces, one PROFIBUS DP interface and two synchronization interfaces. Available work memory depends on the selected System Expansion Card, while the integrated load RAM is 48 MB; its coated electronics support documented industrial environments.
BEFORE YOU BUY
Confirm the complete process automation central processing unit
ACTUAL APPLICATIONS
Application context for 6ES7410-5HX08-0AB0
6ES7410-5HX08-0AB0 is a replacement CPU for compatible S7-400 and PCS 7 process-control configurations. Relevant use fields include chemical manufacturing, petroleum processing and power production. Suitability depends on the System Expansion Card, supported engineering version, redundant-station arrangement and installed peripheral configuration.
-
01 · CHEMICAL PROCESSING
Chemical Manufacturing and Process Production
Industrial Chemical Production ProcessesSpecialty Chemical Batch Production -
02 · OIL & GAS
Oil Refining and Gas Processing
Petroleum Refining Process OperationsNatural Gas Processing Operations -
03 · POWER GENERATION
Electricity Generation and Energy Production
Thermal Power Generation ProcessesIndustrial Combined Heat Production
Technical specifications for 6ES7410-5HX08-0AB0
-
Product Model6ES7410-5HX08-0AB0
-
Product ParametersProcess Automation Central Processing Unit
-
In stock7 units
-
ManufacturerSiemens
-
Processor clock450 MHz
-
Hardware interfaces2 PROFINET, 1 PROFIBUS DP, 2 synchronization
-
Typical 5 V backplane current2 A; 2.4 A maximum
-
Maximum DP 24 V supply current150 mA
-
Power loss10 W
-
Maximum work memory32 MB, depending on System Expansion Card
-
Integrated load RAM48 MB
-
Bit/word/integer execution time7.5 ns
-
Floating-point execution time15 ns
-
Maximum data blocks16000
-
Maximum function blocks8000
-
Maximum functions8000
-
Cyclic interrupt tasks9; 10 ms to 5 s
-
Operating temperature0 to +70 ℃
-
Conformal-coating environmentISA-S71.04 G1, G2 and G3
View all additional
Alternative Names
6ES7410-5HX08-0AB0
SIMATIC S7-400 CPU 410-5H Process Automation Central Processing Unit
S7-400 CPU 410-5H 450 MHz processor clock
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Integrate 6ES7410-5HX08-0AB0 process automation central processing unit
Integrate 6ES7410-5HX08-0AB0 as the documented process automation central processing unit in its compatible SIMATIC S7-400 CPU 410-5H configuration. Match the complete product label, connection arrangement and installed hardware revision before making changes.
Compare processor clock (450 MHz) and hardware interfaces (2 PROFINET, 1 PROFIBUS DP, 2 synchronization) with the engineering design. Check every applicable electrical and environmental limit in the supplied documentation; compatibility depends on the connected equipment and selected configuration.
Use the manufacturer's documented isolation, connection and configuration sequence for 6ES7410-5HX08-0AB0. Validate the affected signals or communication paths at a controlled operating point, then retain the configuration and acceptance results with the asset record.
Features:
- Processor clock: 450 MHz
- Hardware interfaces: 2 PROFINET, 1 PROFIBUS DP, 2 synchronization
- Typical 5 V backplane current: 2 A; 2.4 A maximum
The 6ES7410-5HX08-0AB0 process automation central processing unit requires appropriate configuration before system integration and commissioning.
INTERCHANGEABILITY
Verify 6ES7410-5HX08-0AB0 process automation central processing unit
Verify the full 6ES7410-5HX08-0AB0 identity, the SIMATIC S7-400 CPU 410-5H role and the supplied hardware revision before exchange. Similar housings or related family numbers alone do not establish interchangeability.
Record the existing connectors, terminal allocation, grounding and configuration for 6ES7410-5HX08-0AB0 before removal. Isolate the affected equipment according to its documented procedure and retain the original settings needed to restore operation.
After fitting the verified process automation central processing unit, restore the controlled configuration and inspect each affected connection. Compare operation with the documented typical 5 v backplane current (2 A; 2.4 A maximum) where applicable and keep the final functional-test record.
Features:
- Processor clock: 450 MHz
- Hardware interfaces: 2 PROFINET, 1 PROFIBUS DP, 2 synchronization
- Typical 5 V backplane current: 2 A; 2.4 A maximum
The 6ES7410-5HX08-0AB0 process automation central processing unit requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Verify document identity before procurement or installation
- Match the complete order to the manufacturer document scope
- Accessories are supplied only when listed in the quotation
Documentation for the 6ES7410-5HX08-0AB0 process automation central processing unit must be checked for document applicability before installation or commissioning.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size5 x 29 x 21.9 cm
-
Shipping weight1.10kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8537101190
-
OriginGermany
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 6ES7410-5HX08-0AB0
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
What does 6ES7410-5HX08-0AB0 provide in the SIMATIC S7-400 CPU 410-5H configuration?
Siemens 6ES7410-5HX08-0AB0 is a CPU 410-5H central processing unit for SIMATIC S7-400 process automation. It is supplied as a replacement CPU without a System Expansion Card for compatible PCS 7 configurations. -
Which processor clock is specified for 6ES7410-5HX08-0AB0?
The applicable manufacturer data specifies processor clock as 450 MHz. -
What is the documented hardware interfaces of 6ES7410-5HX08-0AB0?
The applicable manufacturer data specifies hardware interfaces as 2 PROFINET, 1 PROFIBUS DP, 2 synchronization. -
How is typical 5 v backplane current rated on 6ES7410-5HX08-0AB0?
The applicable manufacturer data specifies typical 5 v backplane current as 2 A; 2.4 A maximum. -
What maximum dp 24 v supply current applies to 6ES7410-5HX08-0AB0?
The applicable manufacturer data specifies maximum dp 24 v supply current as 150 mA. -
Which value defines power loss for 6ES7410-5HX08-0AB0?
The applicable manufacturer data specifies power loss as 10 W. -
What should engineering use for the maximum work memory of 6ES7410-5HX08-0AB0?
The applicable manufacturer data specifies maximum work memory as 32 MB, depending on System Expansion Card. -
What identifies an acceptable replacement for 6ES7410-5HX08-0AB0?
Match the complete 6ES7410-5HX08-0AB0 label, compatible SIMATIC S7-400 CPU 410-5H configuration, connections and hardware revision, then perform the documented functional checks.
