- 6ES7422-1BL00-0AA0
In Stock
Ships by Friday, August 14
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 6ES7422-1BL00-0AA0
-
Product Model6ES7422-1BL00-0AA0
-
Product ParametersSIMATIC S7-400,SM 422 DIGITAL OUTPUT MODULE
-
Tariff Code8537101190
-
Country of originGermany
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size2.5x22.3x29cm
-
ManufacturerSiemens
-
Weight0.6 kg
-
Rated value (DC)24 V
-
permissible range, lower limit (DC)20.4 V
-
permissible range, upper limit (DC)28.8 V
-
from load voltage L+ (without load), max30 mA
-
Power loss, typ4 W
-
Number of digital outputs32
-
Short-circuit protectionYes; Clocked electronically
-
Limitation of inductive shutdown voltage to-27 V
-
Controlling a digital inputYes; possible
-
Isolation tested with500 V AC/707 V DC, type test
Description

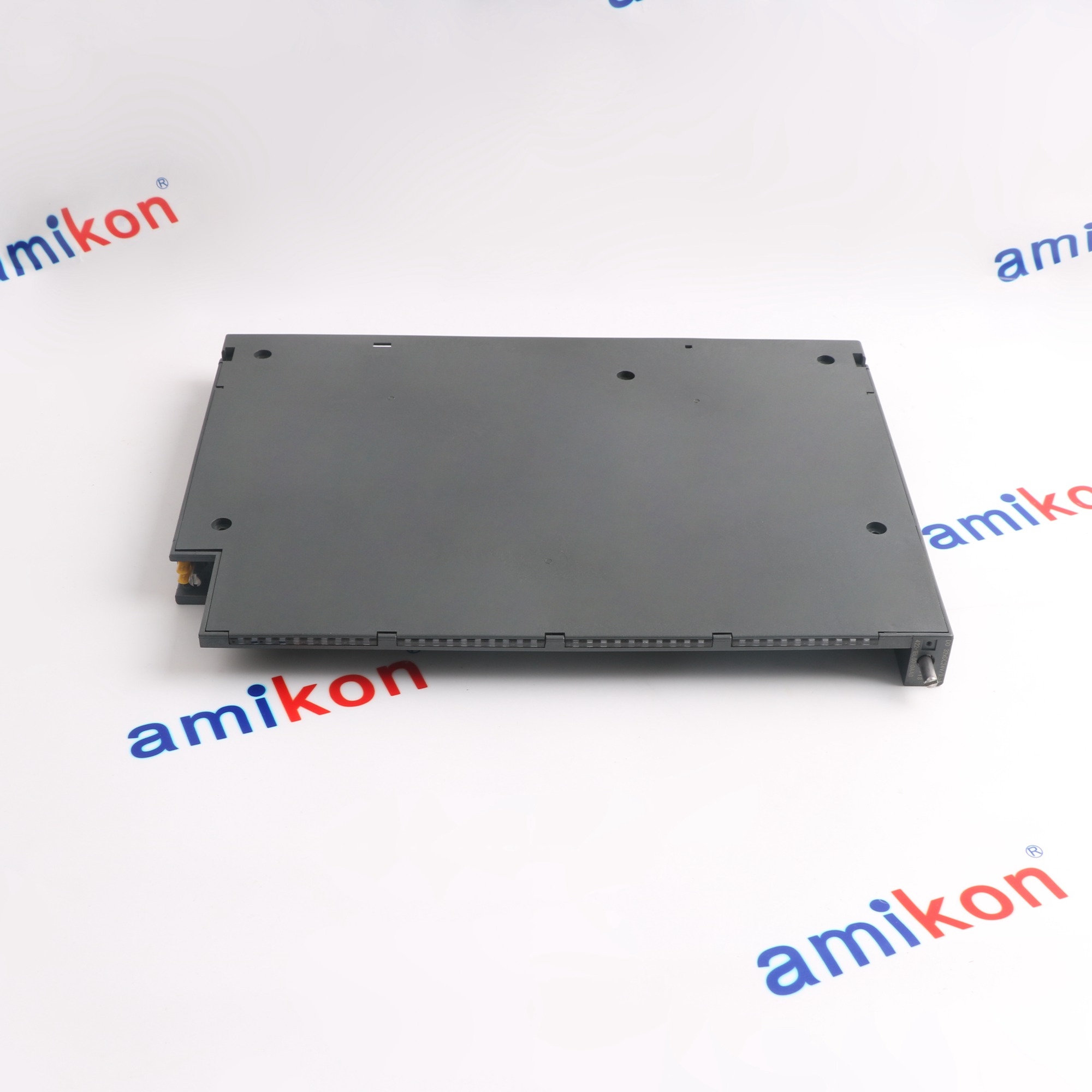

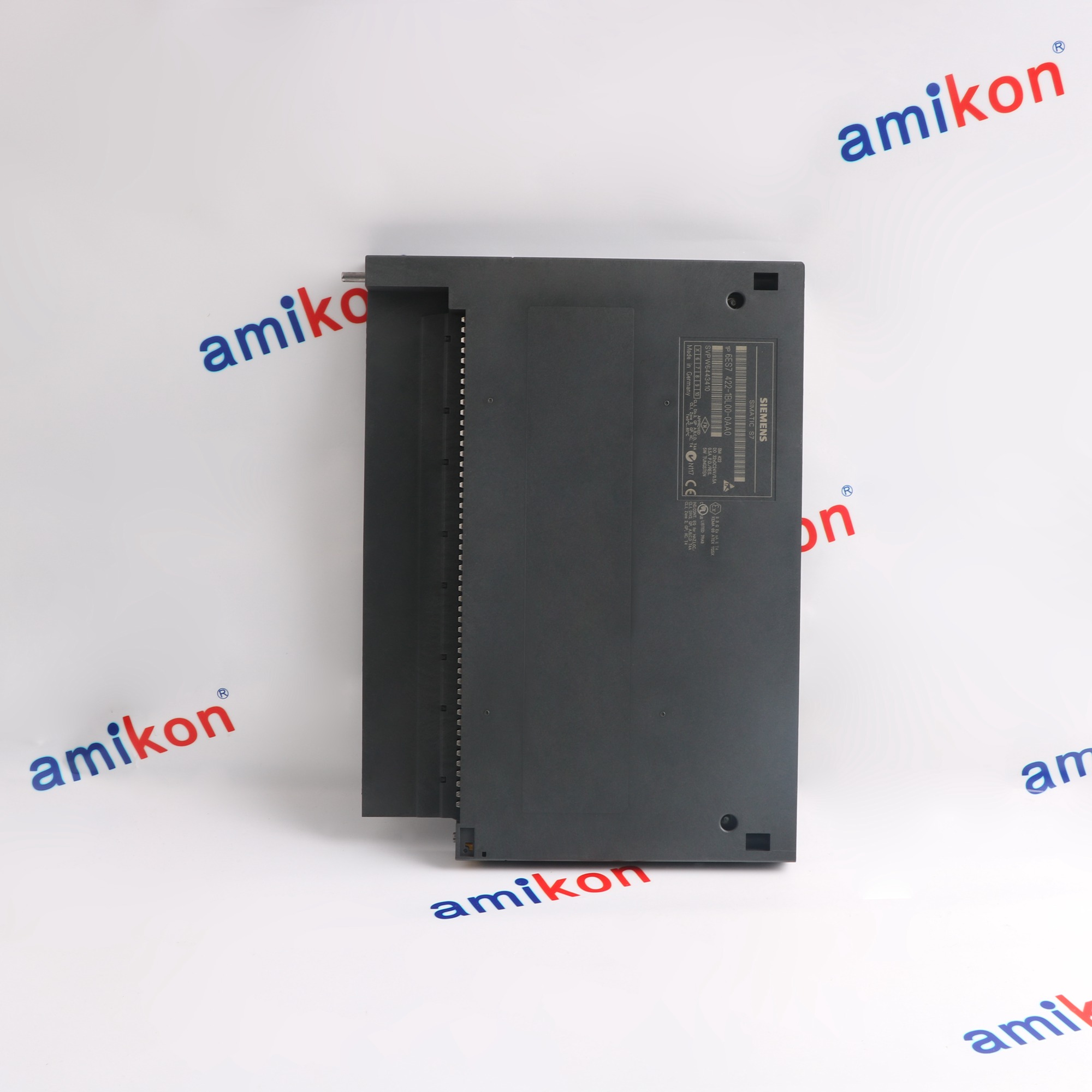

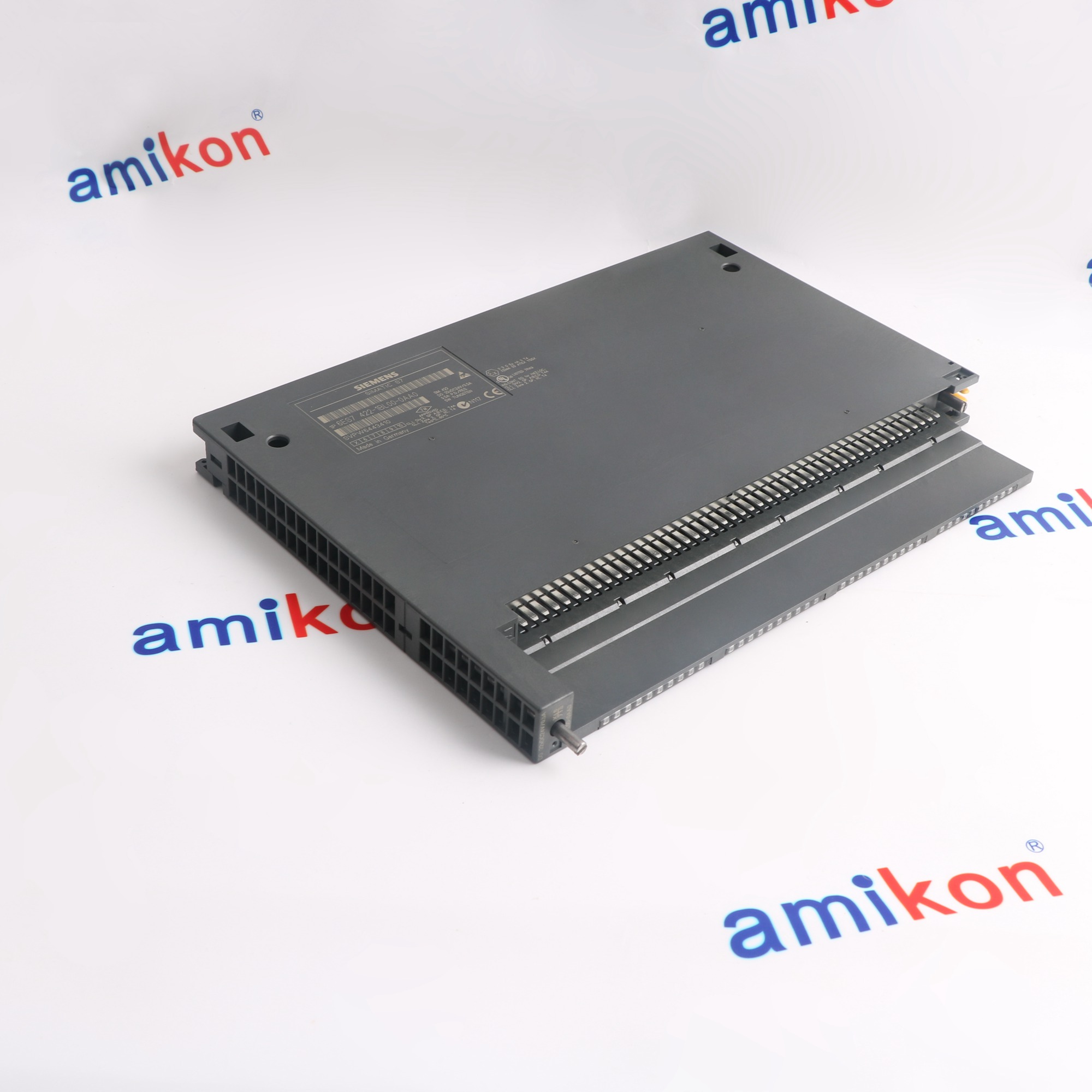

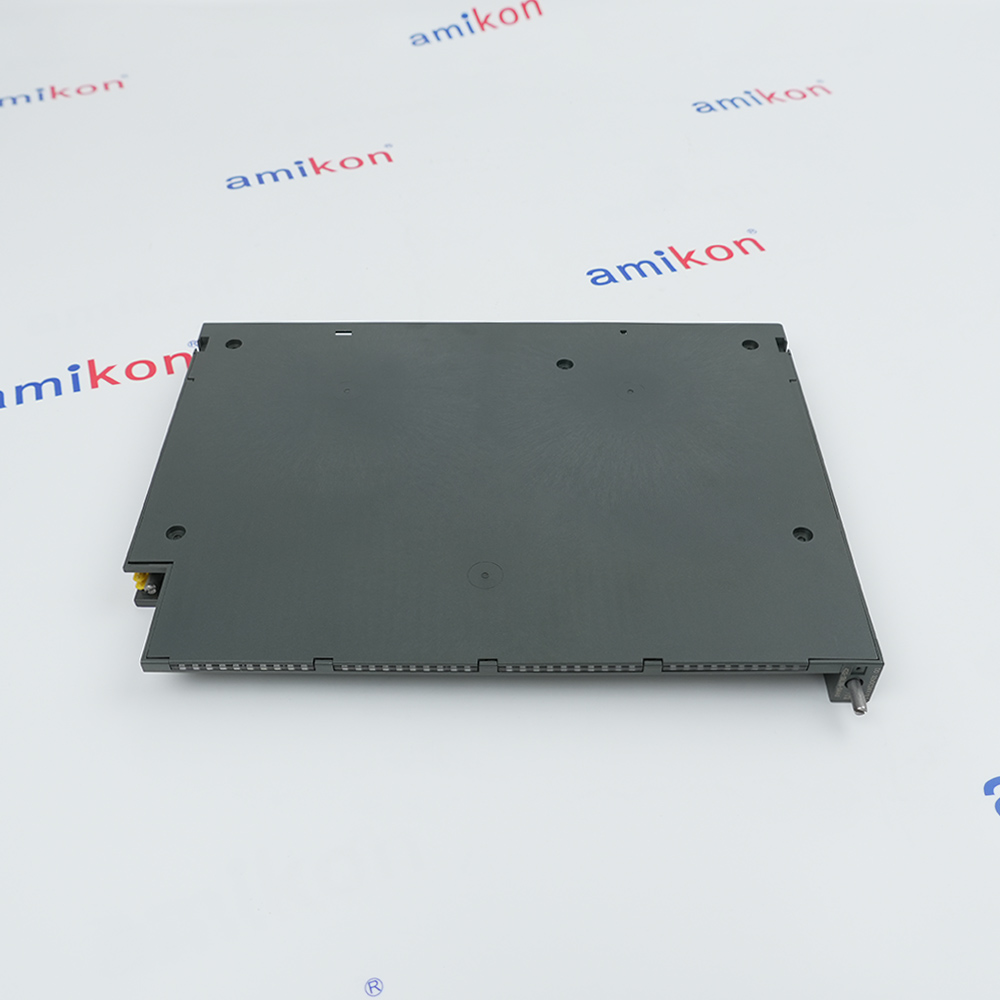

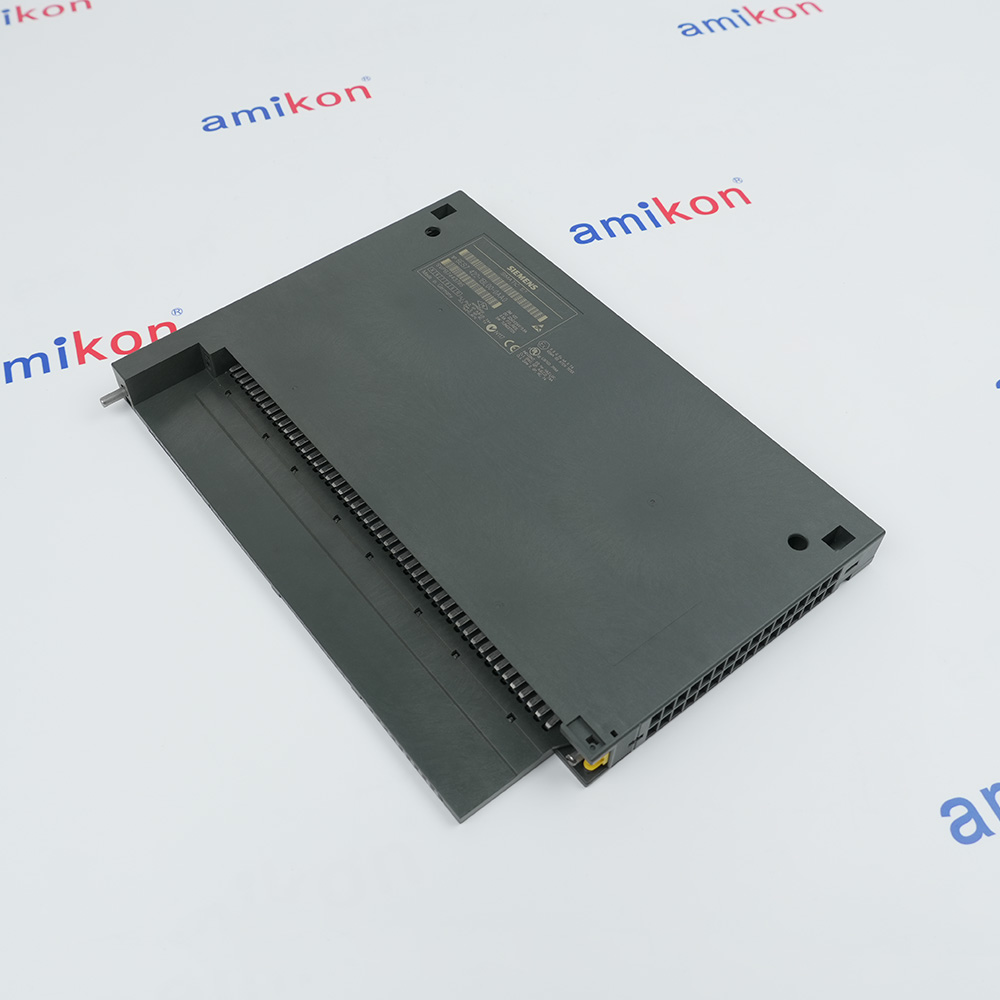

The SIEMENS 6ES7422-1BL00-0AA0 SIMATIC S7-400 SM 422 Digital Output Module is a high-density digital output module used to transfer binary control signals from the S7-400 CPU to external field devices. It is suitable for controlling solenoid valves, contactors, relays, motor starters, indicator lamps, and other 24 V DC industrial loads.
The module provides 32 digital transistor outputs with a rated load voltage of 24 V DC. Each output can handle a rated current of 0.5 A, with a permissible operating range from 5 mA to 0.6 A. The module supports a load voltage range of 20.4 to 28.8 V DC, making it suitable for standard industrial 24 V DC control circuits.
The 32 outputs are organized into four groups of eight channels. Each group has its own load voltage supply, allowing the individual groups to be switched off separately by disconnecting the corresponding L+ supply. The outputs are isolated as a group of 32 channels, while the supply arrangement is divided into four 8-channel groups.
The module provides 32 digital transistor outputs with a rated load voltage of 24 V DC. Each output can handle a rated current of 0.5 A, with a permissible operating range from 5 mA to 0.6 A. The module supports a load voltage range of 20.4 to 28.8 V DC, making it suitable for standard industrial 24 V DC control circuits.
The 32 outputs are organized into four groups of eight channels. Each group has its own load voltage supply, allowing the individual groups to be switched off separately by disconnecting the corresponding L+ supply. The outputs are isolated as a group of 32 channels, while the supply arrangement is divided into four 8-channel groups.
Information
Overview
Manuals
Application Notes
Product Applications
Wiring and Connection
Features:
- 32-Channel Optically Isolated Digital Output
- 24V DC Output with 0.5A Per Channel
- Electronic Short-Circuit Protection
- Inductive Shutdown Voltage Limitation to -27V
For resistive loads, the maximum switching frequency is 100 Hz. For inductive loads, the maximum switching frequency is 0.5 Hz, while IEC 60947-5-1 DC13 applications can operate up to 2 Hz at 0.3 A or 0.5 Hz at 0.5 A. Lamp loads can be switched at up to 10 Hz, with a maximum lamp load of 5 W.
The 6ES7422-1BL00-0AA0 SIEMENS SIMATIC S7-400,SM 422 DIGITAL OUTPUT MODULE may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
SIEMENS 6ES7422-1BL00-0AA0 SIMATIC S7-400,SM 422 DIGITAL OUTPUT MODULE Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
6ES7422-1BL00-0AA0 maximizes I/O density within the control cabinet. 6ES7422-1BL00-0AA0 connects to field devices via a 40-pin front connector (ordered separately), supporting both shielded cables up to 1000 m and unshielded cables up to 600 m for flexible installation layouts. The module also supports parallel switching of two outputs for uprating or redundant control of a load, provided they are outputs of the same group.
6ES7422-1BL00-0AA0 is fully compatible with the SIMATIC S7-400 automation platform and can be configured using STEP 7. 6ES7422-1BL00-0AA0 is manufactured in Germany and complies with relevant industrial standards, making it a trusted choice for building reliable and scalable output systems in power generation, manufacturing, material handling, and process industries worldwide.
- Water/Wastewater: Collects pump status, float switch thresholds, and valve feedback
- HVAC/Building: Monitors airflow switches, filter-clog indicators, and damper confirmations
- Maritime: Deployed in vessel monitoring with DNV/Bureau Veritas type approvals
- Conveyor/Handling: Reads proximity/photo-eye signals for track, position, and sorting
- Packaging/Bottling: Processes high-speed sensor feedback for filling, capping, and labeling
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Power Supply: The module has power supply groups of 8 channels (0 to 7, 8 to 15, 16 to 23, and 24 to 31). Each group requires a dedicated load voltage L+ (24 V DC) and Ground M.
Wire Preparation: Strip the cables to the appropriate length (usually about 11 mm) and insert them into the front connector terminals.
Front Connector Connection: Wire your field devices (relays, valves, etc.) to the respective output terminals, ensuring all common grounds are correctly tied to the module's ground reference.
Locking: Plug the wired front connector into the module's front port and secure it with the locking mechanism.
Alternative Names
6ES7422-1BL00-0AAO
6ES7422-1BL00-OAA0
6ES7422-1BLOO-0AA0
6ES7422-18L00-0AA0
6ES7422-IBL00-0AA0
6ES74ZZ-1BL00-0AA0
6ES7 422-1BL00-0AA0
6ES7 422-1BL00-0AAO
6ES7 422-1BL00-OAA0
6ES7 422-1BLOO-0AA0
6ES7 422-18L00-0AA0
6ES7 422-IBL00-0AA0
6ES7 4ZZ-1BL00-0AA0
6ES7 4221BL000AA0
6ES74221BL000AA0
Technical notes
The 6ES7422-1BL00-0AA0 has a typical power loss of approximately 4 W and draws up to 200 mA from the 5 V DC S7-400 backplane bus. It is installed directly in a SIMATIC S7-400 rack and uses the standard S7-400 front connector system for field wiring.The SIEMENS 6ES7422-1BL00-0AA0 SM 422 Digital Output Module is suitable for industrial automation systems, manufacturing equipment, process control systems, power generation facilities, and other applications requiring a large number of reliable 24 V DC switching outputs.
FAQs
-
What is the 6ES7422-1BL00-0AA0?
+The Siemens 6ES7422-1BL00-0AA0 is a 32-channel digital output module belonging to the SIMATIC S7-400 automation system. -
What is the power supply requirement?
+The module requires a load voltage (L+) of 24 V DC, with an operating range of 20.4 V to 28.8 V DC. -
Does the module have short-circuit protection?
+Yes, it features electronic clocked short-circuit protection. If a short circuit occurs, the affected output shuts off. To reset after clearing the fault, you may need to briefly toggle the signal or interrupt the load voltage. -
How much memory or address space does it occupy?
+It occupies 4 bytes of the controller's output address space.
