PRODUCT DESCRIPTION

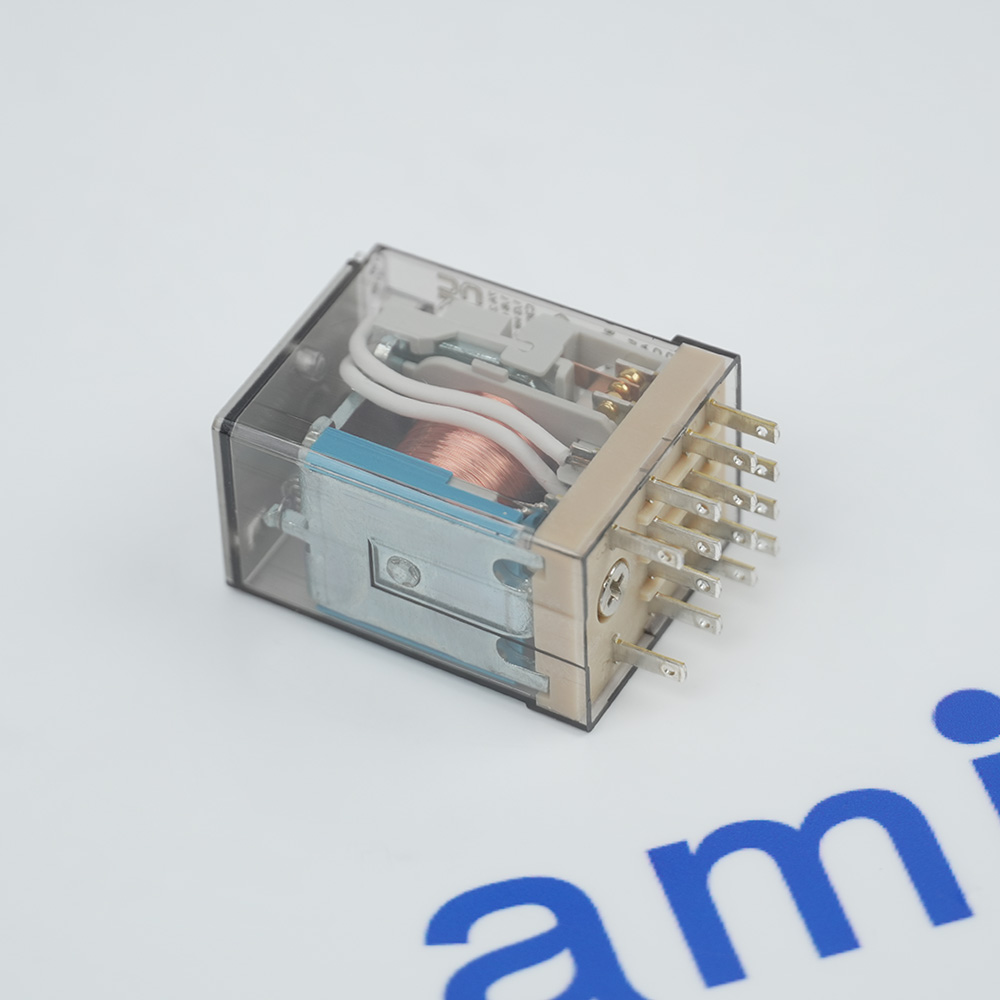

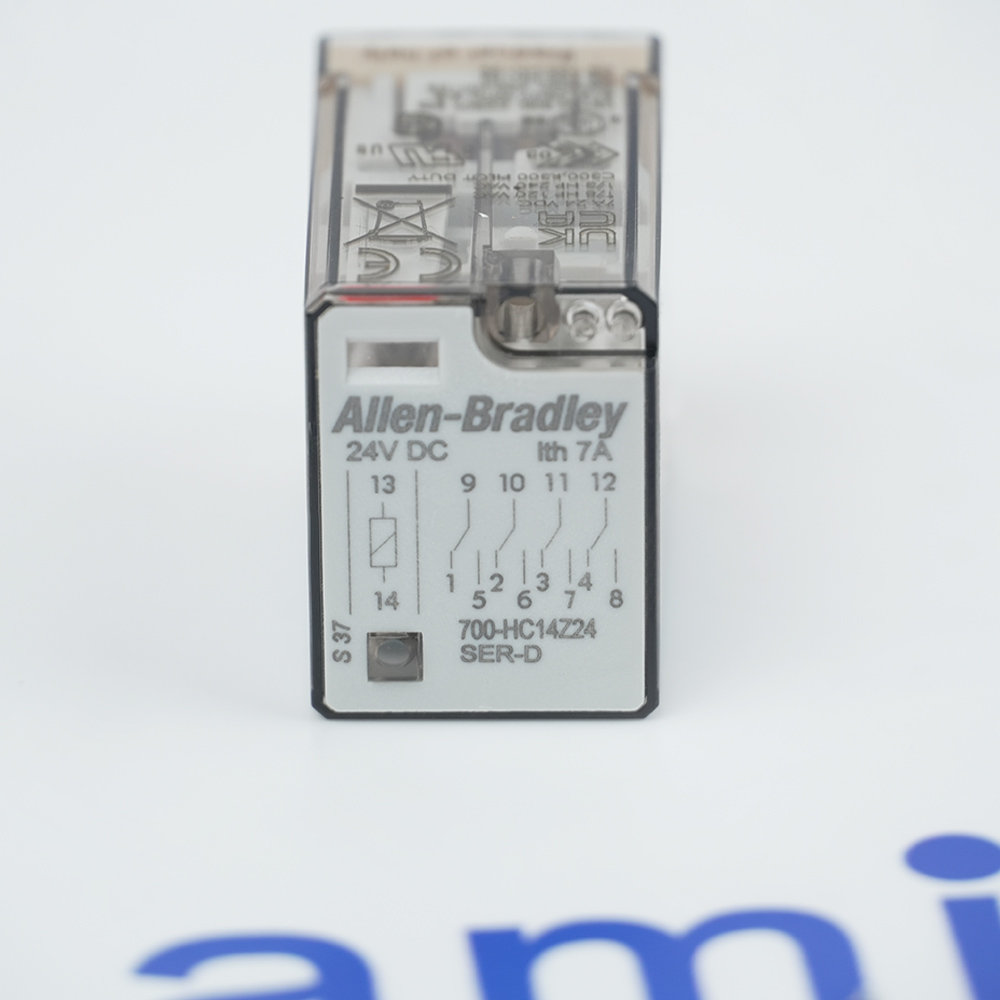

700-HC14Z24 24 V DC four-pole miniature relay
Allen-Bradley 700-HC14Z24 is a four-pole double-throw miniature control relay with a 24 V DC coil. Four Form C contacts use gold-plated silver-nickel material and carry the documented 7 A contact rating.
The relay uses 2.0 × 0.5 mm blade terminals and includes the standard mechanical ON/OFF flag indicator. Its low-energy switching ratings, minimum switching power and optional LED or push-to-test features distinguish the 700-HC14Z24 configuration.
The relay uses 2.0 × 0.5 mm blade terminals and includes the standard mechanical ON/OFF flag indicator. Its low-energy switching ratings, minimum switching power and optional LED or push-to-test features distinguish the 700-HC14Z24 configuration.
BEFORE YOU BUY
Confirm the complete 700-HC14Z24 identity
ACTUAL APPLICATIONS
Application fields for 700-HC14Z24
These broad application fields reflect the documented function and technical characteristics of 700-HC14Z24.
-
01 · INDUSTRIAL MANUFACTURING
Industrial Manufacturing and Continuous Production
Discrete manufacturing and assembly productionContinuous industrial production operations -
02 · POWER GENERATION
Thermal, Hydroelectric and Renewable Power Generation
Thermal and hydroelectric power productionRenewable generation and energy integration -
03 · COMMERCIAL BUILDINGS
Commercial and Institutional Building Operations
Commercial property operationsInstitutional facility services
Technical specifications for 700-HC14Z24
-
Product Model700-HC14Z24
-
Product Parameters24 V DC four-pole miniature relay
-
In stock1 unit
-
ManufacturerAllen-Bradley
-
Contact arrangement4PDT, 4 Form C
-
Coil voltage24 V DC
-
Contact rating7 A
-
Contact materialGold-plated silver nickel
-
Low-energy rating5 V at 10 mA or 25 V at 2 mA
-
Minimum switching power50 mW
-
Terminal styleBlade terminals, 2.0 × 0.5 mm
-
Status indicationStandard ON/OFF flag indicator
-
Optional functionsLED and push-to-test/manual override
View all additional
Alternative Names
700-HC14Z24
Allen-Bradley 24 V DC four-pole miniature relay
Allen-Bradley 700-HC miniature relays
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Integrate 700-HC14Z24 within Allen-Bradley 700-HC miniature relays
Use 700-HC14Z24 as the documented 24 V DC four-pole miniature relay within the approved Allen-Bradley 700-HC miniature relays architecture. The PDF-defined article identity determines its electrical role, interface arrangement and permitted configuration in the assembled equipment.
The PDF identifies contact arrangement (4PDT, 4 Form C), coil voltage (24 V DC), contact rating (7 A) and contact material (Gold-plated silver nickel); each value must match the approved installation record. Check the associated supply, field wiring, connector allocation and environmental limits before energization.
The PDF identifies low-energy rating (5 V at 10 mA or 25 V at 2 mA), minimum switching power (50 mW), terminal style (Blade terminals, 2.0 × 0.5 mm) and status indication (Standard ON/OFF flag indicator); each value must match the approved installation record. Verify coil energization, contact changeover, indicator operation and the controlled load circuit before release to service.
Features:
- Exact 700-HC14Z24 article and documented family
- PDF-defined electrical, interface and configuration values
- Controlled commissioning and diagnostic verification
Integration of 700-HC14Z24 requires the PDF-defined ratings, interfaces, configuration and commissioning checks to be satisfied.
INTERCHANGEABILITY
Verify 700-HC14Z24 before replacement
Record the complete 700-HC14Z24 marking, suffix, installed revision, connector orientation and supplied scope before removing the 24 V DC four-pole miniature relay from its Allen-Bradley 700-HC miniature relays installation. Preserve the active configuration, diagnostic state and all affected wiring references.
The PDF identifies contact arrangement (4PDT, 4 Form C), coil voltage (24 V DC), contact rating (7 A) and contact material (Gold-plated silver nickel); each value must match the approved installation record. Do not judge interchangeability from appearance, family name or a partial ordering code alone.
The PDF identifies low-energy rating (5 V at 10 mA or 25 V at 2 mA), minimum switching power (50 mW), terminal style (Blade terminals, 2.0 × 0.5 mm) and status indication (Standard ON/OFF flag indicator); each value must match the approved installation record. Compare the mounting arrangement, terminal or connector allocation and required accessories with the replacement article. Verify coil energization, contact changeover, indicator operation and the controlled load circuit before release to service.
Features:
- Complete article, suffix and installed revision
- Recorded connections, configuration and technical ratings
- Controlled post-installation functional verification
Replacement of 700-HC14Z24 requires the complete PDF-defined identity, electrical values, interfaces and installed configuration to match.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Exact-model technical data for 700-HC14Z24
- Document applicability checked against the complete identity
- Directory links by subcategory and brand
Documentation for 700-HC14Z24 must match the installed product identity and supplied configuration.
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size2 x 4 x 2.7 cm
-
Shipping weight0.05 kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference85364900
-
OriginUnited States
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 700-HC14Z24
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Is 700-HC14Z24 a four-pole changeover relay?
Yes. The documented contact arrangement is 4PDT, or four Form C contacts. Confirm the socket wiring and required pole count. -
Which coil supply operates 700-HC14Z24?
The coil is rated for 24 V DC. Verify control voltage, polarity for any LED option and coil suppression before installation. -
Can each contact switch a 7 A load?
The documented contact rating is 7 A, but the actual permissible load depends on voltage and load type. Check the applicable relay curve. -
What low-energy loads suit the gold-plated contacts?
The documented low-energy points are 5 V at 10 mA or 25 V at 2 mA, with 50 mW minimum switching power. -
Which socket accepts the blade terminals?
Match a socket designed for 2.0 by 0.5 mm blade terminals and the required four-pole contact arrangement. -
How should push-to-test options be verified?
If supplied, inspect the LED and manual override, then test coil pickup, contact transfer and release without bypassing the controlled circuit. -
What should distributors confirm for 700-HC14Z24?
Request the full relay code, quantity, 24 V DC coil confirmation, required LED or test option, socket need, destination and delivery date. -
What should buyers check when the relay arrives?
Verify the 700-HC14Z24 label, contact diagram, blade condition, indicator flag and any quoted LED or push-to-test feature.
