IC200CHS022
Need Help? Contact US!
Call us: +86-18020776786
Proper, Ready.
Delivery time
Please indicate your delivery time
Product image is representative; revision or series may vary. Contact us to request a specific version.
Product Information
Product Describe
IC200CHS022
I/O CARRIER
VERSAMAX
COMPACT
LOCAL BOX STYLE
INTEGRATED TYPE
DIN RAIL
VERTICAL ORIENTATION
I/O CARRIER
VERSAMAX
COMPACT
LOCAL BOX STYLE
INTEGRATED TYPE
DIN RAIL
VERTICAL ORIENTATION
Technical specifications for IC200CHS022
-
Product ModelIC200CHS022
-
Product ParametersCompact I/O Carrier
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen,China
-
Estimated Shipping Size16.5x6.5x7cm
-
ManufacturerGeneral Electric
-
Weight0.24 kg
-
Product TypeCompact box-style I/O carrier
-
No. of Terminals36 terminal
-
Single-Wire Cross Section0.36 mm2 to 2.1 mm2
-
Two-Wire Cross SectionUp to 0.86 mm2
-
Voltage rating0-264 VAC
-
Current per Point2 Amps
-
Factory New
These are new and current items that are procured from the manufacturer. -
New No Package
These parts are new. They have not been used, but their original packaging is no longer available. -
New In Opened Package
These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged. -
New In Sealed Package
Parts are new. They have not been used and still have their original package seal intact. -
New in Original Package
These parts are new. The packages were not originally sealed by their original manufacturer.
Warranty Period & Disclaimer
Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.
FAQs
-
What is IC200CHS022?+The GE Fanuc IC200CHS022 is a 36-terminal, compact box-style I/O carrier for the VersaMax series, used to support the mounting, backplane communications, and field wiring for a single Input/Output (I/O) module.
-
Which IC200CHS022 modules are compatible with this carrier board?+The IC200CHS022 is compatible with most VersaMax I/O modules and can serve as a common base for various input/output configurations.
-
What is the capacity of IC200CHS022?+It supports a maximum of 32 I/O points and 4 common power connections.
-
Is it compatible with all VersaMax modules?+Yes, it is designed to be compatible with any VersaMax I/O module.
Get a quick price fo IC200CHS022
whatsapp
Inquiry
Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions
Revisions
Revision Part #
Also known as
Product
MORE INFORMATION
Overview
Manuals
Technical notes
Product Applications
Module Configuration and Latching
Features:
- Supports 32 I/O points & 4 commons
- Keying dials for correct module install
- Carrier-to-carrier connectors, no extra cables
- Module latch hole for secure fastening
- Printed wiring card folds into card holder
The IC200CHS022 GE I/O CARRIER may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
GE IC200CHS022 I/O CARRIER Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

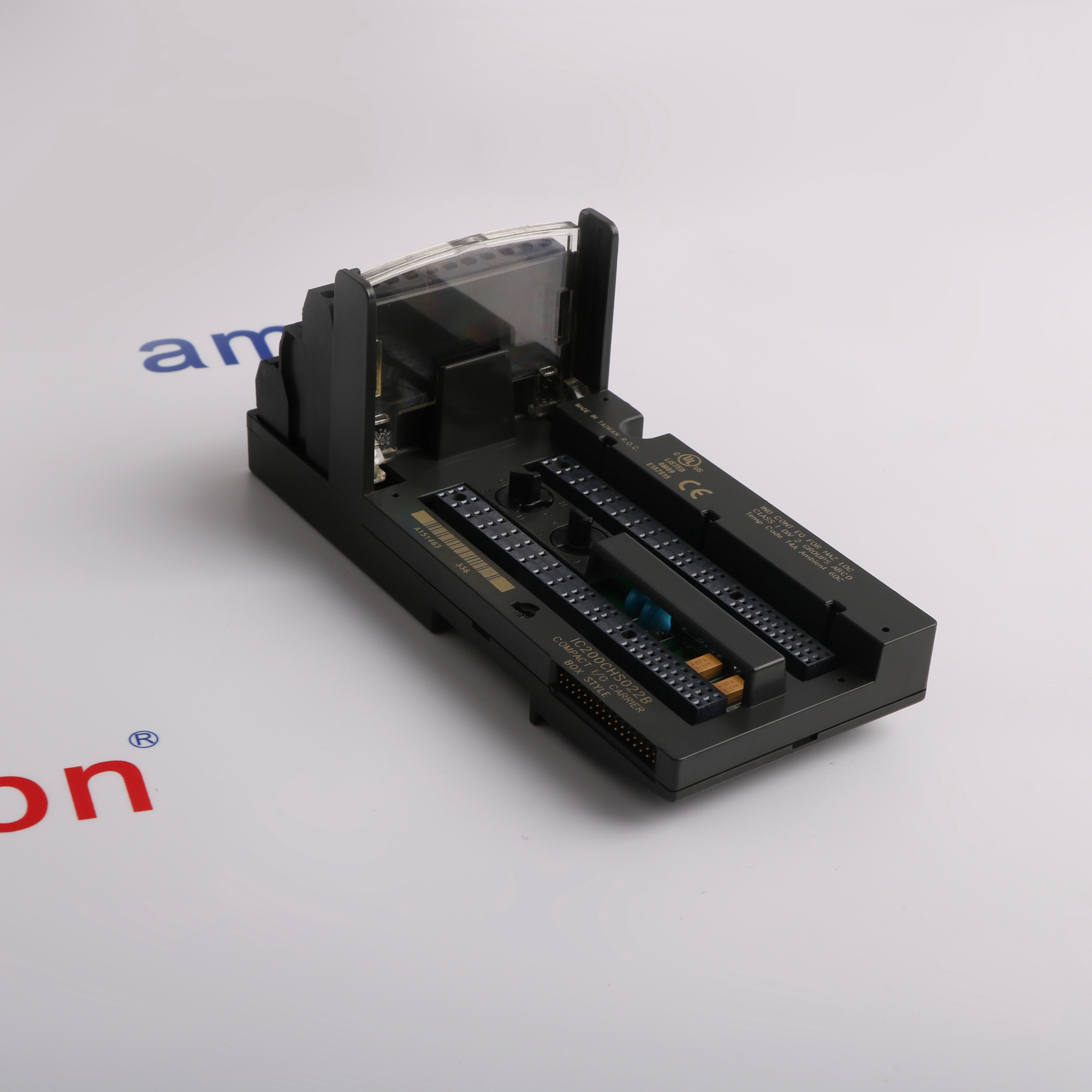

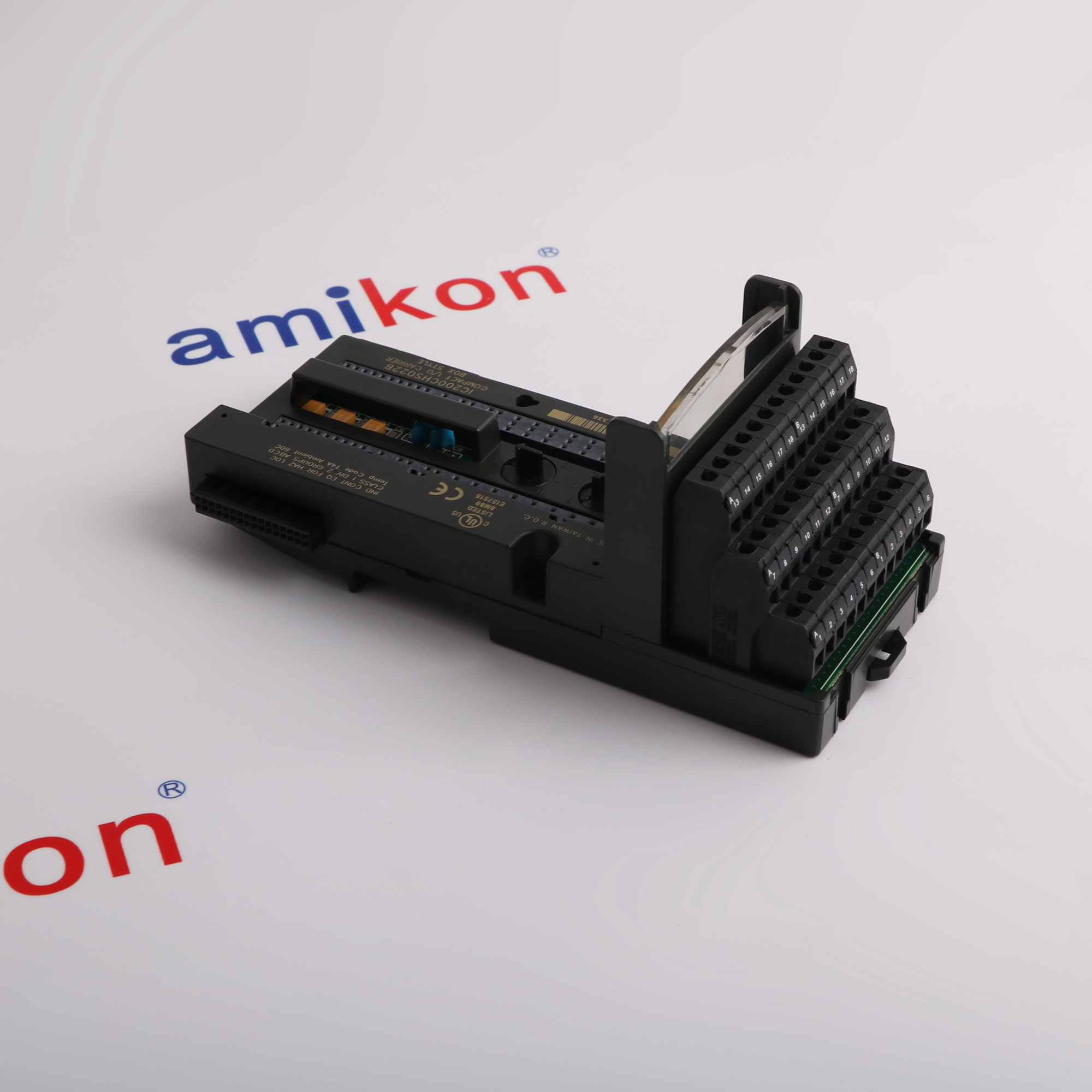

The Compact Box-Style I/O Carrier (IC200CHS022) has 36 IEC box-style terminals. Itprovides mounting, backplane communications, and field wiring for one I/O module.The I/O carrier snaps easily onto a 7.5mm X 35mm DIN rail. The DIN rail must beelectrically grounded to provide EMC protection. The rail must have a conductive(unpainted) corrosion-resistant finish.For applications requiring maximum resistance to mechanical vibration and shock, thecarrier must also be panel-mounted.
- Factory Automation:Modular PLCs for high-speed manufacturing lines
- Power Generation:Monitors & manages power plant control systems
- Heavy Manufacturing:Rugged design for steel, auto & food processing
- Food Processing:Regulates temp, flow & pressure for quality/safety
- Distributed Control Systems (DCS):Remote I/O node for field devices to central controller
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Keying Dials: Before inserting an I/O module, set the two keying dials on the carrier to match the keying on the bottom of the module. This prevents the installation of incorrect module types.
Securing: Align the module with the carrier and press firmly until it is fully seated. A latch hole on the carrier secures the module in place.
