- FC-RUSIO-3224
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.

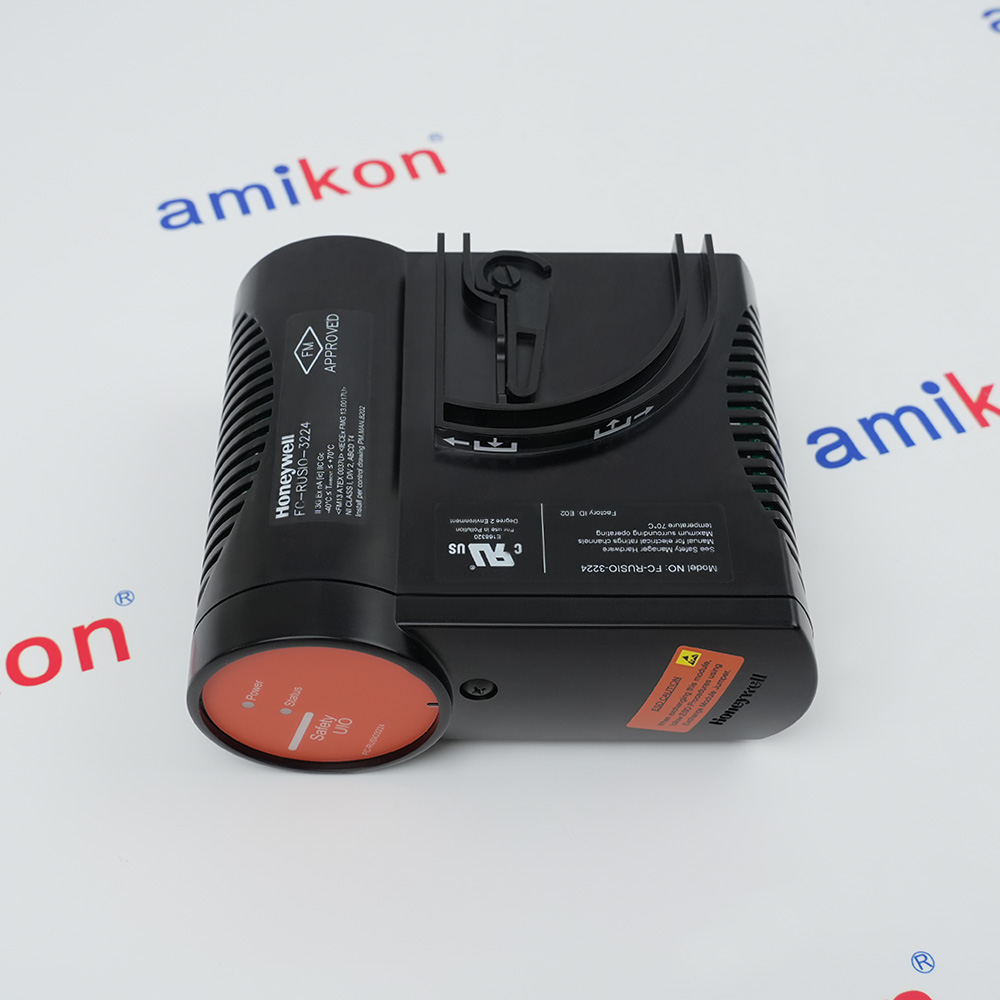

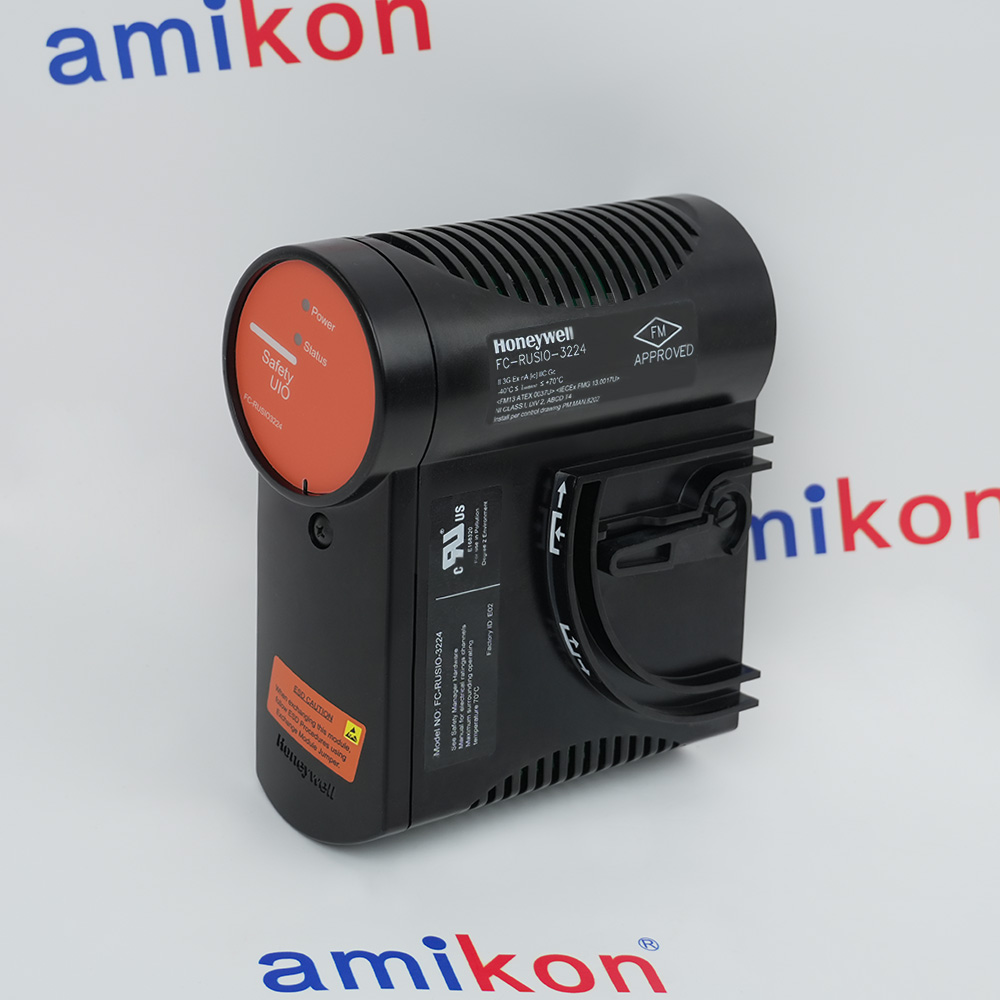

Technical specifications for FC-RUSIO-3224
-
Product ModelFC-RUSIO-3224
-
Product ParametersSM RIO Module
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size7.3x16x16.4cm
-
ManufacturerHoneywell
-
Weight0.62 kg
-
Open voltage24 V DC -20% ... +30%
-
Closed contact current7 mA ± 5% (at 24 V DC)
-
Switch resistor (single)1 kOhm ± 5% >0.25 W
-
Open contact current< 4 mA ± 5%
-
Short circuit detectionfield resistance < 500 Ohm ± 50%
-
ESD to outputs off delay10 ms ± 30%
-
Operating temperature-40°C ... +70°C (-40°F ... +158°F)
-
Storage temperature-40°C ... +85°C (-40°F ... +185°F)
-
Relative humidity10 ... 95% (non condensing)
Description
FCRUSIO3224
I/O MODULE
REMOTE
UNIVERSAL SAFE
24 V
32 CHANNEL
I/O MODULE
REMOTE
UNIVERSAL SAFE
24 V
32 CHANNEL
Information
Overview
Manuals
Technical notes
Product Applications
Internal dissipation calculation
Features:
- Universal Channel Configuration
- SIL 3 Safety Integrity
- Redundant Path Architecture
- Integrated Line Monitoring
- High-Precision Analog Performance
The RUSIO-3224 module has 32 universal safe IO channels with configurable channel function;configuration is done in Safety Builder.The RUSIO-3224 module can be used in applications up to SIL 3, in compliance with IEC 61508/61511.It requires two RUSIO-3224 modules to achieve a redundant configuration.All channels are powered out of the 24 V DC supply
The FC-RUSIO-3224 Honeywell I/O module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Honeywell FC-RUSIO-3224 I/O module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The RUSIO-3224 module has one channel that can be configured as Emergency ShutDown (ESD) input;this is channel 32. To configure channel 32 as ESD input in Safety Builder, the two pins fork on the CN4terminals on the IOTA must be in the ENABLE position (connecting pins 1 and 2).Channel 32 must be configured for the ESD function in the software also, in order to execute the propertests for the ESD channel.When the (field) switch on the ESD input opens, the Safety Manager universal IO watchdogs switch offand all digital outputs of the connected RUSIO-3224 module(s) will go off and remain off. There is nosoftware action required to do this; also there is no software action that can prevent this.
- Oil & Gas :ESD, flare monitoring & LNG anti-surge valve control
- Chemical & Petrochemical Processing:Reactor safety & hazardous substance handling to prevent failures
- Power Generation:Turbine overspeed, boiler interlocking & generator ESD
- Pharmaceutical & Life Sciences:GMP compliance: ventilation interlocking & reactor safety
- Pulp & Paper Industry:Safety interlocking for high-pressure systems & rotating equipment
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
To calculate the maximum outside module temperature, you need the configuration. The maximumdissipation caused by the logic of the RUSIO-3224 module is a fixed value. Other dissipationcontributions depend on the channel configuration. The maximum dissipation per channel type dependson the applicable supply voltage.Select the appropriate table to carry out the calculation, based on the supply voltage:
l 25 V or less: 25 V (default) - as displayed in the Dissipation calculation
- supply voltage 25 V table,
l more than 25 V or unknown: 31.2 V (maximum) - as displayed in the Dissipation calculation -supply voltage more than 25 V table.
FAQs
-
What is the FC-RUSIO-3224？
+The Honeywell FC-RUSIO-3224 is a 32-channel Remote Universal Safe I/O module designed for industrial safety applications up to SIL 3, compliant with IEC 61508/61511 -
What type of channels does the FC-RUSIO-3224 have?
+It has 32 universal safety I/O channels that can be individually configured as Digital Input (DI), Digital Output (DO), Analog Input (AI), or Analog Output (AO), with 24 V DC power. -
What safety rating does this module have?
+The module is certified for applications up to SIL 3. -
How does the module achieve redundancy?
+Redundant operation requires two RUSIO-3224 module -
What are the temperature operating limits?
+The module operates at temperatures ranging from -40°C to +70°C (-40°F ... +158°F).
