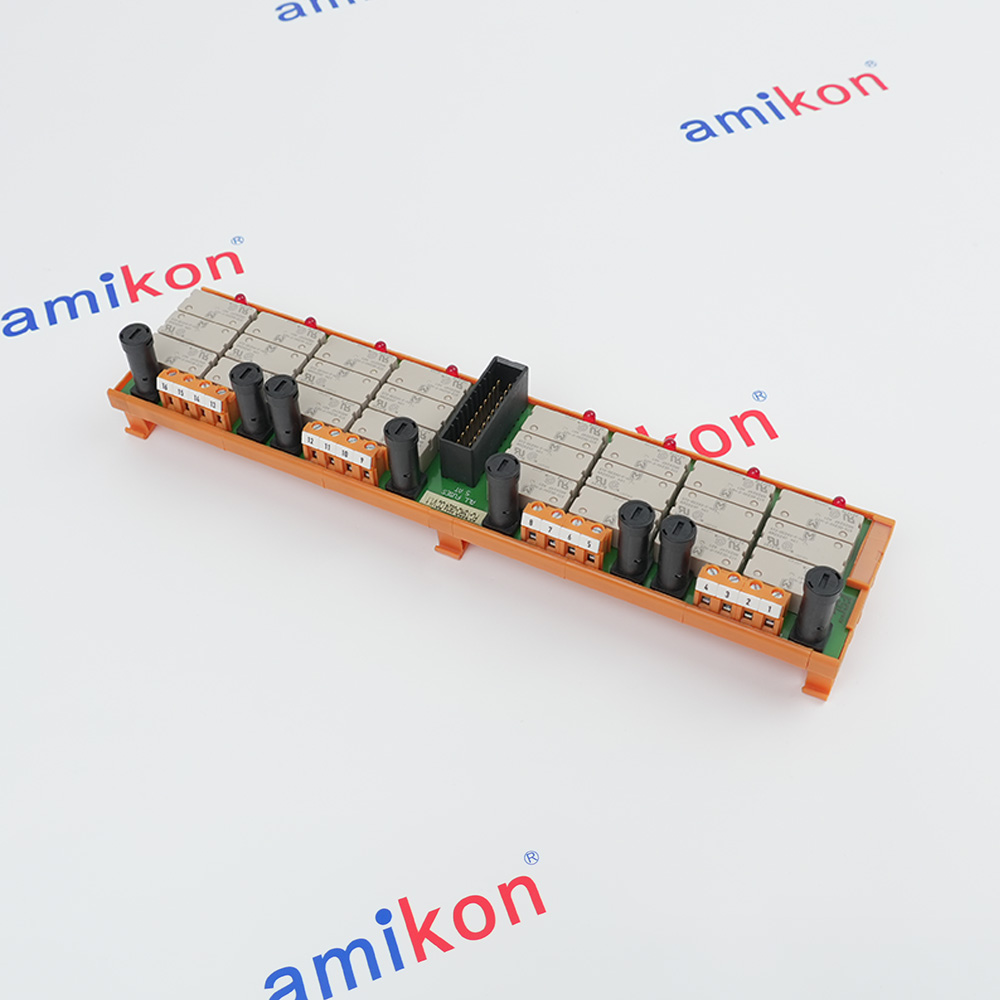

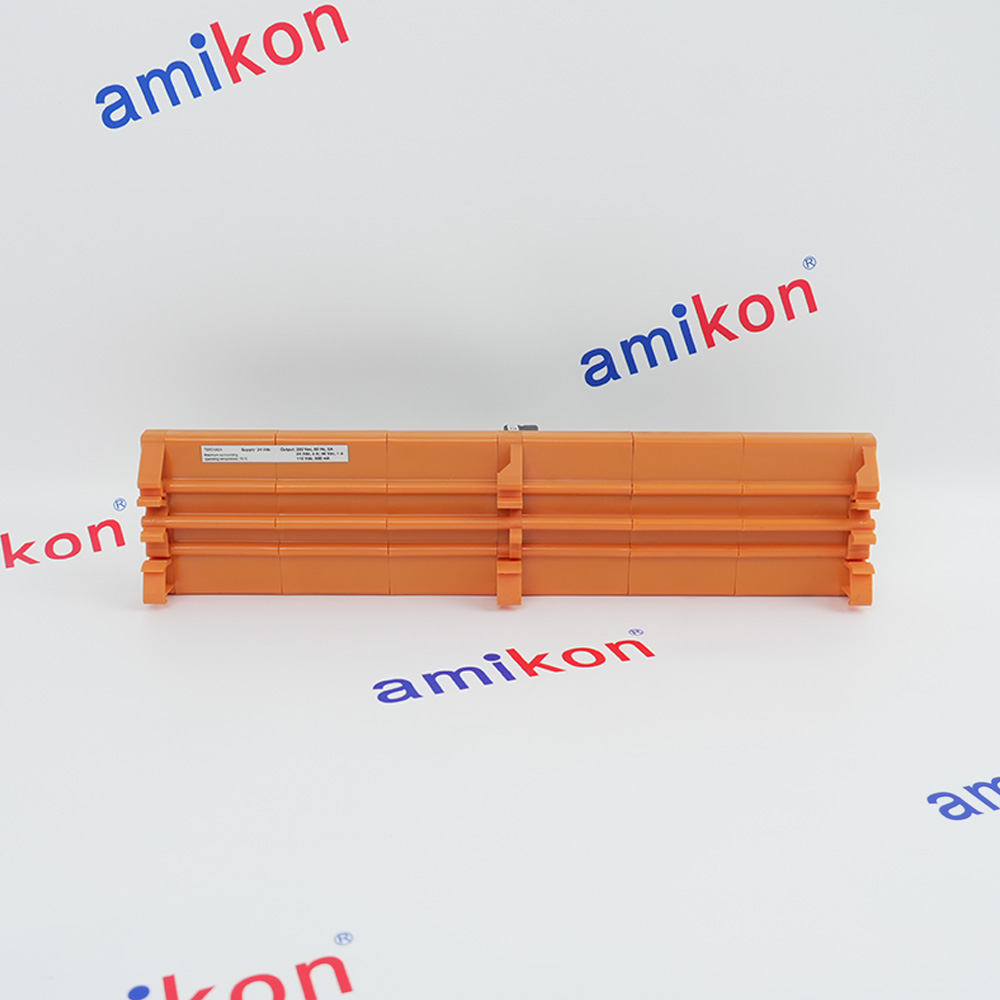

- FC-TSRO-0824 V1.1
In Stock
Ships by Thursday, June 18
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for FC-TSRO-0824 V1.1
-
Product ModelFC-TSRO-0824 V1.1
-
Spare ModelFC-TSRO-0824
-
Product ParametersSafe dry digital output
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock13 units
-
Estimated Shipping Size30x7x5.8cm
-
ManufacturerHoneywell
-
Weight0.5 kg
-
ApprovalsCE, UL, TUV, CSA
-
Safety classup to and including SIL3
-
Nominal input voltage24 V DC
-
Max. input voltage36 V DC
-
Relay pick-up voltage19.2 V DC
-
Input currentTypically 40 mA at 24 V DC
-
Number of outputchannels8
-
Max. output current5 A (fused)
-
Min. output current1 mA at 5 V
-
Max. output voltage250 V AC / 250 V DC
-
Max. switched load1250 VA / 150 W
-
Fuse rating5 A
-
Fuse dimensions5x20 mm
-
Voltage rating AC250 V
-
Voltage rating DC150 V
-
ManufacturerSchurter
Description
Field termination assembly module TSRO-0824 is the interface between system interconnection cableSICC-0001/Lx and the external field wiring (screw terminals). It has eight relay-based potential-free safeoutput channels suitable for applications up to and including SIL3 without the use of fault exclusions.TSRO-0824 complies with safety requirements for general use in safety requirement classes SIL3 asdefined in IEC 61508.The TSRO-0824 has floating, non commoned, output contacts that can be wired independently. Eachoutput channel consists of:
Three relaysl A fused NO field contact (5 AT, slow-acting)
A status indication LEDThe relays are capable of driving a wide variety of loads, including 115/230 V AC, which gives SafetyManager a 115/230 V AC output capability for SIL3 applications. The energized relay state is indicated bya LED on the module.
Three relaysl A fused NO field contact (5 AT, slow-acting)
A status indication LEDThe relays are capable of driving a wide variety of loads, including 115/230 V AC, which gives SafetyManager a 115/230 V AC output capability for SIL3 applications. The energized relay state is indicated bya LED on the module.
Alternative Names
FC-TSRO-0824 V1-1
FC TSRO 0824 V1.1
FC-TSRO-O824 V1.1
FC TSRO O824 V1.1
FC-TSR0-0824 V1.1
FC TSR0 0824 V1.1
Information
Overview
Manuals
Technical notes
Product Applications
Installation & Instruction Notes
Features:
- Three relays
- Fused NO field contact (5 AT, slow-acting)
- Status indication LED
The FC-TSRO-0824 V1.1 Honeywell Digital Output Field Termination Assembly may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Honeywell FC-TSRO-0824 V1.1 Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The FC-TSRO-0824 V1.1 module complies with safety requirements forgeneral use in safety requirement classes AK5/6 as defined in DIN V19250.The relays are capable of driving a wide variety of loads including115/230 Vac, which gives the FSC system a 115/230 Vac outputcapability for AK5/6 applications. The energized state of the relay isindicated by an LED on the module
Eight channels can be connected to the FC-TSRO-0824 V1.1 module via thesystem interconnection cable SIC-C-12.This cable is plugged into theSIC connector on the FTA module, and connects to a (redundant pairof) 10201/2/1 module(s).The FTA module has a universal snap-in facility for standard DIN ENrails, and screw terminals for connecting field wiring.
- Oil and Gas: Safety control and management
- Chemical Processing and Petrochemicals: Safety systems for large-scale manufacturing
- Power Generation: Power management systems
- Pharmaceuticals & Manufacturing: Control of critical safety functions
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Mounting: Designed for mounting on DIN EN Rails (TS32 / TS35 × 7.5).
Wiring: The module uses screw terminals to connect to field devices. Ensure the 5AT slow-acting fuses are properly inserted into the fuse holders.
Cable Connection: Connects to system interconnection cables (e.g., SICC-0001/Lx) for communication with the main safety processor (such as the Honeywell FSC).
Tightening Torque: Screw terminals should be tightened to 0.5 Nm (0.37 ft-lb).
Environmental Hazard: Suitable for use in potentially harsh industrial environments.
Technical notes
Each channel is equipped with an LED indicator that displays the energization status of the corresponding relay, providing real-time visual feedback for maintenance and diagnostics. The module operates on a 24 VDC supply with a relay cut-in voltage of 19 VDC and a maximum input voltage of 31 VDC. Typical input current is 27 mA per channel. Field wiring connects via screw terminals with a maximum wire size of 2.5 mm² (AWG 14), strip length of 7 mm, and tightening torque of 0.5 Nm. Wiring must be rated for 80°C minimum.
FAQs
-
What is the FC-TSRO-0824 V1.1？
+Honeywell FC-TSRO-0824 Digital Output Field Termination Assembly (FTA) -
Is this product brand new?
+Yes, Honeywell FC-TSRO-0824 V1.1 is brand new, original, unused, and factory sealed -
Do you have it in stock?
+Yes, right now we have Honeywell FC-TSRO-0824 V1.1 in stock ready for shipment, we can support video inspection.
