PRODUCT DESCRIPTION
330180-50-05 product overview

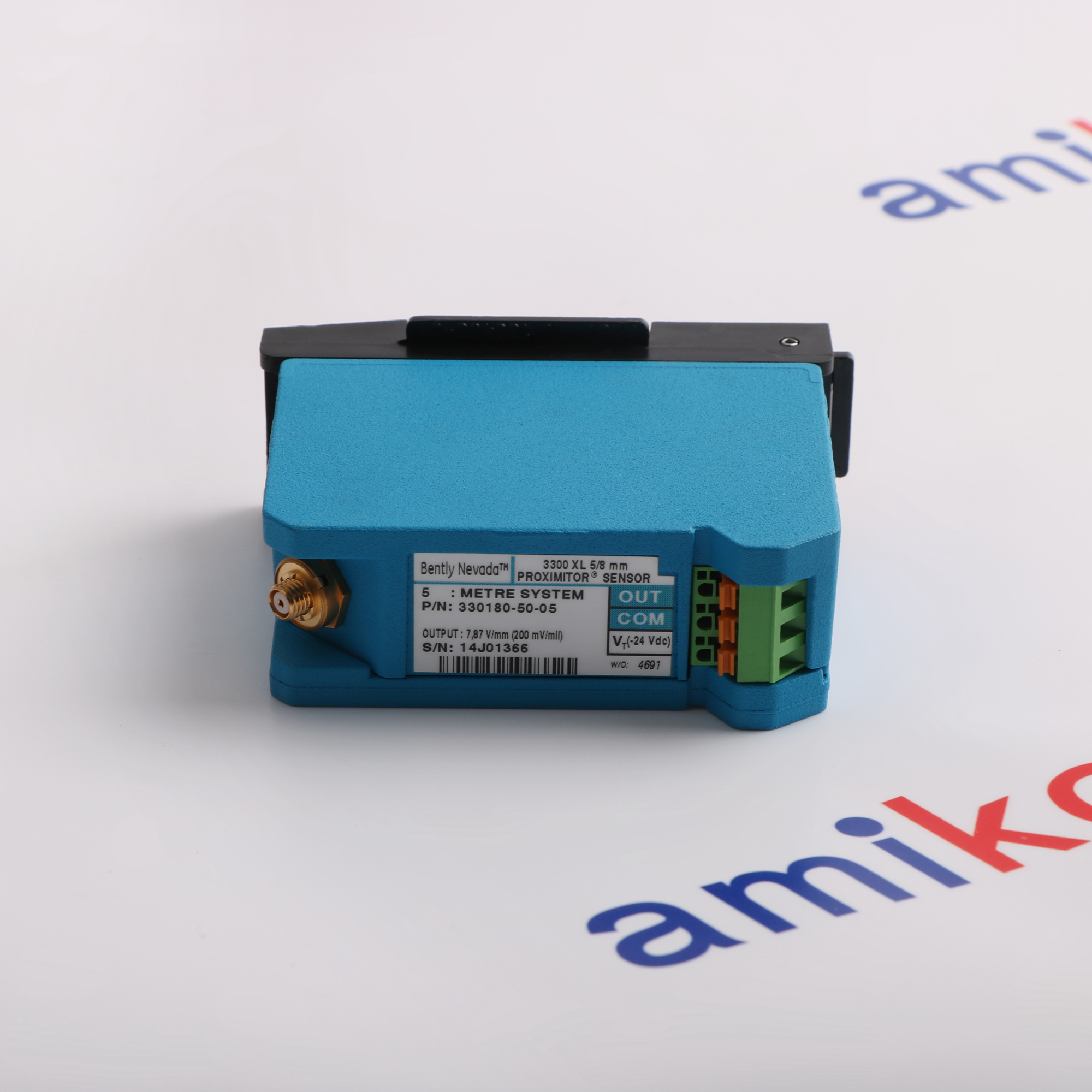

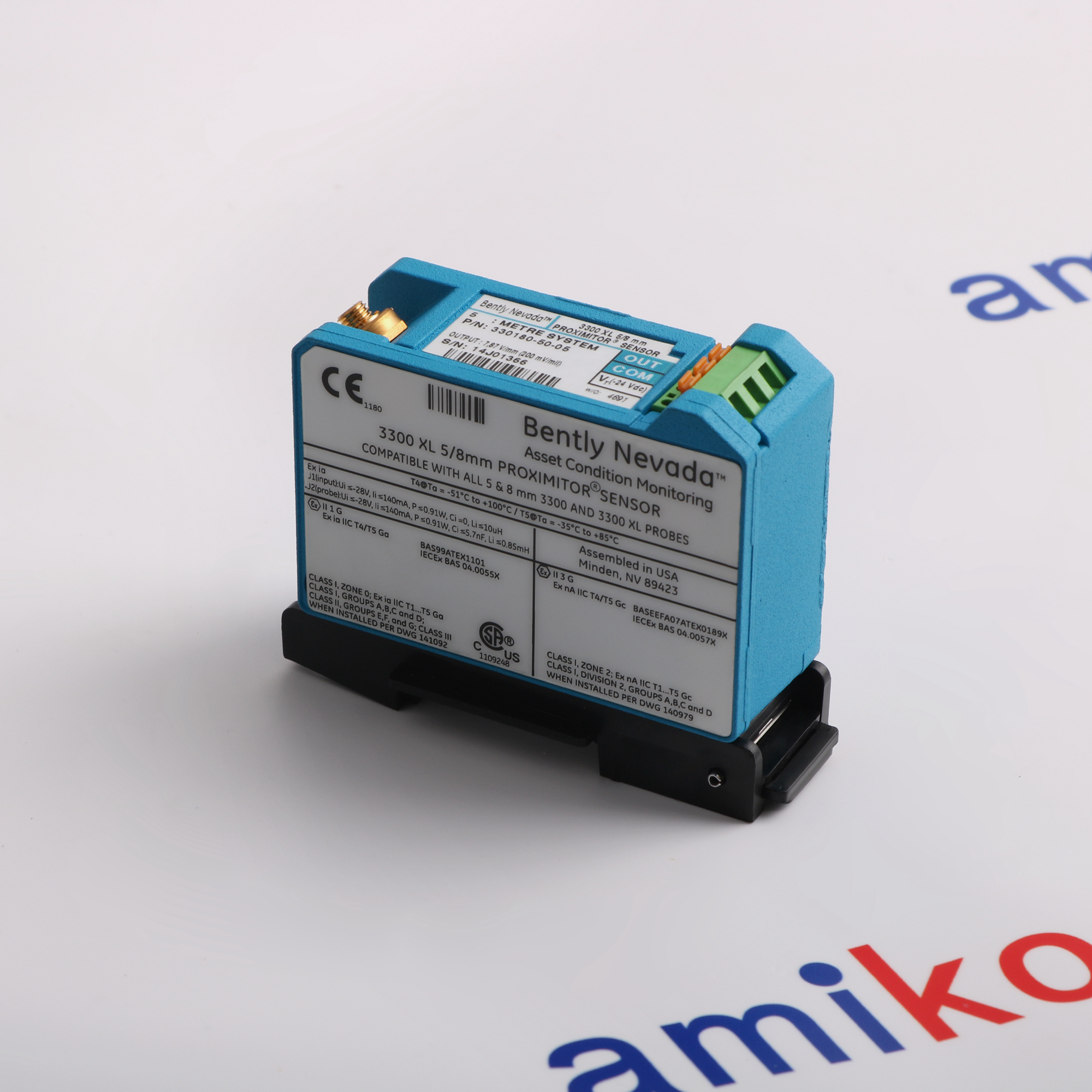

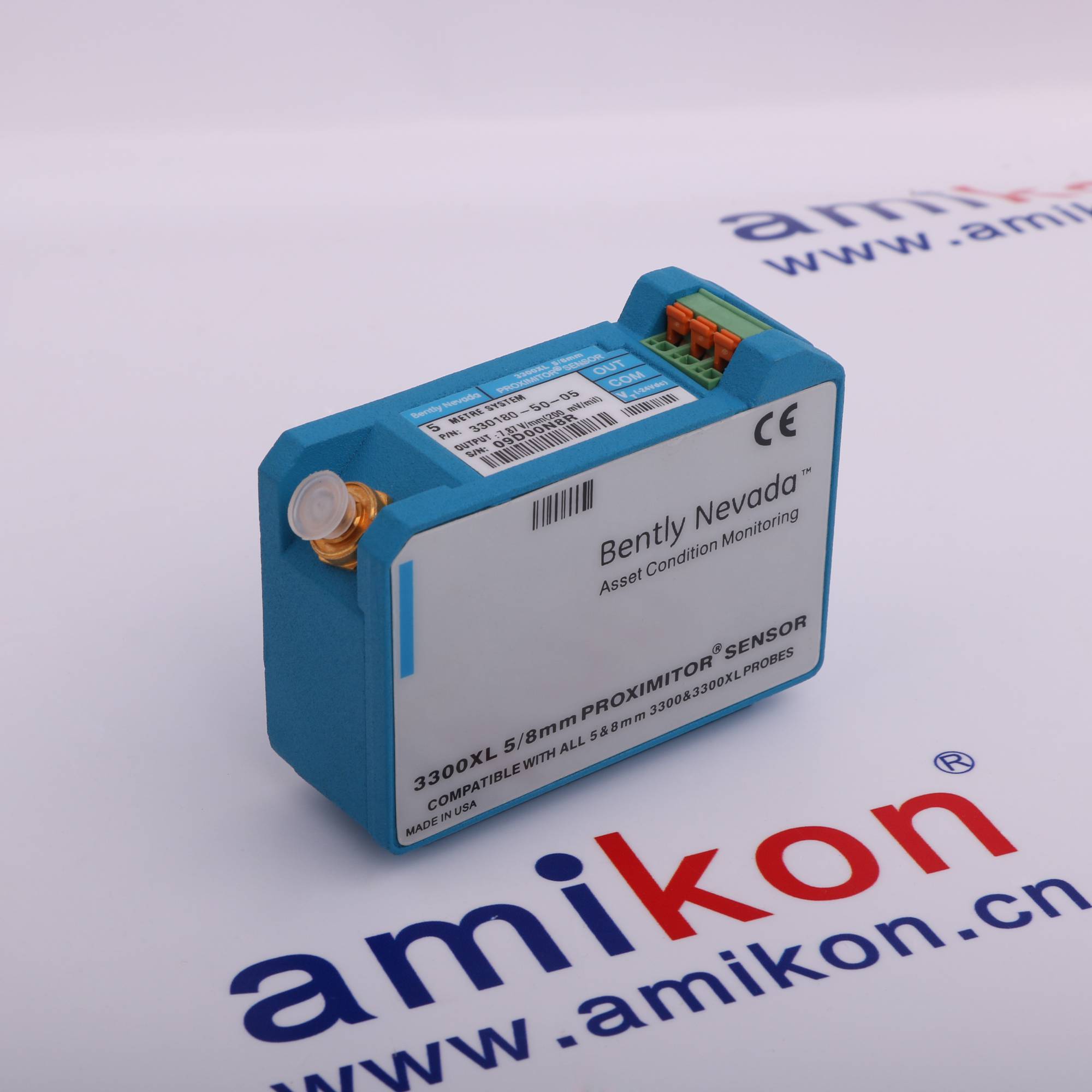

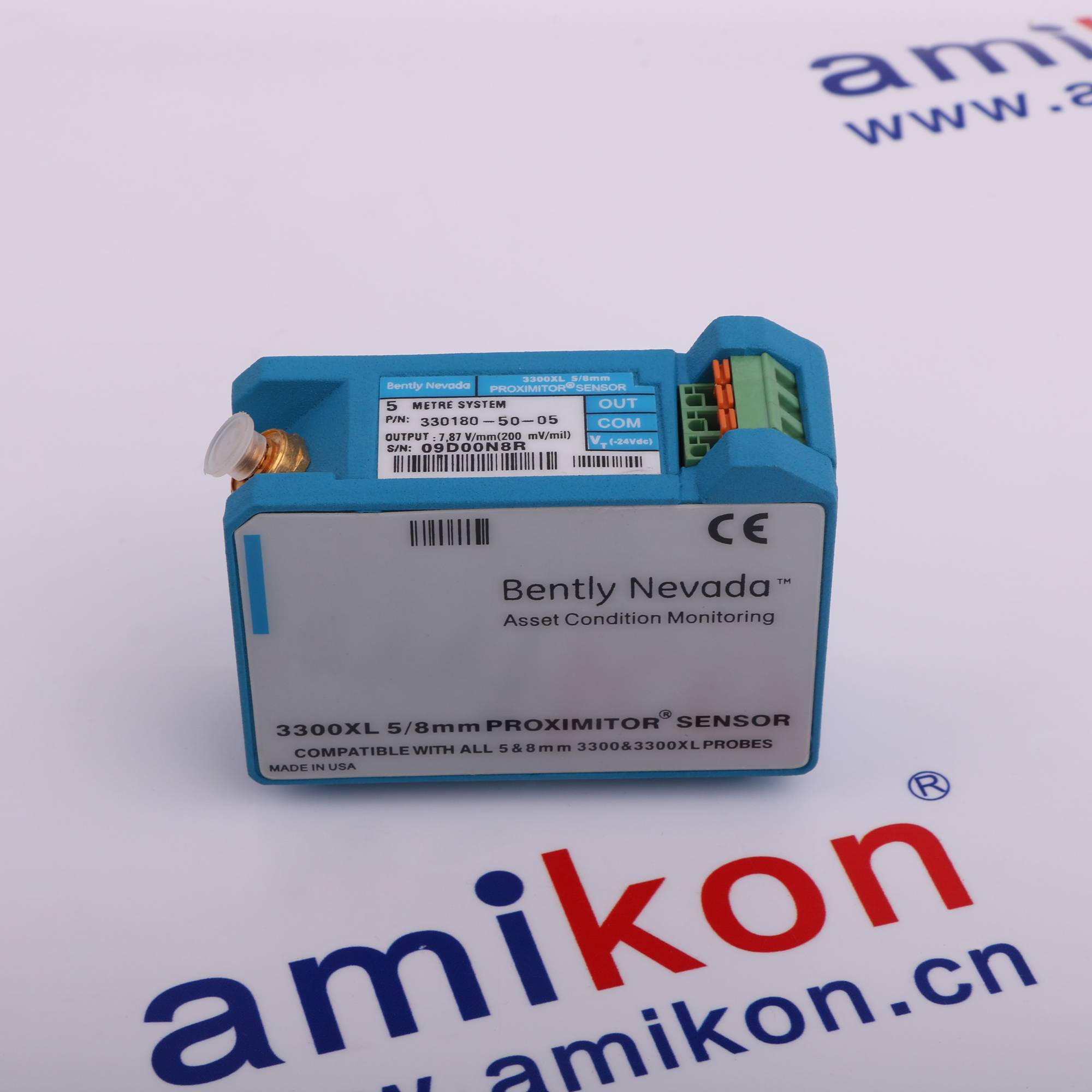

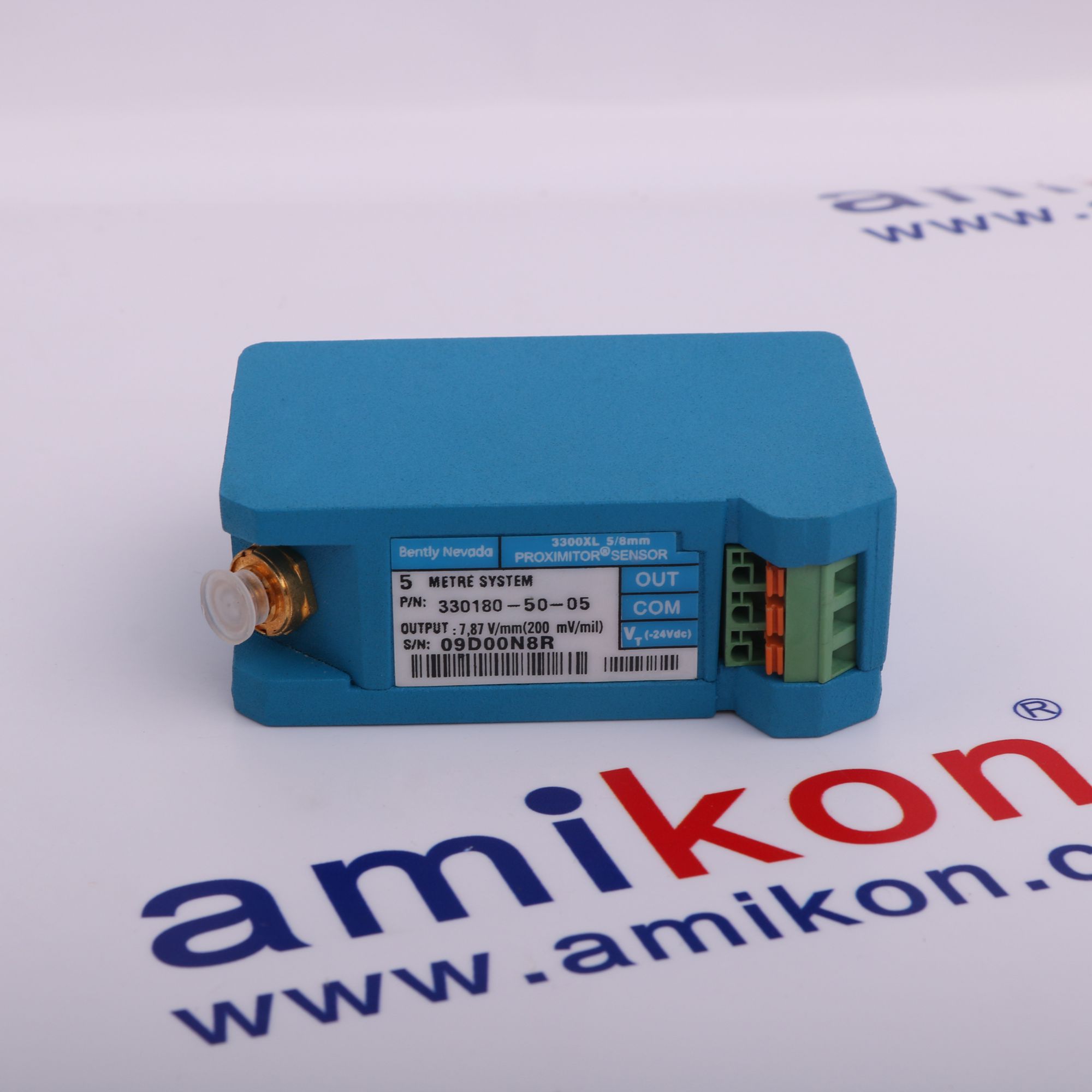

Bently Nevada 330180-50-05 is a 3300 XL Proximitor Sensor configured for a 5.0 m system and panel mounting. It provides the interface and signal conditioning for compatible 3300 XL proximity probes.
Verify system length, mounting style, power requirements, approvals and probe compatibility before replacement. Follow the applicable installation procedure and verify channel response after commissioning.
Verify system length, mounting style, power requirements, approvals and probe compatibility before replacement. Follow the applicable installation procedure and verify channel response after commissioning.
BEFORE YOU BUY
Check the complete 330180-50-05 order and installed system
ACTUAL APPLICATIONS
Where 330180-50-05 Fits Across Industrial Application Areas
Industrial uses span production and utility equipment, subject to verified product compatibility, installation requirements and operating conditions.
-
01 · METALS & MINING
Steel Production and Metallurgical Plant Utility Equipment
Rolling mills and extraction fans in steel production plants.Coke oven compressors and combustion blowers serving steel plants. -
02 · PULP & PAPER
Pulp Manufacturing and Paper Production
Pulp refiners and process pumps in integrated pulp mills.Paper machine press rolls and winders in papermaking facilities. -
03 · WATER & WASTEWATER
Municipal Wastewater Collection and Treatment
Sewage lift pumps serving municipal wastewater collection and treatment.Aeration blowers and sludge equipment in wastewater treatment plants.
Technical specifications for 330180-50-05
-
Product Model330180-50-05
-
Product ParametersPanel-mount Proximitor sensor
-
In stock1 unit
-
ManufacturerBently Nevada
-
Sensor Family3300 XL Proximitor Sensor
-
System Length Option50: 5.0 metres (16.4 feet)
-
Mounting OptionPanel mount
-
Agency Approval Option05: CSA, ATEX and IECEx approvals
-
Nominal Scale Factor7.87 V/mm (200 mV/mil)
-
Linear Range2.0 mm (80 mil)
-
Frequency Response0 to 10 kHz, typical
-
Output Resistance50 ohm
-
Supply Voltage-17.5 to -26 VDC
-
Compatible Probe System3300 XL 8 mm
View all additional
Alternative Names
330180-50-05
3300 XL 5 m Proximitor Sensor
Panel-mount 3300 XL sensor
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
3300 XL PROXIMITOR SENSOR ARCHITECTURE
Build the 5 m proximity system around the correct sensor
Bently Nevada 330180-50-05 is a 3300 XL Proximitor Sensor configured for a 5.0 m system length, panel mounting and multiple agency approvals.
The sensor conditions the signal from a compatible 3300 XL 8 mm probe and extension cable. The probe and extension-cable lengths must add to the specified 5 m electrical length.
Verify the installed probe family, target material, field wiring, mounting arrangement and hazardous-area requirements before energizing or replacing the sensor.
Features:
- 5 m panel-mount Proximitor Sensor
- Use with matching 3300 XL 8 mm probe and cable
- Multiple agency approvals option 05
The Bently Nevada 330180-50-05 3300 XL 8 mm Proximitor Sensor requires the 5 m electrical length, panel-mount configuration, probe family, target material and agency approval to be checked before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
Bently Nevada 330180-50-05 must be replaced only with a unit matching the 5 m electrical length, panel-mount configuration, probe family, target material and agency approval. A similar family name does not establish interchangeability.
Record the installed label, mounting arrangement, wiring or cable details, connected monitor and approval requirements before removing the existing 3300 XL 8 mm Proximitor Sensor.
Verify the manufacturer documentation for the proposed replacement and recheck the installed gap, mounting, wiring and monitor configuration before commissioning.
Features:
- Match the complete model and suffix
- Check mounting, cable and monitor interfaces
- Revalidate wiring and measurement configuration
The Bently Nevada 330180-50-05 3300 XL 8 mm Proximitor Sensor requires replacement verification of the complete identifier, mounting, wiring, connected system and approval requirements before commissioning.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The documents below provide applicable technical information for the Bently Nevada 330180-50-05 3300 XL 8 mm Proximitor Sensor. Confirm the supplied item and document availability in the written quotation.
Features:
- Available Bently Nevada document references are confirmed before order
- Match the complete model suffix and installed system
- Accessories are supplied only when listed in the quotation
Documentation for the Bently Nevada 330180-50-05 3300 XL 8 mm Proximitor Sensor must be matched to the complete identifier and installed system; confirm manual availability in the written quotation.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed sizeConfirm in written quote
-
Shipping weightConfirm before dispatch
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference9031809090
-
OriginUnited States
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 330180-50-05
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
What does option 50 specify?
It selects a 5.0-metre system length and panel mounting. -
What does approval option 05 include?
It identifies CSA, ATEX and IECEx approvals; verify the received nameplate. -
Which probe family matches this sensor?
Use a compatible 3300 XL 8 mm probe system. -
How is total system length determined?
The probe and extension cable lengths must add to 5.0 metres. -
Can a DIN-mount sensor replace this unit directly?
Not without checking mounting hardware and the complete order code; this version is panel mount. -
What power supply is required?
The official datasheet specifies -17.5 to -26 VDC. -
What should be inspected before installation?
Check the exact model, approvals, panel mounting, connectors and associated cable lengths. -
What commissioning checks are required?
Verify operating gap, gap voltage, scaling and monitor response before service.
