Process Control Module

3BHE023585R2458
PPD113 B13-24-660711
PP D113 B01-26-111000
AC 800PEC
Process Control Module

Controller Board

UAD144 A101
3BHE016842R0101
AC 800PEC M
Controller Board
USB-Hardlock Key for ECT with 1 licence

Control Module

GJR2396200R1210
CONTROL MODULE
2 CHANNELS
FOR BINARY AND ANALOG CONTROL
4 DIGITAL INPUT
1 DIGITAL OUTPUT

Control Module

GJR2396200R1210
CONTROL MODULE
2 CHANNELS
FOR BINARY AND ANALOG CONTROL
4 DIGITAL INPUT
1 DIGITAL OUTPUT

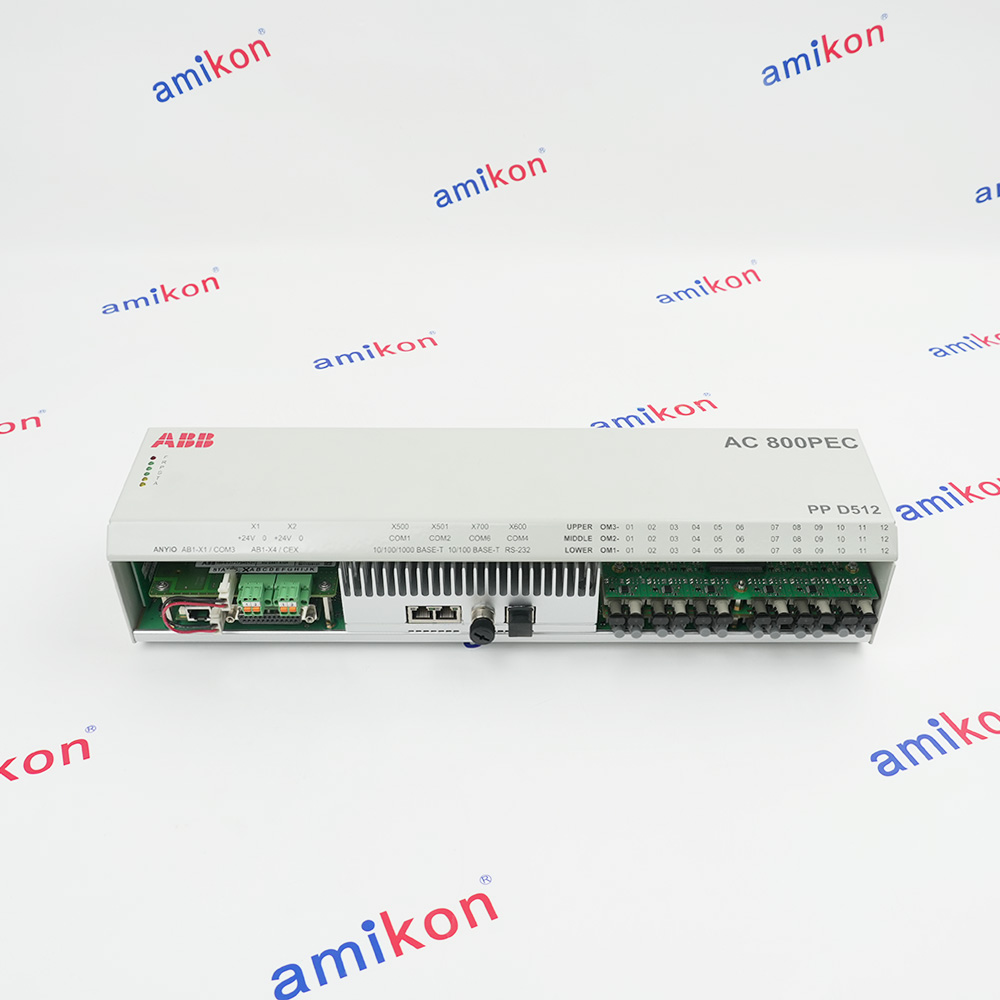

AC 800PEC Controller

3BHE040375R1023
PPD512 A10-150000
AC 800PEC Controller

Analog Output Module

88VU01A
GJR2326500R1010
Analog Output Module

DRIVE CONTROL BOARD

PCD237A101
PEC80-CCM
3BHE028915R0101
DRIVE CONTROL BOARD

MC INTERFACE BOARD

DD C779 D102
PEC80 Converter Signal Int
MC INTERFACE BOARD
RETRO- PINT (ACS)

Exciter Control Module

Power Supply:110/220V AC ±10% or 24/48V DC
Power Consumption:50W (max)
Field Voltage :0-300V DC (adjustable)
Field Current:0-20A DC (continuous)
Control Accuracy:±0.25% of setpoint
Response Time:<10ms
Voltage Regulation:±0.5% of nominal
Frequency Range:40-70 Hz
Stability:<0.1% oscillation
Harmonic Distortion:<1% THD

Control board

Processor:Dual-core CPU
Memory:512 MB RAM
Flash Storage:1 GB internal
Power Supply:24 V DC
Communication Ports
2x Ethernet (RJ45): 10/100/1000 Mbps
1x Serial (RS-232/485): For legacy devices (MODBUS RTU).
1x USB 2.0: For engineering access.

USB-Hardlock Key for ECT

USB-Hardlock Key for ECT with 1 licence
Encryption:AES-128/256-bit
Hardware ID:Unique 64-bit serial number
Operating Voltage:5V DC
Power Consumption:≤ 100 mA

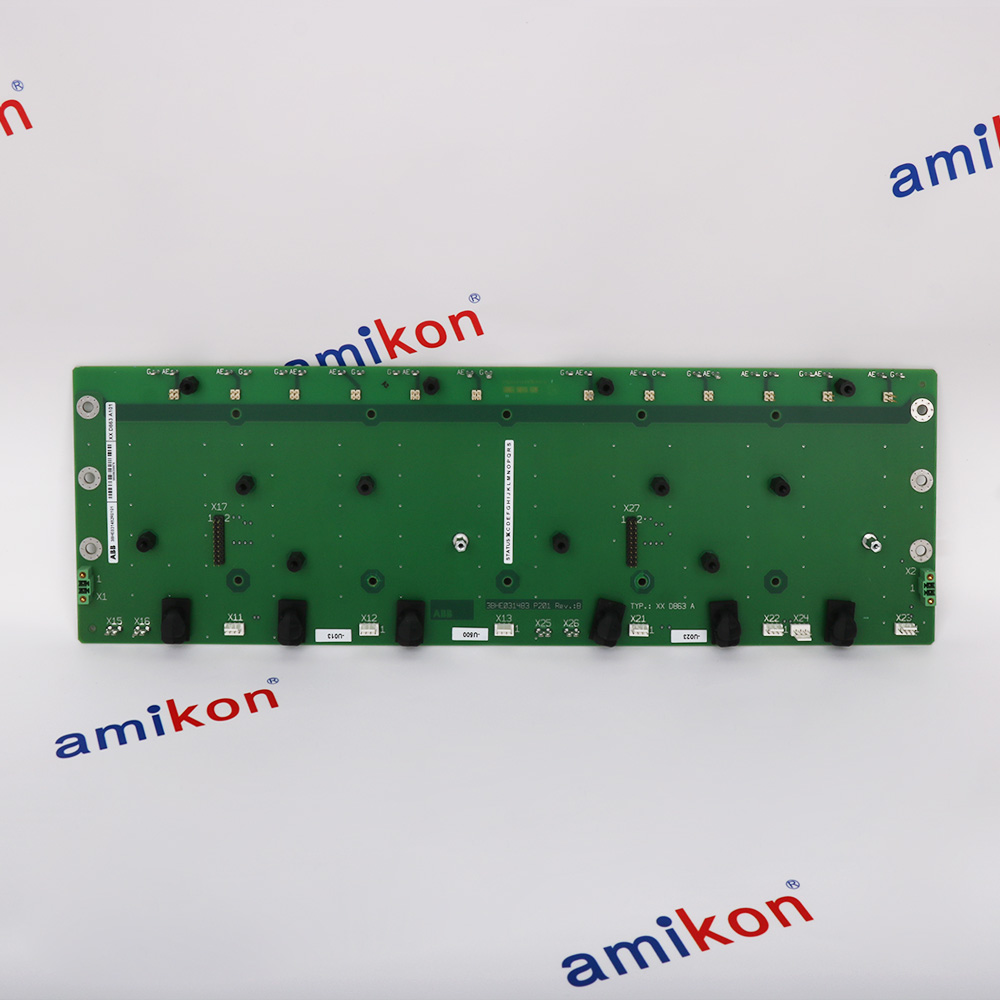

PCB Board

Fiber Optic Ports: 6–12 channels
Power supply pins:+24V DC, +5V DC
Operating Voltage: 24V DC
Power Consumption: ≤ 15W
Reinforced isolation:2.5kV

INVERTER BOARD

3BHE024855R0101
DISCONTINUED BY MANUFACTURER
INVERTER BOARD
UFC921 A101

IGCT controller module

Reverse Voltage:4500V+
Forward Current:250–5000A
Switching Speed:<100 μC
Trigger Voltage/Current:+15/-15V pulses
Turn-On/Off Time:300–500 ns

Controller Module

Clock Speed: 800 MHz – 1.5 GHz
RAM: 2 GB DDR4
Operating Voltage: 24 V DC
Power Consumption: ≤18 W
Isolation: ≥3000 V AC
Ethernet Interfaces:2× Gigabit ports
Discrete I/O: 12–24 V DC
Analog Interfaces: 4–8 channels

Motherboard

Input Voltage: 24 V DC
Backplane Power: 5 V DC
RAM Slots: 2× DDR4 SO-DIMM
Storage: Integrated 16 GB flash
Operating: -40°C to +70°C
Humidity: 5–95% non-condensing
MTBF: >250,000 hours

Processor Module

Operating Voltage: 24 V DC
Power Consumption: <12 W
Input Protection:±40 V peak transient
Digital I/O: 16 channels
Analog I/O (Optional): 4 channels
Ethernet: 2× 10/100 Mbps ports
Serial: RS-232/RS-485 for legacy devices
Fieldbus: PROFIBUS DP

High Voltage Inverter Board

Control Board

Operating Voltage: 24 V DC
Power Consumption: ≤15 W
Voltage Range: 0–10 V DC
Resolution: 12-bit
Channels: ≥8 opto-isolated
Input Signal Level: 24 V DC

Interface board

Power Supply: 24 VDC (±10%) or 110–240 VAC
1–2 x RJ45 Ethernet ports.
Serial ports (RS-232/485) for legacy devices
Fiber-optic or coaxial connectors
Operating Temperature: -20°C to +60°C
Humidity: 5–95% non-condensing

ANALOG MODULE

Analog Inputs: 8–16 channels
Voltage Ranges: ±10V, 0–10V, 1–5V
Current Ranges: 4–20 mA, 0–20 mA
Analog Outputs: 4–8 channels
Voltage: 0–10V, ±10V
Current: 4–20 mA
Resolution:16-bit ADC/DAC

Control Board

Operating Voltage: Typically 24 V DC
Input Voltage: 380-460 VAC
Output Voltage: 0-460 VAC
Output Frequency: 0-60 Hz
Output Power: 1.5 kW
Efficiency: Up to 98%

PC BOARD

PC BOARD
DRIVE GDC806B
REBUILT SURPLUS

PCB Board

Operating Voltage: 24 Vdc (±10%).
Data Rate: 100 Mbps
Operating Temperature: -40°C to +70°C
Humidity: 5–95% non-condensing

Frequency Converter Board

IGCT MODULE
4500V
91MM
ALT PART NUMBER: 5SHY 3545L0016
DC Bus Voltage: 510–930 V DC
Output Current: Up to 600 A
Operating Temperature: -10°C to +50°C
Humidity: 5–95% non-condensing
