Technical specifications for 3BHL000391P0101 5SHX1445H0001
-
Product Model3BHL000391P0101 5SHX1445H0001
-
Spare Model3BHB003230R0101 5SXE05-0152
-
Product ParametersPOWER DRIVE BOARD
-
Tariff Code8537101190
-
Country of originSWEDEN
-
Place of shipmentXiamen, China
-
Estimated Shipping Size20x23.8x5cm
-
ManufacturerABB
-
Weight1.2 kg
-
Voltage Rating4500 V (VCES)
-
Current Rating2100 A (ITAVM)
-
Power Losses1.0-2.5 kW
-
Operating Temperature-40°C to +125°C
-
Storage Temperature-40°C to +85°C
-
Humidity< 95% RH (non-condensing)
Description
3BHB003230R0101
IGCT MODULE
POWER DRIVE BOARD
MEDIUM VOLTAGE
5SXE05-0152
5SHX1445H0001
IGCT MODULE
POWER DRIVE BOARD
MEDIUM VOLTAGE
5SXE05-0152
5SHX1445H0001
Information
Overview
Manuals
Technical notes
Product Applications
Safety and Power-Down Sequence
Features:
- POWER DRIVE BOARD
- 68MM/4,5KV COATED
- IGCT MODULE
The 3BHL000391P0101 5SHX1445H0001/3BHB003230R0101 GVC704 AE01 ABB IGCT module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB 3BHL000391P0101 5SHX1445H0001 POWER DRIVE BOARD Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

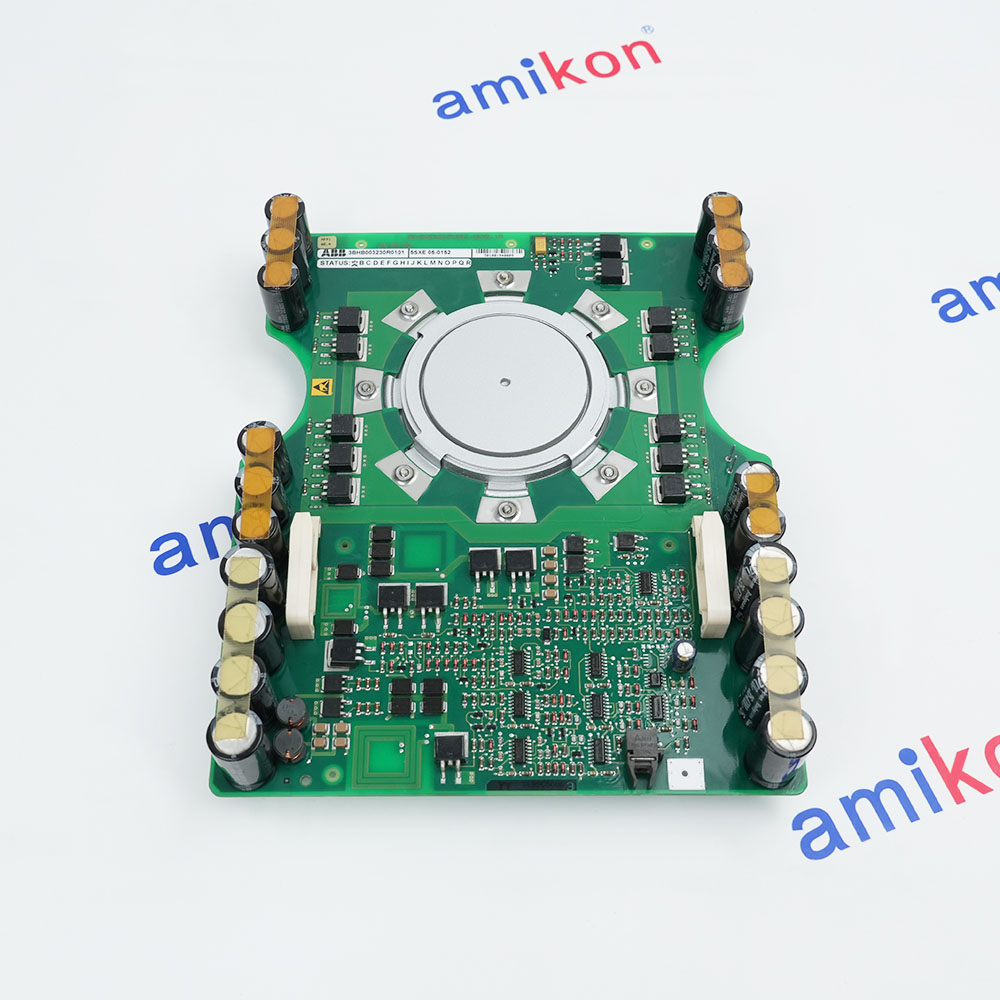

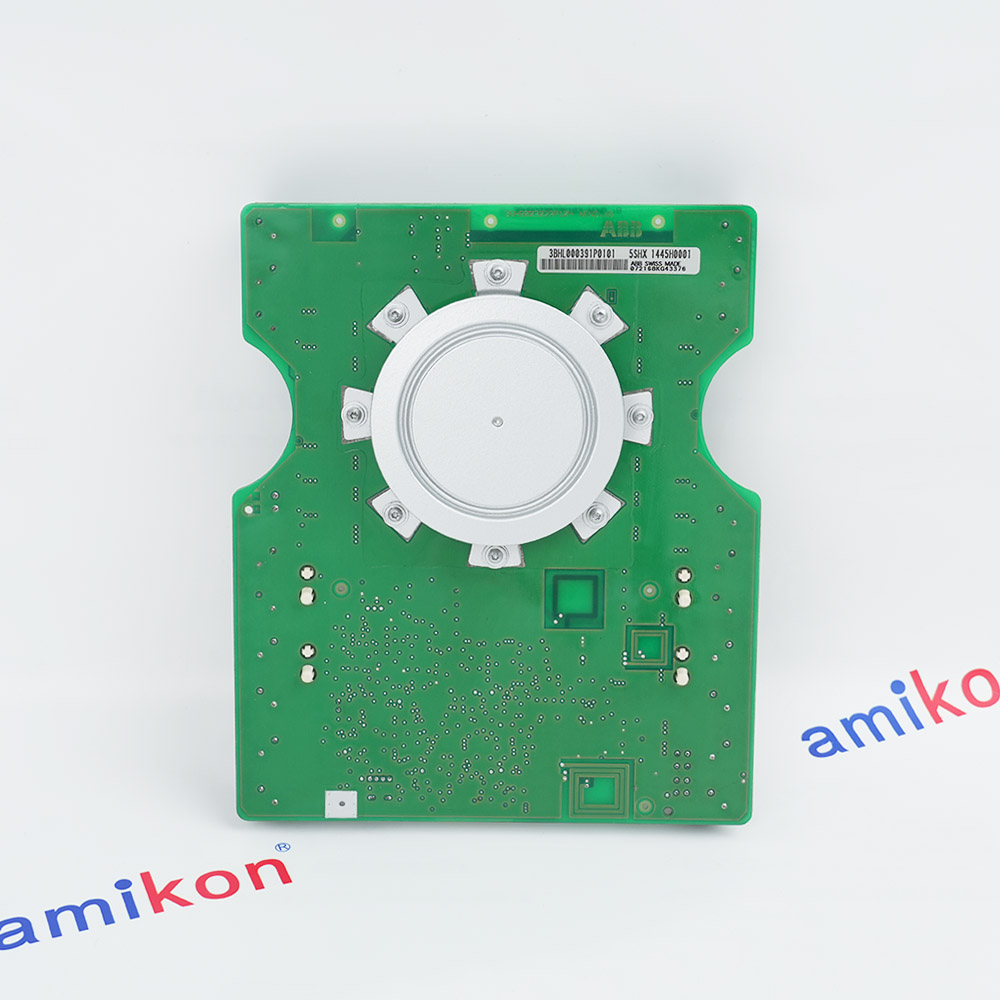

The ABB 5SHX1445H0001 (part number 3BHL000391P0101) is a high-performance Integrated Gate-Commutated Thyristor (IGCT) module manufactured in Switzerland. This semiconductor device is designed for high-power applications, such as medium-voltage drives ,converter systems, and power quality control,Specifically designed for high-voltage and high-current applications, often used in HVDC transmission and SVC.
- Mill and crusher: Drive large SAG and ball mills for copper or gold mines
- Rolling mill: Main drive power supply for steel and aluminum plants
- Electric propulsion system: Frequency converters for cruise ships, liquefied natural gas carriers, and ice-breaking ships
- Drilling platform: Provide stable power for mud pumps and water pumping operations on offshore platforms
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Failure to follow the de-energization sequence can result in destruction of the Gate Unit or lethal injury.
De-energize and Ground: Disconnect the main power supply and turn the converter grounding switch to the "grounded" position.
Wait for Discharge: After switching off the gate unit's auxiliary power, wait approximately 20 seconds to allow internal capacitors to fully discharge before handling.
- What happens next
- Get the quote now Write Email to INFO@AMIKON.CNEmail confirmation You will get an email confirming that we have received your enquiry.Dedicated Account Manager One of our team will be in touch to confirm your part(s) specification and condition.Your quote You will receive a comprehensive quote tailored to your specific needs.Need Moore Help? Get fast and efficient help from our experienced sales or customer service teams.
- Delivery and payment
- Delivery
Logistic partners UPS, FedEx and DHL
International delivery available
Same day dispatch from warehouse inventory
Warranty
All parts new original are covered by Amikon 12 month warranty
Returns
No hassle returns policy
Dedicated customer support team
Payment options
We accept Bank transfers and the following methods of payment:
For more information, please visit our dedicated payments page.
- Why Choose Amikon Limited?
When it comes to industrial automation, reliability, speed, and trust matter. At Amikon Limited, we go beyond just supplying parts — we deliver confidence.
- ● Extensive Inventory Reach: Nearly 1 million automation parts at your fingertips, including legacy and obsolete models.
- ● 20+ Years of Expertise: Trusted by engineers, project managers and government companies worldwide for our professional service.
- ● Quality You Can Trust: Each unit is strictly inspected by the warehouse staff to ensure product quality
- ● Fast Global Shipping: We help you minimize downtime with express logistics worldwide.
- ● 1-Year Warranty Available: Peace of mind with every purchase backed by one year warranty guarantee.
Whether you're maintaining legacy systems or building future-ready projects, Amikon Limited is your dependable partner in precision and performance.
FAQs
-
What is 3BHL000391P0101 (5SHX1445H0001) ?
+The ABB 3BHL000391P0101 (5SHX1445H0001) is a high-power Integrated Gate Commutated Thyristor (IGCT) module, frequently used as a power switching component in ABB medium-voltage drives, such as the ACS 6000 series. -
What is the function of the 5SHX1445H0001/3BHL000391P0101?
+It acts as a gate turn-off thyristor module, enabling high-power electronic switching and energy control in AC drives and DC transmission. -
What are the main technical characteristics of 3BHL000391P0101?
+It is part of the IGCT technology product line, featuring high withstand voltage, soft switching (reducing the need for auxiliary circuitry), and low-noise operation. -
What is the 3BHL000391P0101 5SHX1445H0001 voltage rating?
+While specifically linked in some contexts to 6kV drives, the core module (related 5SHX series) often operates within high-power ranges -
What are the 5SHX1445H0001 common part numbers associated with this?
+It is commonly referred to by 5SHX1445H0001, 3BHL000391P0101, or 3BHB003230R0101.
