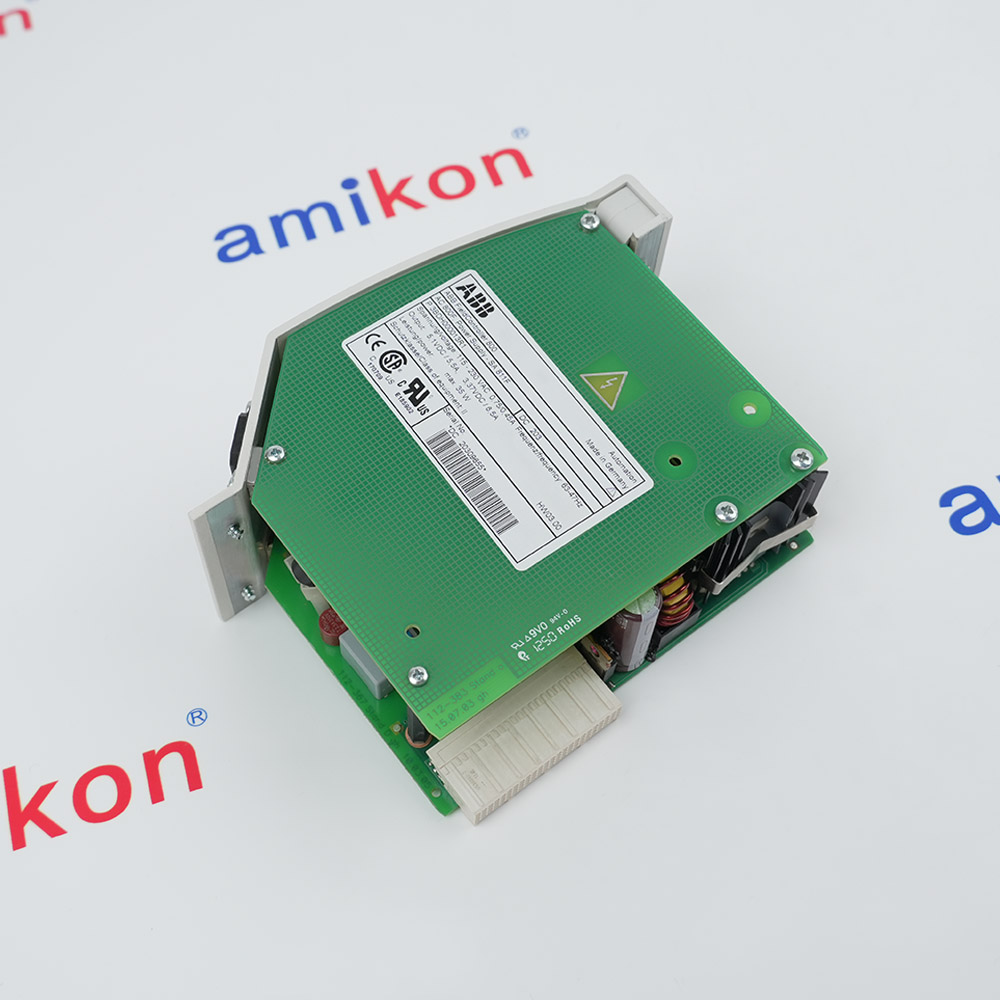

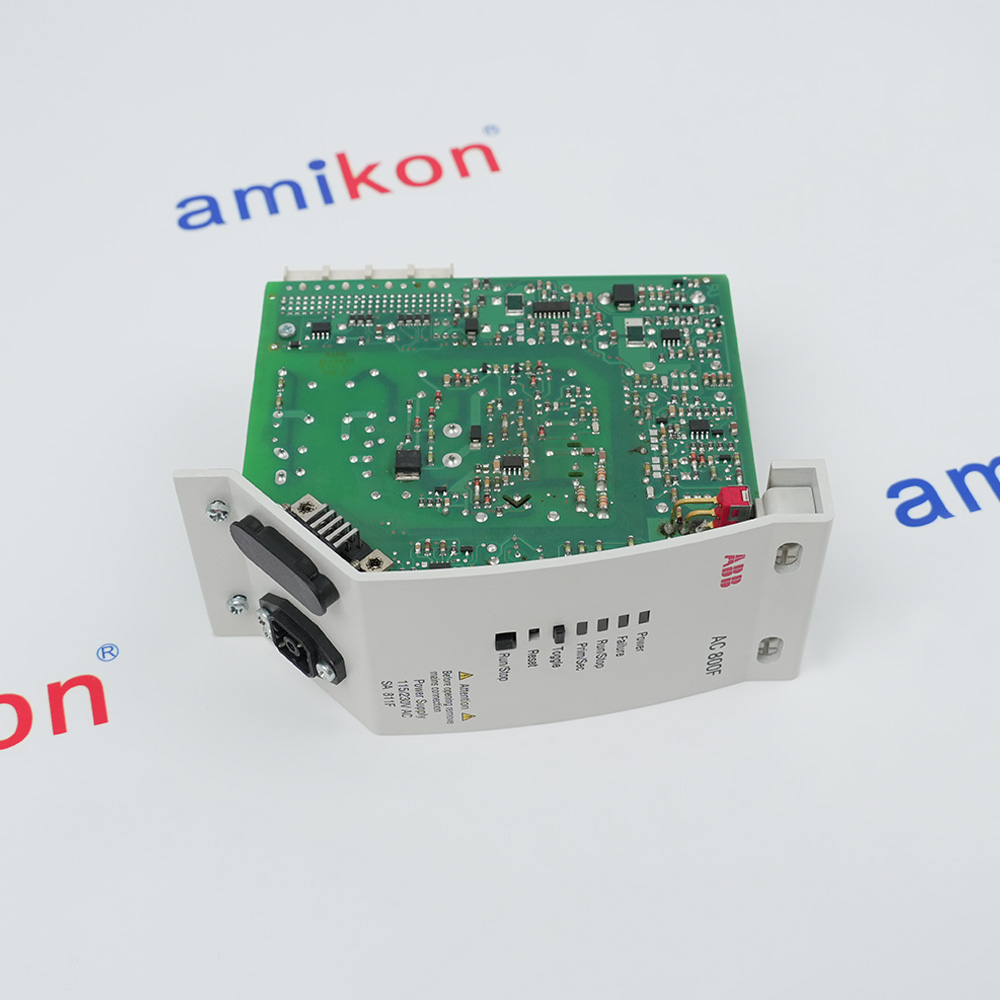

Technical specifications for SA811F 3BDH000013R1
-
Product ModelSA811F 3BDH000013R1
-
Spare Model3BDH000013R1
-
Product ParametersPower Supply 115/230 VAC
-
Tariff Code8537101190
-
Country of originSWEDEN
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size6.7x13x16cm
-
ManufacturerABB
-
Weight0.5 kg
-
Input Voltage85 – 264 VAC
-
In-rush Current≤ 15 A @ 230 V
-
Operating Temp–20 °C to +60 °C
-
Storage Temp–40 °C to +85 °C
-
Humidity5 – 95 % RH non-condensing
Description
The ABB SA811F (3BDH000013R1) is a power supply module for the Freelance AC 800F distributed control system. It converts a wide-range AC input voltage of 115-230 V AC (self-adjusting, with permissible range of 90-260 V AC) into the stabilized DC voltages required to power the AC 800F controller modules.
The module provides two output rails: 5 V DC at 5.5 A and 3.3 V DC at 6.5 A, with a maximum total output power of 35 W. The electronically controlled output voltage provides high stability and low residual ripple. The outputs are electrically isolated from the AC input.
The SA811F is designed for use with the PM 803F CPU module and requires Freelance software version V7.1SP2a or higher. It is not compatible with the PM 802F CPU, which uses the lower-capacity SA801F power supply.
The module provides two output rails: 5 V DC at 5.5 A and 3.3 V DC at 6.5 A, with a maximum total output power of 35 W. The electronically controlled output voltage provides high stability and low residual ripple. The outputs are electrically isolated from the AC input.
The SA811F is designed for use with the PM 803F CPU module and requires Freelance software version V7.1SP2a or higher. It is not compatible with the PM 802F CPU, which uses the lower-capacity SA801F power supply.
Alternative Names
SA 811F 3BDH000013R1
SA8IIF 3BDH000013R1
SA 8IIF 3BDH000013R1
SA811F 3BDH0O0O13R1
SA811F 3BDHO00O13R1
SA8IIF 3BDH0000I3RI
Information
Overview
Manuals
Application Notes
Product Applications
Pre-Installation Preparation
Features:
- Power supply module for ABB Freelance DCS
- Wide-range 115/230 VAC input
- Input voltage range 85–264 VAC
- Regulated 5 VDC output
- Maximum output current of 10 A
- 50 W output power capacity
- Integrated overvoltage protection
The SA811F accepts a wide input voltage range from 85 to 264 VAC and supports both 115 VAC and 230 VAC power networks. This flexibility allows installation in industrial facilities worldwide without requiring additional voltage conversion equipment. The unit operates across a frequency range of 47 to 63 Hz, making it suitable for both 50 Hz and 60 Hz power systems.
The SA811F 3BDH000013R1 ABB Power Supply 115/230 VAC may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB SA811F 3BDH000013R1 Power Supply 115/230 VAC Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The module includes enhanced power-fail prediction and shutdown procedures. In case of a power loss of 5 ms or more, the power supply module generates a power-fail signal. This signal is used by the CPU module to shut down operations and enter a safe state of connected outputs of remote I/Os. This controlled shutdown is required for a safe restart of the system and the user application when power is restored. The output voltage remains within its tolerance limits for at least another 15 ms after the power-fail signal, allowing a total mains voltage drop of 20 ms to be managed in compliance with NAMUR recommendations.
- Petrochemical, Oil & Gas Refining:Powers DCS: flow/pressure/safety/leak telemetry
- Chemical & Pharmaceutical Plants:Steady batch power: prevents ruined recipes/thermal data
- Power Systems & Utilities:Smooths line fluctuations; safeguards substation automation
- Food & Beverage Processing:Uninterrupted heating/mixing/hygienic loops
- Intelligent Manufacturing:Clean current for robotics & feedback sensors
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Turn Off Power: De-energize all incoming AC power lines before handling the equipment.
ESD Protection: Wear a grounded anti-static wrist strap to prevent damaging the internal electronics.
Software Check: Ensure your Freelance software is at Version 7.1SP2a or higher to properly recognize the hardware.
Technical notes
The SA811F accepts a wide input voltage range from 85 to 264 VAC and supports both 115 VAC and 230 VAC power networks. This flexibility allows installation in industrial facilities worldwide without requiring additional voltage conversion equipment. The unit operates across a frequency range of 47 to 63 Hz, making it suitable for both 50 Hz and 60 Hz power systems.
FAQs
-
What is the SA811F 3BDH000013R1?
+The ABB SA811F (part number 3BDH000013R1) is a power supply module for the ABB Freelance AC 800F controller system. It is a static converter that transforms 115/230 VAC input power into stable DC outputs for the system components. -
What is the function of the SA811F?
+It serves as a power supply unit (PSU) for the Freelance AC 800F control system, converting an AC input (115 or 230 VAC, self-adjusting) into required DC voltages for the controller modules. -
Is this product brand new?
+Yes, ABB SA811F 3BDH000013R1 is brand new, original, unused, and factory sealed
