          PRODUCT DESCRIPTION

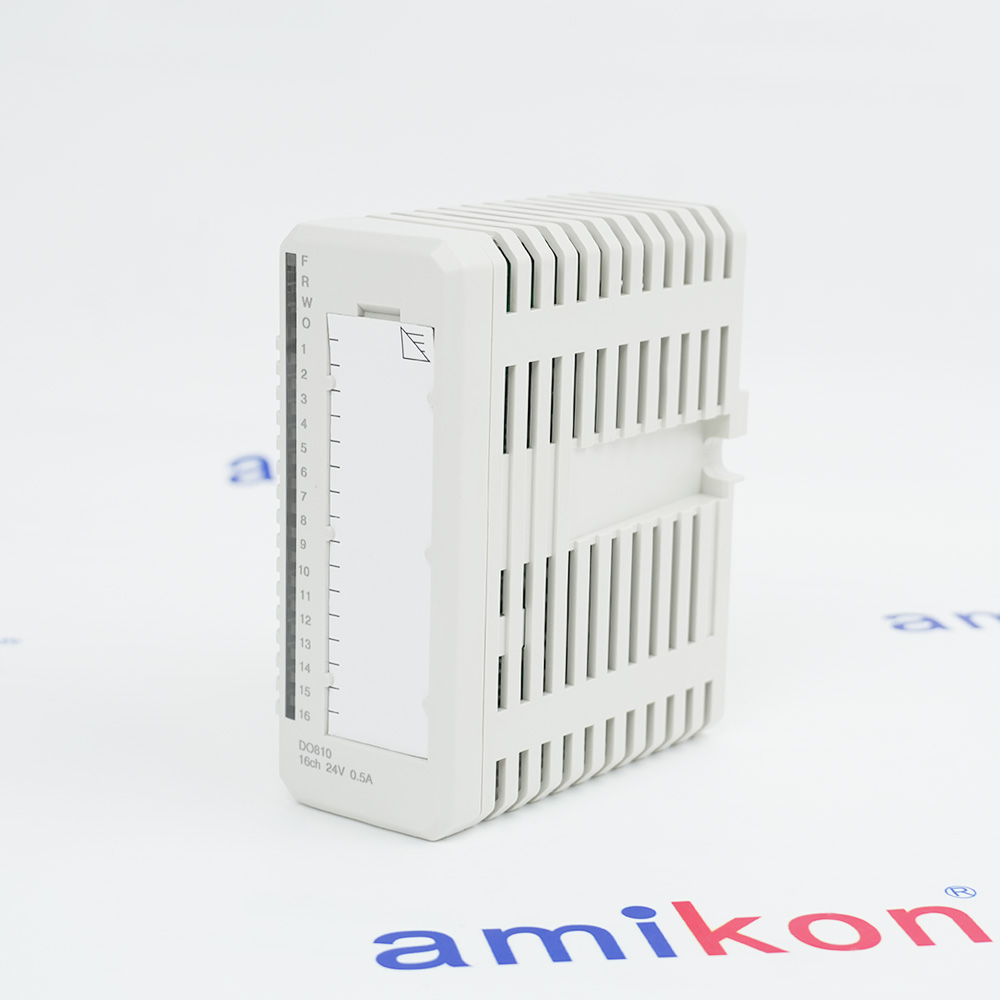

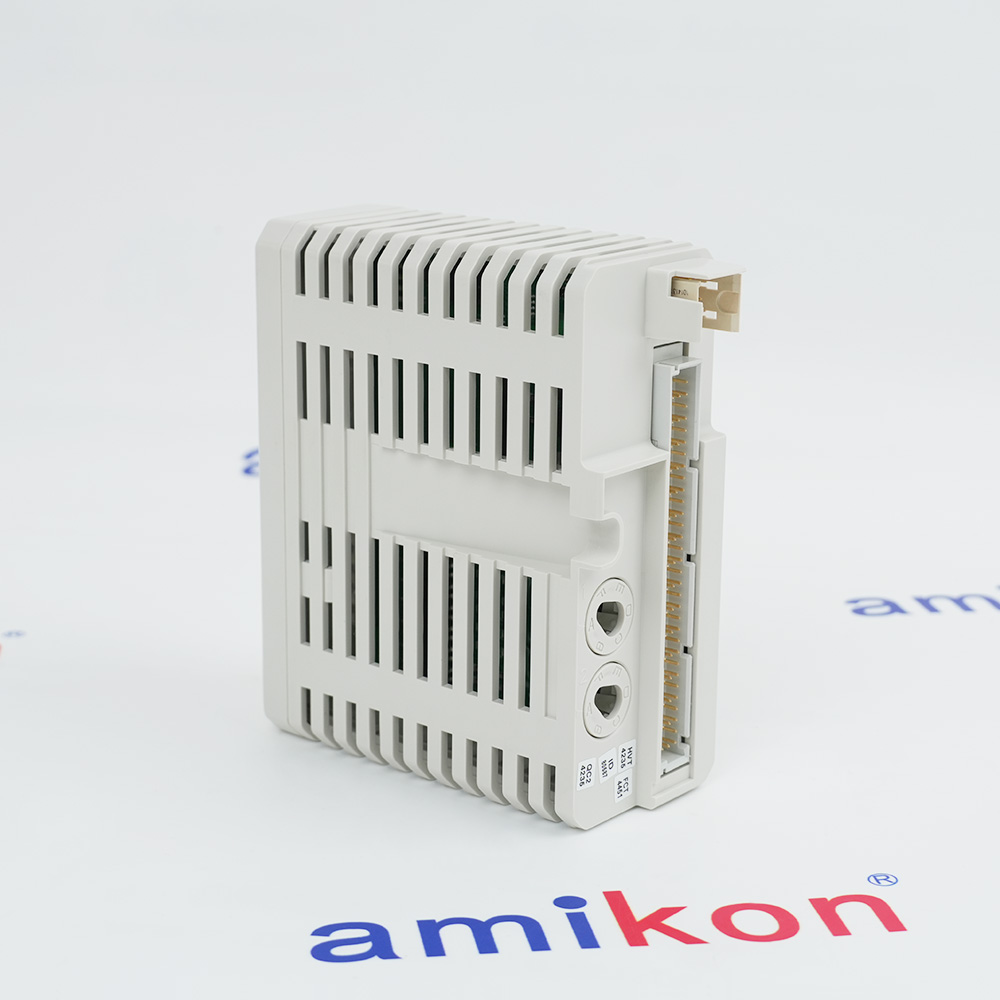

          DO810 3BSE008510R1 S800 Digital Output Module

          ABB DO810 3BSE008510R1 is a sixteen-channel S800 I/O digital output module for nominal 24 V DC current-sourcing circuits. Two isolated groups of eight outputs include process-voltage supervision, while each output uses a protected high-side driver with channel-state indication and optical isolation.

          Each channel supports a maximum continuous current of 0.5 A, with current limiting and overtemperature protection documented by ABB. Confirm the AA-keyed termination arrangement, field-power supervision and predetermined output behavior before commissioning. Replacement selection must also account for the installation orientation and ambient limits.
          BEFORE YOU BUY

          Confirm the complete S800 Digital Output Module

          Send a label photo for review >>
          ACTUAL APPLICATIONS

          Relevant contexts for DO810 3BSE008510R1

          These categories reflect documented ABB portfolio contexts, not proof of suitability for every installation. Exact-model selection remains subject to the approved configuration.
          • 01 · WATER & WASTEWATER

            Municipal Water and Wastewater Management

            Municipal utilities and public water servicesMunicipal wastewater and urban environmental protection
          • 02 · OIL & GAS

            Oil and Gas Extraction and Refining

            Upstream petroleum and natural gas explorationDownstream petroleum refining and gas distribution
          • 03 · PULP & PAPER

            Pulp and Paper Supply and Distribution

            Commercial publishing, printing and paper packagingPaper recycling and circular economy development

          Technical specifications for DO810 3BSE008510R1

          • Product Model
            DO810 3BSE008510R1
          • Spare Model
            3BSE008510R1
          • Product Parameters
            S800 Digital Output Module
          • In stock
            1 unit
          • Manufacturer
            ABB
          • Output channels
            16
          • Nominal output voltage
            24 V DC
          • Maximum continuous output current
            0.5 A per channel
          • Output signal type
            Current sourcing, current limiting
          • Isolation arrangement
            2 groups of 8 channels, isolated from ground
          • Maximum field cable length
            600 m
          • Rated insulation voltage
            50 V
          • Dielectric test voltage
            500 V AC
          • Power dissipation
            2.1 W typical
          • 5 V Modulebus current
            80 mA
          • Operating temperature
            0 to +55 deg C; approvals issued for +5 to +55 deg C
          • Storage temperature
            -40 to +70 deg C
          • Relative humidity
            5-95%, non-condensing
          • Protection rating
            IP20, IEC 60529
          • MTU keying code
            AA
          View all additional
          Ask for Quote

          Alternative Names

          DO810 3BSE008510RI DO810 3BSE00851OR1 DO810 38SE008510R1 DO81O 3BSE008510R1 DO8I0 3BSE008510R1 DOB10 3BSE008510R1 D0810 3BSE008510R1 DO810-3BSE008510R1 DO810-3BSE008510RI DO810-3BSE00851OR1 DO810-3BSE0085I0R1 DO810-3BSE00B510R1 DO810-3BSEOO8510R1 DO810-38SE008510R1 DO81O-3BSE008510R1 DO8I0-3BSE008510R1 DOB10-3BSE008510R1 D0810-3BSE008510R1
          SYSTEM & REPLACEMENT CHECK

          Information needed before ordering

          Three direct checks to secure your system integration and minimize ordering risks.

          Information

          System integration Replacement check Manuals & support
          SYSTEM INTEGRATION

          Integrate DO810 3BSE008510R1 in the documented S800 I/O arrangement

          DO810 provides sixteen nominal 24 V DC current-sourcing outputs in two isolated groups. Match the complete 3BSE008510R1 identity, channel assignments and field-power arrangement before connection. Each group includes a process-voltage supervision input that participates in module and channel diagnostics.
          Keep the continuous load at or below the documented 0.5 A per-channel maximum. The protected high-side drivers provide current limiting and overtemperature protection, but those safeguards do not authorize routine overload. Check the AA-keyed termination unit and the actual connection documentation.
          Commission each affected output together with its diagnostic indications and configured OSP behavior. Retain the selected output states in the approved control design. Observe the mounting-dependent ambient limits and diagnose a lost supervised supply before concluding that several channels have failed independently.

          Features:

          • Two supervised current-sourcing output groups
          • 0.5 A continuous channel-load limit
          • AA-keyed termination-unit verification
          Check channel loads and supervised field supplies before commissioning DO810. Output protection does not permit routine overload.
          INTERCHANGEABILITY

          Verify DO810 3BSE008510R1 before replacement

          Use DO810 3BSE008510R1 as the complete replacement identity. Do not exchange it solely by enclosure, channel count or the DO810 family name; exact voltage, current, keying and configuration requirements remain relevant. No unsupported lifecycle date or direct successor is asserted here.
          Record the fitted MTU, AA keying, channel loads, group supply connections and approved OSP values before exchange. A field-supply loss can create group-related errors, while current limiting can indicate an excessive load. Resolve those conditions before treating the module as the only possible cause.
          After an approved replacement, verify all affected outputs, group-supervision diagnostics and predetermined-state behavior. Confirm the temperature limit for the installed orientation before release. Redundant-controller use does not turn DO810 into a redundant or high-integrity output module.

          Features:

          • Recorded load and OSP requirements
          • Group field-supply diagnosis
          • Post-exchange output-state verification
          DO810 is not designated as redundant or high integrity. Verify the exact article, AA keying and output configuration before exchange.
