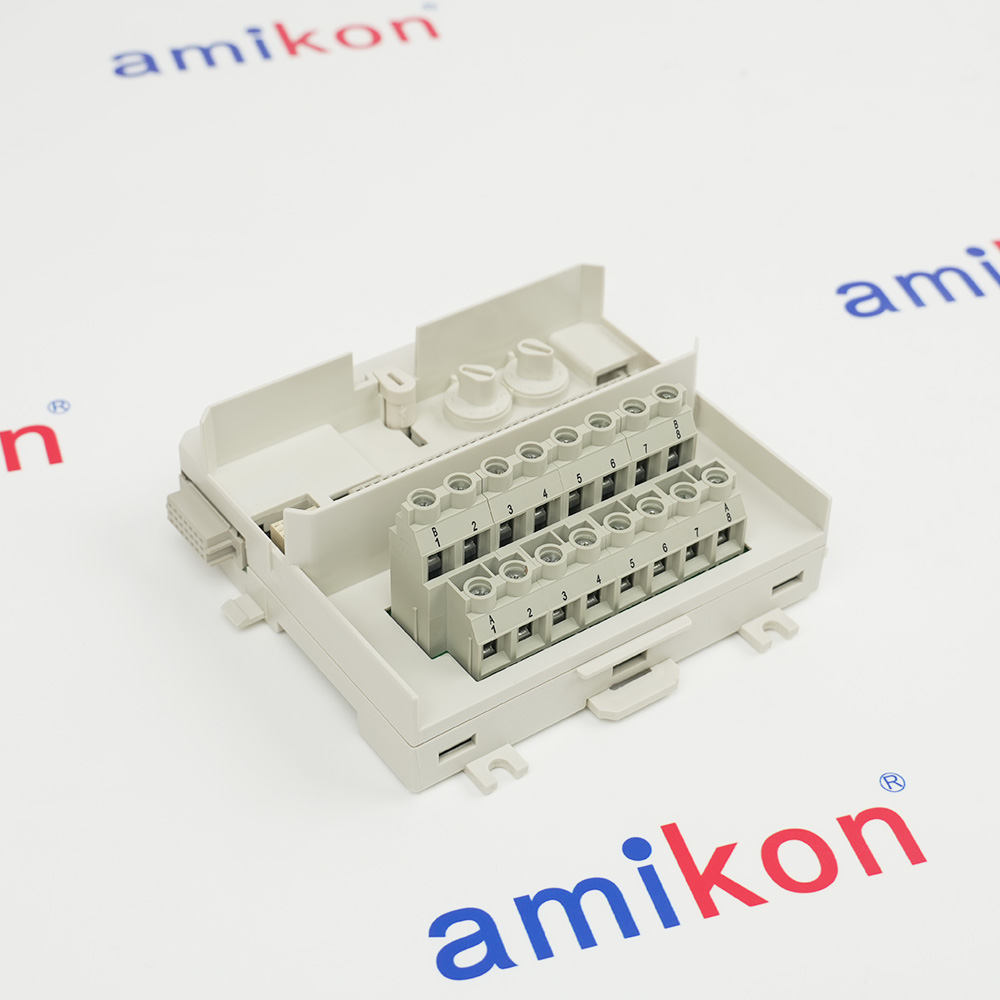

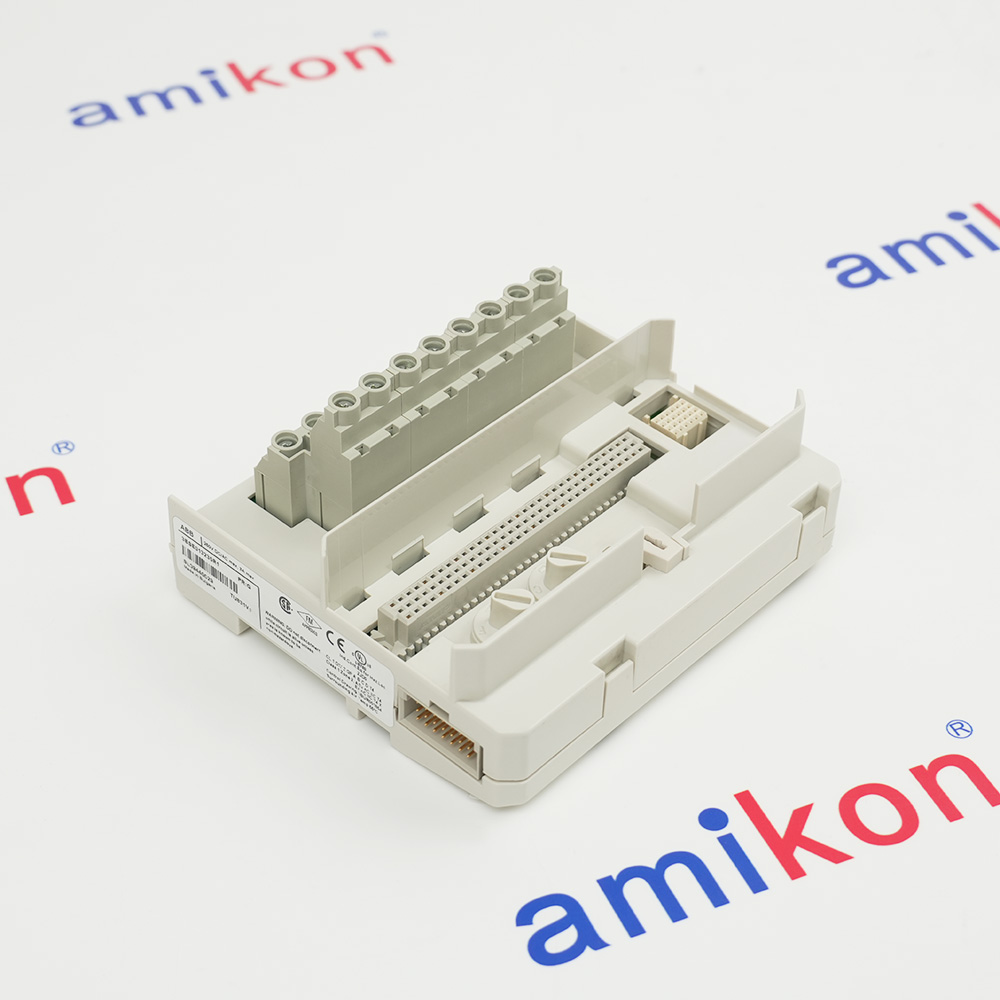

TU831V1 3BSE013235R1
Need Help? Contact US!
Call us: +86-18020776786
Proper, Ready.
Delivery time
Please indicate your delivery time
Product image is representative; revision or series may vary. Contact us to request a specific version.
Product Information
Product Describe
3BSE013235R1
EXTENDED MODULE TERMINATION
TERMINAL BASE
250 V
TU831V1 EXTENDED MTU
EXTENDED MODULE TERMINATION
TERMINAL BASE
250 V
TU831V1 EXTENDED MTU
Technical specifications for TU831V1 3BSE013235R1
-
Product ModelTU831V1 3BSE013235R1
-
Spare Model3BSE013235R1
-
Product ParametersExteneded Module Termination Unit
-
Tariff Code8537101190
-
Country of originsweden
-
Place of shipmentXiamen, China
-
Estimated Shipping Size12.7x11.6x6.6cm
-
ManufacturerABB
-
Weight0.2 kg
-
ConnectionTerminal block
-
Channels8
-
Voltage250 V
-
MountingBoth directions
-
Mounting detail55 ºC (131 °F)
-
Process connections16 up to 8 I/O channels
-
Single/redundant I/OSingle
-
Maximum current per I/O channel3 A
-
Dielectric test voltage2000 V a.c.
-
Temperature, Operating0 to +55 °C (+32 to +131 °F), approvals are issued for +5 to +55 °C
-
Temperature, Storage-40 to +70 °C (-40 to +158 °F)
-
Relative humidity5 to 95 %, non-condensing
-
Factory New
These are new and current items that are procured from the manufacturer. -
New No Package
These parts are new. They have not been used, but their original packaging is no longer available. -
New In Opened Package
These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged. -
New In Sealed Package
Parts are new. They have not been used and still have their original package seal intact. -
New in Original Package
These parts are new. The packages were not originally sealed by their original manufacturer.
Warranty Period & Disclaimer
Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.
FAQs
-
What is the TU831V1 3BSE013235R1？+The ABB TU831V1 3BSE013235R1 is an extended Module Termination Unit (MTU) for the S800 I/O system, featuring 8 channels, 250V rating, and 3A maximum current per channel.
-
What is the function of the TU831V1?+It serves as an interface between field wiring and the S800 I/O module, distributing the ModuleBus and providing termination for signals.
-
How many channels does TU831V1 support?+The TU831V1 supports up to 8 I/O channels.
-
Is this product brand new?+Yes, ABB TU831V1 3BSE013235R1 is brand new, original, unused, and factory sealed
-
What is the difference between V1 and other versions?+The "Extended" designation indicates it has additional terminal space (2x8) for better wiring management compared to compact units.
Get a quick price fo TU831V1 3BSE013235R1
whatsapp
Inquiry
Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions
Product
MORE INFORMATION
Overview
Manuals
Technical notes
Product Applications
Mounting and Grounding
Features:
- Greater connection area for larger wires
- Up to 8 isolated channels of field signals
- Connections to ModuleBus and I/O modules
- Mechanical keying prevents insertion of the wrong I/O module
- Latching device to DIN rail for grounding
The MTU distributes the ModuleBus to the I/O module and to the next MTU. It also generates the correct address to the I/O module by shifting the outgoing position signals to the next MTU. The MTU can be mounted on a standard DIN rail. It has a mechanical latch that locks the MTU to the DIN rail.
The TU831V1 3BSE013235R1 ABB Terminal block may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB TU831V1 3BSE013235R1 Terminal block Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The TU831/TU831V1 is a 8channel 250 V extended moduletermination unit (MTU) for theS800 I/O. The MTU is a passiveunit used for connection of thefield wiring to the I/O modules. It also contains a part of the ModuleBus.The TU831/TU831V1 MTU can have up to 8 I/O channels. The maximum ratedvoltage is 250 V and maximum rated current is 3 A per channel.The MTU distributes the ModuleBus to the I/O module and to the next MTU. It alsogenerates the correct address to the I/O module by shifting the outgoing positionsignals to the next MTU.
The MTU can be mounted on a standard DIN rail. It has a mechanical latch thatlocks the MTU to the DIN rail. The latch can be released with a screwdriver.Two mechanical keys are used to configure the MTU for different types of I/Omodules. This is only a mechanical configuration and it does not affect thefunctionality of the MTU or the I/O module. Each key has six positions, which givesa total number of 36 different configurations. The configuration can be changedwith a screwdriver.
- Marine and Offshore:Marine-certified for shipboard control & offshore platforms
- Power and Utilities:Controls high-voltage switchgear, actuators & protection relays
- Oil, Gas, and Chemical:Distributed I/O for long-distance field interfacing & hazardous areas
- Manufacturing and Factory Automation:High-voltage signal management for CNC, textile machinery & motors/span>
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
DIN Rail Installation: The TU831V1 is designed for standard DIN rail mounting.
Latching Mechanism: Use the built-in mechanical latch to lock the unit onto the rail. This latch also serves as the grounding connection between the MTU and the DIN rail.
Orientation: The unit can be mounted in both vertical and horizontal directions.
