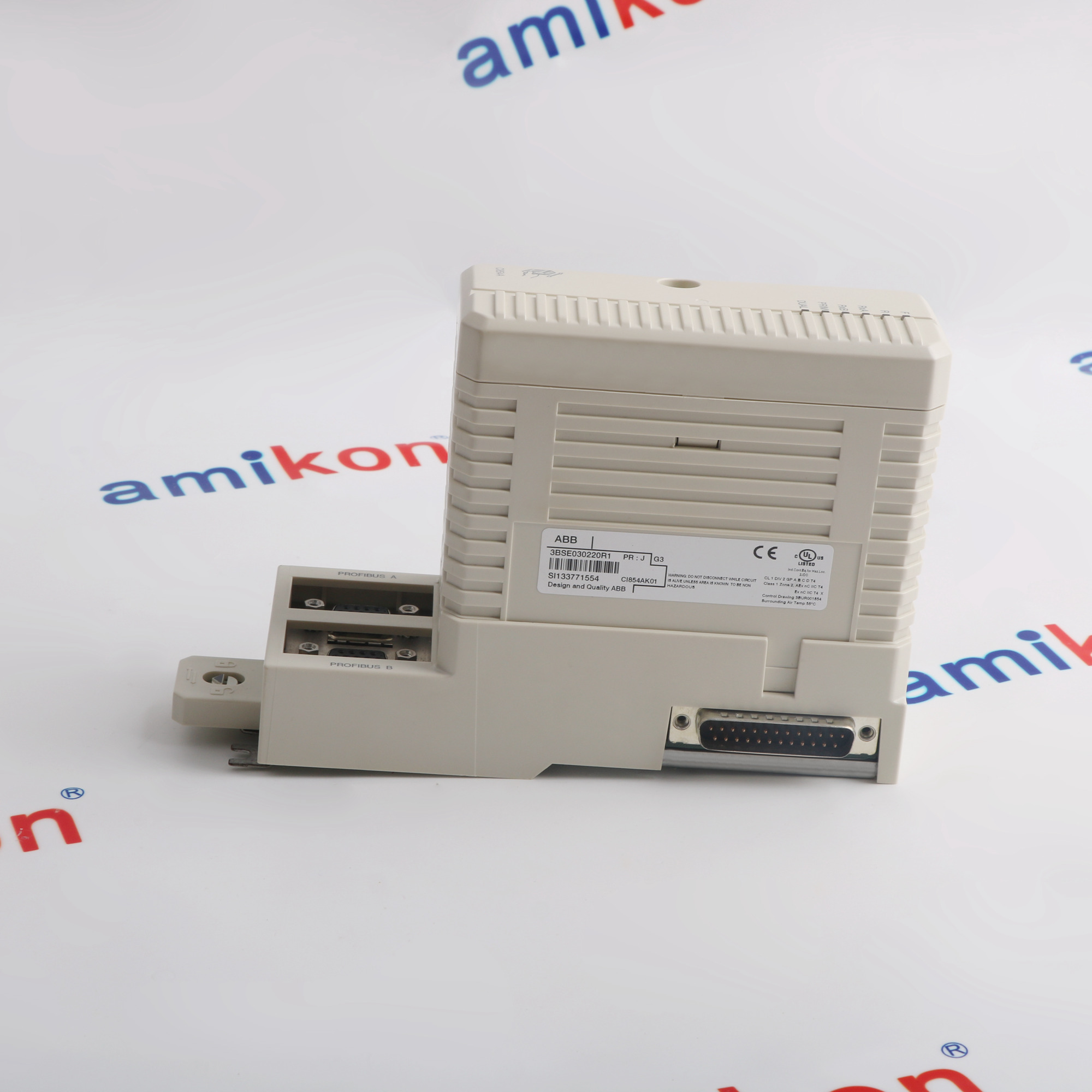

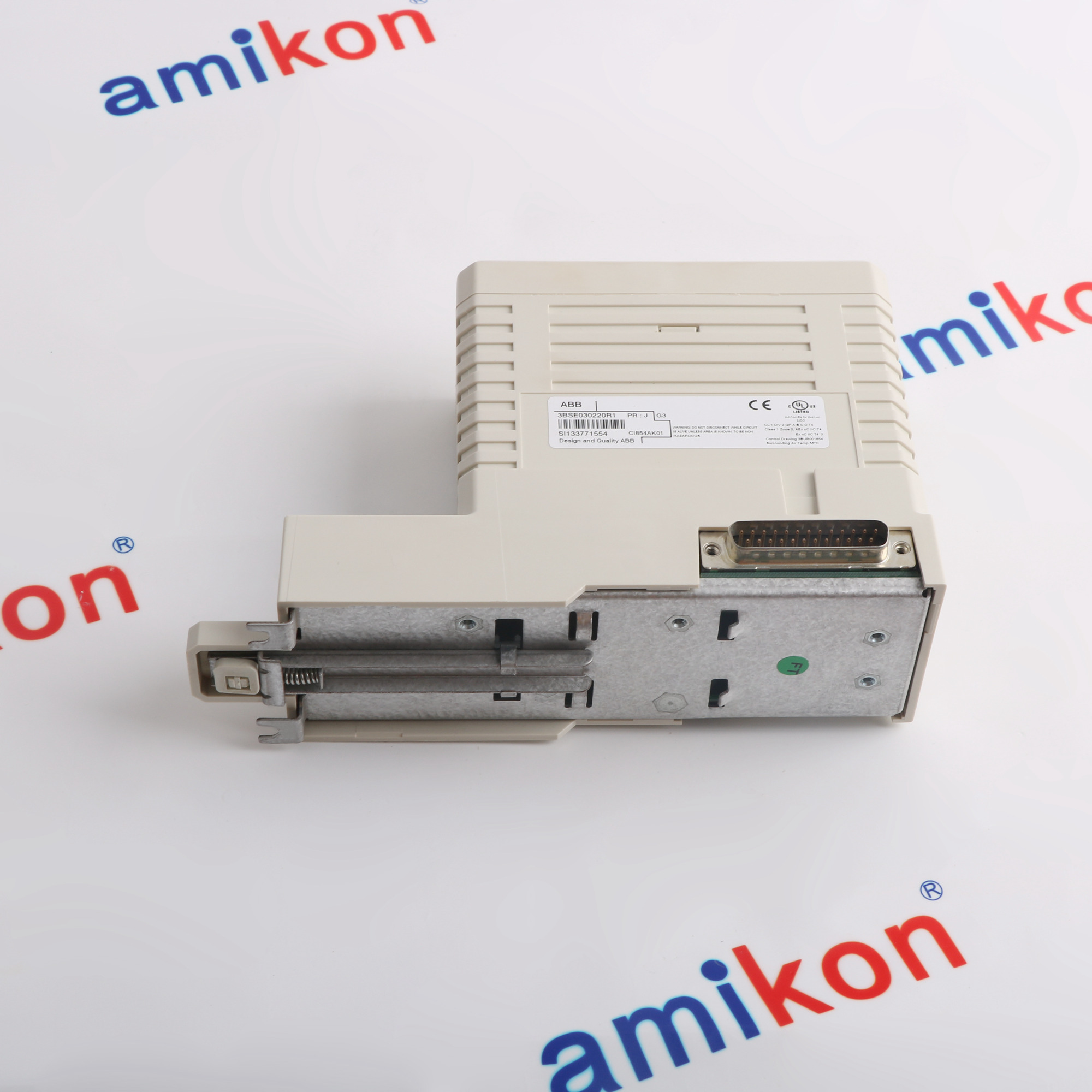

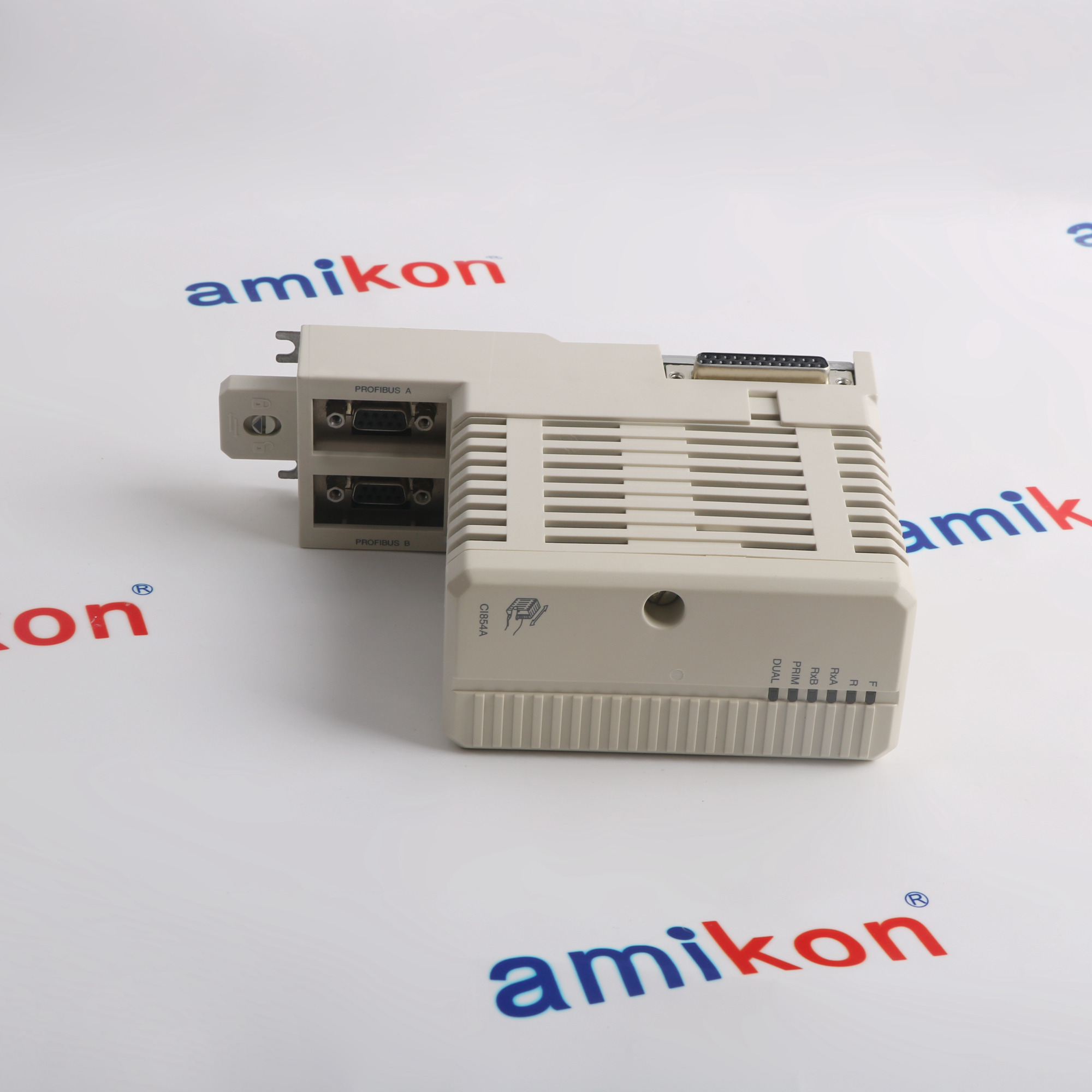

      ABB CI854AK01 3BSE030220R1
      ABB CI854AK01 3BSE030220R1
      ABB CI854AK01 3BSE030220R1
      ABB CI854AK01 3BSE030220R1
      ABB CI854AK01 3BSE030220R1
      ABB CI854AK01 3BSE030220R1
      · Product image is representative; revision or series may vary. Contact us to request a specific version.
      Ships by Wednesday, November 11

      CI854AK01 3BSE030220R1

      PROFIBUS DP Interface Kit

      Require for Quote:

      Shipping Information

      • For inventory products, we support same day shipping upon payment.
      • For urgent needs, we offer same-day shipping on most items for orders placed before 2:00 PM UTC+8 Simply mention your preferred next-day shipping when place the order, and your order will be prioritized to minimize downtime.
      • For indent items, typical turnaround is 1-3 weeks, depending on parts availability and scarcity.
      Customs & Documentation
      We prepare clear, order-specific documentation for every international shipment, including the commercial invoice, packing list and available product or compliance documents. Before dispatch, our logistics team confirms the consignee details, declared value, shipping terms and destination requirements with you. Tracking information is provided after shipment, helping your team prepare for import clearance with confidence.
      Documents checked before dispatch · Shipment details confirmed · Global tracking provided
      Payment
      Payment is by bank wire only in RMB/CNY, GBP, EUR or USD. Amikon does not accept credit cards or provide credit terms. Cleared payment is required before shipment unless the written quotation expressly states otherwise.
      Product Condition
      Factory New These are new and current items that are procured directly from the manufacturer.
      New In Sealed Package Parts are new. They have not been used and still have their original package seal intact.
      New in Original Package These parts are new. The packages were not originally sealed by their original manufacturer.
      Quantity
      Mobile *
      Country/Region *
      E-mail *
      Company
      Content *
      Upload
      (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Amikong please read our privacy policy.

      • 20+

        years in automation

      • ISO 9001

        certified quality system

      • 12 months

        amikon warranty

      • 2-hour reply

        from your account manager

      • Success Story

        solutions in action
      PART NUMBER SEARCH

      Find another automation part

      • Please try to be as accurate as possible with your search.
      • We can quote you on 1000s of specialist parts, even if they are not listed on our website.
      • We can't find any results for “”.
        SEE MORE
          SEE PRODUCTS IN SEARCH PAGE ()
          PRODUCT DESCRIPTION

          CI854AK01 3BSE030220R1 PROFIBUS DP Interface Kit

          ABB CI854AK01 3BSE030220R1 combines the CI854A communication module with a TP854 baseplate for PROFIBUS DP connection to AC 800M. Two baseplate connectors support redundant bus lines, while the module provides cyclic and acyclic communication with documented master and slave redundancy capabilities.

          Communication speeds range from 9.6 kbit/s to 12 Mbit/s, with up to 32 nodes on an unrepeated segment. Check bus termination, screening and earthing against the installed topology. CI854A hot-swap support does not remove the need for an approved replacement and commissioning procedure.
          BEFORE YOU BUY

          Confirm the complete PROFIBUS DP Interface Kit

          Send a label photo for review >>
          ACTUAL APPLICATIONS

          Relevant contexts for CI854AK01 3BSE030220R1

          These categories reflect documented ABB portfolio contexts, not proof of suitability for every installation. Exact-model selection remains subject to the approved configuration.
          • 01 · WATER & WASTEWATER

            Municipal Water and Wastewater Management

            Municipal utilities and public water servicesMunicipal wastewater and urban environmental protection
          • 02 · OIL & GAS

            Oil and Gas Extraction and Refining

            Upstream petroleum and natural gas explorationDownstream petroleum refining and gas distribution
          • 03 · PULP & PAPER

            Pulp and Paper Supply and Distribution

            Pulp and paper supply chain servicesPaper recycling and circular economy development

          Technical specifications for CI854AK01 3BSE030220R1

          • Product Model
            CI854AK01 3BSE030220R1
          • Product Parameters
            PROFIBUS DP Interface Kit
          • Manufacturer
            ABB
          • Fieldbus protocol
            PROFIBUS DP
          • DP service role
            Master Class 1 and Class 2; cyclic and acyclic communication
          • Transmission speed
            9.6 / 19.2 / 93.75 / 187.5 / 500 / 1500 / 3000 / 6000 / 12000 kbit/s
          • Physical bus interface
            RS-485
          • Fieldbus connectors
            2 x DB9 female, on TP854 baseplate
          • Network node capacity
            32 without repeaters; up to 124 with repeaters
          • Bus-line redundancy
            Supported
          • DP master redundancy
            Supported by CI854A
          • Module replacement capability
            Hot swap supported by CI854A
          • Galvanic isolation
            Yes
          • Power supply interface
            24 V DC via CEX-Bus
          • Current consumption
            190 mA typical; 240 mA maximum, from CEX-Bus 24 V DC
          • Power dissipation
            4.6 W typical
          • Protection rating
            IP20, EN 60529 / IEC 529
          • Mounting interface
            DIN rail with preset two-letter alpha-code lock
          View all additional
          Ask for Quote

          Alternative Names

          CI854AK01 3BSE030220R1 CI854A PROFIBUS DP interface kit
          SYSTEM & REPLACEMENT CHECK

          Information needed before ordering

          Three direct checks to secure your system integration and minimize ordering risks.

          Information

          System integration Replacement check Manuals & support
          SYSTEM INTEGRATION

          Integrate CI854AK01 3BSE030220R1 in the documented AC 800M PROFIBUS DP arrangement

          CI854AK01 joins the CI854A communication module and TP854 baseplate to the AC 800M CEX-Bus. The module provides the PROFIBUS DP interface; the two DB9 female connectors reside on the baseplate. Confirm both components and the complete 3BSE030220R1 identity before specifying the connection.
          Engineer the PROFIBUS speed and topology within the documented limits: 32 nodes without a repeater and up to 124 with repeaters in this manual section. The two outer bus nodes require effective termination. Check connector power, screening and earthing rather than treating a populated bus connector as proof of correct termination.
          CI854A supports cyclic and acyclic DP communication, master redundancy and hot swap. Apply these capabilities only within the approved controller and fieldbus configuration. Where PROFIBUS PA is required, the manual calls for a linking device rather than direct PA wiring to the DP connectors.

          Features:

          • Two TP854 PROFIBUS DP connectors
          • Outer-node termination and shield checks
          • Cyclic and acyclic DP communication
          PROFIBUS termination must remain connected and powered at both outer nodes. Verify screening and earthing before commissioning CI854A.
          INTERCHANGEABILITY

          Verify CI854AK01 3BSE030220R1 before replacement

          Keep the complete CI854AK01 3BSE030220R1 package identity and the CI854A suffix. The shared manual expressly assigns master redundancy and hot-swap support to CI854A; these capabilities must not be transferred to a CI854 simply because the names or baseplates are similar.
          Before an exchange, record the configured bus speed, fieldbus topology, redundancy roles and TP854 connector arrangement. Check both outer-node terminations and the required cable screening. The documentation for CI854B is separate and does not establish an unrestricted substitute for this CI854A kit.
          Following an approved exchange, verify controller communication and the module indicators. PRIM is also lit in single configuration, while DUAL indicates redundant operation. Confirm the intended redundancy state and communication with the configured slave devices before releasing the fieldbus for service.

          Features:

          • A-suffix master-redundancy capability
          • Recorded topology and termination state
          • PRIM and DUAL indication checks
          CI854A-specific redundancy and hot-swap support must not be assumed for CI854. Verify the supplied module suffix and configured roles.
          ABB CI854AK01 3BSE030220R1 PROFIBUS DP Interface Kit Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

          Features:

          • Exact-model data for CI854AK01 3BSE030220R1
          • ABB hardware reference: pages 316-320
          • Series and ABB product directories
          Documentation for CI854AK01 3BSE030220R1 must match the complete installed product identity, the documented AC 800M PROFIBUS DP configuration and the supplied PROFIBUS DP interface kit before service.

          Also searched as

          PM864K01 TK851V010 PM856AK01 3BSE066490R1 CI801-2 PM851AK01 3BSE066485R1

          Important notice

          Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
          This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
