PRODUCT DESCRIPTION

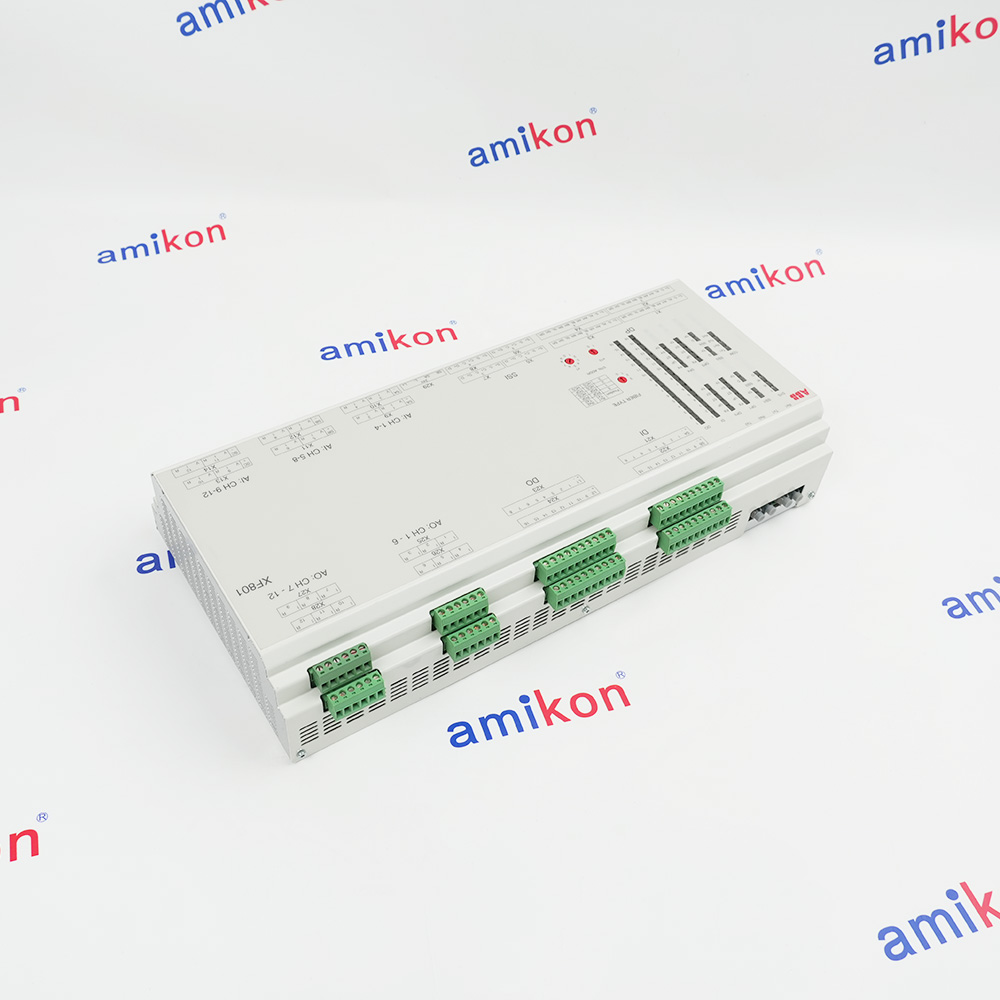

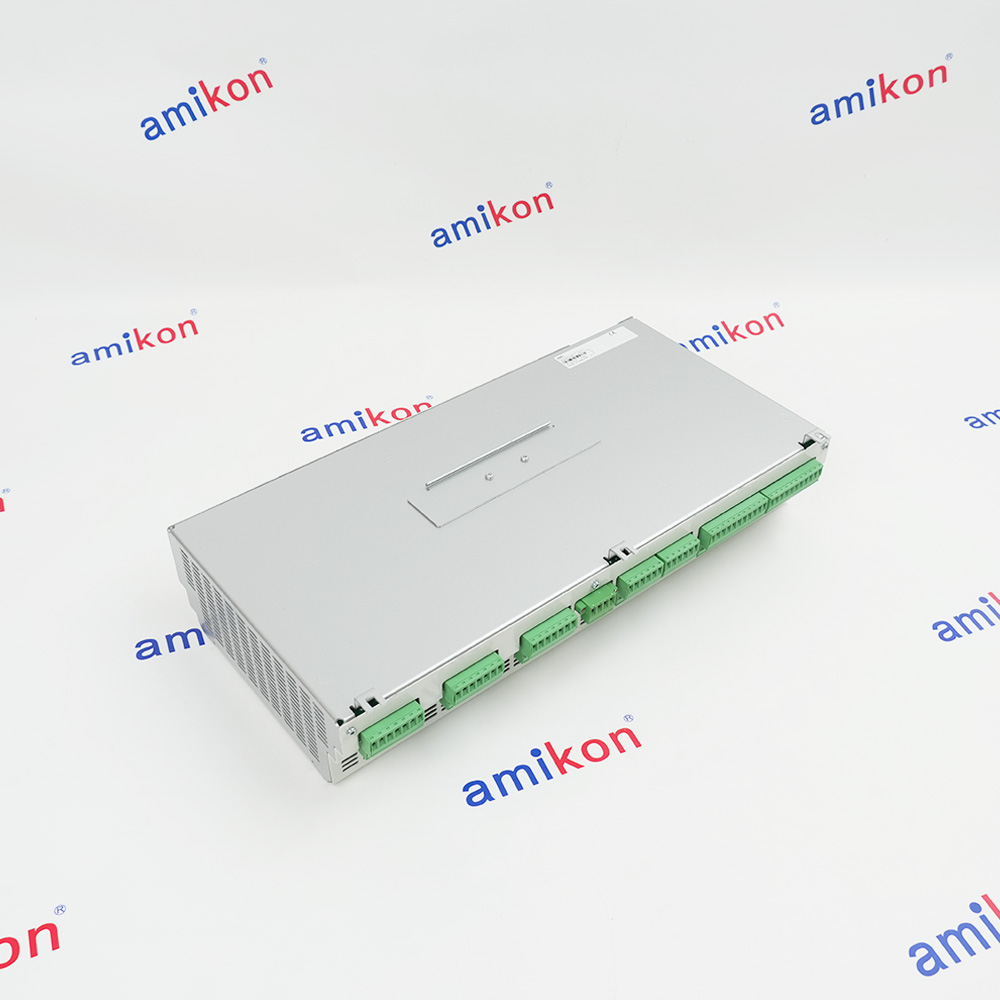

XF801 3BSE061579R1 Fast Analog Digital I/O
ABB XF801 3BSE061579R1 is a fast mixed-signal I/O module for the AC 800PEC controller. It combines twelve analog inputs, twelve analog outputs, sixteen digital inputs and sixteen digital outputs with four pulse-encoder channels and four synchronous serial interface channels in one module.
The module accepts 24 V DC with a tolerance of +/-10% and draws up to 0.8 A. Its Enhanced Modulebus arrangement supports scanning six modules within 500 microseconds; the AC 800PEC connection uses the specified optical arrangement and PE1390 converter. The analog inputs provide 16-bit resolution, while digital outputs support loads up to 0.5 A per channel.
The module accepts 24 V DC with a tolerance of +/-10% and draws up to 0.8 A. Its Enhanced Modulebus arrangement supports scanning six modules within 500 microseconds; the AC 800PEC connection uses the specified optical arrangement and PE1390 converter. The analog inputs provide 16-bit resolution, while digital outputs support loads up to 0.5 A per channel.
BEFORE YOU BUY
Confirm the complete XF801 3BSE061579R1 identity
ACTUAL APPLICATIONS
Application fields for XF801 3BSE061579R1
These broad application fields reflect the documented function and technical characteristics of XF801 3BSE061579R1.
-
01 · ENERGY
Electric Power and Renewable Energy Resources
Conventional electric power and renewable energy resourcesHydroelectric power resources and alternative energy reserves -
02 · METALS
Metal Resources and Nonferrous Metallurgical Materials
Ferrous metal resources and nonferrous metallurgical materialsSpecialty metal alloys and mineral based materials -
03 · CHEMICALS
Chemical Materials and Industrial Mineral Compounds
Organic chemical materials and industrial mineral compoundsInorganic chemical resources and specialty mineral materials
Technical specifications for XF801 3BSE061579R1
-
Product ModelXF801 3BSE061579R1
-
Product ParametersFast Analog Digital I/O
-
In stock1 unit
-
ManufacturerABB
-
Analog input channels12
-
Analog output channels12
-
Digital input channels16
-
Digital output channels16
-
Pulse encoder channels4
-
SSI channels4
-
Supply voltage24 V DC +/-10%
-
Maximum supply current0.8 A
-
Analog input resolution16 bits
-
Analog input ranges-10 to +10 V; 4 to 20 mA; -20 to +20 mA
-
Maximum digital output load0.5 A per channel
-
Input filter setting0 to 100 ms
-
Scan performance6 modules within 500 microseconds
-
Operating temperature0 to +55 degC
-
Protection ratingIP20
View all additional
Alternative Names
XF801 3BSE061579R1
AC 800PEC Fast I/O
Fast Analog Digital I/O
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Integrate XF801 3BSE061579R1 within AC 800PEC Fast I/O
Use XF801 3BSE061579R1 with the documented AC 800PEC Fast I/O arrangement. ABB describes Enhanced Modulebus optical links and a PE1390 converter between the XF801 and controller; retain the required optical media and topology rather than treating the module as an ordinary electrical fieldbus adapter.
Allocate the analog, digital, encoder and SSI channels to the project signal list before wiring. Select the required analog input range and digital filter setting, and verify that each digital output load stays within 0.5 A. Sensor supplies and signal references must follow the applicable terminal assignment.
Provide 24 V DC within +/-10%, allow up to 0.8 A for the module and maintain the specified 0 to +55 degC operating environment. Validate representative input measurements and output commands, then check the configured scan behavior and optical-link diagnostics before enabling dependent control functions.
Features:
- Analog input channels: 12
- Analog output channels: 12
- AC 800PEC Fast I/O
Use XF801 3BSE061579R1 only within the documented AC 800PEC Fast I/O arrangement and applicable installation instructions.
INTERCHANGEABILITY
Replace XF801 3BSE061579R1 within AC 800PEC Fast I/O
For XF801 3BSE061579R1 exchange, record the complete material number, optical path and project channel assignments. Retain separate records for analog, digital, pulse-encoder and SSI wiring; matching the enclosure alone does not establish that an alternative I/O module has the same channel resources.
Place affected outputs in the site-defined controlled state, isolate the relevant power and label all signal and optical connections before removal. Inspect field connectors, cable shields and optical ends, and check the replacement supply requirement against the existing 24 V source.
Restore the recorded configuration after installation and check known analog values, digital states and any encoder or SSI signals actually used. Test required output channels under controlled conditions and review the optical-link and module status before returning the affected measurements to normal use.
Features:
- Digital input channels: 16
- Digital output channels: 16
- Recorded connections and functional validation
Use XF801 3BSE061579R1 only within the documented AC 800PEC Fast I/O arrangement and applicable installation instructions.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Exact-model technical data for XF801 3BSE061579R1
- Document applicability checked against the complete identity
- Directory links by subcategory and brand
Documentation for XF801 3BSE061579R1 must match the installed product identity and supplied configuration.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Product size40.30 x 21.50 x 8.80 cm
-
Net weight3.80 kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8538900000
-
OriginSweden
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about XF801 3BSE061579R1
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
What channel resources are combined in XF801 3BSE061579R1?
XF801 3BSE061579R1 provides 12 analog inputs, 12 analog outputs, 16 digital inputs, 16 digital outputs, 4 encoder channels and 4 SSI channels. -
What supply tolerance is specified for XF801 3BSE061579R1?
XF801 3BSE061579R1 requires 24 V DC within +/-10%, with maximum module current of 0.8 A. -
How quickly can the XF801 3BSE061579R1 optical arrangement scan six modules?
ABB specifies scanning six modules within 500 microseconds in the documented XF801 3BSE061579R1 Fast I/O arrangement. -
What current can a XF801 3BSE061579R1 digital output switch?
Each XF801 3BSE061579R1 digital output supports a maximum load current of 0.5 A. -
Which analog voltage span is supported by XF801 3BSE061579R1?
XF801 3BSE061579R1 supports a -10 to +10 V analog input span, together with the documented current input ranges. -
Can XF801 3BSE061579R1 digital-input filtering be adjusted?
Yes. XF801 3BSE061579R1 digital-input filtering is configurable from 0 to 100 ms. -
What optical information should accompany a XF801 3BSE061579R1 quotation?
For XF801 3BSE061579R1, identify the existing optical media, PE1390 arrangement, module material number and quantity; specify any connection accessories separately. -
What distinguishes a XF801 3BSE061579R1 hardware order from its manual order?
Order XF801 3BSE061579R1 for the module. The 2PAA108042-510 reference identifies a user-manual document and must not be substituted for the hardware material number.
READY TO VERIFY YOUR PART?
Get a XF801 3BSE061579R1 quote with price, lead time and revision check.
