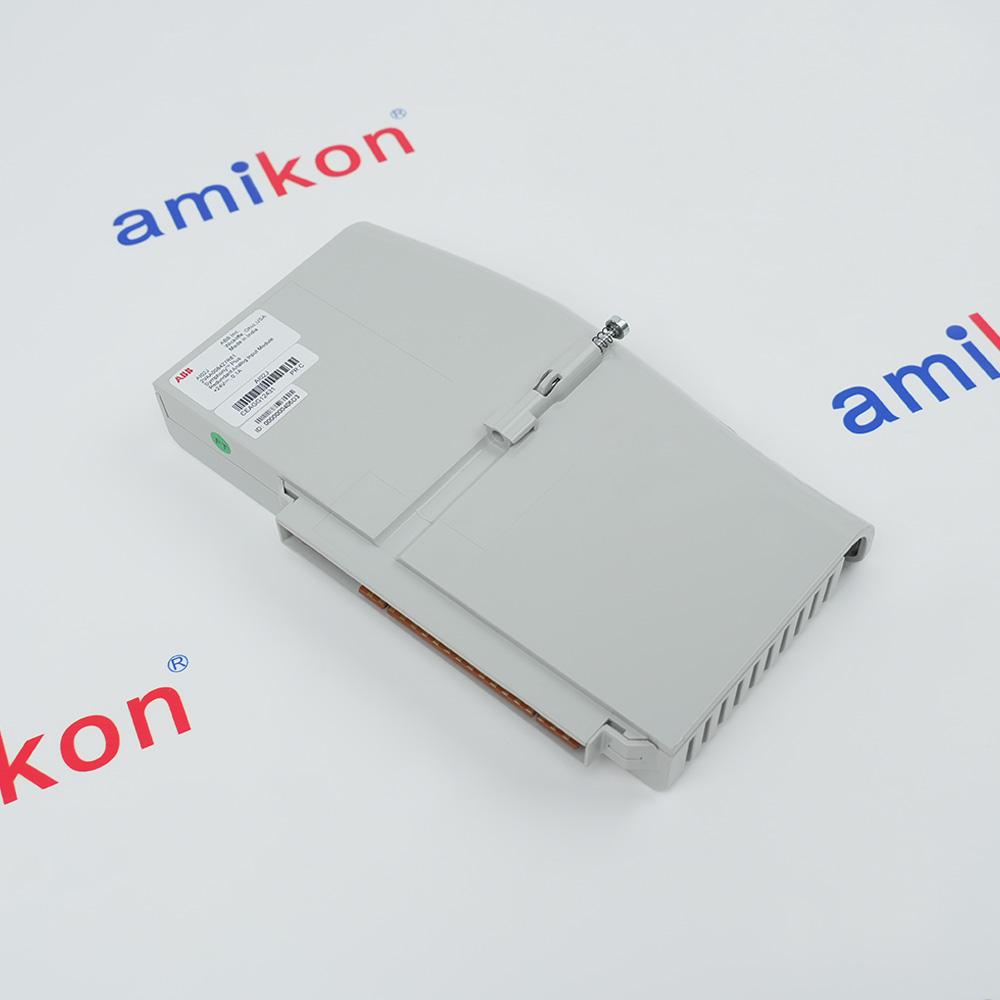

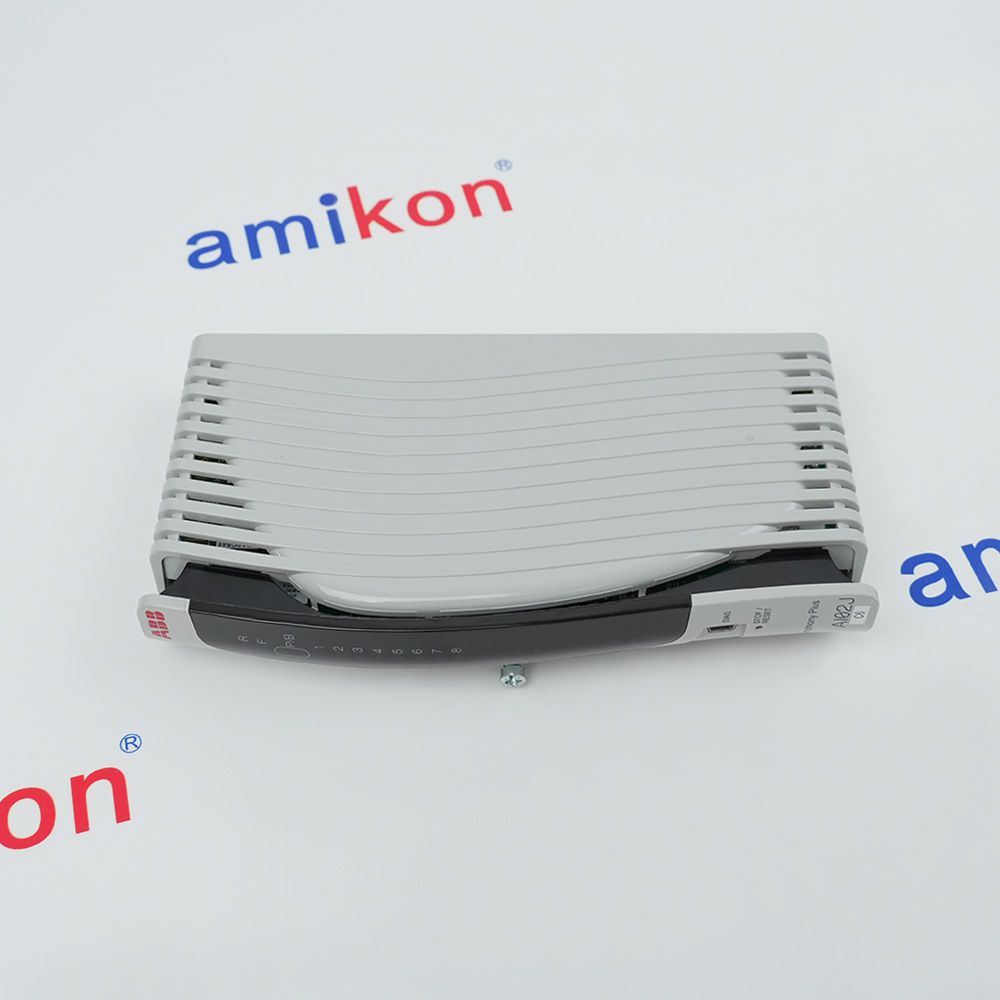

Technical specifications for AI02J
-
Product ModelAI02J
-
Product ParametersAnalog Input Module 16 Channels with HART support
-
Tariff Code8537101190
-
Country of originSWEDEN
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size12.2x10.7x3cm
-
ManufacturerABB
-
Weight0.38 kg
-
Number of Channels16 independently configurable analog input channels
-
Input Signal Types4–20 mA, 1–5 VDC
-
HART SupportHART Protocol Version 5.4
-
Secondary HART VariablesUp to 24 total, maximum 4 per channel
-
A/D ResolutionConfigurable 12 to 16 bits with polarity
-
Channel Update Rate100 ms for all 16 channels
-
Accuracy±0.1% of Full Scale Range
-
Full Scale Range25 mA or 6.25 VDC
-
Module Power Supply24 VDC ±10%, 100 mA typical
-
Field I/O Power24 VDC ±10%, 20 mA per channel
Description
The ABB AI02J Analog Input Module is a high-density industrial I/O module developed for the Symphony Plus distributed control system platform. It provides sixteen independently configurable analog input channels capable of processing both current and voltage signals from field instruments such as pressure transmitters, temperature transmitters, flow meters, level sensors, and analytical devices. The module supports 4–20 mA and 1–5 VDC input ranges, allowing flexible integration into a wide variety of process automation applications.
A key feature of the AI02J is its integrated HART communication capability. The module supports HART Version 5.4 devices and can retrieve both primary process values and additional diagnostic information from intelligent field instruments. Up to 24 secondary HART variables can be accessed across the module, providing enhanced visibility into instrument status, maintenance data, and process conditions without requiring separate communication hardware.
A key feature of the AI02J is its integrated HART communication capability. The module supports HART Version 5.4 devices and can retrieve both primary process values and additional diagnostic information from intelligent field instruments. Up to 24 secondary HART variables can be accessed across the module, providing enhanced visibility into instrument status, maintenance data, and process conditions without requiring separate communication hardware.
Alternative Names
AI02 J
AIO2J
A102J
AI02 J
A1O2J
Information
Overview
Manuals
Application Notes
Product Applications
Environmental and Safety Compliance
Features:
- 16 independently configurable analog input channels
- HART v5.4 protocol support
- Fast response with 100ms update rate
- 12 to 16-bit configurable A/D resolution with polarity
- Excellent accuracy of ±0.1% FSR
The module implements robust electrical isolation with 1500 V isolation between field signals and the logic section, as well as 1 × 16 group channel isolation rated at 1500 V for 1 minute. Short circuit protection limits current to 96 mA per channel, and open circuit detection resolves within 5 seconds. Input impedance is 250 Ω in current mode and ≥250 kΩ in voltage mode.
The AI02J ABB Analog Input Module 16 Channels with HART support may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB AI02J Analog Input Module 16 Channels with HART support Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The IP20 protection rating designates it for indoor cabinet installation. LED status indicators on each channel provide real-time visual feedback for power status and signal over-limit conditions.
The module operates reliably across an extended temperature range of –40°C to +70°C and stores safely from –40°C to +85°C. Relative humidity tolerance spans 20% to 95% at 40°C in non-condensing conditions.
- Steam and Gas Turbines:4-20mA: casing temps, oil pressures & fuel flow
- Boilers and HRSGs:Drum levels, steam pressures & feed-water flow
- Cooling Towers and Pumps:Motor temps & pressure lines via circulating pumps
- Aeration Blowers:DO & airflow for biological treatment optimization
- Filtration Systems:Differential pressure for auto backwash cycles
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Pre-Installation Power Check: Cut off all system and auxiliary power supplies before touching hardware to prevent arcs.
Temperature Maintenance: Ensure the cabinet remains between -40°C and +70°C. Do not block localized ventilation channels.
Corrosion Control: If deploying in wastewater or chemical sites, verify your unit uses G3 conformal coating to survive corrosive atmospheres.
Technical notes
The module features 16 independent configurable input channels, each capable of receiving standard 4–20 mA current or 1–5 VDC voltage signals from process transmitters measuring temperature, pressure, flow, level, and other continuous process variables. Each channel incorporates high-resolution analog-to-digital conversion with 12 to 16-bit resolution including polarity, achieving an accuracy of ±0.1% full scale. The complete scan of all 16 channels updates within 100 milliseconds.
FAQs
-
What is the AI02J ?
+The ABB AI02J is a 16-channel analog input module designed for process control and automation systems like Symphony Plus. -
What system is the AI02J compatible with?
+It is primarily to integrate with the ABB Symphony Plus control environment, using specific module function codes for configuration. -
What input signals does it support?
+Each of the 16 channels can be independently configured for 4 to 20 mA or 1 to +5 VDC ranges -
How fast are the inputs updated?
+The module features a single Analog-to-Digital (A/D) converter for all 16 channels, and updates all 16 channels in 100 milliseconds
