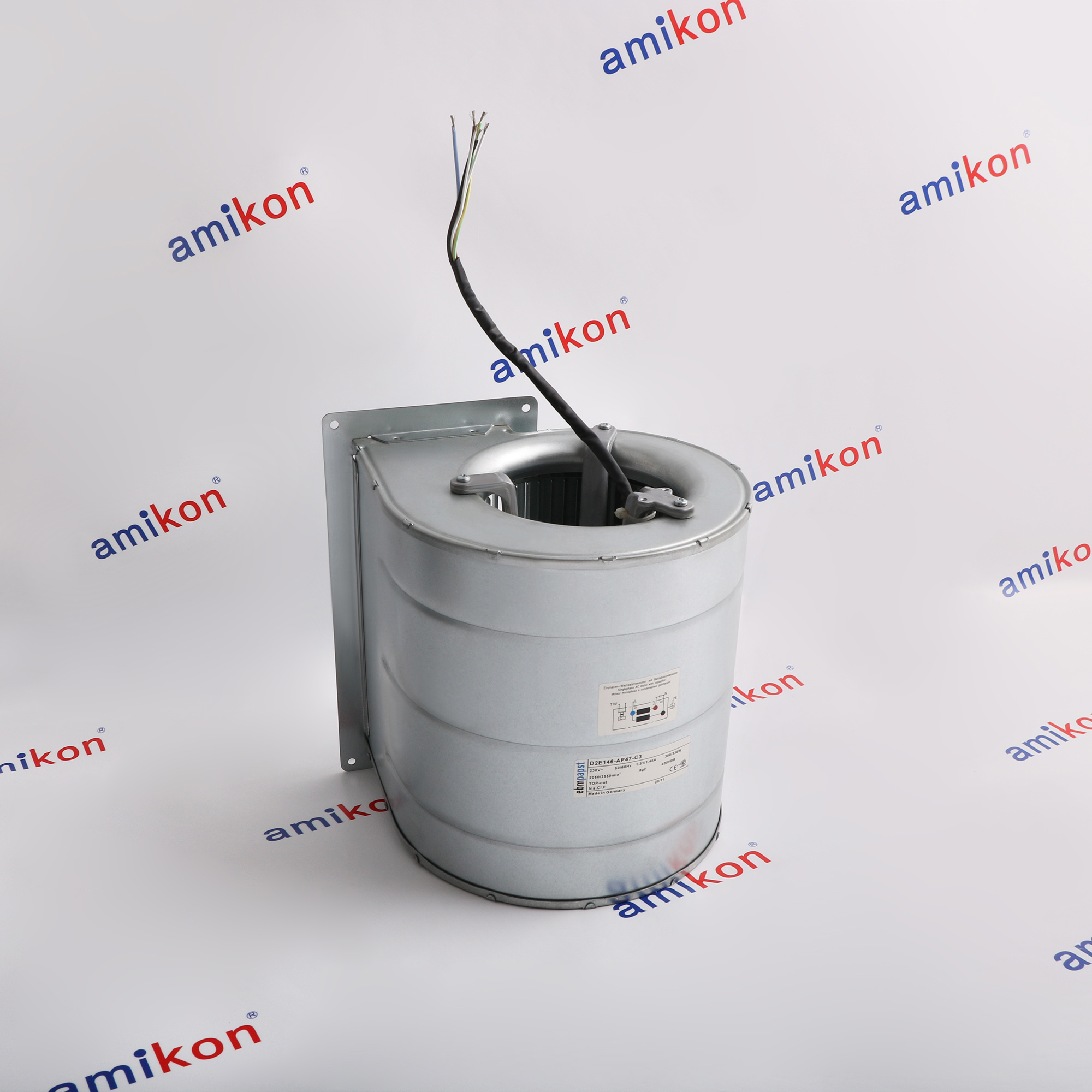

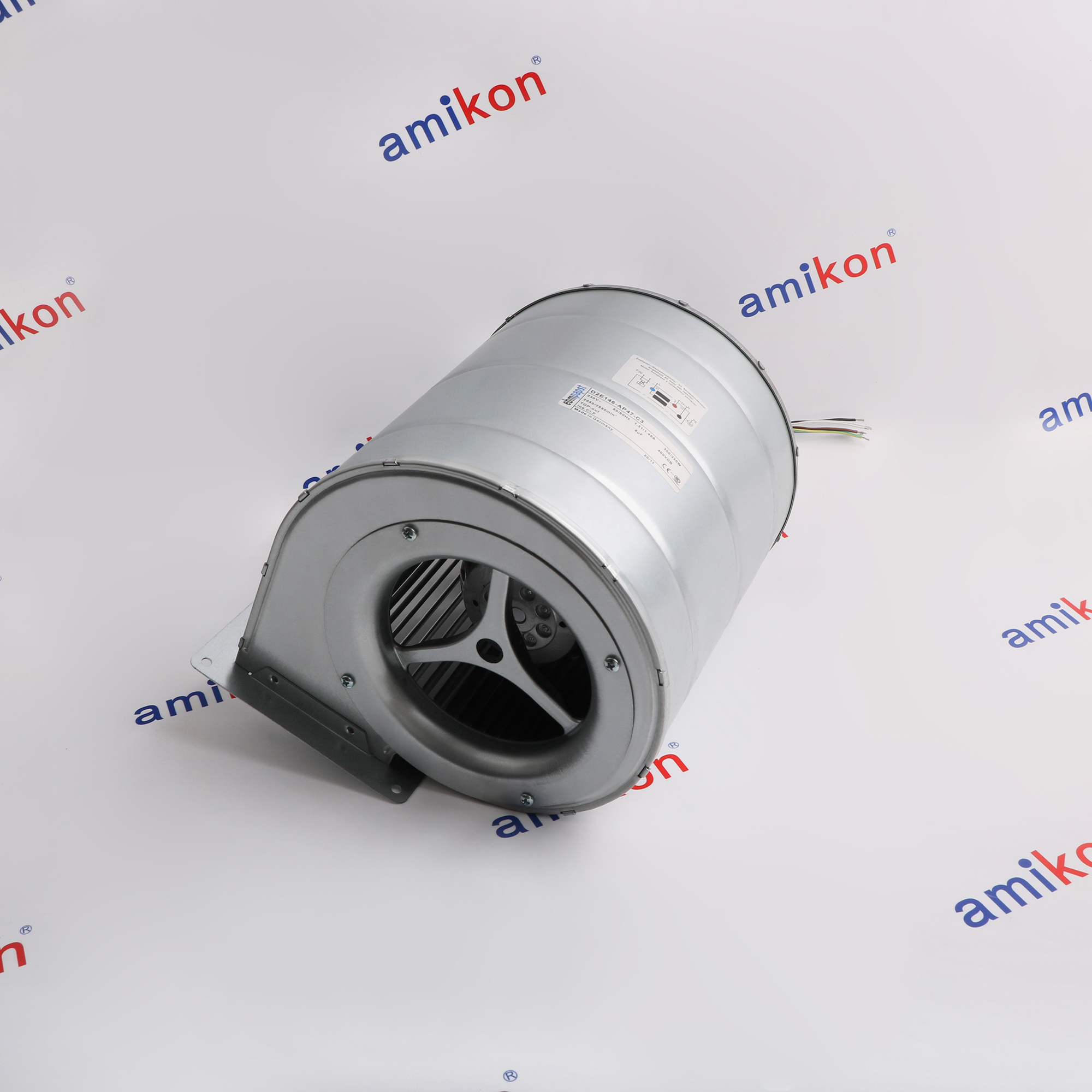

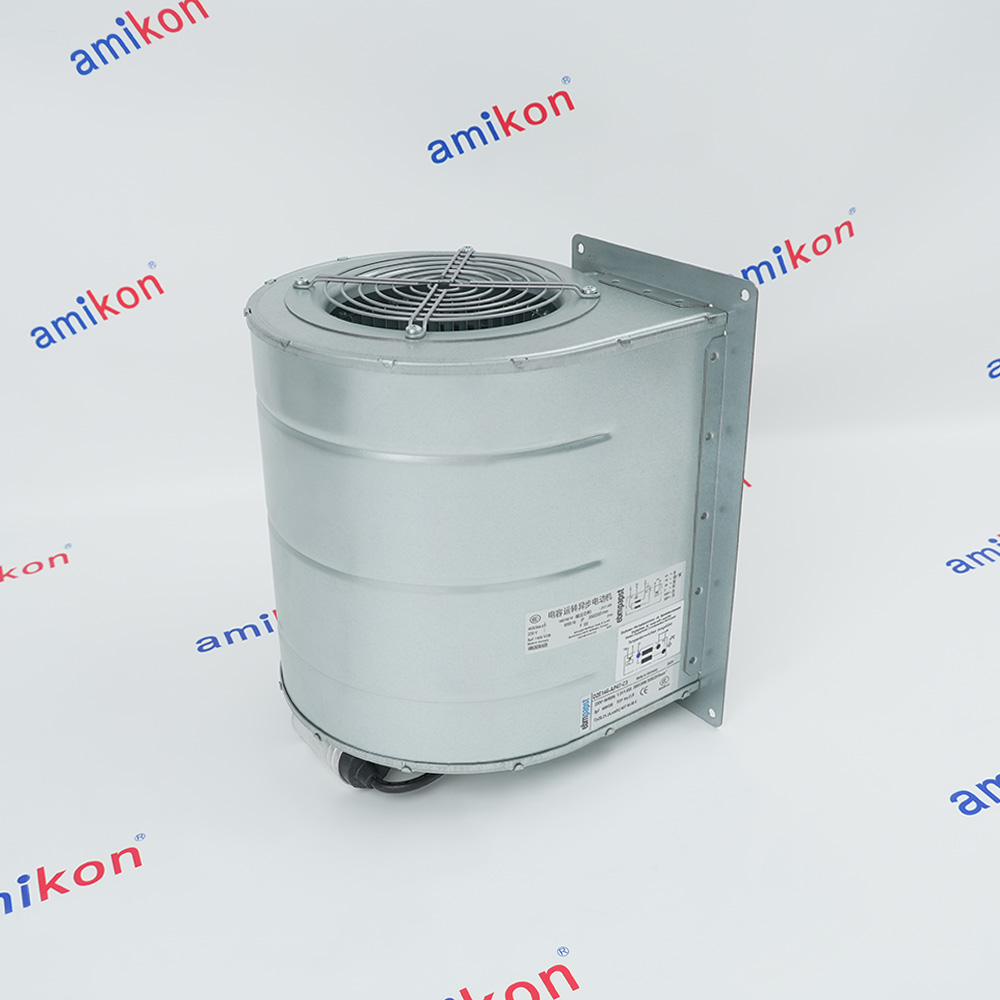

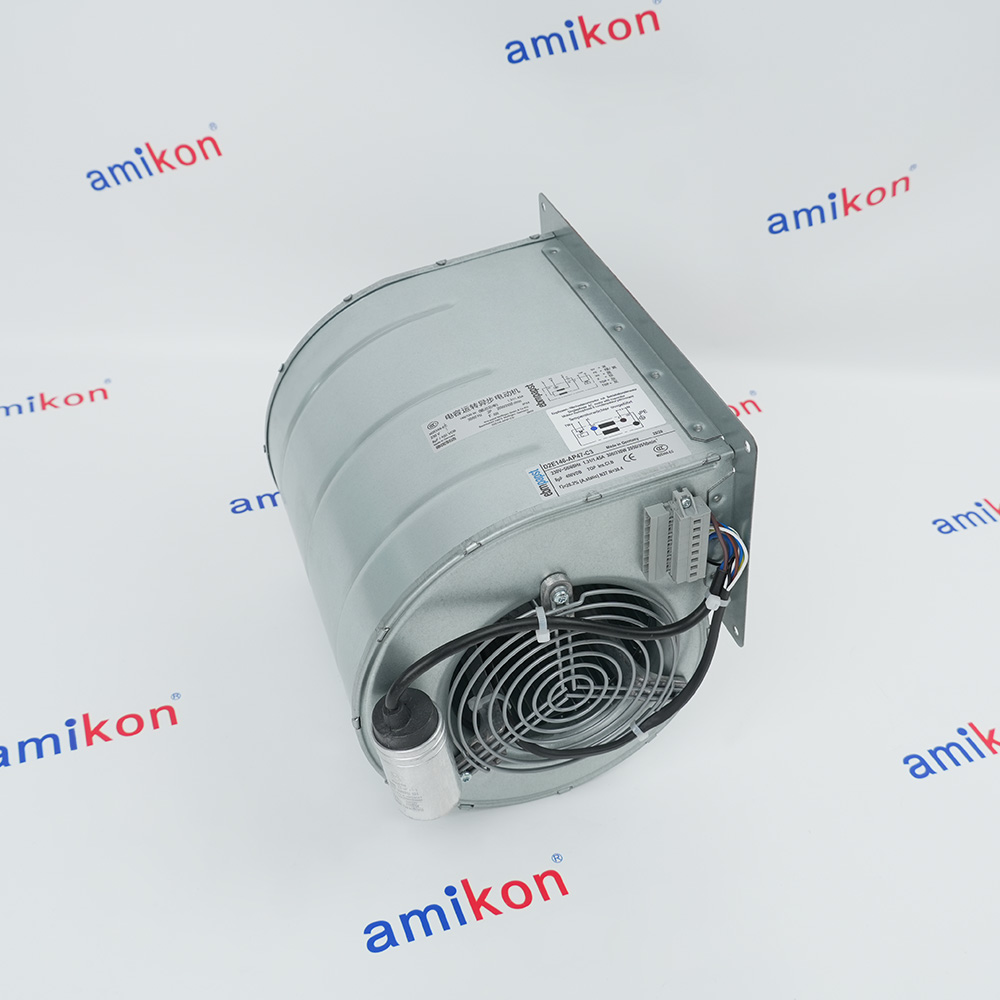

Technical specifications for D2E146-AP47-C3
-
Product ModelD2E146-AP47-C3
-
Product ParametersAC centrifugal fan
-
Tariff Code8537101190
-
Country of originsweden
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size28.5x23x20.5cm
-
ManufacturerABB
-
Weight5 kg
-
Nominal Voltage230 V AC
-
Frequency50 / 60 Hz
-
Operating Temp–25 … +50 °C
-
Storage–40 … +70 °C
-
Humidity5 … 95 % RH non-condensing
-
Noise Level62 dB(A)
Description
The ABB D2E146-AP47-C3 is an AC centrifugal fan featuring a forward-curved, dual-intake with a flanged housing, engineered for high-performance cooling applications in industrial equipment such as inverter cabinets, power converters, and electrical enclosures. The D2E146-AP47-C3 combines efficient aerodynamic design with robust mechanical construction to deliver reliable airflow and pressure performance in demanding thermal management applications.
The D2E146-AP47-C3 is equipped with a single-phase AC motor (M2E068-EC) designed for 230 VAC operation at both 50 Hz and 60 Hz frequencies. At 50 Hz, the D2E146-AP47-C3 operates at 2050 rpm with a power consumption of 300 W and current draw of 1.31 A. At 60 Hz, the D2E146-AP47-C3 operates at 2550 rpm with a power consumption of 330 W and current draw of 1.45 A. The motor of the D2E146-AP47-C3 utilizes an 8 μF capacitor rated at 400 VDB in safety protection class S0 (CE), ensuring reliable starting and running performance.
The D2E146-AP47-C3 is equipped with a single-phase AC motor (M2E068-EC) designed for 230 VAC operation at both 50 Hz and 60 Hz frequencies. At 50 Hz, the D2E146-AP47-C3 operates at 2050 rpm with a power consumption of 300 W and current draw of 1.31 A. At 60 Hz, the D2E146-AP47-C3 operates at 2550 rpm with a power consumption of 330 W and current draw of 1.45 A. The motor of the D2E146-AP47-C3 utilizes an 8 μF capacitor rated at 400 VDB in safety protection class S0 (CE), ensuring reliable starting and running performance.
Information
Overview
Manuals
Application Notes
Product Applications
Mechanical Insertion
Features:
- Forward-Curved, Dual-Intake Design with Flanged Housing
- Single-Phase AC Motor (M2E068-EC) with 230 VAC Operation
- High Airflow up to 970 m³/h at 50 Hz
- IP44 Protection Class with Insulation Class F
- Thermal Overload Protector (TOP) with Basic Insulation
The fan is driven by an M2E068-EC AC asynchronous motor with voltage control. It operates on 230 VAC single-phase power at either 50 Hz or 60 Hz. At 50 Hz, the fan delivers 2,050 rpm at 300 W power consumption and 1.31 A current draw. At 60 Hz, speed increases to 2,550 rpm with 330 W power consumption and 1.45 A current draw. The motor requires an 8 µF / 400 VDB capacitor for phase shift starting..
The D2E146-AP47-C3 ABB AC centrifugal fan may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB D2E146-AP47-C3 AC centrifugal fan Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The forward-curved impeller design with 146 mm diameter provides high airflow at relatively low noise levels. The fan achieves an airflow rate of approximately 970 m³/h under nominal conditions, with a maximum static pressure capability of 520 Pa. The minimum back pressure requirements are 200 Pa at 50 Hz and 400 Pa at 60 Hz to ensure stable aerodynamic performance.
Environmental ratings include a minimum ambient temperature of -25°C and maximum ambient temperatures of +50°C at 50 Hz or +45°C at 60 Hz. Some sources cite an extended operating range of -40°C to +80°C. The protection level is rated at IP44 (protection against solid objects greater than 1 mm and splashing water) per the manufacturer datasheet, though some distributors list IP54. The motor carries Class F insulation
- Energy/Utilities: Power generation, substations, water supply, and sewage treatment
- Resource Extraction: Oil/gas rigs, refineries, and deep-earth mining ventilation
- Material Production: Steel mills, cement plants, and chemical manufacturing facilities
- Manufacturing: Rubber extrusion, plastic molding, and food processing with strict temperature controls
- Marine/Transport: Shipboard ventilation and heavy transportation logistics infrastructure
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Clearance: Ensure the air intake and exhaust are unobstructed to prevent motor overheating.
Orientation: The blower can be mounted in any position, but if it is being seated inside an ABB inverter drive chassis, align the fan's flange with the guide rails and slide it into place until it seats flush.
Securing: Fasten the blower module with the appropriate mounting screws, ensuring the housing does not vibrate against the cabinet
Alternative Names
D2E146-APA7-C3
D2EI46-AP47-C3
D2E146 AP47 C3
D2EI46 AP47 C3
D2E146AP47C3
Technical notes
Air performance of the D2E146-AP47-C3 is optimized for high-efficiency cooling. At 50 Hz, the D2E146-AP47-C3 delivers an air flow of 970 m³/h with a pressure increase of 200 Pa at the nominal operating point, reaching up to 520 Pa at maximum back pressure. At 60 Hz, the D2E146-AP47-C3 provides 690 m³/h air flow with 400 Pa pressure increase. The air performance of the D2E146-AP47-C3 is measured according to ISO 5801 installation category A, with sound pressure levels of 63 dB(A) at 50 Hz and 68 dB(A) at 60 Hz measured at 1 m distance from the fan axis.
FAQs
-
What is the D2E146-AP47-C3 ?
+The ABB D2E146-AP47-C3 is a high-performance, single-phase AC centrifugal fan commonly used for cooling industrial inverter drives. -
Can I use a different model to replace it?
+Yes. The D2E146-AP47-C3 is routinely replaced by the ebm-papst D2E146-AZ03-F9, which is the official direct replacement fan assembly used for ABB ACS800 and ACS600 inverter drives. -
What is the proper capacitor for the D2E146-AP47-C3?
+The motor requires an 8 μF (400V) run capacitor for operation. If the fan is struggling to spin up or not reaching nominal speed (2050/2550 RPM), the capacitor is typically the first component that needs testing and replacement. -
How much power and current does it draw?
+At 50 Hz, it consumes 300W with a current draw of 1.31A (2050 RPM). At 60 Hz, consumption rises to 330W with a current draw of 1.45A (2550 RPM).
