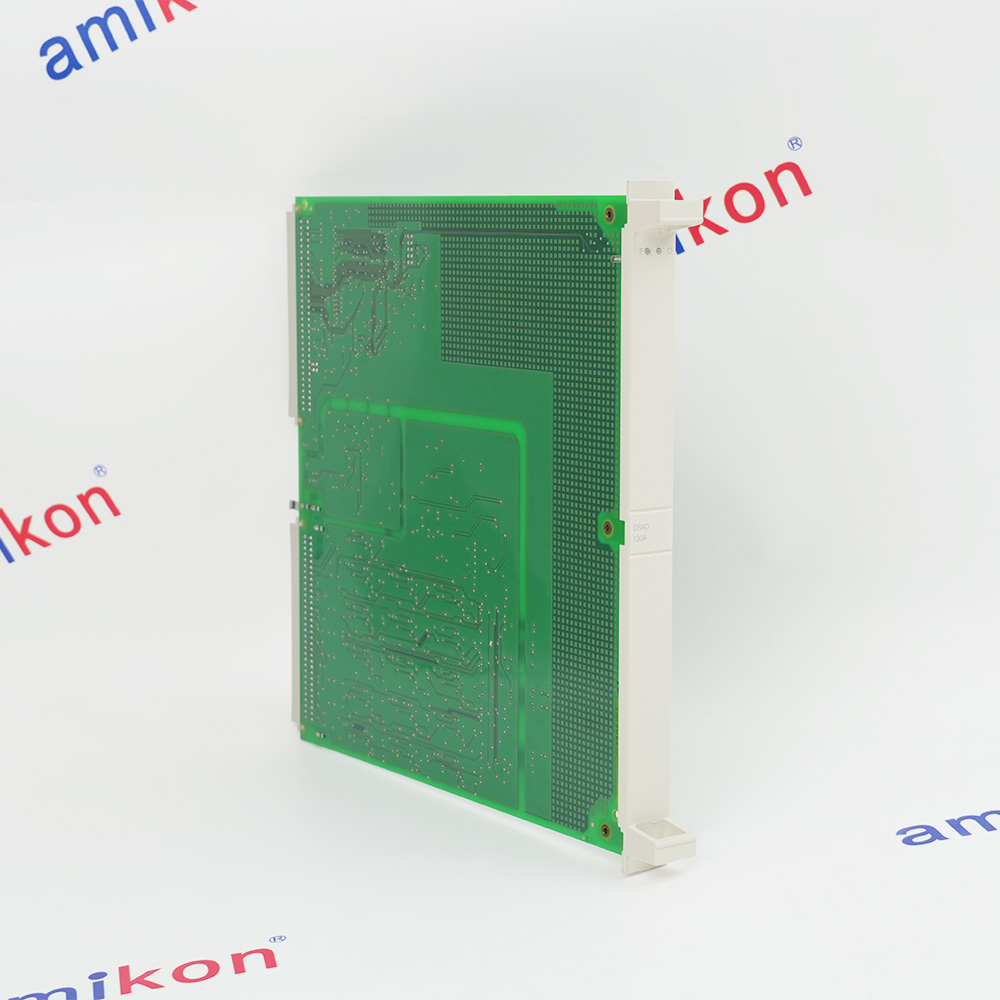

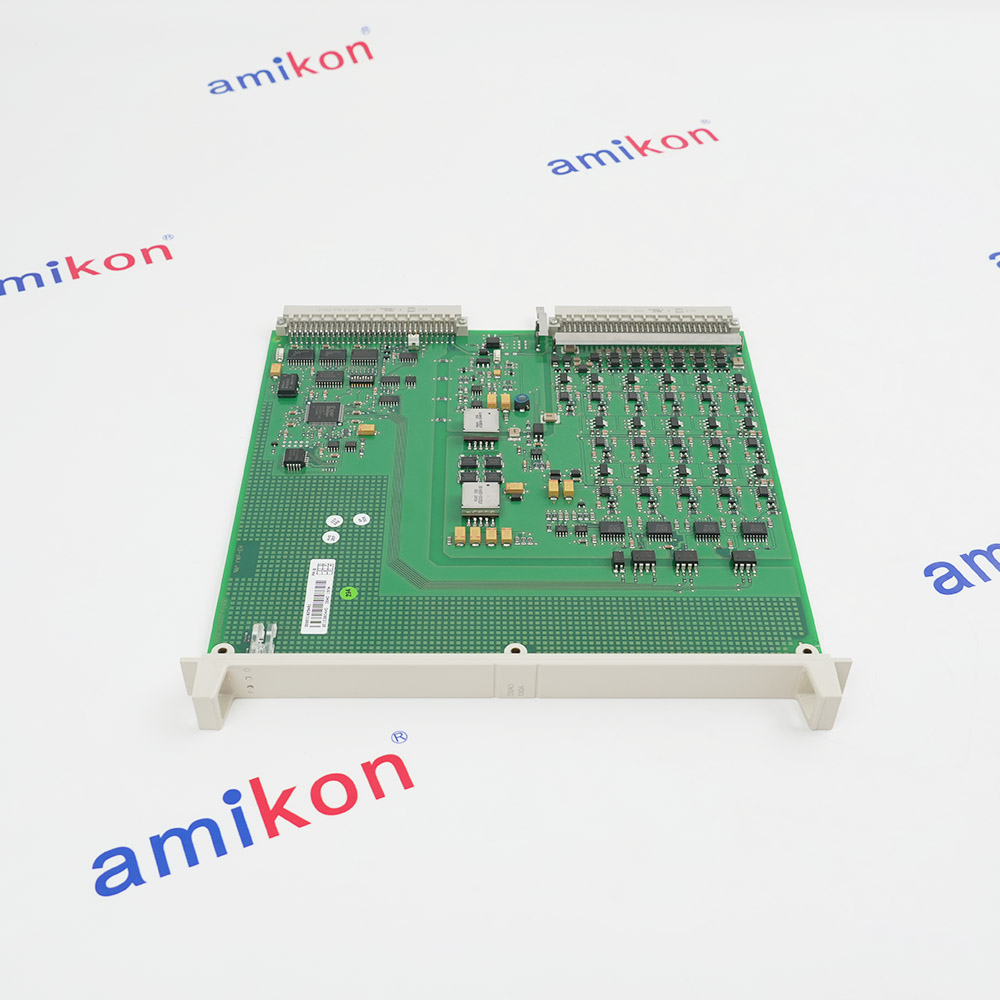

DSAO 130A 3BSE018294R1
Need Help? Contact US!
Call us: +86-18020776786
Proper, Ready.
Delivery time
Please indicate your delivery time
Product image is representative; revision or series may vary. Contact us to request a specific version.
Product Information
Product Describe
DSAO130A
3BSE018294R1
Analog Output Board
16 ch., 12 bits resolution
3BSE018294R1
Analog Output Board
16 ch., 12 bits resolution
Technical specifications for DSAO 130A 3BSE018294R1
-
Product ModelDSAO 130A 3BSE018294R1
-
Spare ModelDSAO130A 3BSE018294R1
-
Product ParametersAnalog Output Board
-
Tariff Code8537101190
-
Country of originSWEDEN
-
Place of shipmentXiamen, China
-
Estimated Shipping Size2x25.6x24.3cm
-
ManufacturerABB
-
Weight0.3 kg
-
Supply24 V dc
-
Power Dissipation≤ 3 W @ 24 V
-
Output Channels16, individually isolated
-
Output Ranges0 – 20 mA, 4 – 20 mA
-
Resolution12 bits
-
Accuracy±0.1 % of span @ 25 °C
-
Current mode0 – 550 Ω
-
Isolation1500 V ac channel-to-bus
-
Operating Temp0 – +60 °C
-
Storage Temp–40 – +85 °C
-
Humidity5 – 95 % RH non-condensing
-
Factory New
These are new and current items that are procured from the manufacturer. -
New No Package
These parts are new. They have not been used, but their original packaging is no longer available. -
New In Opened Package
These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged. -
New In Sealed Package
Parts are new. They have not been used and still have their original package seal intact. -
New in Original Package
These parts are new. The packages were not originally sealed by their original manufacturer.
Warranty Period & Disclaimer
Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.
FAQs
-
What is the DSAO130A 3BSE018294R1？+It is a 16-channel Analog Output Module designed for ABB process controllers.
-
What is the difference between DSAO 130 and DSAO 130A?+DSAO 130 (57120001-FG): Restricted to use as a spare part for Safeguard safety controllers, and requires a HW license number upon ordering. DSAO 130A (3BSE018294R1): The "revitalized version" used for other, more general process controllers.
-
Is this product brand new?+Yes, ABB DSAO130A 3BSE018294R1 is brand new, original, unused, and factory sealed
-
Which terminal unit should I use?+The DSAO 130A is typically used in conjunction with the DSTA 181 (3BSE018312R1) connection unit.
Get a quick price fo DSAO 130A 3BSE018294R1
whatsapp
Inquiry
Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions
Product
MORE INFORMATION
Overview
Manuals
Technical notes
Product Applications
Wiring Instructions
Features:
- Analog Output Board 16 Channel
- 16 ch., 12 bits resolution
- High-precision transmission with 0.4% accuracy
The S100 I/O process interfacemodules for Advant Controller400 series process controllerscome with connection units,simplifying cable termination andkeeping noise and destructivespikes away from the centralelectronics.
The process I/O modules are “intelligent” in the sensethat module-related signal and data processing isperformed on board as opposed to centrally, by theCPU of the host controller. Time tagging of events,filtering and gain control are some examples ofboard-level tasks. This functional distribution improvesreal-time performance and reliability of the systemas a whole and maintains processing capacity whenthe system is expanded.
The DSAO130A 3BSE018294R1 ABB Analog Output Board may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB DSAO130A 3BSE018294R1 Analog Output Board Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
S100 I/O is the central process interface for AdvantController 400 series process controllers. Thanks tobuilt-in cablemarshalling facilities and parallelcommunication with the host controller, it is theright choice for centralized I/O systems andhigh-speed applications.The range of process I/O modules is complete,consisting of general purpose digital and analoginputs and outputs and special interfaces for specialtasks. These specials include pulse counting,frequency measuring, positioning, motor speedcontrol and communication with other controllers.All I/O modules provide simple interfacing, accurate -yet fast - control, and easy integration of individualloops into a comprehensive plant-wide controland supervision system.
- Pumps (Water, Oil, Fuel): Controlling pressure and volume through speed adjustments.
- Compressors: Managing gas compression levels in industrial and offshore environments.
- Turbines: Used for electro-hydraulic control, governor setpoints, and blade pitch control.
- Generators: Controlling excitation levels and output synchronization.
- Large Industrial Motors: Interfacing with Variable Frequency Drives (VFDs) to adjust speed and torque.
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Voltage Output (0–10 V): Connect to the designated voltage terminals on the DSTA 181.
Current Output (0–20 mA / 4–20 mA): Connect to the current terminals. Note that 4–20 mA is typically managed via software offset.
Isolation: Each channel is individually isolated (up to 1500 V AC channel-to-bus), which prevents a single field fault from taking down the entire board.
