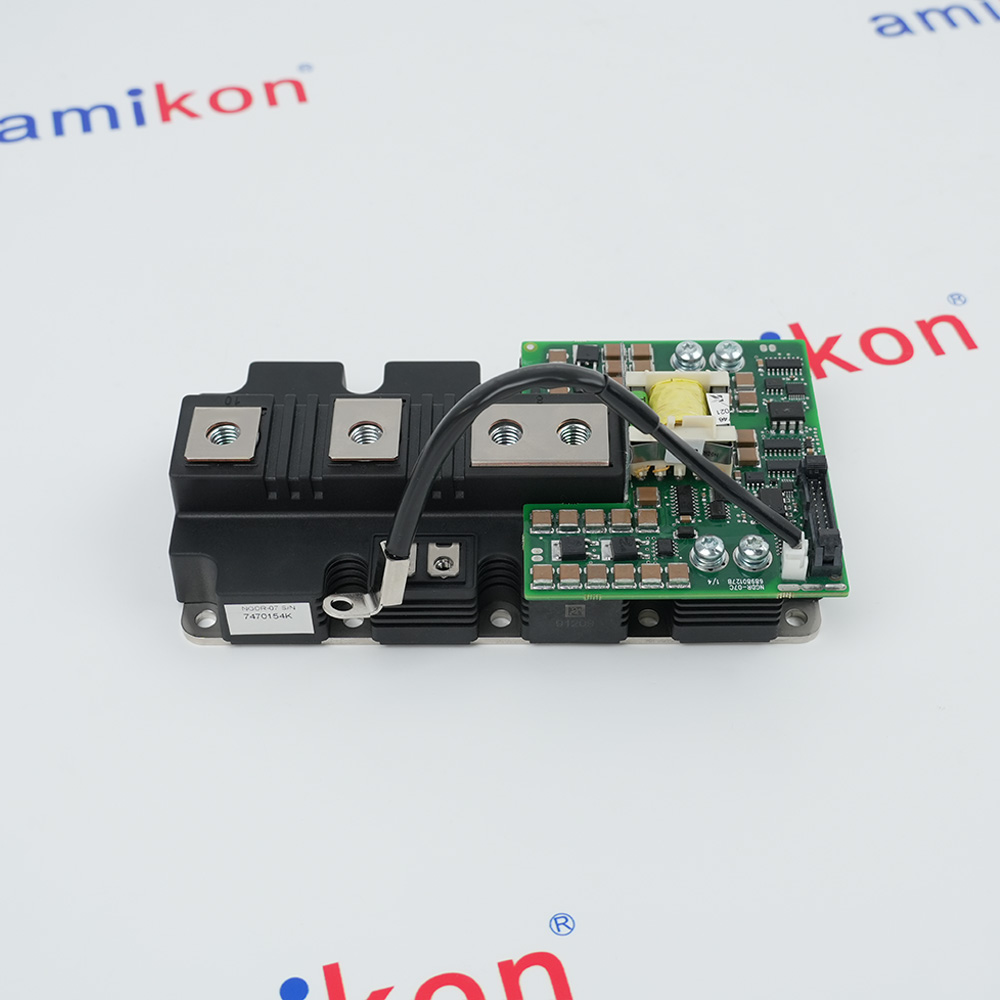

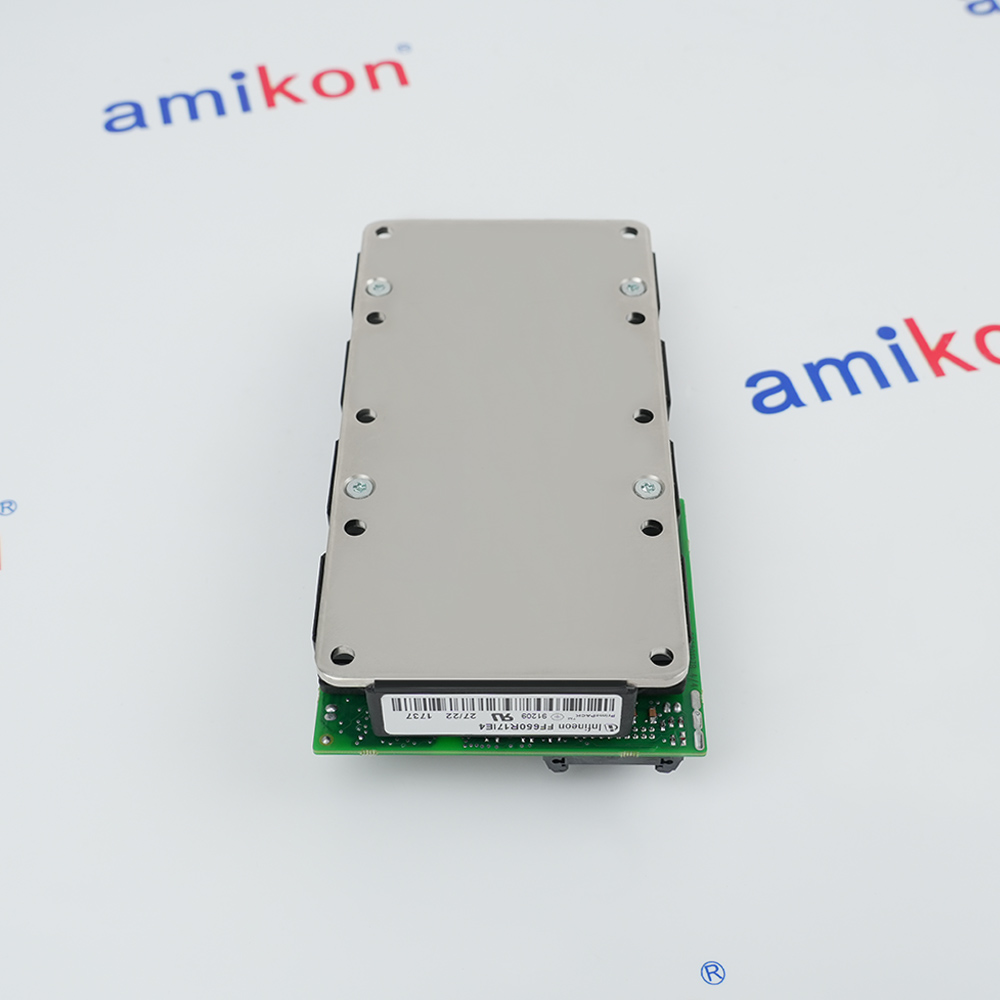

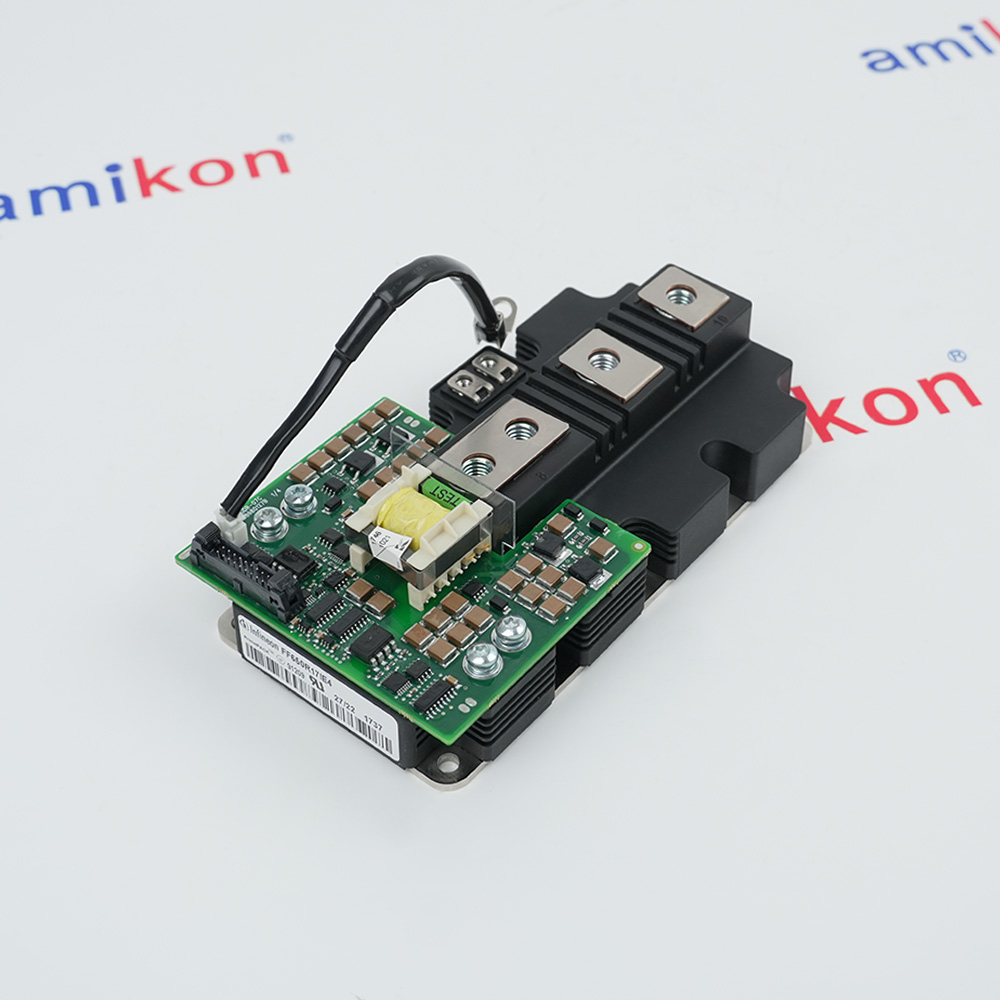

NGDR-07C NGDR-07 FF650R17IE4
Need Help? Contact US!
Call us: +86-18020776786
Proper, Ready.
Delivery time
Please indicate your delivery time
Product Information
Product Describe
FF650R17 2XR8
IGBT module kit
NGDR-07C
IGBT module kit
NGDR-07C
Technical specifications for NGDR-07C NGDR-07 FF650R17IE4
-
Product ModelNGDR-07C NGDR-07 FF650R17IE4
-
Product ParametersIGBT module kit
-
Tariff Code8537101190
-
Country of originSWEDEN
-
Place of shipmentXiamen, China
-
Estimated Shipping Size25x8.8x3.8cm
-
ManufacturerABB
-
Weight1.25 kg
-
Collector-Emitter Voltage1700V
-
Continuous Collector Current325A
-
Gate-Emitter Voltage±20V
-
Isolation Voltage3 kV
-
Storage Temperature-40 to +125°C
-
Factory New
These are new and current items that are procured from the manufacturer. -
New No Package
These parts are new. They have not been used, but their original packaging is no longer available. -
New In Opened Package
These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged. -
New In Sealed Package
Parts are new. They have not been used and still have their original package seal intact. -
New in Original Package
These parts are new. The packages were not originally sealed by their original manufacturer.
Warranty Period & Disclaimer
Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.
FAQs
-
What is the FF650R17IE4 ?+The ABB FF650R17IE4 is a 1700V, 650 A dual Insulated Gate Bipolar Transistor (IGBT) module designed for high-power industrial converters, wind turbines, and motor drives.
-
Which ABB equipment uses the FF650R17IE4 module?+ABB integrates this module into high-power electronics where reliable electrical switching is required. It is commonly found in variable-speed AC drives, industrial motor controllers, solar inverters, and large UPS systems
-
Is this product brand new?+Yes, ABB NGDR-07C NGDR-07 FF650R17IE4 is brand new, original, unused, and factory sealed
-
What systems use this component?+Primarily high-power motor drives, wind turbines, traction systems, and industrial energy storage arrays.
Get a quick price fo NGDR-07C NGDR-07 FF650R17IE4
whatsapp
Inquiry
Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions
Product
MORE INFORMATION
Overview
Manuals
Technical notes
Product Applications
Safety & Handling Guidelines
Features:
- 1700 V / 650 A PrimePACK™ 2 Half-Bridge Configuration
- Extended Junction Temperature Operation
- Trench/Fieldstop IGBT4 Technology with Low VCEsat
- High DC Stability & Low Switching Losses
Electrically, the FF650R17IE4 is rated for 1700 V collector-emitter blocking voltage (VCES) and 650 A continuous DC collector current (IC nom) at a case temperature of 60 °C, with a repetitive peak surge current of 1300 A for 1 ms pulses. This current capability accommodates high-torque motor starts, regenerative braking, and transient overload events inherent to heavy-industry drive cycles. The integrated Emitter Controlled 4 (EC4) freewheeling diode is matched to the IGBT for soft recovery behavior, with a forward voltage of approximately 1.85 V at 25 °C and 1.95 V at 125 °C at 650 A, minimizing conduction losses while suppressing voltage overshoots during commutation.
The NGDR-07C NGDR-07 FF650R17IE4 ABB IGBT module kit may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB NGDR-07C NGDR-07 FF650R17IE4 IGBT module kit Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Thermal performance is a key strength of this module. It is qualified for an extended operating junction temperature Tvj op = 150 °C, with a maximum junction temperature of 175 °C. Low thermal resistance from junction to case—coupled with a copper baseplate for efficient lateral heat spreading—enables effective heat removal via liquid-cooled or forced-air heatsinks. An embedded NTC thermistor (with a typical resistance of 5 kΩ at 25 °C) provides direct substrate temperature feedback to the NGDR-07C control electronics, enabling real-time thermal derating and fault protection.
- Motor Drives:AC inverter drives: regulates motor acceleration
- Wind Turbines:Megawatt converters: stabilizes grid energy
- High Power Converters:High thermal switching reliability for industrial setups
- 3-Level Applications:Multi-level inverters: lower THD, higher efficiency
- Auxiliary Inverters:Mass transit: powers AC/lighting onboard
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
ESD Safety: IGBTs are highly sensitive static-sensitive electronic devices. Wear grounded wrist straps and work only on ESD-safe mats.
DC Bus Discharge: Before physically handling any component inside an ABB cabinet, completely isolate the drive and verify that the high-voltage DC bus capacitors are fully discharged using an appropriate multi-meter.
Avoid Mechanical Stress: Never pull or bend the auxiliary pins or gate terminals during driver board alignment.
