PRODUCT DESCRIPTION

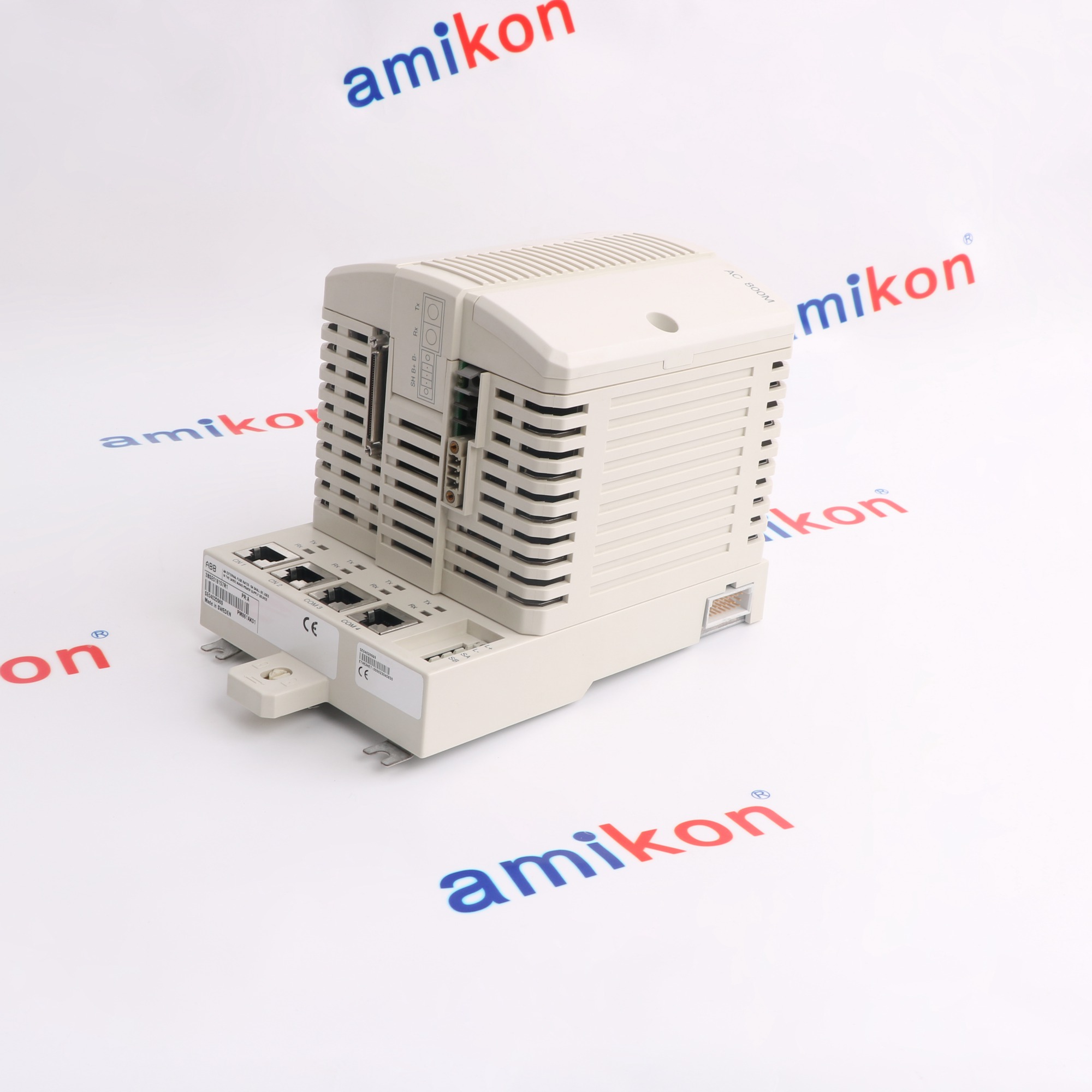

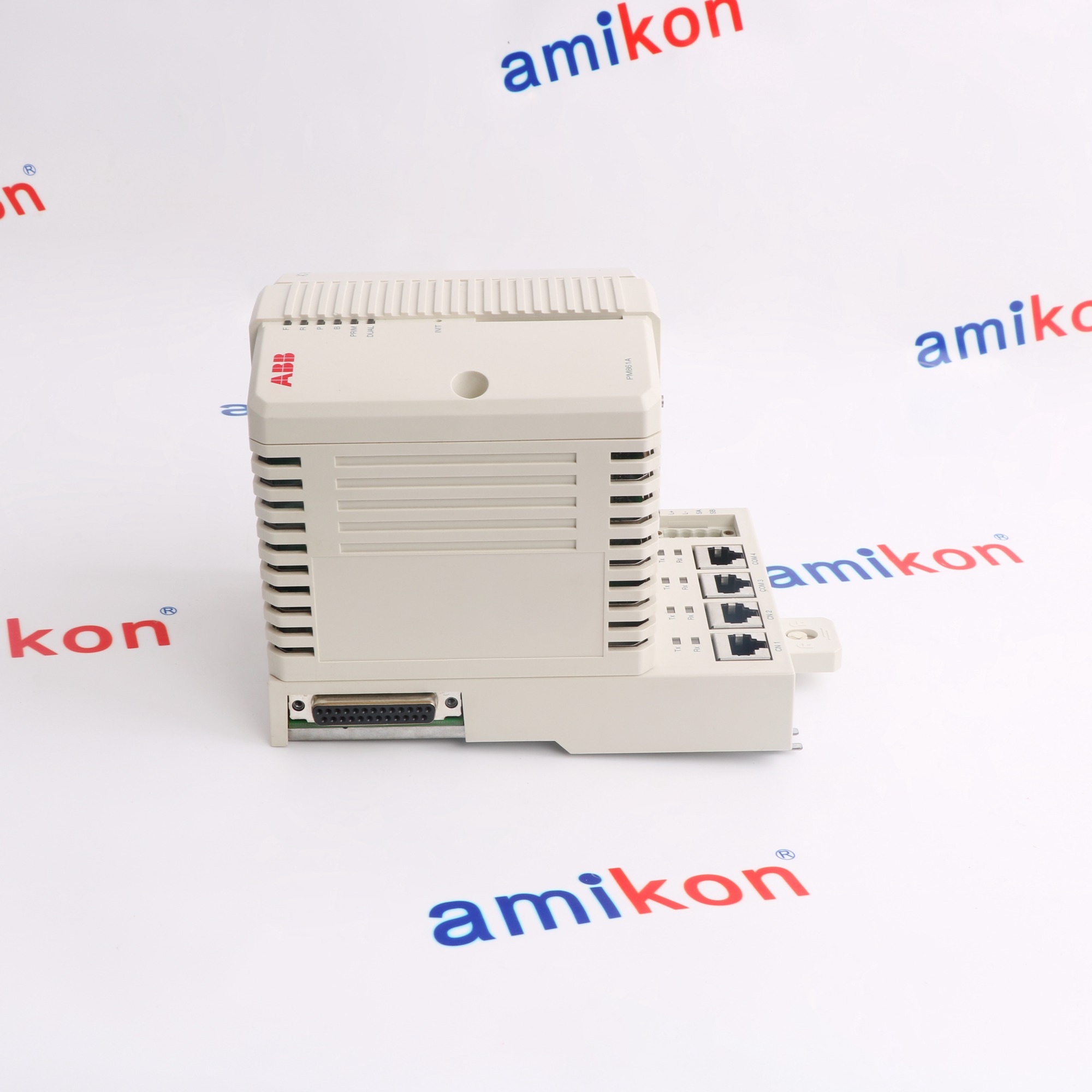

PM861AK01 3BSE018157R1 AC 800M Processor Unit

ABB PM861AK01 3BSE018157R1 is an AC 800M processor unit built around the PM861A CPU and its TP830 baseplate. The processor combines a 48 MHz MPC860, 16 MB of SDRAM and battery-backed memory with communication interfaces for the documented controller arrangement.

Two Ethernet connections and two RS-232C ports serve different network and service roles, while communication expansion uses the CEX-Bus. A 24 V DC supply, appropriate bus terminations and the selected backup arrangement must be checked before commissioning or replacing the processor unit.
ACTUAL APPLICATIONS

Relevant contexts for PM861AK01 3BSE018157R1

These categories reflect documented ABB portfolio contexts, not proof of suitability for every installation. Exact-model selection remains subject to the approved configuration.
  • 01 · WATER & WASTEWATER

    Municipal Water and Wastewater Management

    Municipal utilities and public water servicesMunicipal wastewater and urban environmental protection
  • 02 · OIL & GAS

    Oil and Gas Extraction and Refining

    Upstream petroleum and natural gas explorationDownstream petroleum refining and gas distribution
  • 03 · PULP & PAPER

    Pulp and Paper Supply and Distribution

    Pulp and paper supply chain servicesPaper recycling and circular economy development

Technical specifications for PM861AK01 3BSE018157R1

  • Product Model
    PM861AK01 3BSE018157R1
  • Spare Model
    3BSE018157R1
  • Product Parameters
    AC 800M Processor Unit
  • Manufacturer
    ABB
  • Processor
    MPC860, 48 MHz
  • SDRAM capacity
    16 MB
  • Firmware flash PROM
    2 MB
  • Supply voltage
    24 V DC nominal; 19.2-30 V DC
  • Processor current consumption
    250 mA typical; 430 mA maximum, excluding ModuleBus and CEX-Bus supply
  • Power dissipation
    6 W typical; 11 W including full ModuleBus and CEX-Bus supply
  • Internal power reservoir
    5 ms
  • Ethernet interface
    2 ports; IEEE 802.3, 10BaseT
  • Serial interfaces
    2 x RS-232C: COM3 with modem support; COM4 for service tool
  • Electrical ModuleBus capacity
    12 S800 I/O units in single-CPU configuration
  • Protection rating
    IP20, EN 60529 / IEC 529
  • Memory backup time
    Internal battery: minimum 118 h; SB821: minimum 12 weeks; fully charged SB822: minimum 285 h
  • CompactFlash interface
    Application loading and cold-retain data storage
  • Redundant CPU switchover
    Less than 10 ms
  • Power input connector
    4-pin screw connector: L+, L-, SA, SB
View all additional

Alternative Names

PM861AK01 3BSE018157R1 PM861A AC 800M processor unit
SYSTEM & REPLACEMENT CHECK

Information needed before ordering

Three direct checks to secure your system integration and minimize ordering risks.

Information

System integration Replacement check Manuals & support
SYSTEM INTEGRATION

Integrate PM861AK01 3BSE018157R1 in the documented AC 800M arrangement

PM861AK01 identifies the PM861A processor-unit package. Use the TP830 connection arrangement and the exact 3BSE018157R1 order reference when checking the CPU, baseplate and supplied accessories. Verify the actual package contents against the quotation rather than assuming all listed optional items are included.
CN1 and CN2 provide the documented 10BaseT Ethernet connections. COM3 is the RS-232C interface with modem support; COM4 is the service-tool interface. Keep the distinct port roles, the required bus terminations and the selected single or redundant configuration in the installation record.
Check the 19.2-30 V DC supply limits and the power budget including connected buses. For memory backup, follow the normal power-up and battery-activation sequence. Commission with the approved controller application and review the applicable safety instructions before connecting the controlled process.

Features:

  • TP830 network and serial connections
  • 19.2-30 V DC input range
  • Application and memory-backup checks
Confirm TP830 port assignments, bus terminations and the DC supply before commissioning PM861AK01.
INTERCHANGEABILITY

Verify PM861AK01 3BSE018157R1 before replacement

Do not reduce PM861AK01 3BSE018157R1 to a generic PM861 family label. The manual distinguishes PM861 from PM861A, including different battery-backup times. Retain the complete unit identity and confirm the fitted TP830 baseplate, bus terminations and application version before choosing a replacement.
Record the communication connections, backup source and single or redundant CPU arrangement before exchange. The documented redundancy performance and required connections must be considered together; a second CPU by itself does not establish a commissioned redundant controller.
After an approved exchange, use the manufacturer startup procedure, verify communications and confirm the retained or loaded application. Check the backup status and controller diagnostics before returning the connected process to service. No unrestricted cross-model replacement is asserted by this reference.

Features:

  • PM861A-specific backup requirements
  • Recorded CPU redundancy configuration
  • Verified application and communication restart
PM861 and PM861A have different documented memory-backup times. Preserve the complete A-suffix identity when selecting a replacement.
ABB PM861AK01 3BSE018157R1 AC 800M Processor Unit Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

Features:

  • Exact-model data for PM861AK01 3BSE018157R1
  • ABB hardware reference: pages 261-264
  • Series and ABB product directories
Documentation for PM861AK01 3BSE018157R1 must match the complete installed product identity, the documented AC 800M configuration and the supplied processor unit before service.

Important notice

Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
