PRODUCT DESCRIPTION

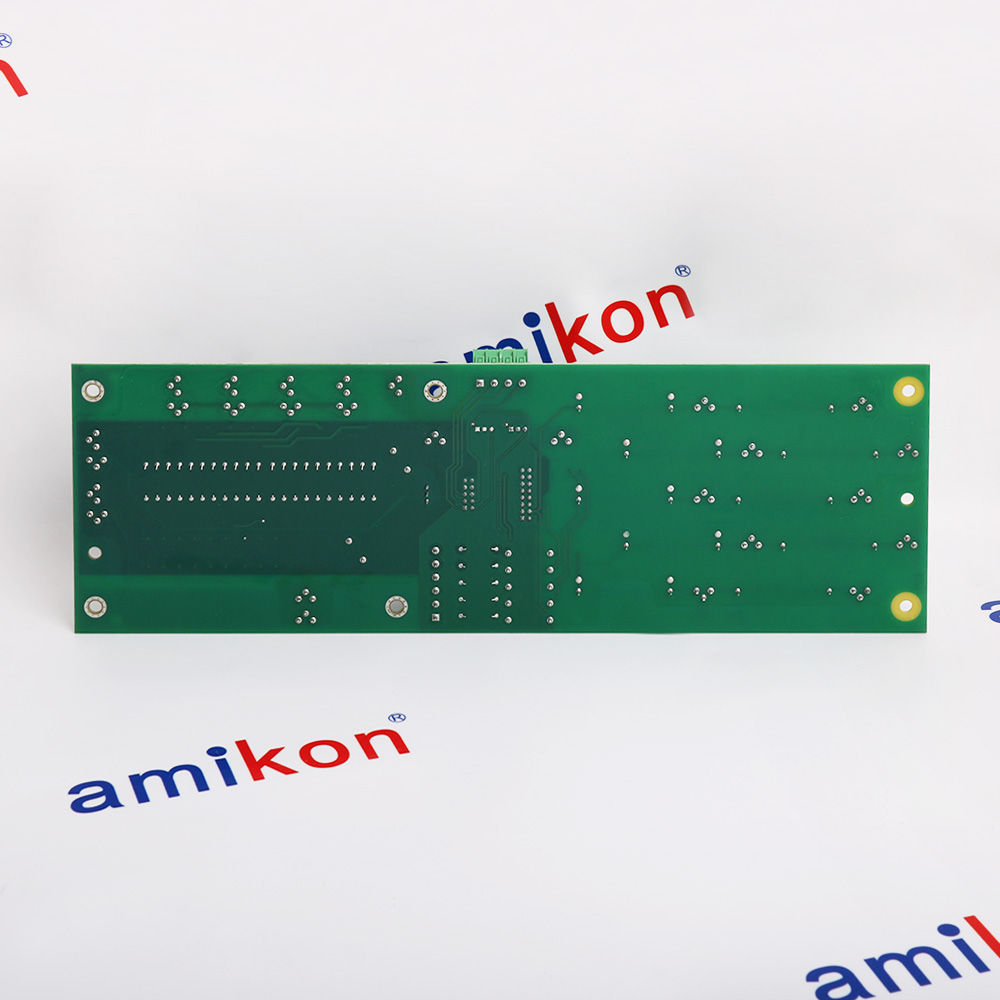

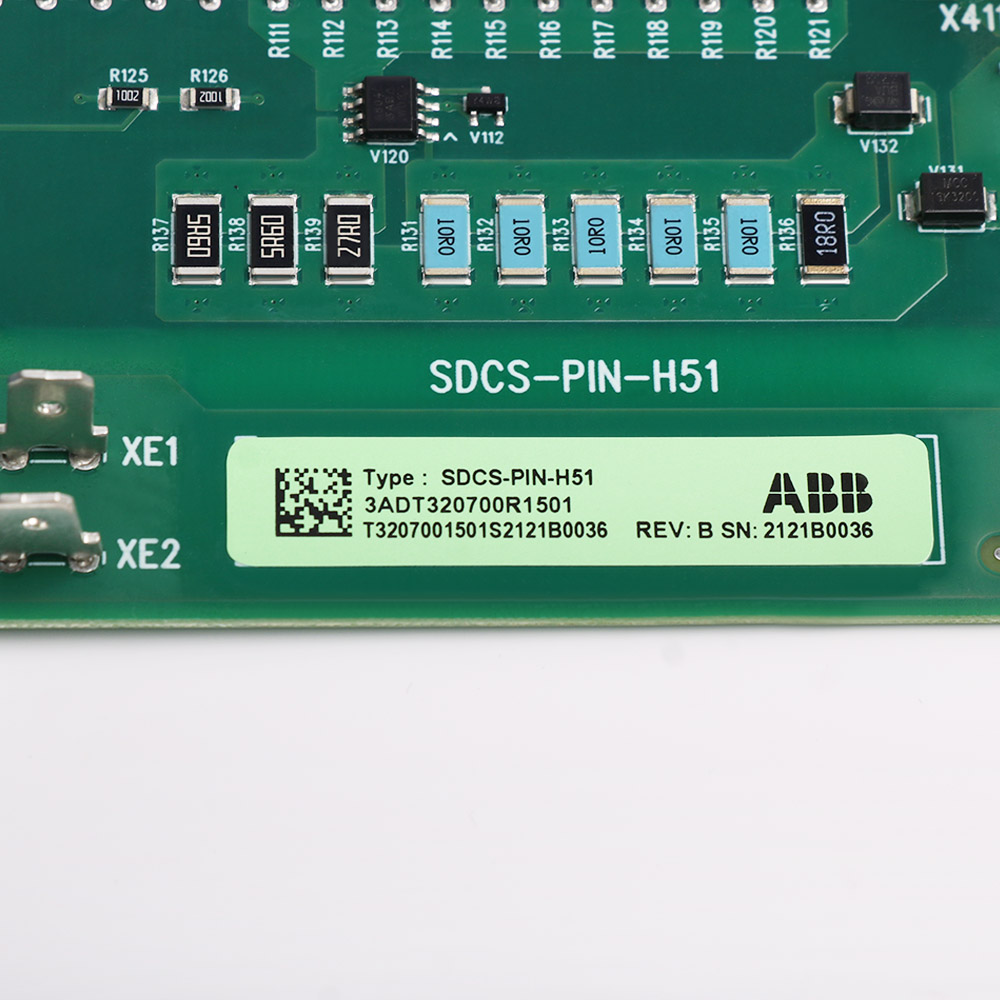

SDCS-PIN-H51 3ADT320700R1501 DCS880 measurement board
ABB SDCS-PIN-H51 3ADT320700R1501 is a measurement board used in compatible DCS880 power-stage configurations. It interfaces the heat-sink PTC temperature signal and provides the voltage and armature-current measurement paths required by the drive power section.
High-ohmic resistor networks measure and scale AC and DC voltage, while burden resistors scale armature current to 1.5 V at the rated current of the power stage. The H51 board designation and complete ABB article number identify the required layout and component execution.
High-ohmic resistor networks measure and scale AC and DC voltage, while burden resistors scale armature current to 1.5 V at the rated current of the power stage. The H51 board designation and complete ABB article number identify the required layout and component execution.
BEFORE YOU BUY
Confirm the complete SDCS-PIN-H51 3ADT320700R1501 identity
ACTUAL APPLICATIONS
Application fields for SDCS-PIN-H51 3ADT320700R1501
These broad application fields reflect the documented function and technical characteristics of SDCS-PIN-H51 3ADT320700R1501.
-
01 · METALS & MINING
Metal Processing and Mineral Resource Production
Ferrous and nonferrous metal productionMineral extraction and processing -
02 · PULP & PAPER
Pulp Production and Paper Product Manufacturing
Pulp and fibre productionPaper and packaging material manufacturing -
03 · OIL & GAS
Petroleum Production and Natural Gas Processing
Upstream and downstream petroleum productionNatural gas processing and transmission
Technical specifications for SDCS-PIN-H51 3ADT320700R1501
-
Product ModelSDCS-PIN-H51 3ADT320700R1501
-
Product ParametersDCS880 measurement board
-
In stock1 unit
-
ManufacturerABB
-
Board designationSDCS-PIN-H51
-
Drive familyDCS880
-
Board functionPower-stage measurement board
-
Temperature inputHeat-sink PTC measurement interface
-
Voltage measurementAC and DC voltage scaling
-
Current measurementArmature-current scaling
-
Scaled current signal1.5 V at rated power-stage current
-
Board width100 mm
-
Board length305 mm
View all additional
Alternative Names
SDCS-PIN-H51 3ADT320700R1501
ABB DCS880 measurement board
ABB DCS880 drives
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Integrate SDCS-PIN-H51 3ADT320700R1501 within ABB DCS880 drives
Use SDCS-PIN-H51 3ADT320700R1501 as the documented DCS880 measurement board within the approved ABB DCS880 drives architecture. The PDF-defined article identity determines its electrical role, interface arrangement and permitted configuration in the assembled equipment.
The PDF identifies board designation (SDCS-PIN-H51), drive family (DCS880), board function (Power-stage measurement board) and temperature input (Heat-sink PTC measurement interface); each value must match the approved installation record. Check the associated supply, field wiring, connector allocation and environmental limits before energization.
The PDF identifies voltage measurement (AC and DC voltage scaling), current measurement (Armature-current scaling), scaled current signal (1.5 V at rated power-stage current) and board width (100 mm); each value must match the approved installation record. Verify temperature, AC/DC voltage and armature-current feedback paths together with the drive diagnostic status before operation.
