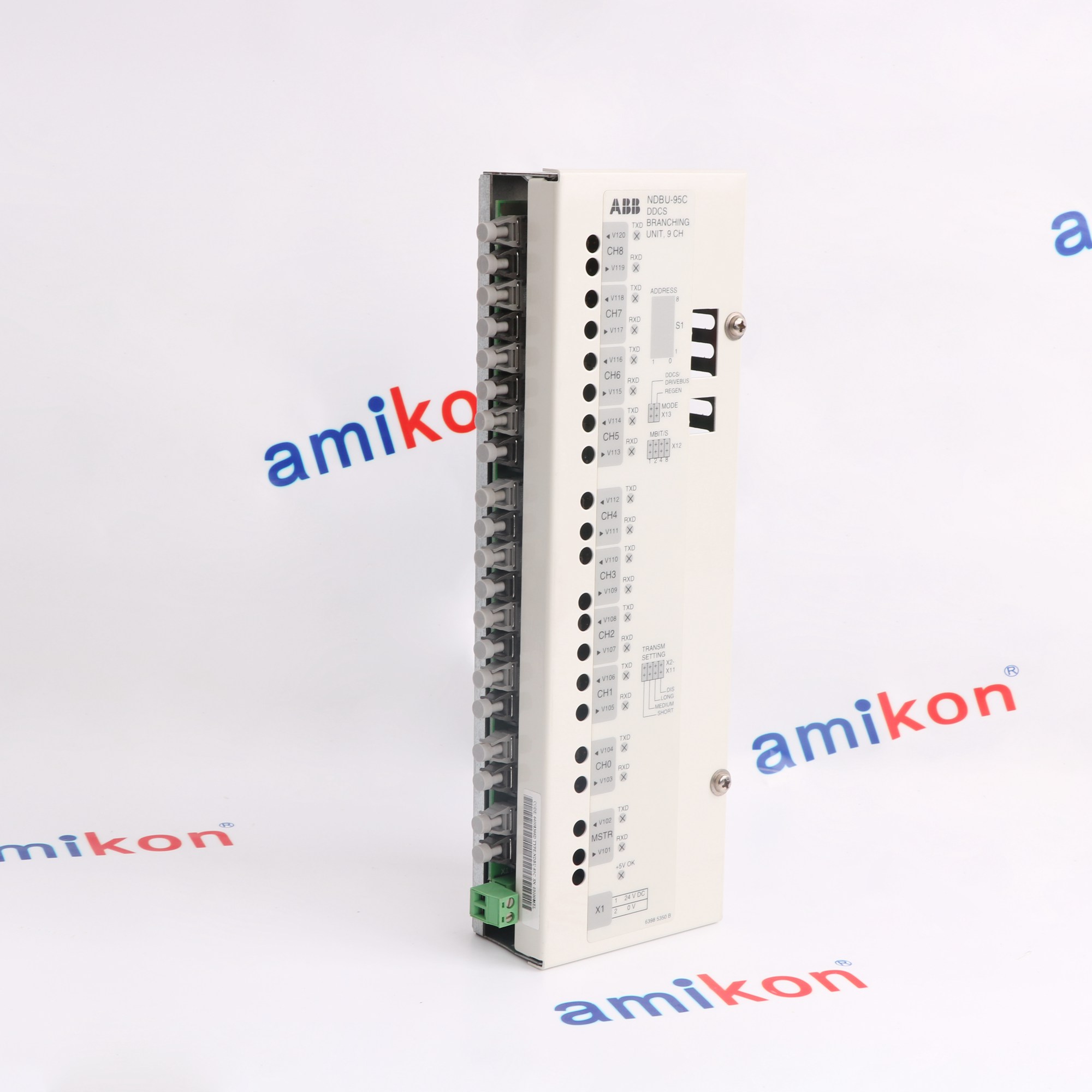

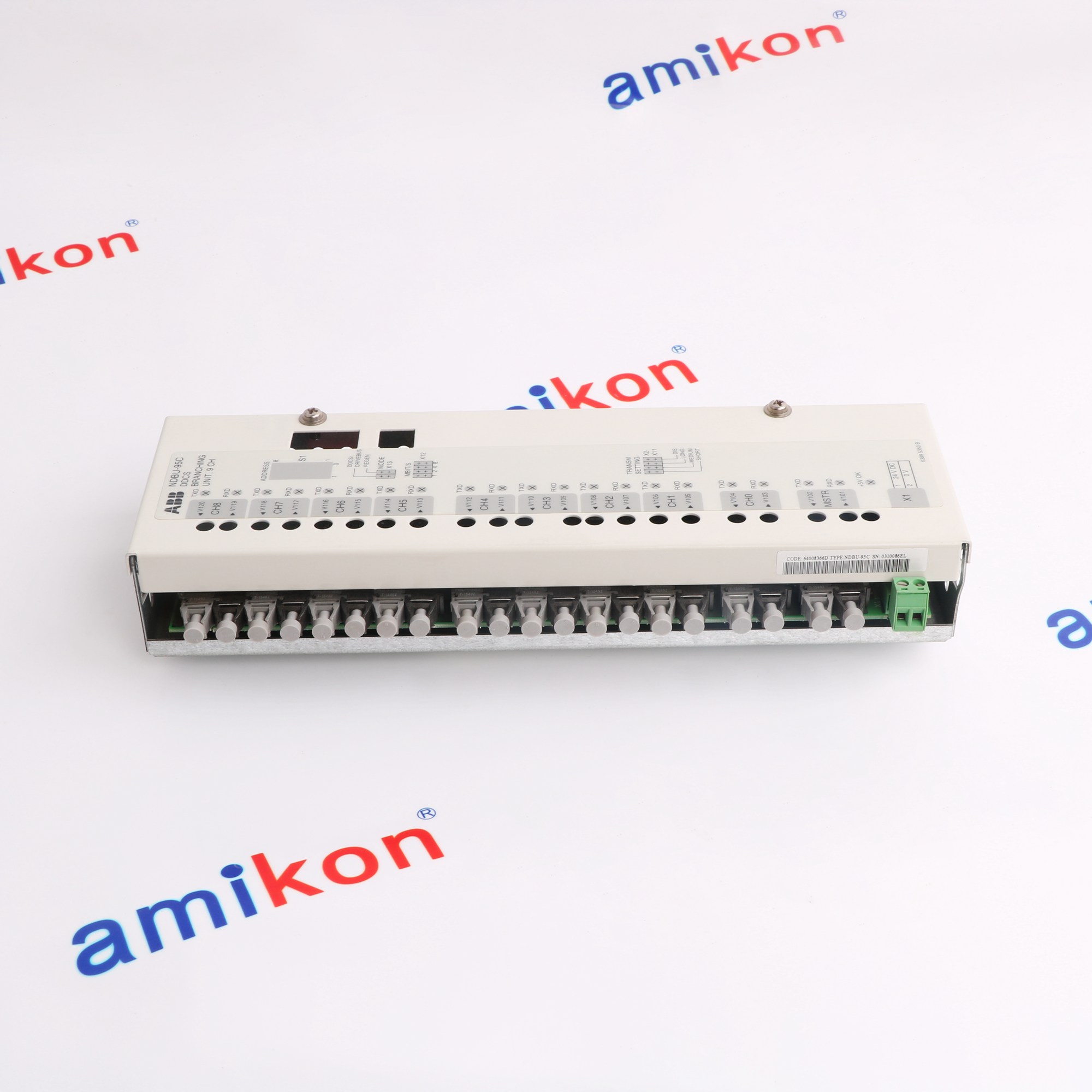

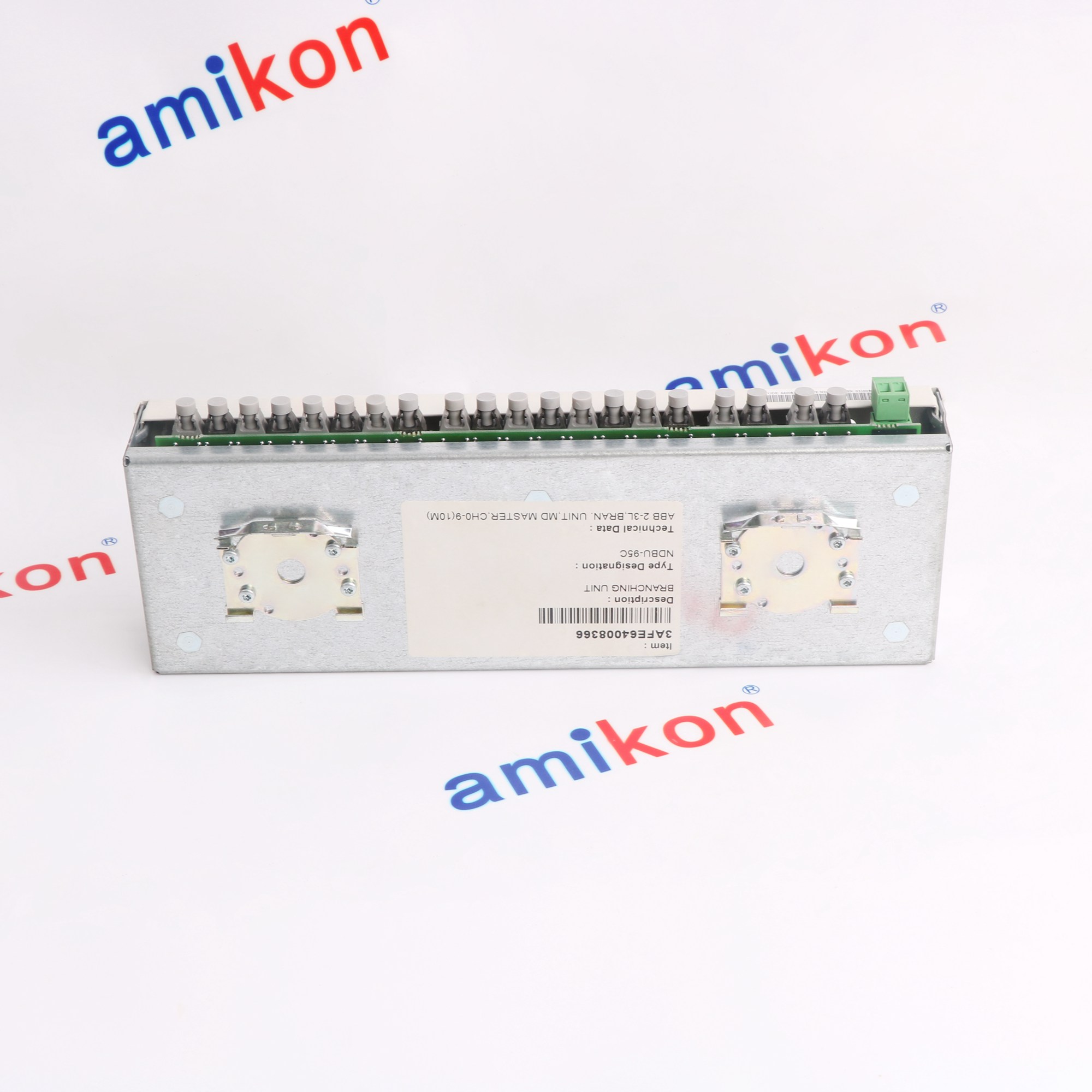

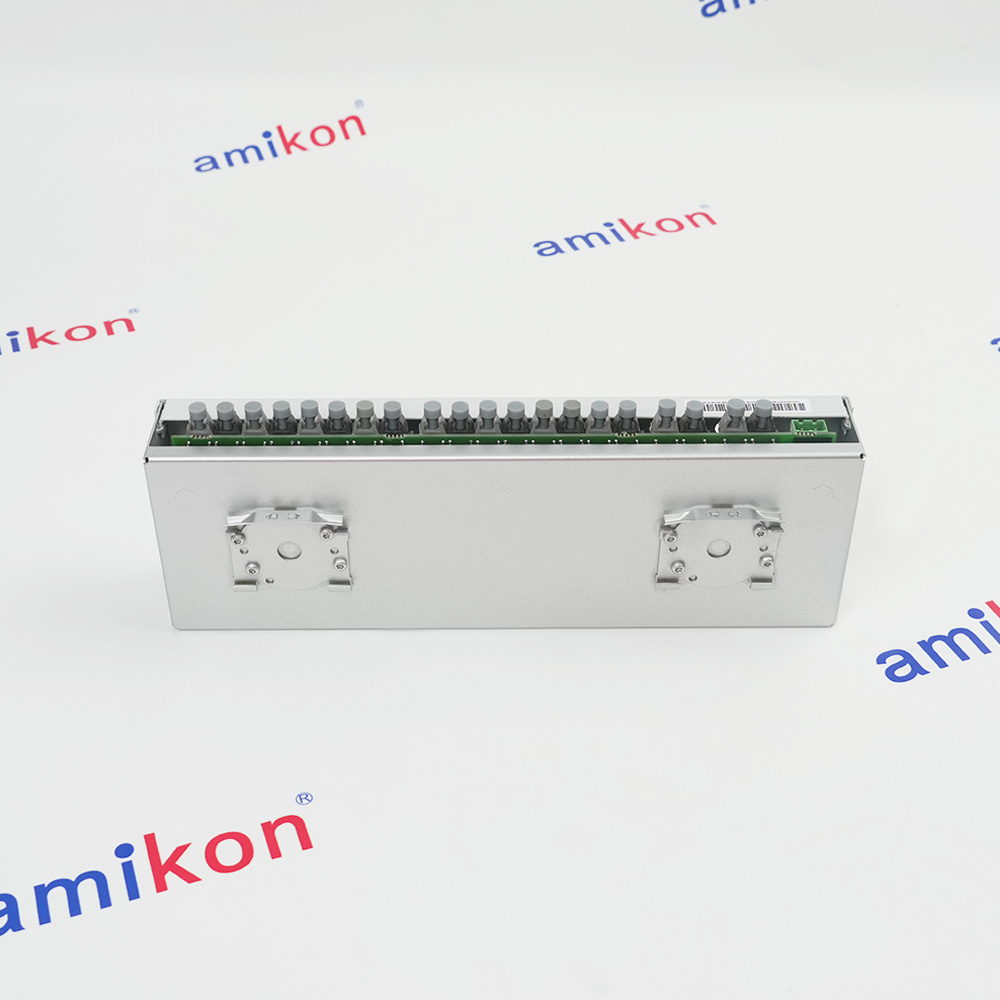

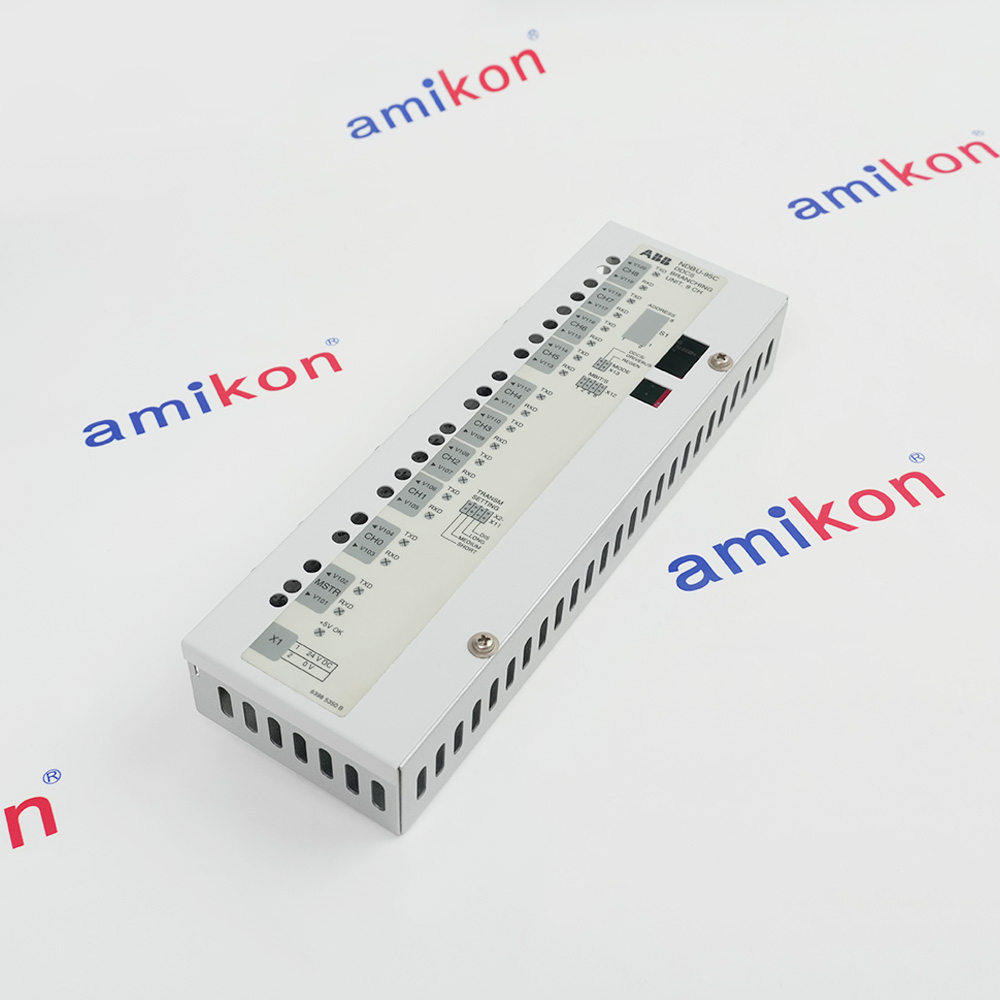

      ABB NDBU-95C 64008366D
      ABB NDBU-95C 64008366D
      ABB NDBU-95C 64008366D
      ABB NDBU-95C 64008366D
      ABB NDBU-95C 64008366D
      ABB NDBU-95C 64008366D
      · Product image is representative; revision or series may vary. Contact us to request a specific version.
      Ships by Saturday, November 14

      NDBU-95C 64008366D

      Optical branching unit

      Require for Quote:

      Shipping Information

      • For inventory products, we support same day shipping upon payment.
      • For urgent needs, we offer same-day shipping on most items for orders placed before 2:00 PM UTC+8 Simply mention your preferred next-day shipping when place the order, and your order will be prioritized to minimize downtime.
      • For indent items, typical turnaround is 1-3 weeks, depending on parts availability and scarcity.
      Customs & Documentation
      We prepare clear, order-specific documentation for every international shipment, including the commercial invoice, packing list and available product or compliance documents. Before dispatch, our logistics team confirms the consignee details, declared value, shipping terms and destination requirements with you. Tracking information is provided after shipment, helping your team prepare for import clearance with confidence.
      Documents checked before dispatch · Shipment details confirmed · Global tracking provided
      Payment
      Payment is by bank wire only in RMB/CNY, GBP, EUR or USD. Amikon does not accept credit cards or provide credit terms. Cleared payment is required before shipment unless the written quotation expressly states otherwise.
      Product Condition
      Factory New These are new and current items that are procured directly from the manufacturer.
      New In Sealed Package Parts are new. They have not been used and still have their original package seal intact.
      New in Original Package These parts are new. The packages were not originally sealed by their original manufacturer.
      Quantity
      Mobile *
      Country/Region *
      E-mail *
      Company
      Content *
      Upload
      (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Amikong please read our privacy policy.

      • 20+

        years in automation

      • ISO 9001

        certified quality system

      • 12 months

        amikon warranty

      • 2-hour reply

        from your account manager

      • Success Story

        solutions in action
      PART NUMBER SEARCH

      Find another automation part

      • Please try to be as accurate as possible with your search.
      • We can quote you on 1000s of specialist parts, even if they are not listed on our website.
      • We can't find any results for “”.
        SEE MORE
          SEE PRODUCTS IN SEARCH PAGE ()
          PRODUCT DESCRIPTION

          NDBU-95C 64008366D Optical branching unit

          ABB NDBU-95C 64008366D is an optical branching unit for compatible ABB drive-network arrangements. The NDBU-95 architecture provides nine branch channels and one master optical connection, distributing the optical link between a host connection and multiple drives.

          The ABB configuration instructions describe DDCS and DriveBus mode selection, selectable link rates and individual optical-power settings. DriveWindow normally uses a 1 Mbit/s link; 10 MBd identifies the optical component class and must not be confused with that link rate. Cable medium, optical-power setting and board revision determine the permitted connection arrangement.
          BEFORE YOU BUY

          Confirm the complete NDBU-95C 64008366D identity

          Send a label photo for review >>
          ACTUAL APPLICATIONS

          Application fields for NDBU-95C 64008366D

          These broad application fields reflect the documented function and technical characteristics of NDBU-95C 64008366D.
          • 01 · INDUSTRIAL MANUFACTURING

            Continuous Materials and Industrial Product Manufacturing

            Continuous materials production and industrial product manufacturingDiscrete manufacturing production and industrial assembly processing
          • 02 · METALS & MINING

            Metal Production and Mineral Material Processing

            Primary metal production and processed mineral manufacturingMetal fabrication production and mineral raw material processing
          • 03 · PULP & PAPER

            Pulp Production and Converted Paper Manufacturing

            Pulp production and continuous paper material manufacturingPaper converting production and fiber material processing

          Technical specifications for NDBU-95C 64008366D

          • Product Model
            NDBU-95C 64008366D
          • Spare Model
            3AFE64008366
          • Product Parameters
            Optical branching unit
          • In stock
            1 unit
          • Manufacturer
            ABB
          • Branch channels
            9: CH0–CH8
          • Master optical channel
            1: MSTR
          • Optical component class
            10 MBd
          • DriveWindow default link rate
            1 Mbit/s
          • Selectable link rates
            1, 2, 4, 8 Mbit/s
          • Supply connector
            X1: 24 V DC
          • Link-rate selector
            X12
          • Operating-mode selector
            X13: DDCS / DRIVEBUS
          • Optical-power selectors
            X2–X11
          • Power status indication
            +5 V OK LED
          • Unused optical channels
            DISABLED setting
          • Optical media
            POF or HCS with compatible 10 MBd components
          View all additional
          Ask for Quote

          Alternative Names

          NDBU-95C 64008366D NDBU-95 DDCS Optical branching unit
          SYSTEM & REPLACEMENT CHECK

          Information needed before ordering

          Three direct checks to secure your system integration and minimize ordering risks.

          Information

          System integration Replacement check Manuals & support
          SYSTEM INTEGRATION

          Integrate NDBU-95C 64008366D within NDBU-95 DDCS

          Connect the NDBU-95 master channel and the required CH0–CH8 branches according to the drive-network topology. The ABB instructions address tree, parallel and mixed branching arrangements; label the optical paths so master and branch channels remain distinguishable during service.
          Set communication speed with X12 and select the required operating mode with X13. DriveWindow uses DDCS mode and a default 1 Mbit/s link; the available speed positions are 1, 2, 4 and 8 Mbit/s. Do not mix 5 MBd and 10 MBd optical components simply because their connectors fit.
          Set each X2–X11 optical-power selector for its actual fiber type, length and applicable board revision, and disable unused channels. ABB gives different optical-current settings across board revisions, so a single generic current or fiber-distance limit cannot be applied to every NDBU-95C installation.

          Features:

          • Branch channels: 9: CH0–CH8
          • Master optical channel: 1: MSTR
          • NDBU-95 DDCS
          Use NDBU-95C 64008366D only within the documented NDBU-95 DDCS arrangement and applicable installation instructions.
          INTERCHANGEABILITY

          Replace NDBU-95C 64008366D within NDBU-95 DDCS

          Record the NDBU-95C and 64008366D markings, board revision and all master/branch fiber labels before exchange. The NDBU-85 and NDBU-95 families do not have identical optical-component arrangements, even when the same cable connector can be inserted.
          Photograph the X12 speed selection, X13 mode and the X2–X11 optical-power positions on the removed board. Compare the replacement revision and optical component class before transferring settings, because ABB documents revision-dependent optical transmitter currents.
          After reconnecting the 24 V DC supply and optical paths, check the +5 V OK indication and discover every intended drive through the configured host link. Verify the chosen rate, DDCS mode where required and disabled unused channels before normal network use.

          Features:

          • Branch channels: 9: CH0–CH8
          • Master optical channel: 1: MSTR
          • NDBU-95 DDCS
          Use NDBU-95C 64008366D only within the documented NDBU-95 DDCS arrangement and applicable installation instructions.
          DOCUMENTATION STATUS

          Browse the Manuals, Datasheets, Official Documents, Links

          Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.

          Features:

          • Exact-model technical data for NDBU-95C 64008366D
          • Document applicability checked against the complete identity
          • Directory links by subcategory and brand
          Documentation for NDBU-95C 64008366D must match the installed product identity and supplied configuration.

          Also searched as

          ACS350-03U-23A1-4 ACS-CP-C 3ABD64739000 SAMI04MB4-M2 SDCS-COM-5 3BSE006567R1 CMRB-11C 3AUA0000054682

          Important notice

          Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
          This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
          BUYER INFORMATION

          Commercial terms without hidden steps

          Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
          • 01

            Shipping & delivery

            Dispatch
            Eligible stock: same / next day
            Carriers
            DHL, FedEx or UPS
            Ship from
            Xiamen, China
            Product size
            26.30 x 9.50 x 5.00 cm
            Net weight
            0.70 kg
          • 02

            Payment & customs

            Payment
            Bank transfer (T/T)
            Currencies
            USD · EUR · GBP · RMB
            Credit cards
            Not accepted
            HS reference
            8517622990
            Origin
            Sweden
          • 03

            Warranty & returns

            Warranty
            12 months from AMIKON
            Inspection
            Label, condition and packing checks
            Returns
            Prior RMA authorisation required
            Compatibility
            Confirm before order
            OEM warranty
            Does not apply
          Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.

          • Part checked

            Full suffix recorded

          • Condition checked

            Label and appearance

          • Packing checked

            Antistatic protection

          • Tracking supplied

            Established couriers

          • Sandy Lin

            Dedicated account manager · 15+ years
          FREQUENTLY ASKED QUESTIONS

          Questions buyers ask about NDBU-95C 64008366D

          Direct answers about identity, compatibility, stock, warranty, payment and shipping.

          • How many branch paths are available on NDBU-95?

            The NDBU-95 layout provides CH0 through CH8, plus a separate MSTR optical channel.

          • Is 10 MBd the normal DriveWindow link rate?

            No. It describes the optical component class; DriveWindow defaults to a 1 Mbit/s communication link.

          • Which selector determines the communication speed?

            X12 provides the documented 1, 2, 4 and 8 Mbit/s speed positions.

          • Which mode is used for DriveWindow?

            The ABB instructions specify DDCS mode rather than DriveBus mode for DriveWindow.

          • Can identical fiber connectors establish optical compatibility?

            No. ABB warns that 5 MBd and 10 MBd optical components cannot be mixed despite mechanically compatible connectors.

          • Why should optical-power settings be photographed before replacement?

            Settings depend on fiber type, cable length and board revision. The instructions include revision-dependent transmitter-current tables.

          • What board details are required to source 64008366D?

            Provide the NDBU-95C marking, 64008366D reference, board revision and clear photographs of selectors and optical connectors.

          • Does a branching-unit quotation include fiber cables?

            Specify required cable types and lengths separately. The unit identification does not define a complete fiber-cable set.
