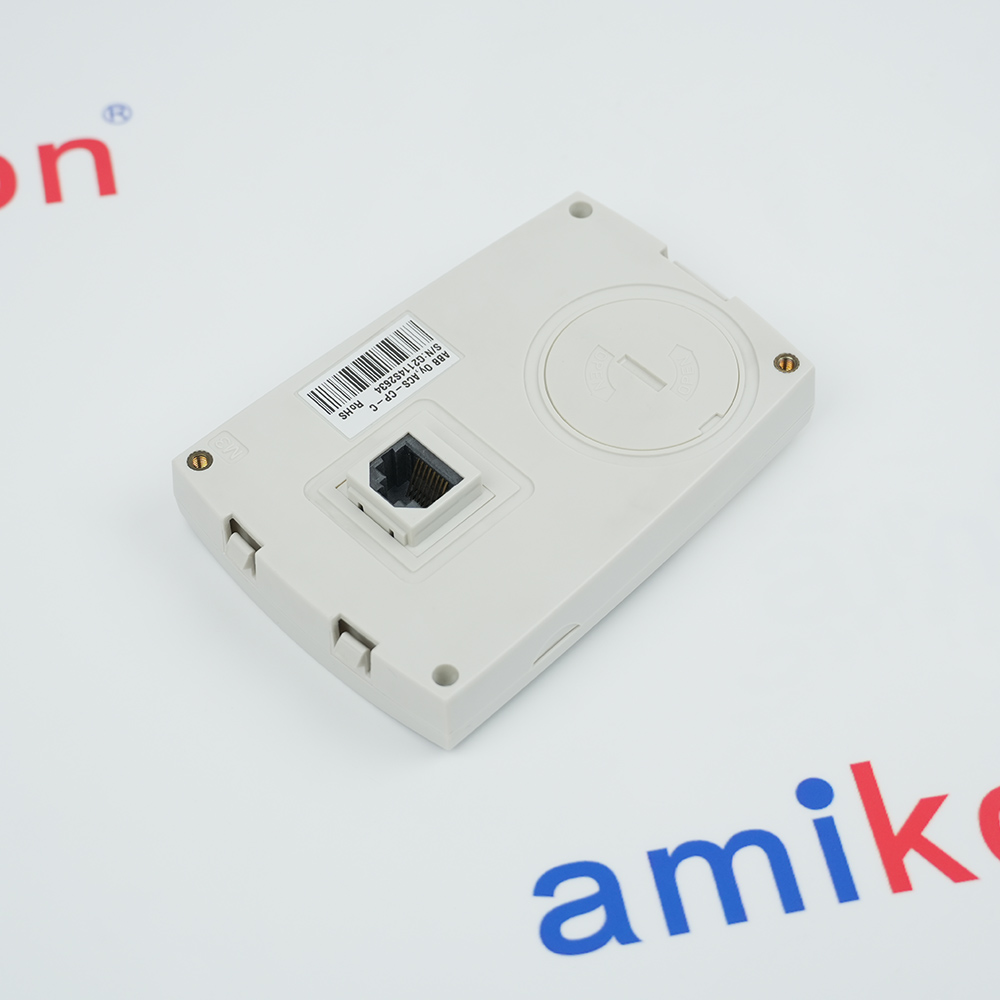

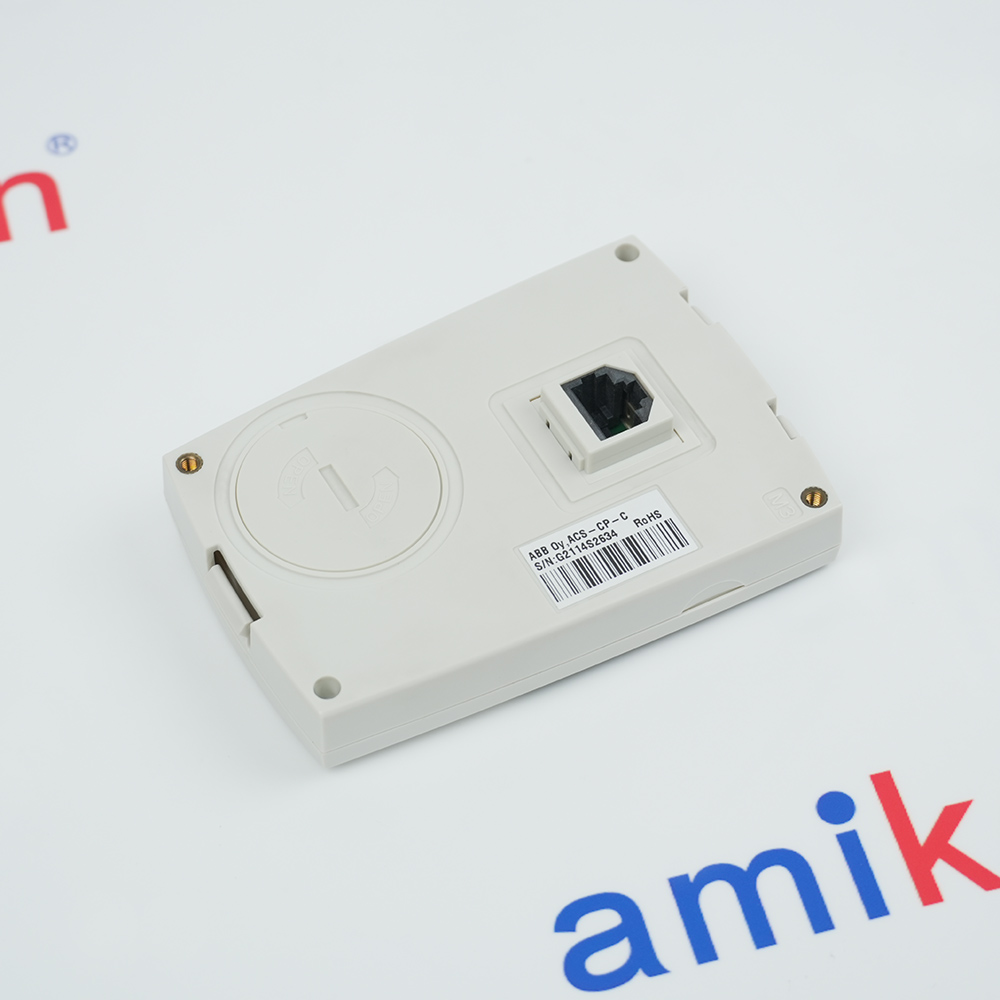

- ACS-CP-C 3ABD64739000
In Stock
Ships by Saturday, July 25
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for ACS-CP-C 3ABD64739000
-
Product ModelACS-CP-C 3ABD64739000
-
Product ParametersBasic Control Panel
-
Tariff Code8537101190
-
Country of originSWEDEN
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size7x3.5x10cm
-
ManufacturerABB
-
Weight0.1 kg
-
Connector8-pin RJ-45
-
Display Type1-line, 7-segment LED, 4 digits
-
Supply5 V DC ± 5 %
-
Current30 mA typical, 50 mA max
-
Isolation500 V AC
-
Operating Temperature0 °C … +55 °C
-
Storage Temperature–40 °C … +70 °C
-
Humidity5 % … 95 % RH (non-condensing)
Description
The ACS-CP-C is a Basic Control Panel manufactured by ABB for use with ACS series variable frequency drives. The ACS-CP-C provides operators with an intuitive interface for controlling, monitoring, and configuring ABB drive systems in industrial automation applications. The ACS-CP-C is identified by product ID 3ABD64739000 and serves as a fundamental user interface option for small to medium industrial drive applications.
The ACS-CP-C features a numeric control panel with an LCD display that is divided into five distinct areas for comprehensive information presentation. The upper left of the ACS-CP-C display shows the control location (LOC for local control or REM for remote control), while the upper right indicates the unit of the displayed value. The center area of the ACS-CP-C displays parameter and signal values, menus, lists, and fault or alarm codes. The lower left and center show the panel operation state including OUTPUT, PAR (Parameter), MENU, or Fault mode. The lower right of the ACS-CP-C display features indicators for FWD (forward)/REV (reverse) motor rotation direction and setpoint status.
The ACS-CP-C features a numeric control panel with an LCD display that is divided into five distinct areas for comprehensive information presentation. The upper left of the ACS-CP-C display shows the control location (LOC for local control or REM for remote control), while the upper right indicates the unit of the displayed value. The center area of the ACS-CP-C displays parameter and signal values, menus, lists, and fault or alarm codes. The lower left and center show the panel operation state including OUTPUT, PAR (Parameter), MENU, or Fault mode. The lower right of the ACS-CP-C display features indicators for FWD (forward)/REV (reverse) motor rotation direction and setpoint status.
Information
Overview
Manuals
Application Notes
Product Applications
Direct Drive Insertion
Features:
- Numeric Control Panel with LCD Display
- Five Panel Operating Modes
- High Efficiency and Low Heat Dissipation
- Compact and Lightweight Design
- Compatible with Multiple ABB Drive Series
The ABB ACS-CP-C 3ABD64739000 Basic Control Panel is compatible with ACS310, ACS320, ACS350, ACS355, and ACS550 drive families and can be mounted directly on the drive or used as a handheld programming device. With support for real-time monitoring of operating data, alarm indication, and fault history, it provides an efficient solution for commissioning, troubleshooting, and everyday operation of ABB variable frequency drives in industrial automation applications.
The ACS-CP-C 3ABD64739000 ABB BASIC CONTROL PANEL may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB ACS-CP-C 3ABD64739000 BASIC CONTROL PANEL Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The panel features nine tactile keys: RESET/EXIT, MENU/ENTER, Up, Down, LOC/REM, DIR, STOP, and START. The LCD display is divided into five areas: upper left shows control location (LOC for local, REM for remote); upper right displays the unit of the measured value; the center area shows parameter values, signal readings, menu lists, or fault/alarm codes; the lower left and center indicate the panel operation state (OUTPUT, PAR, MENU, or FAULT); and the lower right contains status indicators for forward/reverse direction and setpoint modification.
The control panel supports four primary operating modes. In Output mode, up to three monitored signals are displayed simultaneously, configurable via parameter group 34 (SIGNAL1 PARAM, SIGNAL2 PARAM, SIGNAL3 PARAM). Default signals include speed or output frequency, current, and torque. In Parameter mode, users browse and edit drive parameters. The Main Menu provides access to submenus including Parameters, Copy mode, Basic settings, Changed parameters, Fault logger, Time & date settings, Parameter backup, and I/O settings. Fault mode displays active fault and alarm codes.
- Chemical Processing: Precise control of pumps, mixers, and automated flow processess
- Beverage/Food: Managing conveyors, bottling lines, and packaging equipment
- Manufacturing/Automation: Operating machinery and controlling fans/compressors to optimize workflows
- Oil & Gas: Ensuring precise and safe control of auxiliary process equipment
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Align the Keypad: Position the panel over the dedicated cradle on the front cover of the VFD.
Hook the Bottom: Insert the bottom retaining tabs of the keypad into the lower slots of the cradle.
Snap into Place: Push the top edge of the panel firmly into the VFD until the plastic retention clips click tightly.
Internal Connection: Pin connections engage automatically through the integrated interface plug behind the panel.
Alternative Names
ACS-CP-C 3ABD64739OOO
ACS-CP-C 3A8D64739000
ACS CP C 3ABD64739000
ACS CP C 3ABD64739OOO
ACS CP C 3A8D64739000
ACSCPC 3ABD64739000
Technical notes
The ACS-CP-C is compatible with multiple ABB drive series including ACS510, ACS550, ACH550, ACS355, and ACS310 variable frequency drives. This broad compatibility makes the ACS-CP-C a versatile user interface option for facilities with mixed ABB drive installations. The ACS-CP-C provides reliable operation in industrial environments and is ideal for applications requiring compact, cost-effective local control and monitoring of ABB AC drives.
FAQs
-
What is the ACS-CP-C?
+The ABB ACS-CP-C Basic Control Panel (Part Number: 3ABD64739000) is a numeric keypad and user interface designed for ABB industrial AC drives. -
What are the primary modes?
+It features Output, Reference, Parameter, Copy, and Fault modes. -
How do I start and stop the drive locally using the keypad?
+To operate the drive via the ACS-CP-C, press the LOC/REM key to ensure "LOCAL" is displayed. Then, simply press the green START key to run the motor, or the red STOP key to halt it. -
Which drive models are compatible with the ACS-CP-C?
+The ACS-CP-C is compatible with a variety of ABB general-purpose and micro drives, including the ACS310, ACS350, ACS355, ACS510, and ACS550 series.
