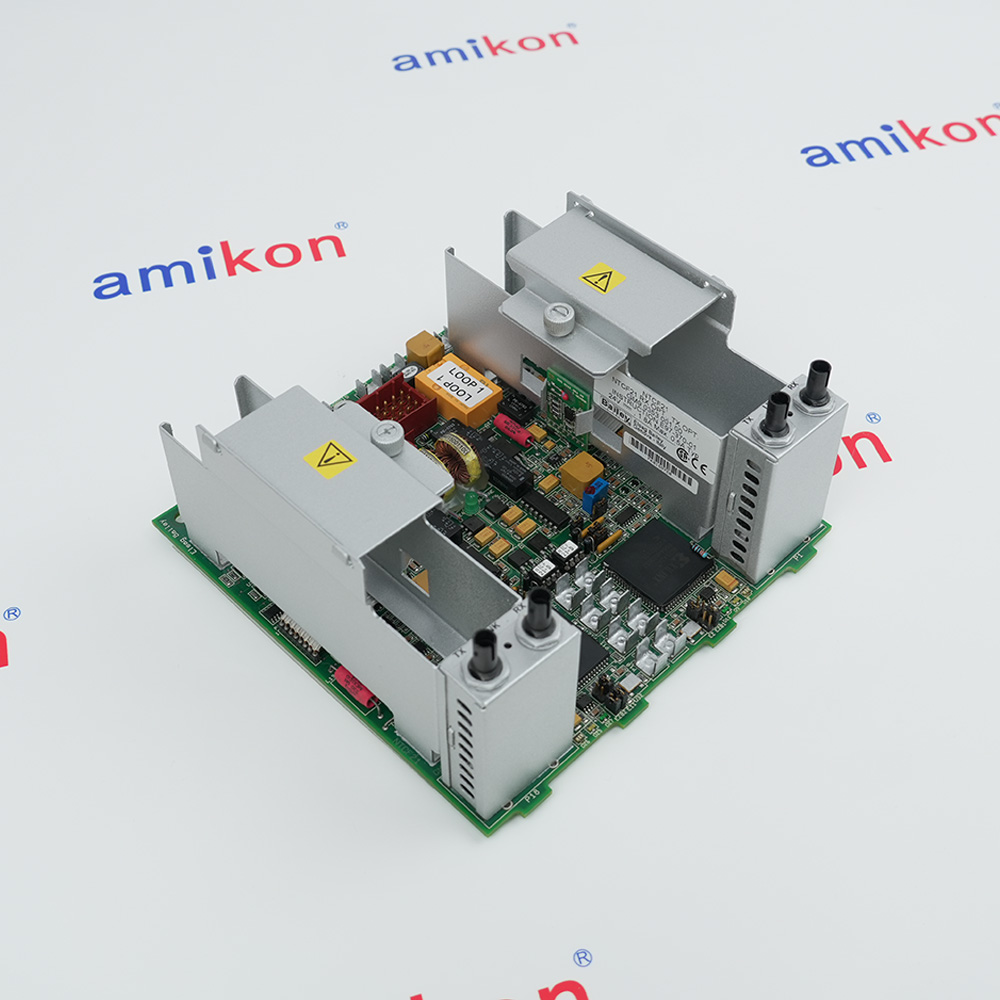

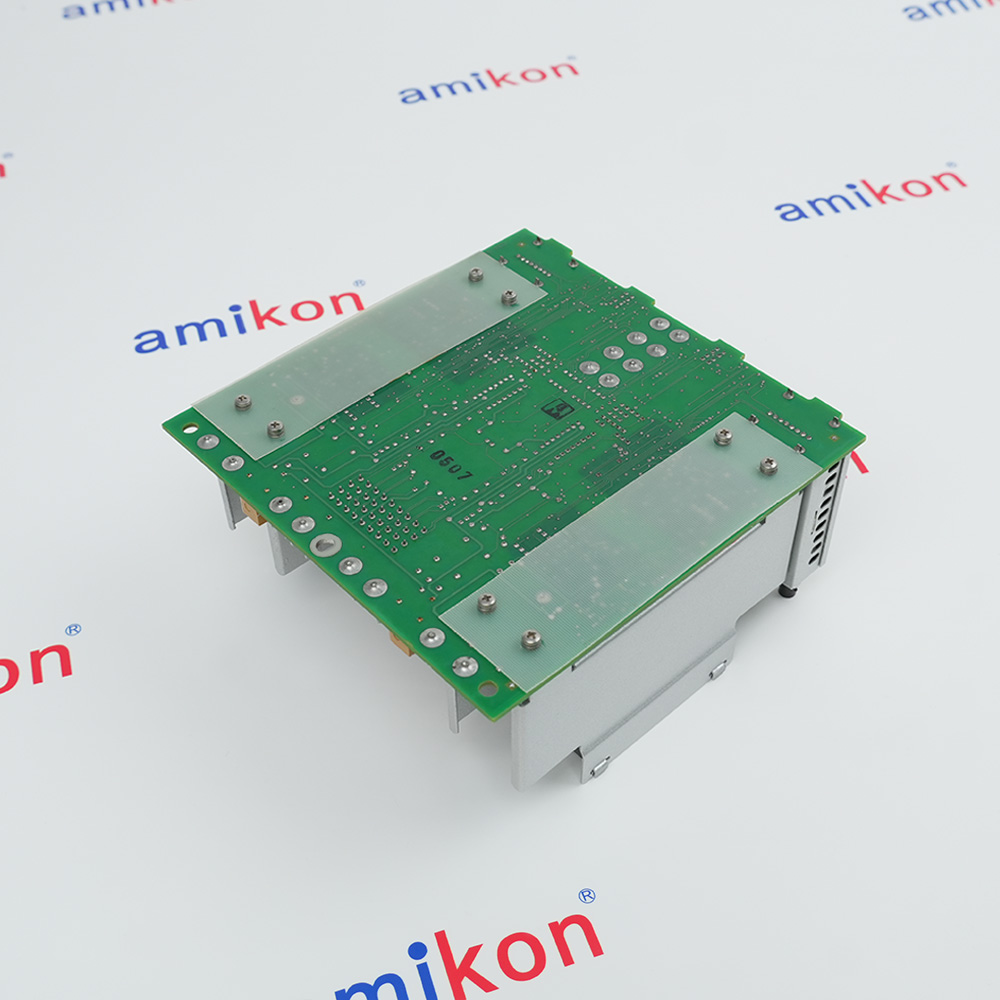

Technical specifications for NTCF21
-
Product ModelNTCF21
-
Product ParametersFiber Optic Termination Unit
-
Tariff Code8537101190
-
Country of originSWEDEN
-
Place of shipmentXiamen, China
-
Estimated Shipping Size18x17.6x9cm
-
ManufacturerABB
-
Weight0.85 kg
-
Power Supply+5 V DC
-
Fiber TypeMulti-mode
-
Data Rate10 Mbps
-
Power ConsumptionTypically 2-3 W
-
Operating Temperature0°C to +60°C
-
Storage Temperature-40°C to +85°C
Description
NTCF21
COMMUNICATION CARD
FIBER OPTIC ELECTRIC TO OPTIC
SCREW TERMINALS
COMMUNICATION CARD
FIBER OPTIC ELECTRIC TO OPTIC
SCREW TERMINALS
Information
Overview
Manuals
Technical notes
Product Applications
Physical Connections
Features:
- INFI-Net Optic-to-Optic TU
- Bailey Infi 90
- Fiber Optic Termination Unit
The NTCF21 ABB Fiber Optic Termination Unit may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB NTCF21 Fiber Optic Termination Unit Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The NTCF21 is a fiber-to-fiber terminal unit that allows direct connection of 62.5-micron fiber optic cable as both the transmitter (TX) and receiver (RX). The NTCF22 is a fiber-to-copper terminal unit that allows direct connection of 62.5-micron fiber optic cable at the receiver end and standard coaxial or biaxial INFI-Net cable at the transmitter end.
The NTCF23 is a copper-to-fiber terminal unit that allows connection of standard INFI-Net coaxial or biaxial cable at the receiver end and 62.5-micron fiber optic cable at the transmitter end.
- Power Generation Plants:Links area controllers & remote I/O for coal/gas/solar/wind plants
- Water & Wastewater Treatment:WAN SCADA for monitoring transmission/distribution networks
- Oil, Gas & Petrochemical:Reliable data for flow computers & control racks in hazardous environments
- Manufacturing & Process Industries:Synchronized block control for pulp/paper, chemical & pharma
- Metals, Mining & Cement:Rugged comms for high vibration/electrical interference environments
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Fiber Optic Cables: Connect the fiber optic lines to the unit's optical ports. Ensure connectors are clean and that you do not exceed the minimum bend radius of the cables.
Grounding & EMC: Secure the mounting screws tightly (recommended torque is often around 0.5 N·m) to fulfill EMC requirements and ensure proper operation.
FAQs
-
What is the ABB NTCF21?
+The NTCF21 is a Fiber Optic Termination Unit (TU) used in Bailey INFI 90 systems. It interfaces PCU communication modules (such as NIS or NPM) with fiber optic or mixed fiber/copper cables. -
What is the purpose of NTCF21?
+It is used as a terminal unit to connect the PCU communication module (NPM/NIS) to fiber optic or fiber/copper hybrid cables within the control system. -
What are the communication speeds?
+It supports speeds of 2 Mbps (2x106bit/s) and 10 Mbps. -
Is it a replacement part?
+Yes, the NTCF family (NTCF21/22/23) serves as an improved replacement for the older NTCF0X and NTCF1X termination unit families
