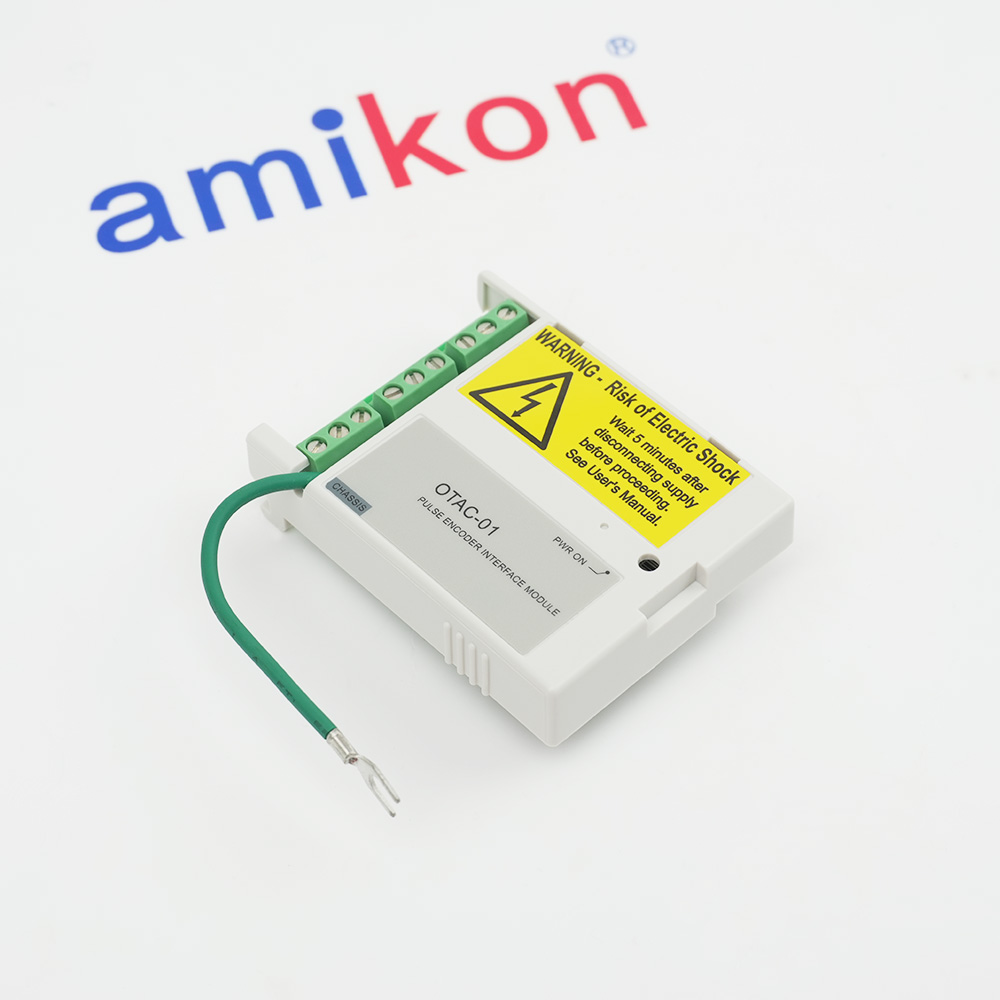

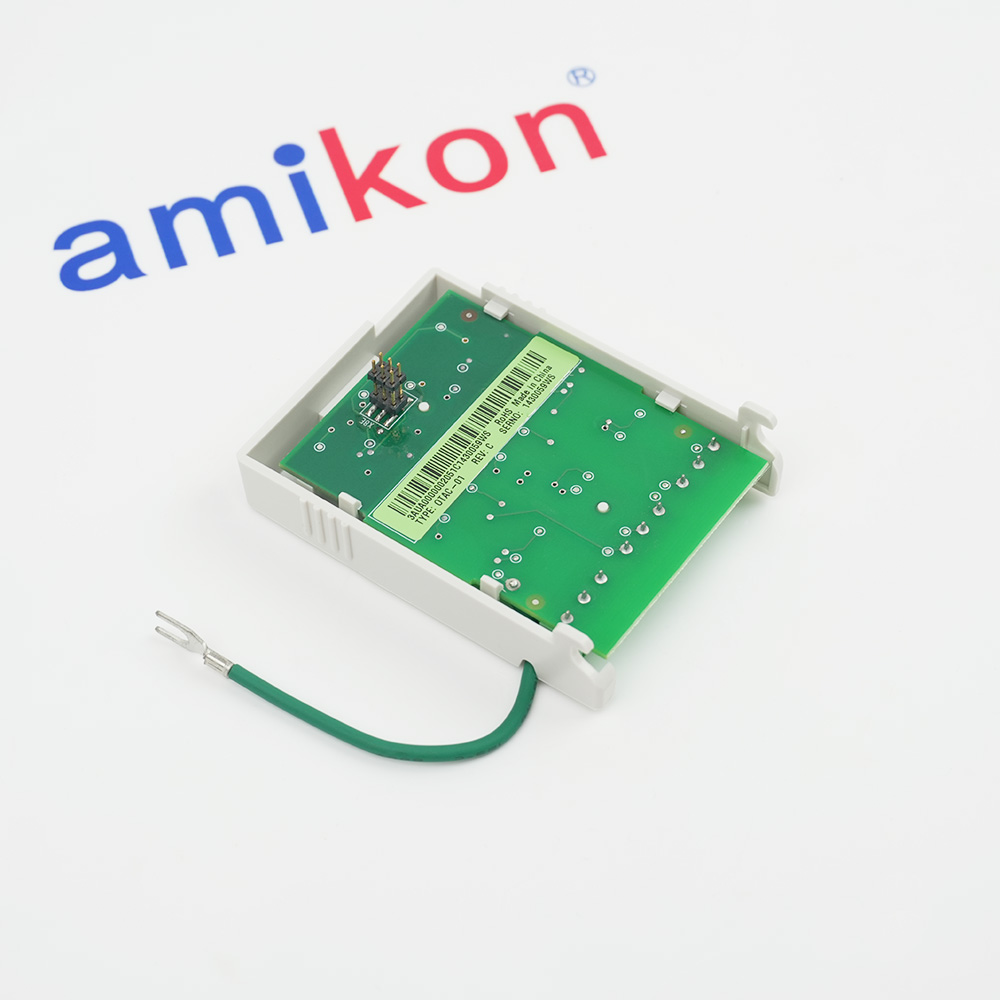

- OTAC-01 3AUA0000002051
· Product image is representative; revision or series may vary. Contact us to request a specific version.
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for OTAC-01 3AUA0000002051
-
Product ModelOTAC-01 3AUA0000002051
-
Spare ModelOTAC-01
-
Product ParametersPULSE ENCODER INTERFACE MODULE
-
Tariff Code8537101190
-
Country of originsweden
-
Place of shipmentXiamen, China
-
Estimated Shipping Size7.8x6.3x2.5cm
-
ManufacturerABB
-
Weight0.05 kg
-
Supports three channelsCH A, CH B, CH Z
-
Maximum input frequency200 kHz
-
Input voltage range7.5 to 26 V
-
Nominal input impedance660 ohm (at 24 VDC)
Description
OTAC01
PULSE ENCODER INTERFACE MODULE
FOR ACS550
PULSE ENCODER INTERFACE MODULE
FOR ACS550
Information
Overview
Manuals
Technical notes
Product Applications
Wiring Instructions
Features:
- Pulse Encoder Interface Module
- 3AUA0000002051-D
- with all ACS550 drives
The OTAC-01 ABB Pulse Encoder Interface Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB OTAC-01 Pulse Encoder Interface Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The OTAC-01 module does not supply power for the encoder. Anexternal power supply (as diagrammed below) is recommended. Thedrive’s 24 VDC supply from terminals X1:10 and X1:11 can be used ifthe total draw on the supply does not exceed 250 mA. Use the followingtable to determine if the drive’s supply can be used.
- Packaging Machinery:Precise synchronization of conveyor belts and filling lines.
- Material Handling:Tracks position & speed in automated sorting and warehouse equipment.
- Metals & Mining:Critical for torque & speed control in rolling mills and aluminum smelters.
- Food & Beverage:Consistent rotational speed in mixers and centrifuges for stability.
- Textiles & Printing:Maintains precise tension & speed across rollers to prevent damage.
- Energy & Utilities:Gas/steam turbine control systems and power distribution monitoring.
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Terminals: Connect encoder channels to terminals labeled A, B, and Z (if applicable).
Powering the Encoder: The OTAC-01 does not supply power directly to the encoder. You must use an external supply or the drive's internal 24 VDC terminals (X1:10 and X1:11), provided the draw is under 250 mA.
FAQs
-
What is the OTAC-01 ？
+The ABB OTAC-01 is a Pulse Encoder Interface Module designed to connect digital pulse encoders to ABB drives (typically ACS500 series) for accurate speed or position feedback. -
What encoder types does the OTAC-01 support?
+The OTAC-01 supports digital pulse encoders with standard A/B pulse phasing. It is designed for differential input signals, open collector, or open emitter configurations. -
Do you provide warranty as standard?
+We provide a full 12-month warranty for the OTAC-01 . So, if you have any problems within 12 months from the date of delivery, then you can contact our Team who will be happy to help and explain what your next steps should be. -
Does the OTAC-01 module provide power to the connected pulse encoder?
+No, the OTAC-01 module does not supply power for the encoder. An external power supply is recommended. Alternatively, you can use the drive's internal 24 VDC supply from terminals X1:10 and X1:11, provided the total current draw from all connected devices does not exceed 250 mA. -
How can I verify that my encoder is connected and phased correctly with the OTAC-01?
+You can perform a functional test. After installation, run the drive in the forward direction and check parameter 0147 MECH REVS on the drive. This value should increase in the positive direction. If it does not, you may need to swap the A and B channel connections on the OTAC-01 module. -
Which ABB drives are compatible with the OTAC-01 module?
+The OTAC-01 module is compatible with all ACS550 drives. However, to confirm compatibility with a specific pulse encoder, you must compare the encoder's requirements to the module's specifications found on page 19 of the manual.
