NBRA-657C 59006410
Need Help? Contact US!
Call us: +86-18020776786
Proper, Ready.
Delivery time
Please indicate your delivery time

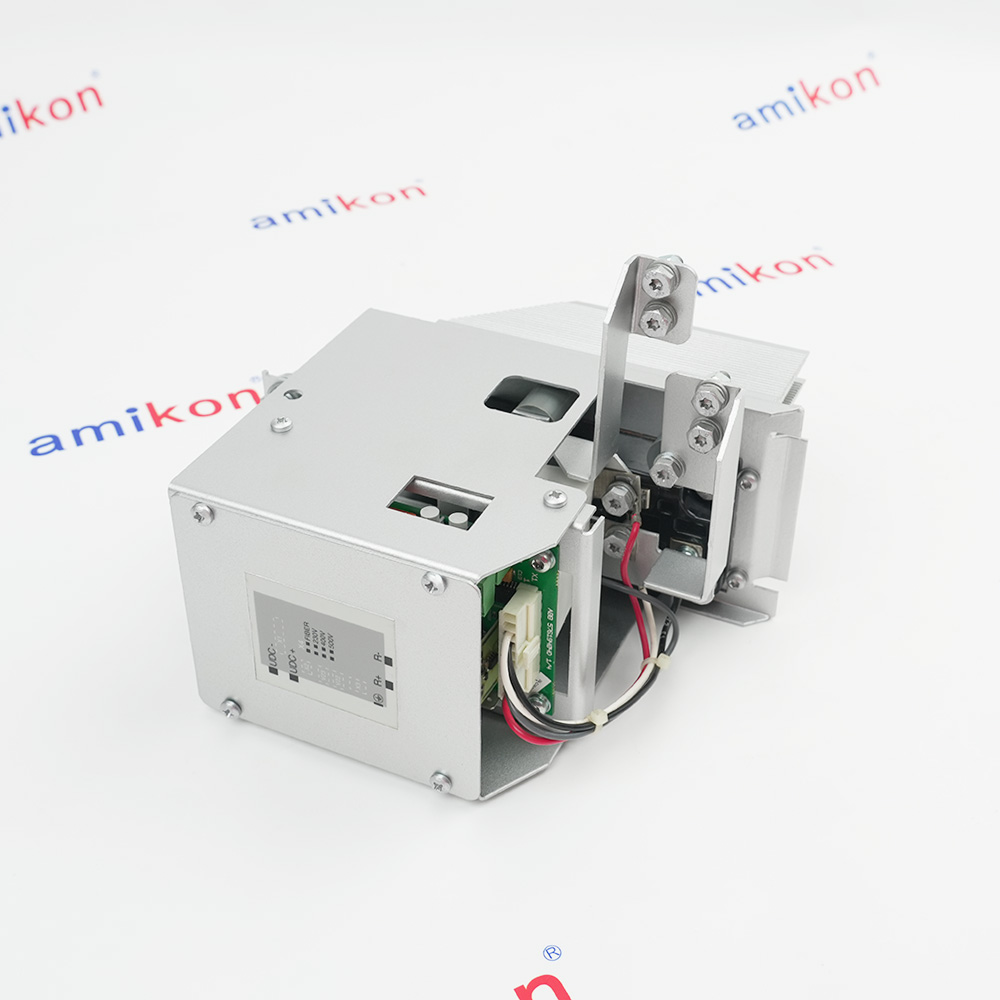

Product image is representative; revision or series may vary. Contact us to request a specific version.
Product Information
Product Describe
NBRA657C
3ABD58930792
BRAKING CHOPPER
3ABD58930792
BRAKING CHOPPER
Technical specifications for NBRA-657C 59006410
-
Product ModelNBRA-657C 59006410
-
Product ParametersBRAKING CHOPPER
-
Tariff Code8537101190
-
Country of originSWEDEN
-
Place of shipmentXiamen, China
-
Estimated Shipping Size16.5x20.1x21.5cm
-
ManufacturerABB
-
Weight2.65 kg
-
DC-bus Voltage380 – 500 V ac
-
Continuous Braking Power160 kW
-
Peak Braking Power230 kW
-
Max Peak Current (Imax)355 A
-
Isolation1500 V dc input-to-earth
-
Operating Temp0 – +50 °C
-
Storage Temp–40 – +70 °C
-
Humidity5 – 95 % RH non-condensing
-
Factory New
These are new and current items that are procured from the manufacturer. -
New No Package
These parts are new. They have not been used, but their original packaging is no longer available. -
New In Opened Package
These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged. -
New In Sealed Package
Parts are new. They have not been used and still have their original package seal intact. -
New in Original Package
These parts are new. The packages were not originally sealed by their original manufacturer.
Warranty Period & Disclaimer
Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.
FAQs
-
What is the NBRA-657C?+It is an external braking chopper unit used with ABB ACS600 low-voltage AC drives to protect the DC intermediate circuit against overvoltage.
-
Is this product brand new?+Yes, ABB NBRA-657C 59006410 is brand new, original, unused, and factory sealed
-
How do I get the price of NBRA-657C ?+Please contact our sales director Ms. Sandy for a discount exclusive quote, Email info@amikon.cn Mob/Whatsapp: +86-18020776786.
-
What is the function of the NBRA-657C Brake Chopper?+The NBRA-657C regulates braking energy by allowing the drive to dissipate energy in the braking resistor rather than having it return to the DC link, which could cause overvoltage faults
-
Is the NBRA-657C installed internally or externally?+According to ABB documentation, the NBRA-657C is designed to be installed inside the converter module (internal brake chopper).
Get a quick price fo NBRA-657C 59006410
whatsapp
Inquiry
Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions
Product
MORE INFORMATION
Overview
Manuals
Technical notes
Product Applications
Electrical Connections
Features:
- Braking chopper
- Multi-Voltage Selection with Jumper Configuration
- Enable Input with Overtemperature Protection
- ACS 600 series
The NBRA-657C is specifically designed for internal installation within the ACS 600 converter module (unlike external IP54-rated models like NBRA-653/663). This internal mounting configuration saves valuable panel space, simplifies wiring, and provides integrated thermal management within the drive enclosure for cleaner cabinet layouts.
The NBRA-657C 59006410 ABB Brake chopper may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB NBRA-657C 59006410 Brake chopper Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The brake chopper features selectable voltage settings (400V, 500V, or >500V) configured via a jumper on the control board. For the NBRA-657C, this allows compatibility with ACS 600 drives operating at 380-415V AC mains voltage, ensuring optimal performance across different power supply conditions. Incorrect jumper settings can lead to malfunction or equipment damage.
- Pulp & Paper: Coordinating large rollers and high-speed production lines
- Metals & Mining: Managing heavy-duty conveyors, crushers, and winches that handle massive loads
- Water & Wastewater: Controlling distributed pumps and valve actuators
- Oil & Gas: Used in various processing and extraction machinery
- Power Generation: Integrating turbine auxiliaries and boiler feed systems
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
The UDC+ and UDC– terminals of the chopper connect to the DC bus of the drive.
The R+ and R– terminals connect to the external braking resistor.
Ensure all terminals are verified as unpowered with a voltage-indicating instrument before beginning any work.
Start-up: Initial start-up requires checking the voltage selection and ensuring the braking resistor parameters match the chopper's ratings.
