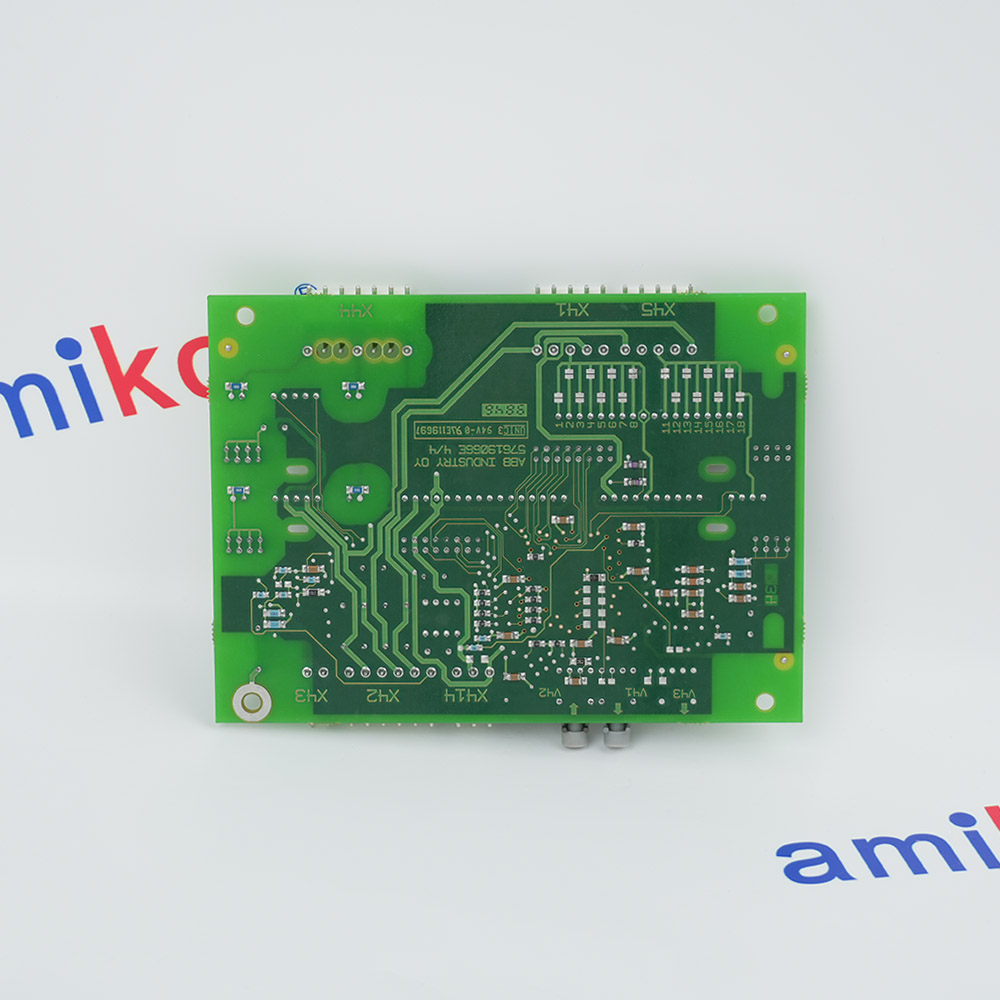

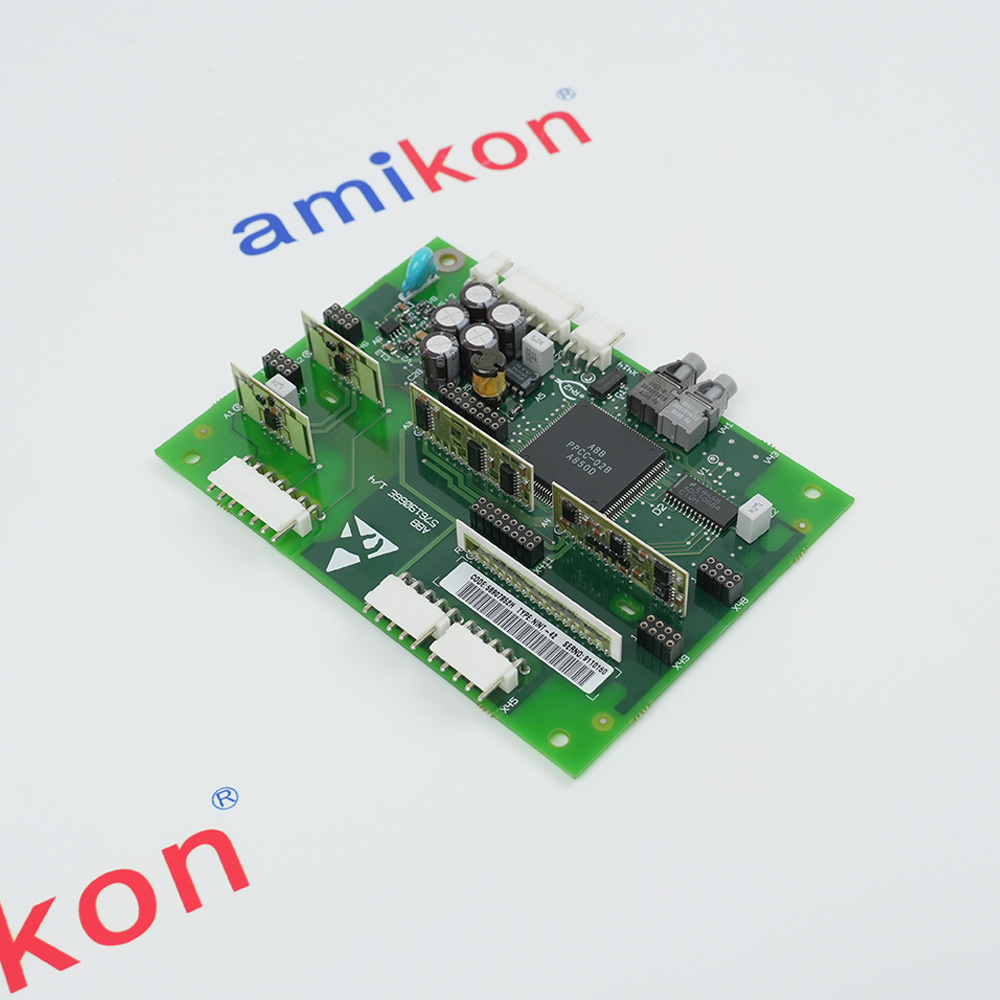

NINT-42 58907952H
Need Help? Contact US!
Call us: +86-18020776786
Proper, Ready.
Delivery time
Please indicate your delivery time
Product image is representative; revision or series may vary. Contact us to request a specific version.
Product Information
Product Describe
NINT42
MAIN CIRCUIT INTERFACE BOARD
FOR AC DRIVES
MAIN CIRCUIT INTERFACE BOARD
FOR AC DRIVES
Technical specifications for NINT-42 58907952H
-
Product ModelNINT-42 58907952H
-
Spare Model61353259E
-
Product ParametersMAIN CIRCUIT INTERFACE BOARD
-
Tariff Code8537101190
-
Country of originSWEDEN
-
Place of shipmentXiamen, China
-
Estimated Shipping Size14.2x12x2cm
-
ManufacturerABB
-
Weight0.12 kg
-
Control Voltage24 V DC
-
Ambient Temperature Range0°C to +40°C
-
Storage Temperature-40°C to +70°C
-
Humidity<95% RH, non-condensing
-
SeriesACS 600
-
Factory New
These are new and current items that are procured from the manufacturer. -
New No Package
These parts are new. They have not been used, but their original packaging is no longer available. -
New In Opened Package
These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged. -
New In Sealed Package
Parts are new. They have not been used and still have their original package seal intact. -
New in Original Package
These parts are new. The packages were not originally sealed by their original manufacturer.
Warranty Period & Disclaimer
Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.
FAQs
-
What is the ABB NINT-42？+The ABB NINT-42 (Main Circuit Interface Board) is a critical component used primarily in ABB ACS 600 series industrial drives and frequency converters.
-
What causes communication failures between the NINT-42 and other boards?+Communication dropouts (often manifesting as PPCC link problems) are common. They are frequently caused by failing fiber optic cables. Always inspect and replace the fiber links first. If the cables are intact, the NINT-42 board or the NIOC board may need to be swapped out for testing.
-
Which VFD models use the NINT-42?+It is a core component found inside older industrial ABB ACS 600 MultiDrive configurations and high-power inverter units
-
What are the differences between NINT-42 and NINT-42C?+The C version indicates a coated variant. It features a specialized conformal coating to protect the electrical traces from harsh environmental contaminants, moisture, and conductive dust commonly found in heavy industrial plants.
Get a quick price fo NINT-42 58907952H
whatsapp
Inquiry
Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions
Product
MORE INFORMATION
Overview
Manuals
Technical notes
Product Applications
Physical Mounting & Connections
Features:
- Centralized System Integration Hub
- High-Speed Fibre Optic Communication
- Comprehensive Built-in Diagnostics
- Plug-and-Play Compatibility for ACS 600 Drives
- Flexible I/O and Fieldbus Expansion Support
- Rugged Industrial-Grade Construction
Utilizing advanced PPCC fibre optic communication, the NINT-42 establishes robust, noise-immune links to the NPBU branching unit and individual inverter modules, ensuring precise synchronization and real-time status feedback. It directly interfaces with current transformers to monitor output current, supports encoder feedback systems via the NTAC-02 pulse encoder module, and enables comprehensive drive protection through integrated fault detection for short circuits, earth faults, and thermal overloads.
The NINT-42 58907952H ABB Main Circuit Interface Board may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB NINT-42 58907952H Main Circuit Interface Board Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The NINT-42 offers true plug-and-play compatibility with standard ACS 600 enclosures, eliminating the need for complex rewiring or software reconfiguration during maintenance or replacement. Its architecture also accommodates flexible system expansion, allowing connection to digital and analogue I/O modules as well as industry-standard fieldbus adapters such as PROFIBUS DP and Modbus RTU.
- Turbine Generators:Gas/steam/hydro: failure risks shutdown or grid instability
- Boiler Control Systems:Redundant loops for heavy combustion & feed-water pumps
- Emergency Diesel Generators (EDGs):Critical backup for data centers/nuclear/marine
- Large-Scale Compressors & Pumps:Multi-stage compressors for oil/gas pipelines & refining
- Industrial Kilns & Furnaces:Data loss halts cement/steel thermal cycles
- Water Treatment Machinery:Automated filtration, high-pressure pumps & chemical dosing
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Mounting: Secure the board onto the mounting plate using the provided fastening screws or clamps.
Earthing: Ensure the board and module are properly earthed. It must be connected to the cabinet PE (Protective Earth) busbar via a copper braid or cable for EMC and personal safety.
Busbars & Cables: Carefully attach the electrical module to the phase and DC busbars, taking care not to damage any black insulation parts.
Ribbon Cables: Connect all flat ribbon cables and voltage measurement wires. Always lock the flat cables.
