AINT-02C 64802909
Need Help? Contact US!
Call us: +86-18020776786
Proper, Ready.
Delivery time
Please indicate your delivery time
Product image is representative; revision or series may vary. Contact us to request a specific version.
Product Information
Product Describe

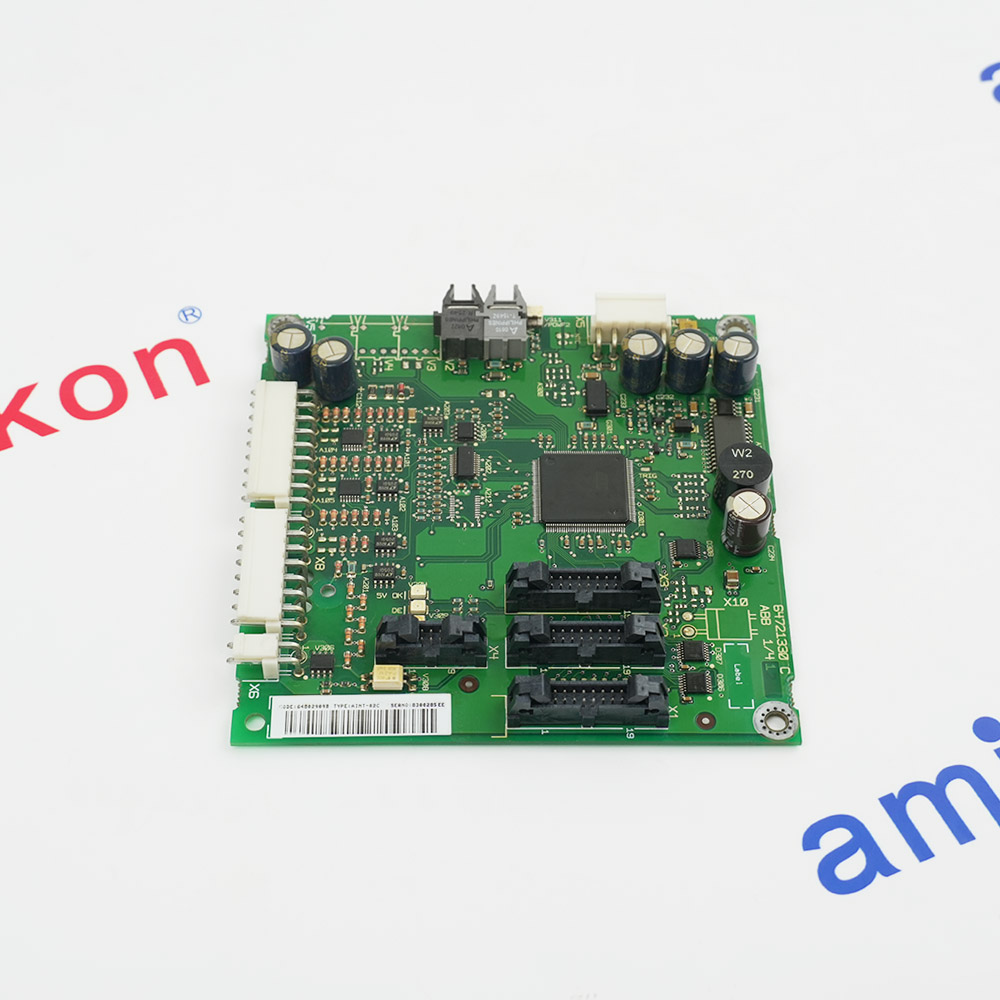

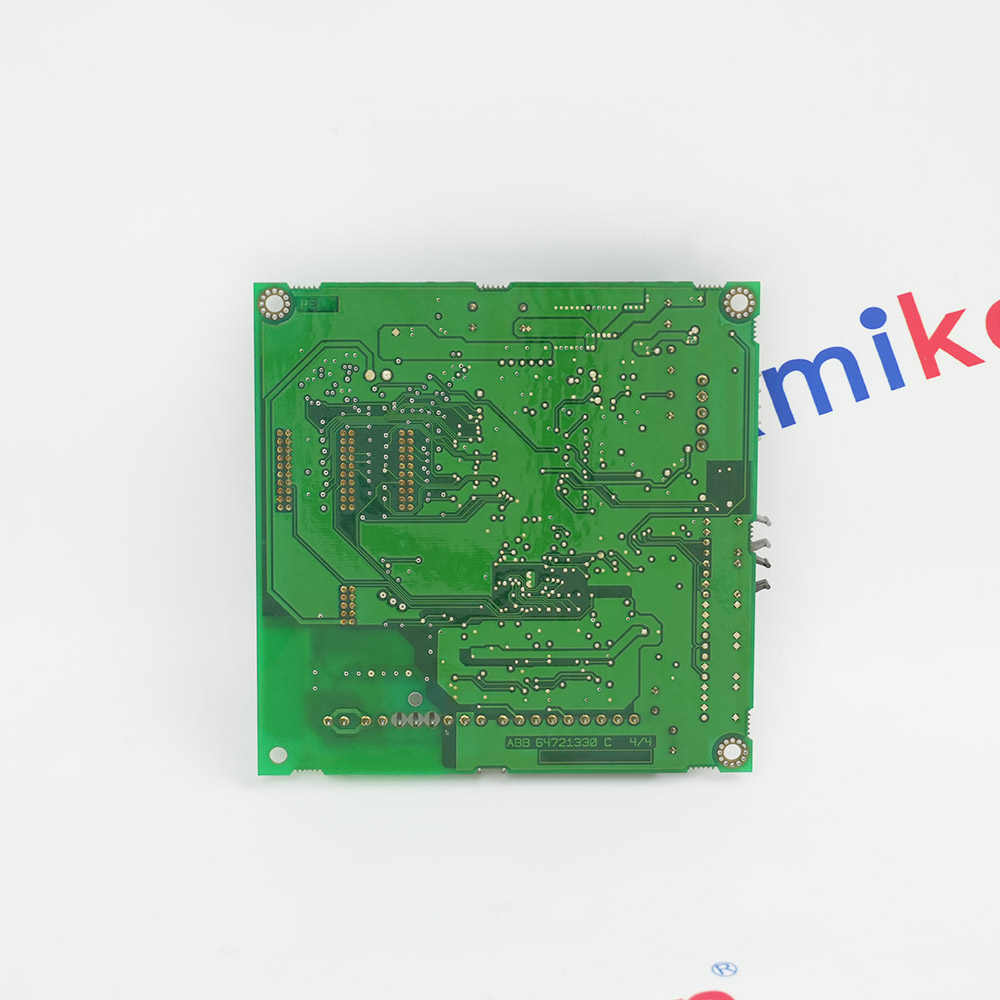

MAIN INTERFACE BOARD
FOR ACS800 SERIES DRIVE MODULES
COATED PCB
SPARE PART
FOR ACS800 SERIES DRIVE MODULES
COATED PCB
SPARE PART
Technical specifications for AINT-02C 64802909
-
Product ModelAINT-02C 64802909
-
Product ParametersSP KIT MAIN INTERFACE
-
Tariff Code8537101190
-
Country of originSweden
-
Place of shipmentXiamen, China
-
Estimated Shipping Size12.2x12x1.5cm
-
ManufacturerABB
-
Weight0.1 kg
-
Input Voltage24V DC (±10%)
-
Power Consumption8W (typical)
-
Isolation Voltage1500V AC (channel-to-channel)
-
Communication SpeedUp to 1Mbps
-
Signal Channels16 digital I/O
-
Factory New
These are new and current items that are procured from the manufacturer. -
New No Package
These parts are new. They have not been used, but their original packaging is no longer available. -
New In Opened Package
These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged. -
New In Sealed Package
Parts are new. They have not been used and still have their original package seal intact. -
New in Original Package
These parts are new. The packages were not originally sealed by their original manufacturer.
Warranty Period & Disclaimer
Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.
FAQs
-
What is AINT-02C?+AINT-02C 64802909 is the Main Circuit Interface Board for ABB frequency converters (especially the ACS800 series), used to realize signal/logic connections and processing between the main circuit and the control system.
-
What are the main applications of AINT-02C 64802909?+AINT-02C 64802909 is suitable for industrial frequency converters, assisting in the realization of motor control signal interaction, logic control input/output, and analog signal processing functions. It is commonly found in motor speed control, automation control, and energy management systems.
-
What is the operating temperature range of AINT-02C 64802909?+AINT-02C 64802909 is suitable for use in industrial environments, with a nominal operating temperature of -10°C to +50°C.
-
What is the function of the AINT-02C board?+It serves as the main interface between the control unit and the power stages of the inverter. It manages digital and analog signals, including current and voltage inputs for monitoring and control.
Get a quick price fo AINT-02C 64802909
whatsapp
Inquiry
Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions
Product
MORE INFORMATION
Overview
Manuals
Technical notes
Product Applications
Critical Safety Precautions
Features:
- KIT MAIN INTERFACE; I/O KIT
- Main Circuit Interface Board
- ACS800 series variable frequency drives
The AINT-02C 64802909 ABB SP KIT MAIN INTERFACE may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB AINT-02C 64802909 SP KIT MAIN INTERFACE Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The ABB AINT-02C is a Main Circuit Interface Board (also referred to as an I/O Kit or Spare Main Interface) designed for the ABB ACS800 series of AC variable frequency drives. It acts as a crucial communication and control interface board within the inverter's control structure, specifically handling fiber optic communication.The board connects via fibre optic cables. When installing or replacing, handle these cables with extreme care. When unplugging, always pull the connector, not the fiber cable itself.
- Manufacturing & Process Automation:Precise motor control for assembly lines & automated machinery
- Heavy Industry:Reliable inverter communication in metallurgy, oil & gas, petrochemicals
- HVAC Systems:Large-scale setups managing energy efficiency & performance
- Specialized Machinery:CNC, plastic & textile machinery with overload/short-circuit protection
- Infrastructure:Water treatment, environmental protection & power transmission
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Disconnect Power: Never work on the drive when main power is applied.
Discharge Time: After disconnecting input power, wait at least 5 minutes for the intermediate circuit capacitors to discharge.
Verify Zero Voltage: Always use a multimeter to measure and ensure that the voltage between the drive input phases and the frame (ground) is near 0 V before touching components.
Static Protection: Use an ESD (Electrostatic Discharge) wrist strap. These boards are extremely sensitive to static electricity.
