PRODUCT DESCRIPTION
SAFT123PAC Drive Pulse Amplifier Board
ABB Stromberg SAFT123PAC is a pulse amplifier board for drive power electronics. It forms part of the pulse amplification stage rather than serving as a complete drive or a standalone controller, with board connectors linking the assembly to its matching drive hardware.
The board combines two multipin sockets, separated edge contacts and a six-capacitor arrangement. Its drive-specific selection depends on the pulse amplifier variant and connection layout. The 6.3 A and 250 V values in the parts reference describe protection fuses, not the board supply.
The board combines two multipin sockets, separated edge contacts and a six-capacitor arrangement. Its drive-specific selection depends on the pulse amplifier variant and connection layout. The 6.3 A and 250 V values in the parts reference describe protection fuses, not the board supply.
BEFORE YOU BUY
Confirm the complete Drive Pulse Amplifier Board
ACTUAL APPLICATIONS
Relevant contexts for SAFT123PAC
The three contexts describe the wider ABB drive portfolio. They are not a compatibility statement for this board; SAFT123PAC selection requires the matching drive parts list and electrical drawing.
-
01 · METALS
Metals, Metallurgy and Industrial Energy
Electrical power across metals and metallurgyIndustrial energy management throughout metallurgical environments -
02 · PULP & PAPER
Pulp and Paper Energy Management
Pulp and paper electrical power distributionEnergy efficiency across paper and pulp -
03 · MINING
Mining and Extraction Power Distribution
Energy supply across mining and extractionPower distribution across diverse mining environments
Technical specifications for SAFT123PAC
-
Product ModelSAFT123PAC
-
Spare ModelSAFT 123 PAC
-
Product ParametersDrive Pulse Amplifier Board
-
In stock5 units
-
ManufacturerABB
-
Referenced drive power class730 kVA; Bulletin 1352C drive class
-
Cards per referenced drive3; 1352C 730 kVA configuration
-
Protection fuse positions2: F1 and F2
-
Protection fuse specification6.3 A, 250 V; 5 x 20 mm
-
Board-to-board sockets2 three-row female sockets
-
Edge-contact groups3 separated groups
-
Large capacitor assembly6 capacitors; 6000 uF, 25 VDC markings
View all additional
Alternative Names
SAFT 123 PAC
SAFT123PAC pulse amplifier board
3500-A23 pulse amplifier reference
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Integrate SAFT123PAC in the documented SAFT arrangement
SAFT123PAC is the pulse amplifier card identified in the 730 kVA section of the drive OEM renewal-parts list. The same reference separates it from the SAFT 111 POW power supply, SAFT 125 CHC chopper control and SAFT 187 CON control card. These are different assembly roles; the common SAFT prefix does not make them substitutes.
The 1352C reference lists three SAFT 123 PAC cards in its 730 kVA configuration and uses the cross-reference designation 3500-A23. That configuration is an identified reference, not a statement that every drive requires three cards or that one sales item contains a three-board set. Check the particular drive parts list before defining the replacement quantity.

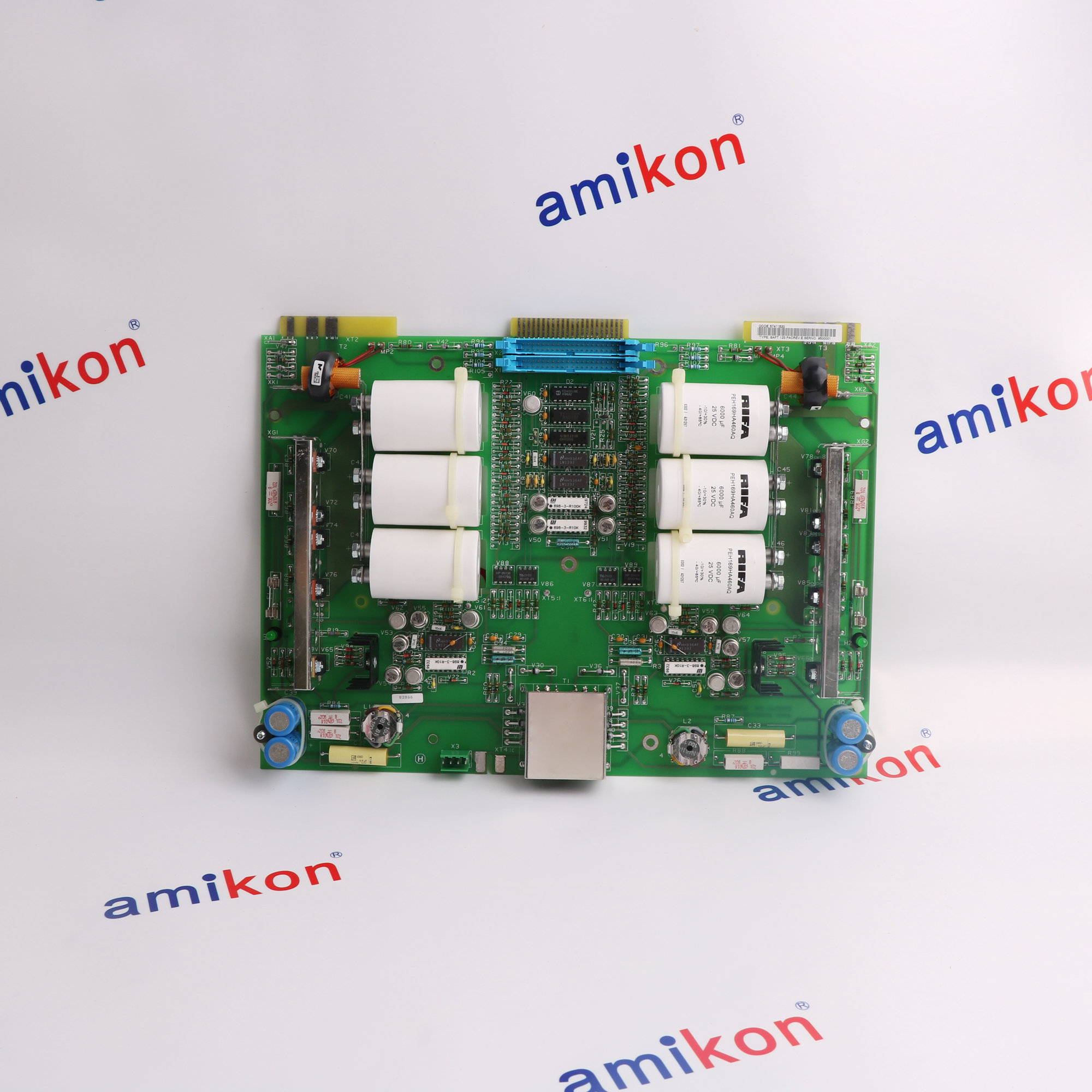

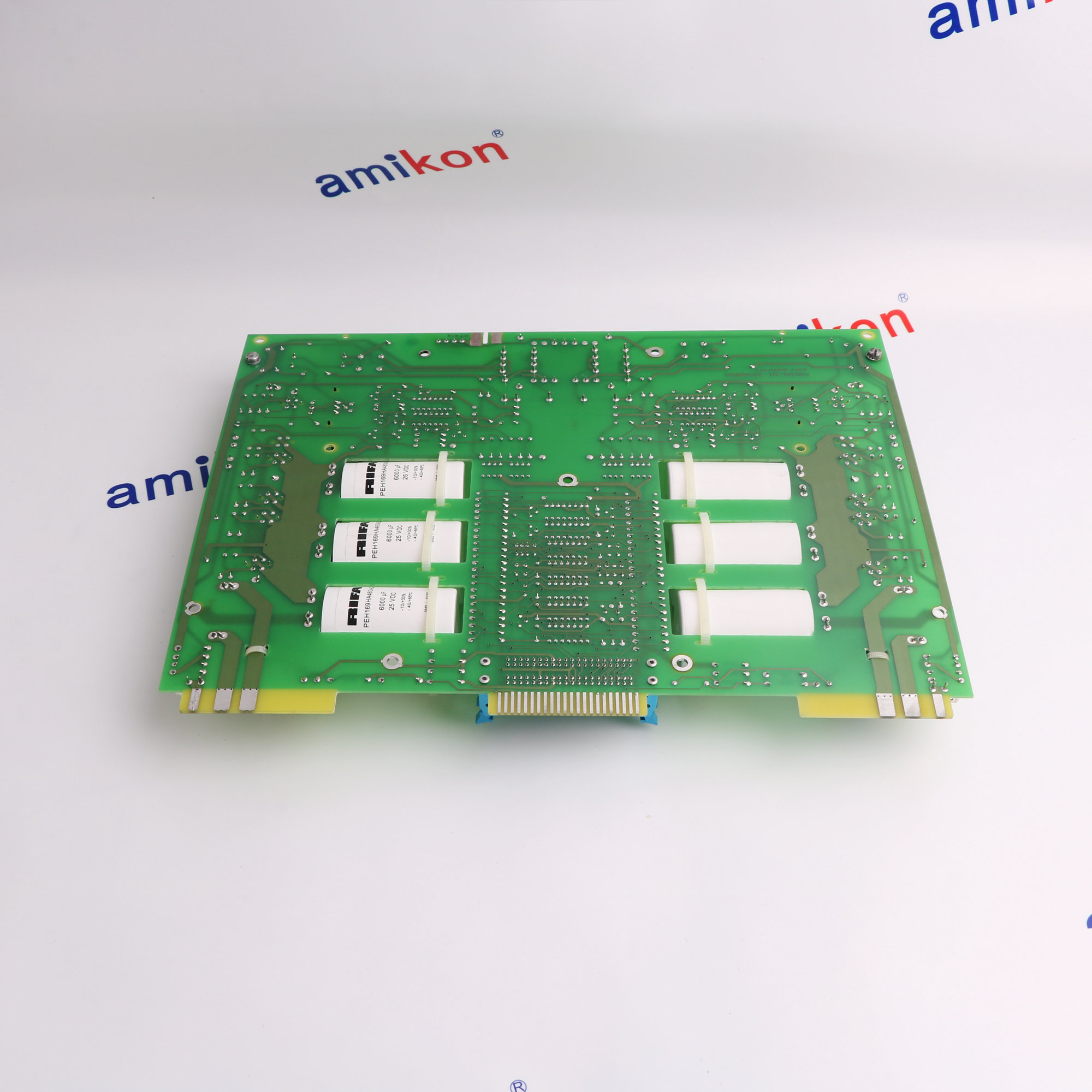

The original product photographs show two three-row sockets, three separated edge-contact groups and six large capacitors marked 6000 uF and 25 VDC. Those component markings describe the pictured assembly, not its external supply rating. The fuse reference lists F1 and F2 as 6.3 A, 250 V, 5 x 20 mm; no input-voltage range, pulse frequency or output-current rating is inferred from them.
Features:
- Drive-specific pulse amplifier role
- Separate connector groups and capacitor assembly
- Fuse ratings distinguished from board supply
Do not connect a 250 V supply on the basis of the fuse description. Board supply and pin assignments require the correct drive drawing and qualified electrical verification.
INTERCHANGEABILITY
Verify SAFT123PAC before replacement
Match the SAFT 123 PAC marking and the host-drive parts list before selecting a replacement. The OEM list warns that design improvements can change part numbers and requires comparison with the final test data inside the drive enclosure. A similar SAFT board or a matching outline alone does not establish interchangeability.
Compare the two multipin sockets, all three edge-contact groups, component population and mounting arrangement with the board removed. The original photographs provide a physical reference but do not guarantee that every supplied unit has the same revision or component manufacturer. Do not use capacitor markings as a substitute for the electrical connection drawing.
Confirm the required quantity separately from the reference configuration, and review the correct fuse specification and drive-specific checks before return to use. Isolate the power sources and address stored capacitor energy under the applicable manufacturer procedure. This page is a parts-identification reference, not an energized test or board-level repair instruction.
Features:
- Exact pulse amplifier variant and drive parts-list match
- Connector and component-layout comparison
- Quantity, protection and safe acceptance checks
A pulse amplifier is not interchangeable with a SAFT power-supply or chopper-control board. Verify the exact board identity and drive-specific connections before return to use.
ABB SAFT123PAC Drive Pulse Amplifier Board Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Features:
- Exact-model data for SAFT123PAC
- Drive reference and original board identification
- Stromberg and ABB product directories
Documentation for SAFT123PAC must match the complete installed product identity, the documented SAFT configuration and the supplied pulse amplifier board before service.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Reference size32.4 × 24 × 3.5 cm
-
Reference weight1.12 kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8504909000
-
OriginSweden
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about SAFT123PAC
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Does the 6.3 A, 250 V listing describe the SAFT123PAC supply?
No. The OEM miscellaneous-parts table places these values in the fuse-rating column for F1 and F2. The complete fuse specification is 6.3 A, 250 V, 5 x 20 mm. It does not establish the board input voltage or continuous operating current. -
Which drive configuration identifies this pulse amplifier?
The 1352C renewal-parts reference identifies SAFT 123 PAC in the 730 kVA drive section. The 730 kVA figure belongs to that drive configuration, not to the individual board. Selection still requires the exact drive parts list rather than an assumed match to every SAFT-based drive. -
How many boards should a distributor include in a quotation?
The referenced 1352C 730 kVA configuration lists three cards used, while its Level 2 spare-parts recommendation lists one spare. Neither figure defines the quantity included in an individual sales listing. Quote the customer-requested quantity explicitly and distinguish one replacement board from a complete three-card set. -
Can SAFT122PAC replace SAFT123PAC because the names are similar?
The OEM reference associates SAFT 122 PAC with a different drive class and identifies SAFT 123 PAC separately as 3500-A23. These listings do not authorize a direct substitution. Compare the exact drive configuration and manufacturer parts reference before considering another pulse amplifier. -
Why is SAFT 111 POW not an alternative name for this board?
The 730 kVA parts list separates SAFT 111 POW as a power-supply card and SAFT 123 PAC as a pulse amplifier. They perform different roles in the same drive assembly. A distributor order should identify the full PAC designation instead of treating all SAFT cards as equivalent. -
Which connector details help maintenance compare the photographed assembly?
The product photographs show two three-row female sockets and three separated edge-contact groups. Compare all of those connection locations, their mechanical condition and the complete board marking. Matching connector appearance alone does not establish pin compatibility. -
Are the six capacitor markings a guaranteed rating for every supplied revision?
No. The pictured assembly has six large capacitors marked 6000 uF and 25 VDC. These are component-level observations from the original product photographs, not a universal board supply rating or a promise that every revision uses identical components. Verify the offered unit against the required assembly. -
What should be checked when the drive parts list differs from the board offered?
The renewal-parts introduction explains that design changes can alter part numbers and calls for comparison with the final test data inside the drive enclosure. Resolve that discrepancy before replacement. The full board designation and drive-specific record take priority over a generic catalogue description.
