PRODUCT DESCRIPTION

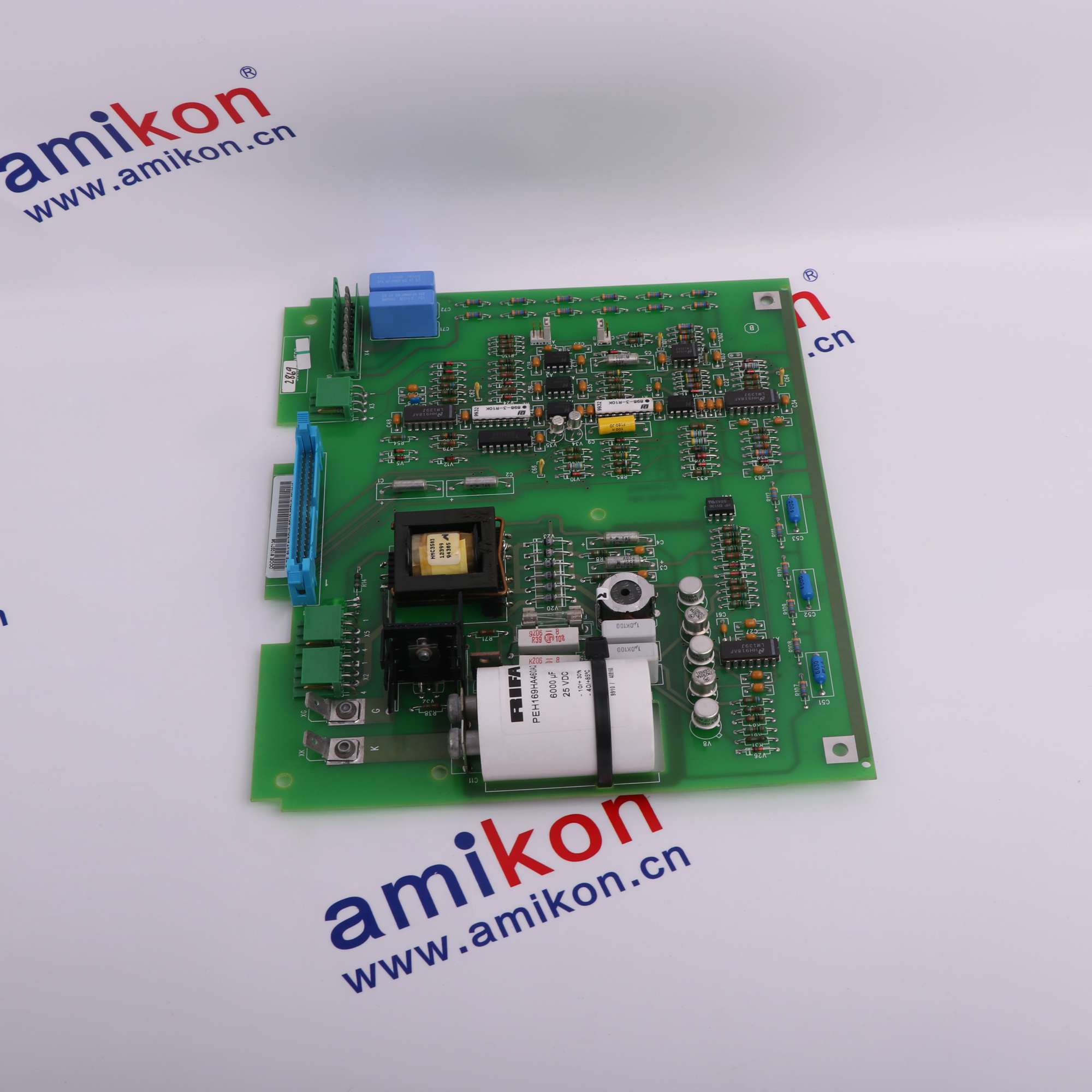

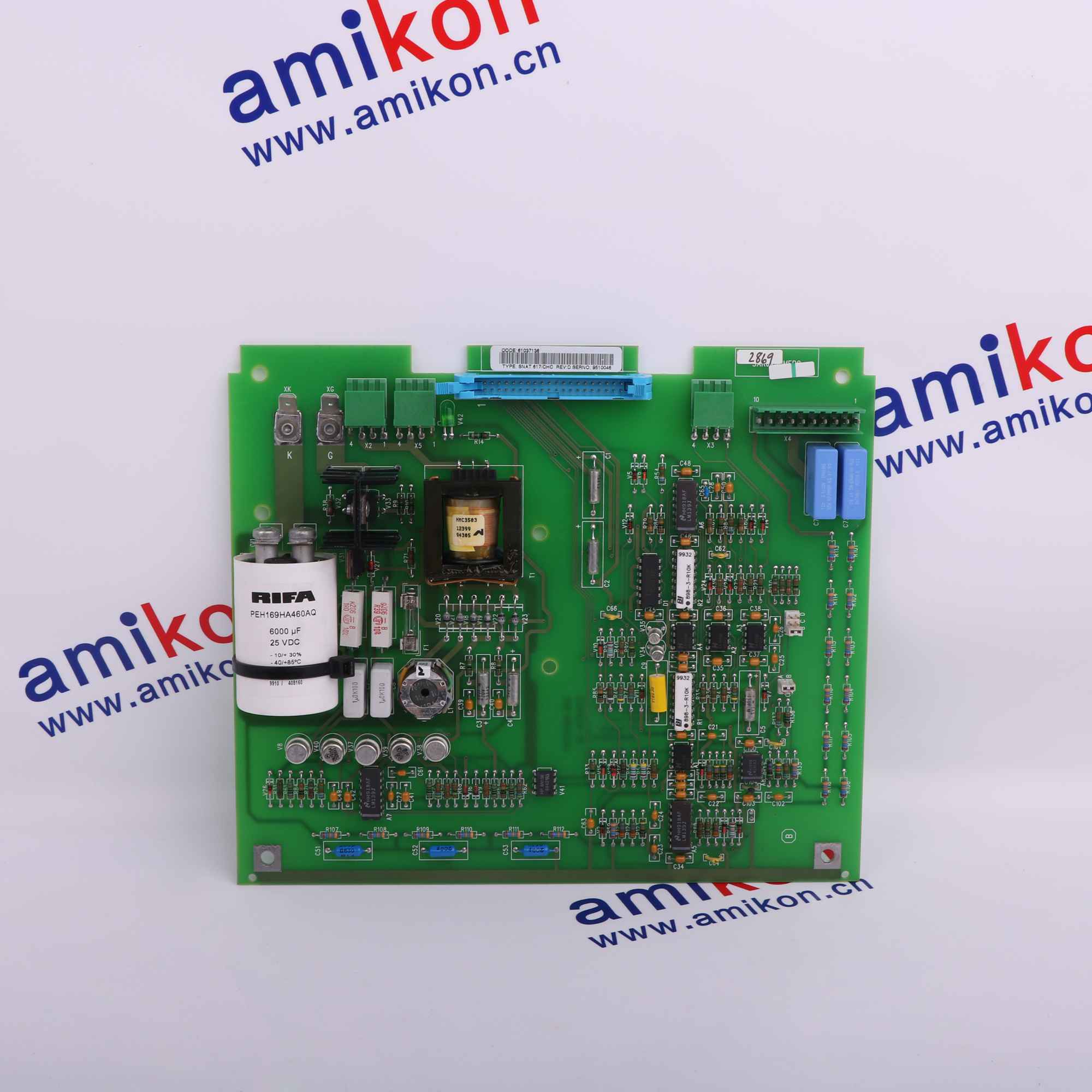

SNAT617CHC GTO Chopper Control Board
ABB identifies SNAT 617 CHC as a chopper control board for documented GTO versions of the ACV 700 frequency converter. The hardware manual places the board in the converter control assembly and distinguishes it from the motor control and main circuit interface boards.
The ACV 700 board tables show that quantities depend on the inverter frame. Match the existing chopper board marking, frame and interface before replacing it; do not use the drive voltage class as a standalone rating for the board or assume suitability for IGBT versions.
The ACV 700 board tables show that quantities depend on the inverter frame. Match the existing chopper board marking, frame and interface before replacing it; do not use the drive voltage class as a standalone rating for the board or assume suitability for IGBT versions.
BEFORE YOU BUY
Confirm the complete GTO Chopper Control Board
ACTUAL APPLICATIONS
Relevant contexts for SNAT617CHC
These categories reflect documented ABB portfolio contexts, not proof of suitability for every installation. Exact-model selection remains subject to the approved configuration.
-
01 · PULP & PAPER
Pulp and Paper Power Distribution and Automation
Electrical energy distribution across pulp and paperElectrical automation across pulp and paper infrastructure -
02 · IRON & STEEL
Iron and Steel Energy and Automation
Electrical power for iron and steelAutomation across iron and steel -
03 · MARINE
Marine and Offshore Power and Automation
Electrical power across marine and offshoreAutomation within marine and offshore environments
Technical specifications for SNAT617CHC
-
Product ModelSNAT617CHC
-
Spare ModelSNAT 617 CHC,SNAT617CHC
-
Product ParametersGTO Chopper Control Board
-
In stock10 units
-
ManufacturerABB
-
Documented drive familyACV 700
-
Power-stage applicabilityGTO inverter configurations
-
Control assembly positionA7
-
Main circuit interfaceSNAT 607 MCI
-
Interface harness40-pole ribbon cable
-
Board quantity by frame1 or 2; GTO frame dependent
